Feature:

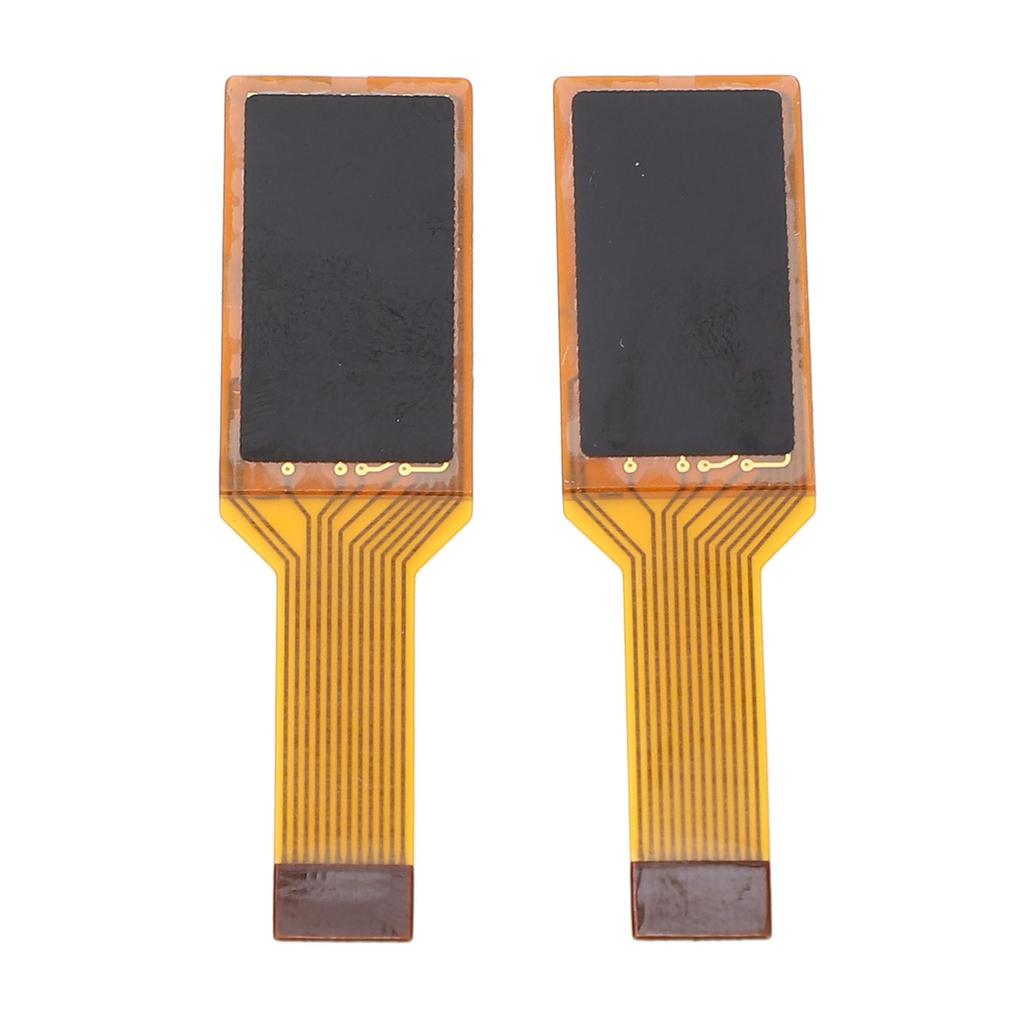

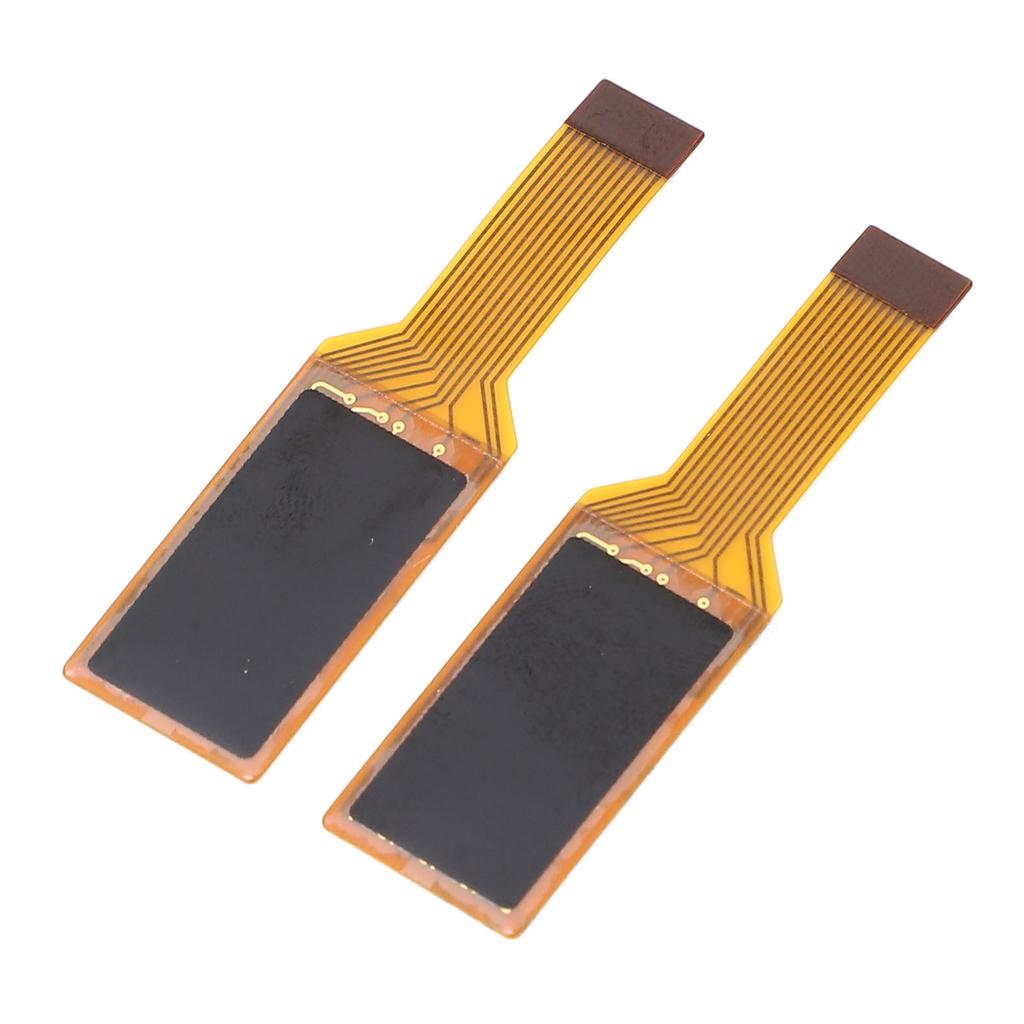

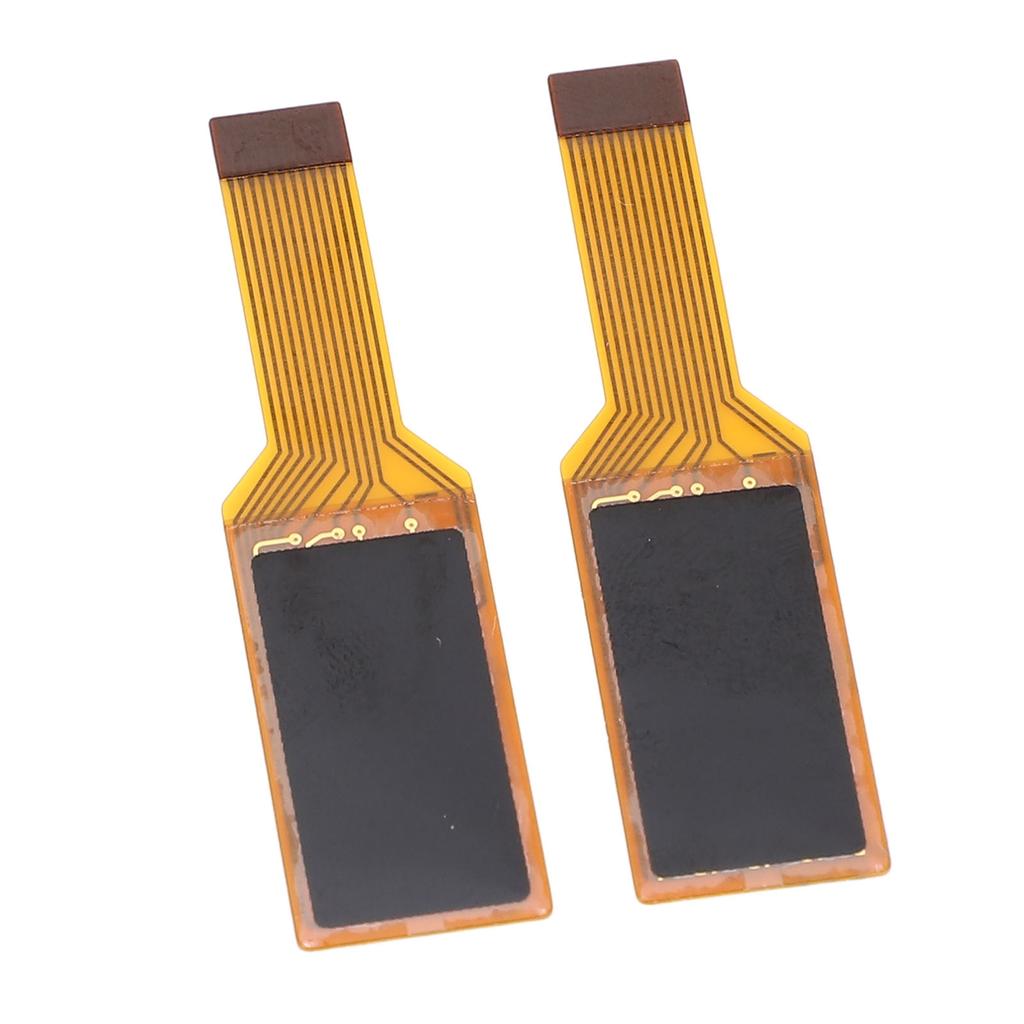

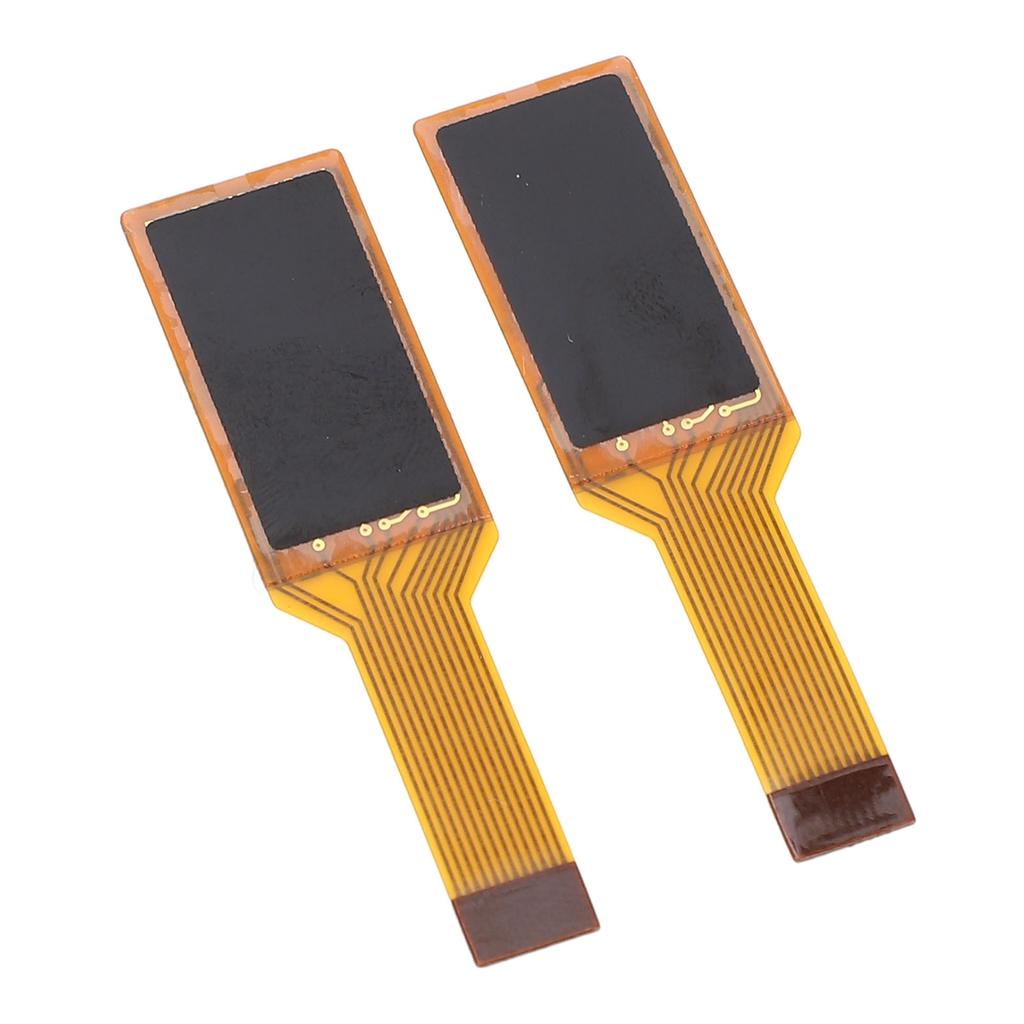

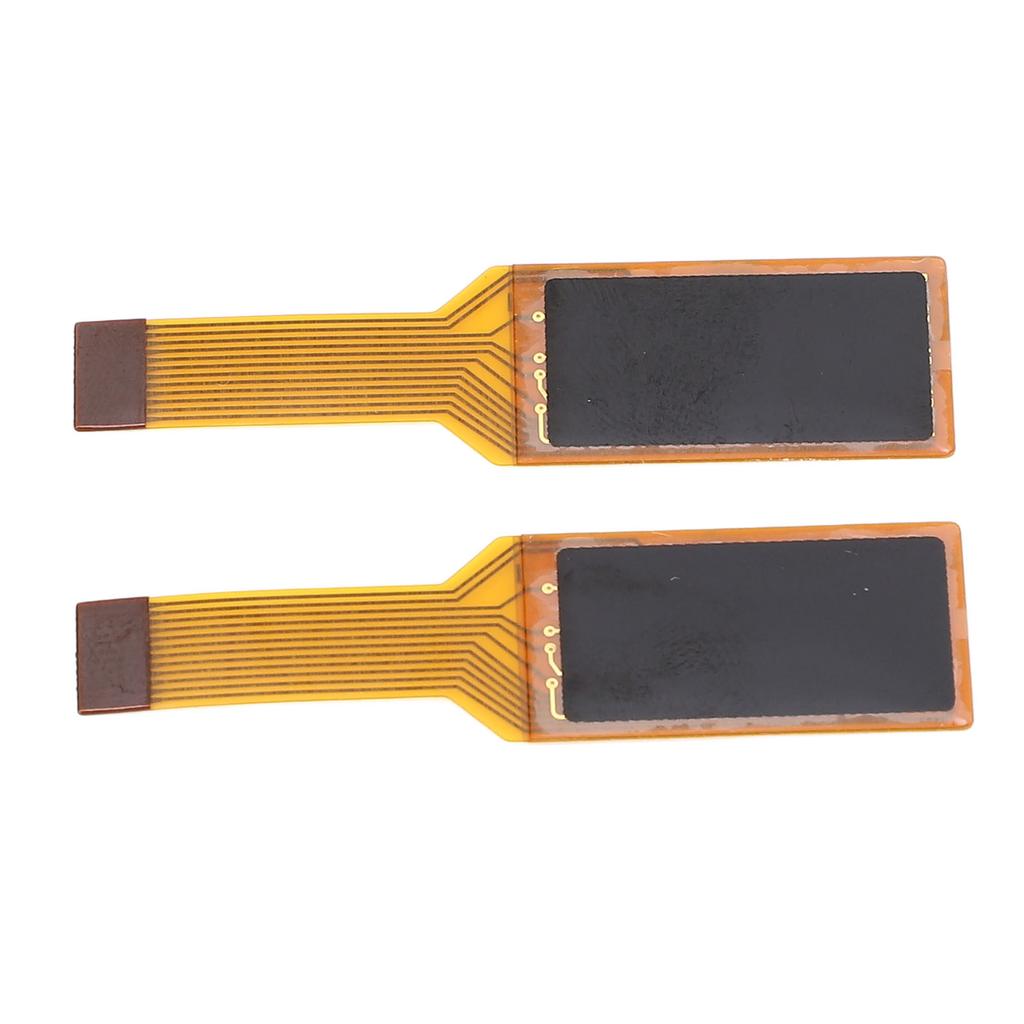

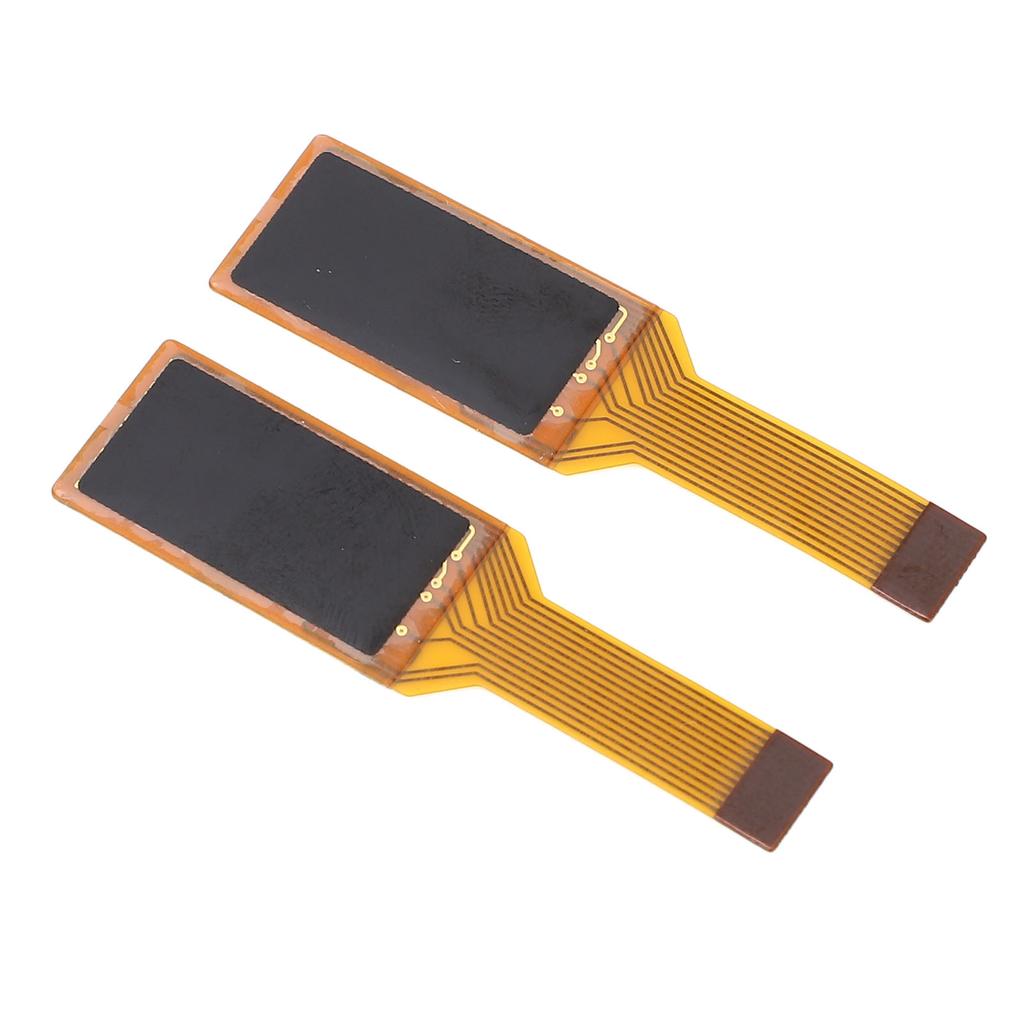

1. 32 ZONE: The pressure distribution sensor is a pressure sensor with 32 sensing points array, 8 horizontal and 4 longitudinal sensing points, each 2.5x2.5mm has an sensing point, the interval between the sensing points is 0.7mm, the resistor value of each sensing point decreases with the increase of the pressure on
2. INTERFACE INFORMATION: The interface of thin film pressure sensor adopts X+Y mode, total 12PIN, PITCH 0.5mm, stable and safe, you can use with confidence
3. PREVENT ELECTROMAGNETIC INTERFERENCE AND EDS: Pressure sensors are designed to be immune to electromagnetic interference and electrostatic discharge(EDS), ensuring accurate readings without interruption. Hysteresis remains within +10percent , showing minimal deviation at a 24 hour static load of 1Kg
4. APPLICABLE SCENARIO: Thin film pressure sensor force sensor is applicable to all kinds of electronic product assembly, pressure distribution measurement, multi point monitoring, writing area analysis, gesture analysis, local force analysis
5. TECHNICAL PARAMETERS: The pressure range of force sensitive resistor thin film pressure sensor is 20g 5kg, single induction point. Durability of more than 1 million times(1Kg flexible press)
Specification:
Item Type: Thin Film Pressure Sensor
Thickness: 0.3mm
Sensing Unit: Approx. 50 x 12mm 1.97 x 0.47in, 32 units
Trigger Force: 20g
Pressure Range: 20g 5kg, single sensing point
Resistor When Not Triggered: >20M Ohm
EMI And EDS Interference: None, insensitive
Response Time: <10us
Operating Temperature: 20 celsius +65 celsius
Durability: More than 1 million times(1Kg flexible press)
Repetition Accuracy: + 5percent at 1Kg, single
Drift Consistency: 10percent , 24H at 1Kg; 10percent , 24H at 1Kg
Time Stability: 10percent , 50percent load, 10H.
Package List:
2 x Thin Film Pressure Sensor
