Feature:

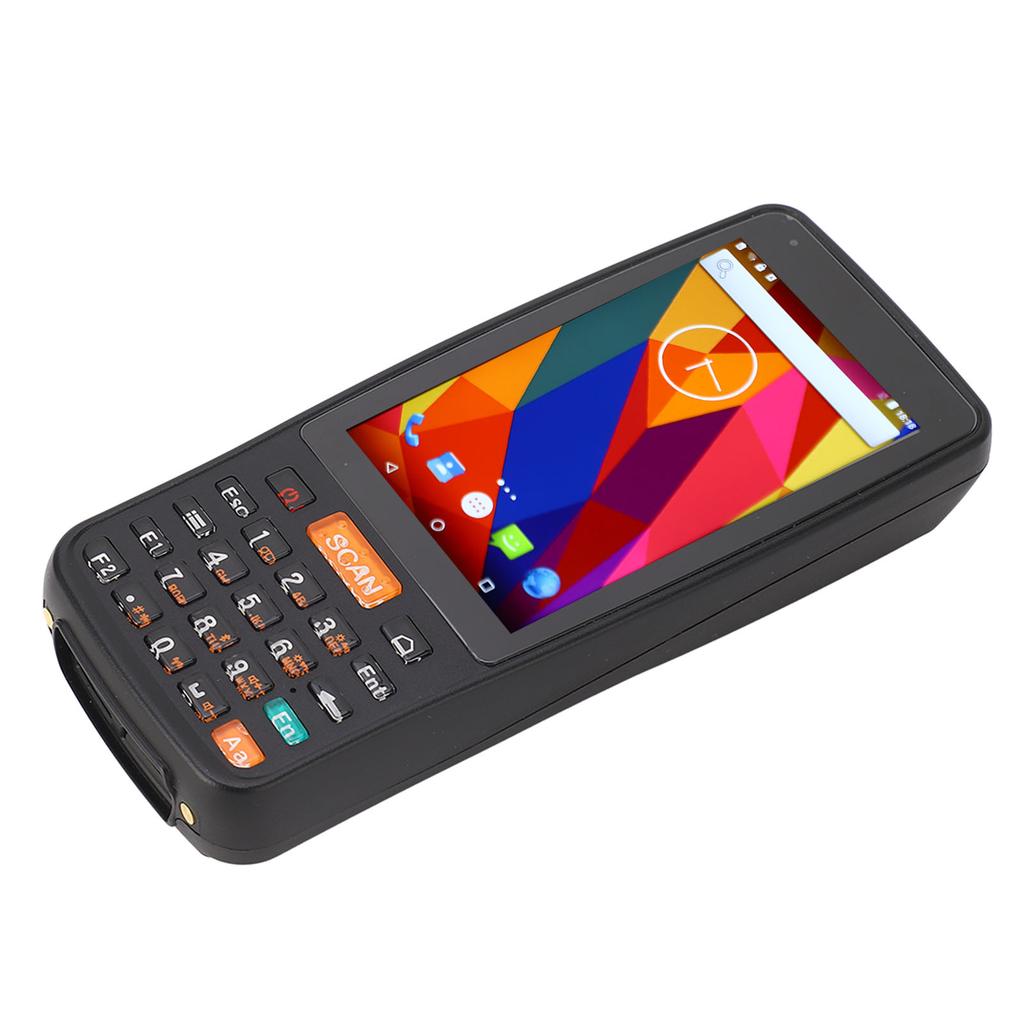

1. A Useful Scanner: The portable data collector is a portable handheld device tailored for enterprise managers and mobile workers, business applications, and IT needs, with lightweight durability, functionality, and flexibility.
2. Premium Design: Integrates NFC reading and writing, barcode scanning, support for 2G, 3G, 4G network communication, GPS positioning, 5MP camera, Bluetooth, WI FI, ID card recognition and other functions. It is an efficient data collection service that can be enjoyed by electronic regulatory, logistics and courier, hospital staff, retail management, warehouse management, and other industries, thereby simplifying tasks and improving work efficiency shorten response time and improve service level.
3. Excellent Hardware: Adopting high performance ARM for Cortex A 5364 bit quad core processor, basic for Android intelligent platform, high definition 4in IPS screen, and physical buttons that comply with artificial mechanics.
4. High Performance: 1D scanning meets the requirements of barcode scanning applications. The 2D imager can collect 1D and 2D barcodes, and you can also focus on a high resolution color camera to easily take photos of mobile terminal signatures and record damaged goods.
5. Reliable Work: The product adopts an ergonomic design that can meet the business needs of mobile workers. It also adopts the design of portability, aesthetics, compact and easy to use, waterproof and waterproof, durability, high accuracy, high speed, scalability.
Specification:
Item Type: Barcode Scanner
Voltage: 100 240V AC
Display Screen: 4.0in 800 x 480 high definition and bright IPS LCD screen.
Battery: 1 x rechargeable lithium polymer battery 4000mAh, shipped with built in battery.
Expansion Slots: 2 x SIM card slots, 2 x PSAM card slots, 1 x memory card slot, shipped without memory card.
Audio: Stereo Amplifier
Communication Interface: 1 x Micro USB, 1 x RS232, Type C.
Performance and Parameters:
CPU: ARM for Cortex A7 dual core at 1300MHz.
RAM: 1GB.
ROM: Standard 8GB Flash storage, memory card slot can support 64GB capacity expansion.
Usage Environment:
Working Temperature: 20 celsius to 50 celsius
Development Environment: For Android studio.
Wireless Communication:
WIFI: Supports IEEE802.11b g n protocol.
Mobile Data: Supports 4G, 3G, GPRS.
Bluetooth: Supports Bluetooth 4.0+EDR, with a transmission distance of 5 10 meters.
Barcode Collection:
1D Barcode Collection:
1D Barcode Scanning Engine: For Symbol SE955.
Supports 1D Barcode Types: For UPC EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete.
2D Barcode Collection:
2D Barcode Scanning Engine: CCD Image Recognition
Supports 2D Barcode Types: Data Matrix, QR Code, Aztec Code, PIDF417, US Planet, UK Postal, etc.
NFC and for RFID:
Working Frequency: 13.56MHz
Protocol Standards: ISO14443A B, ISO16593.
Label Type: For read and write mode NFC analog card, mutual copying, mutual transmission, card reading, etc.
Reading and Writing Distance: Within 2cm 0.79in (approx.).
GPS:
GPS Positioning: Low power GPS chip.
Encryption:
PSAM Card: Supports financial system level IC card encryption, provides operational APIs and instruction sets, and complies with the ISO7816 standard protocol. .

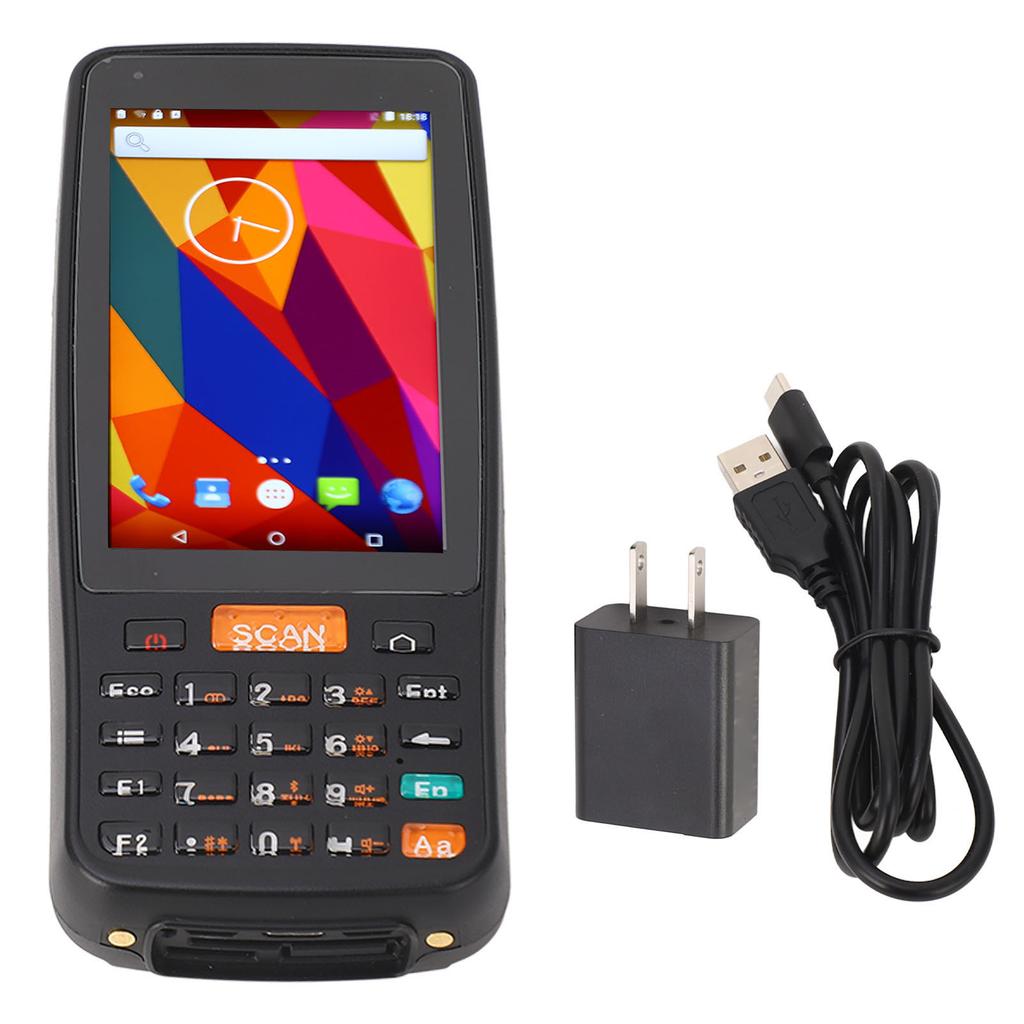

Package List:
1 x
Barcode Scanner1 x USB Cable1 x Plug1 x User Manual
