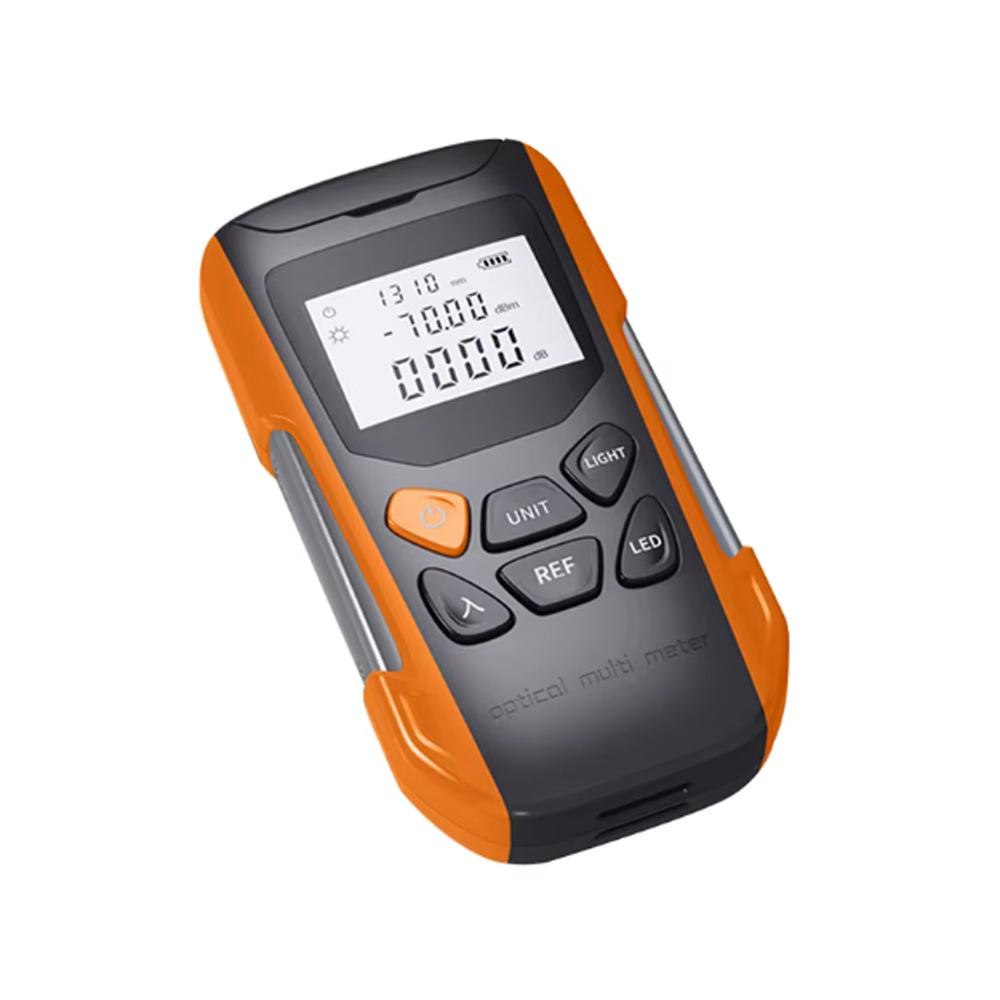

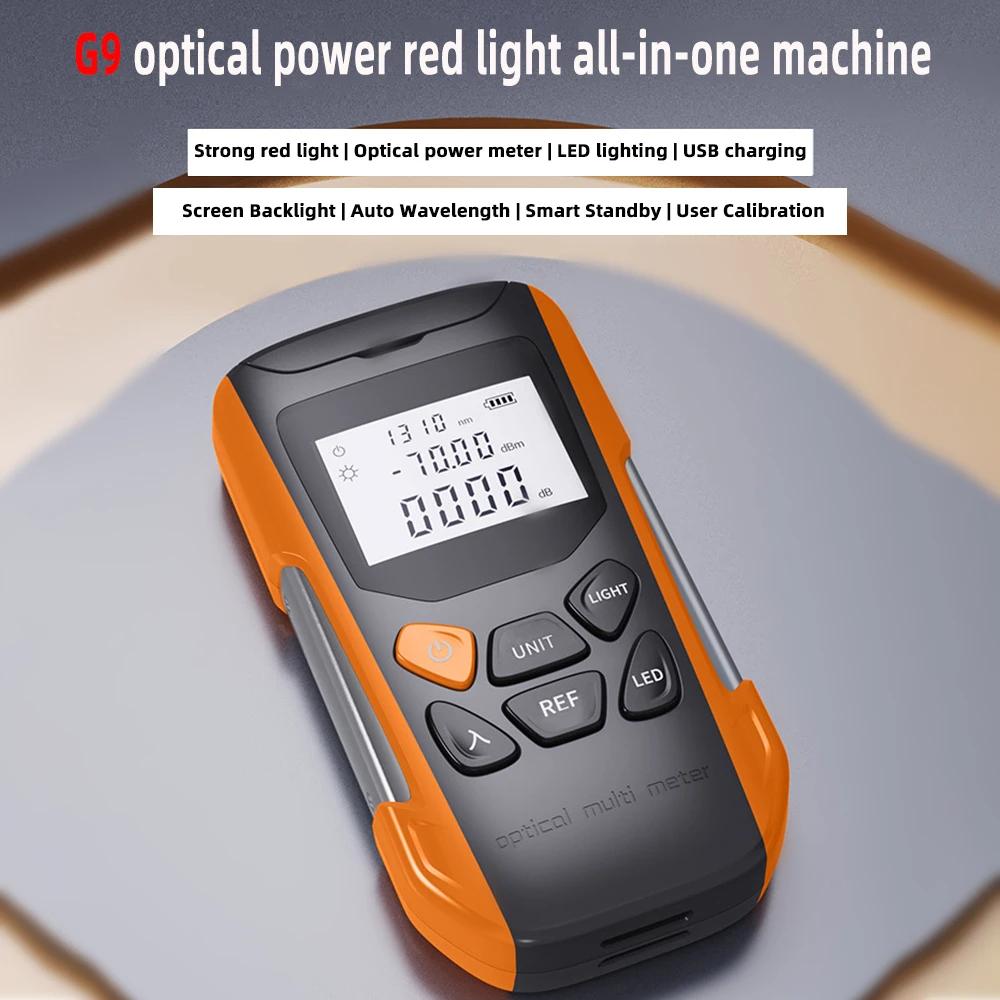

Multifunction Optical Power Meter G90 USB Charging Visual Fault Locator Fiber Optic Fiber Tester Professional Digital Multimeter

Battery Included : No High-concerned chemical : None Origin : Mainland China

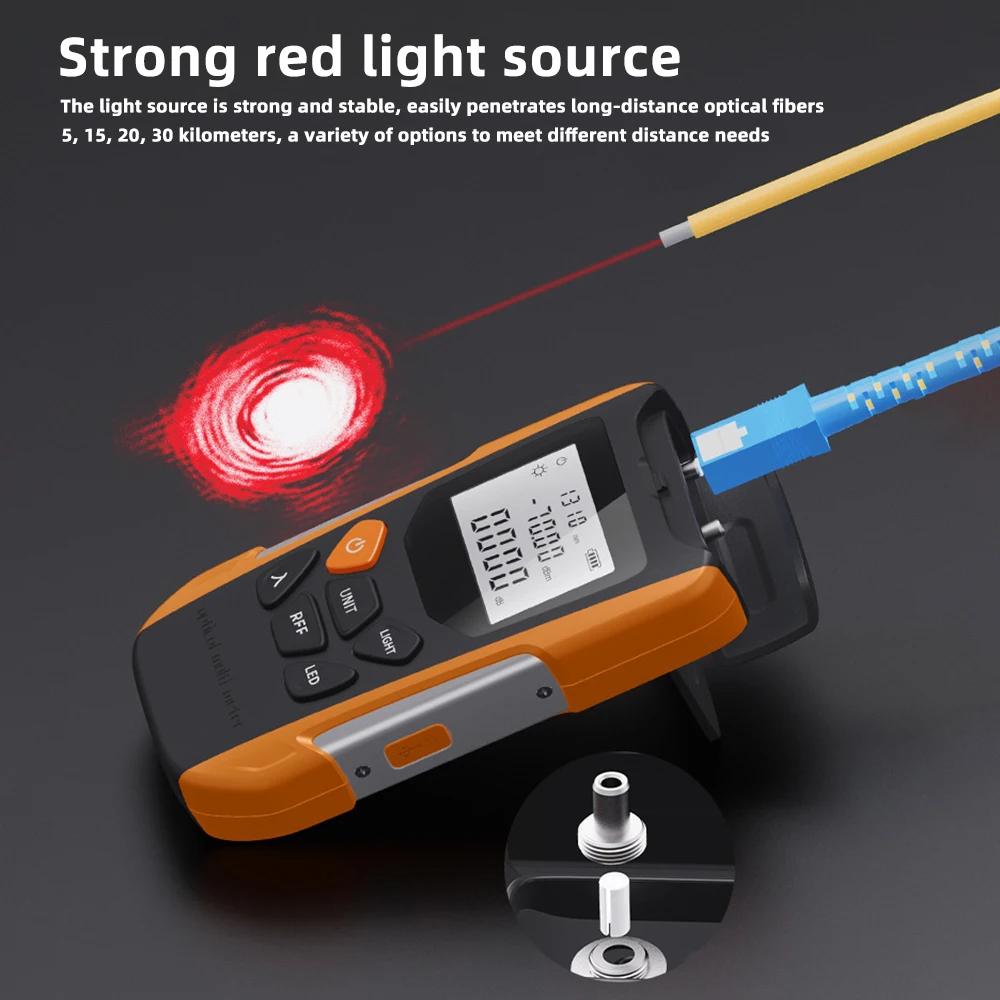

Multifunction Optical Power Meter G90 USB Charging Visual Fault Locator Fiber Optic Fiber Tester Professional Digital Multimeter -Powerful red light source, easily penetrate long-distance optical fibers. 5, 15, 20, 30 kilometers, a variety of options to meet your needs for different distances.

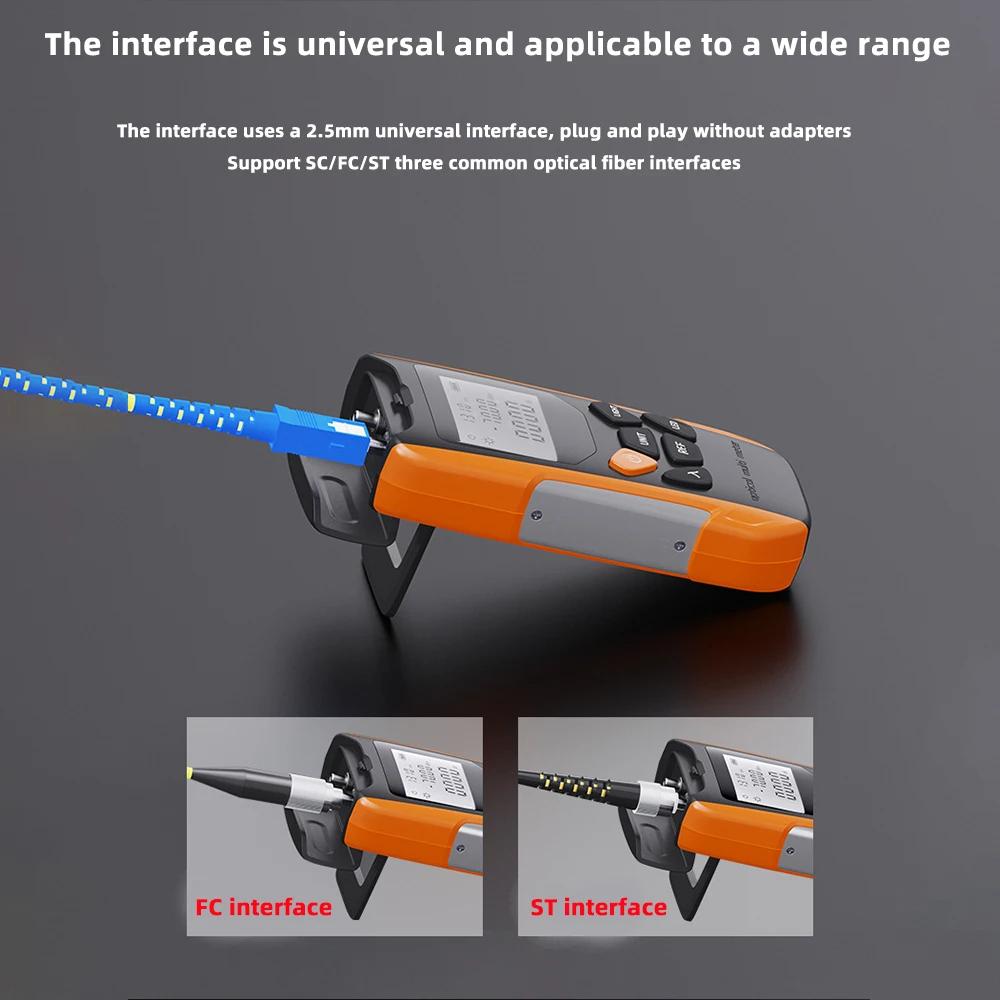

-The interface uses a 2.5mm universal interface, which has wide applicability, plug and play, and no need for adapters. Support SC/FC/ST three common optical fiber interfaces.

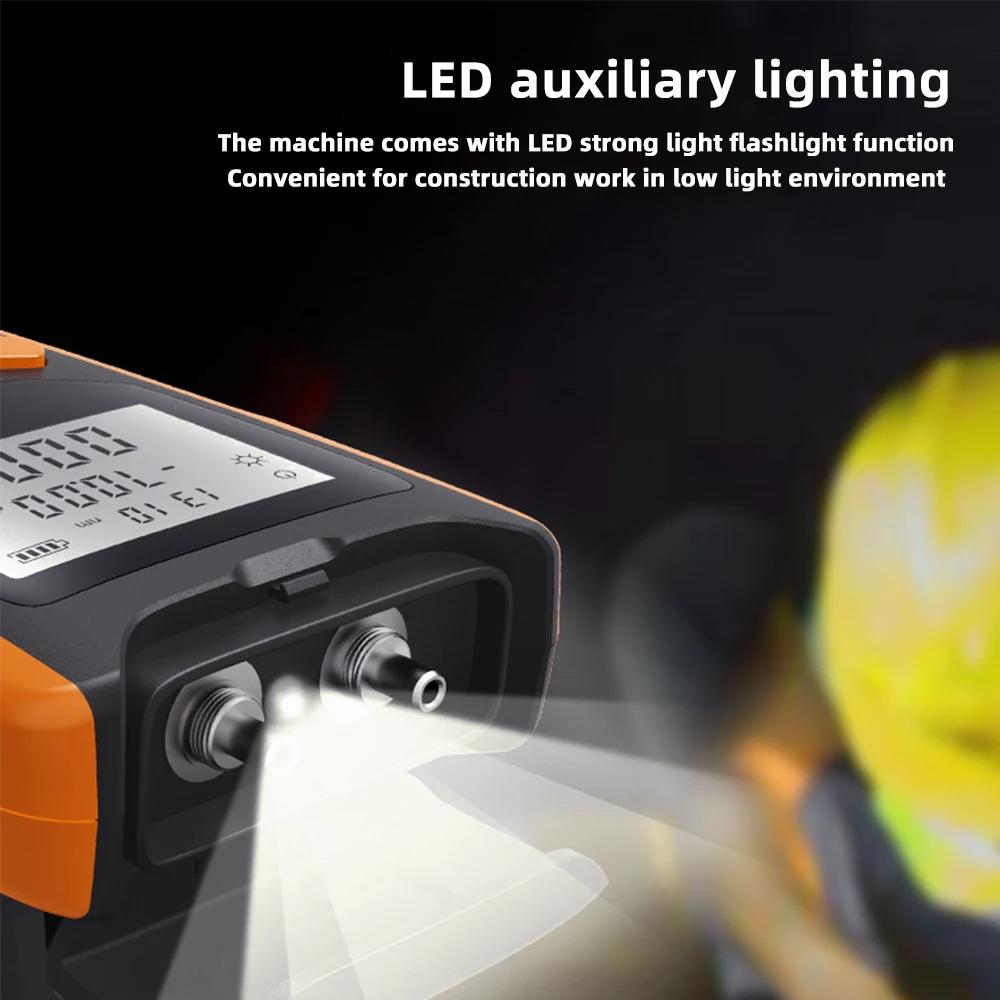

-Automatic LED strong light flashlight function, escort you in the dark working environment.

-Dual power supply mode, you can choose to use 3 AA dry batteries or lithium batteries for power supply (not included in the product, you need to buy it yourself), or you can choose to use the USB interface to connect to an external power supply for direct power supply.

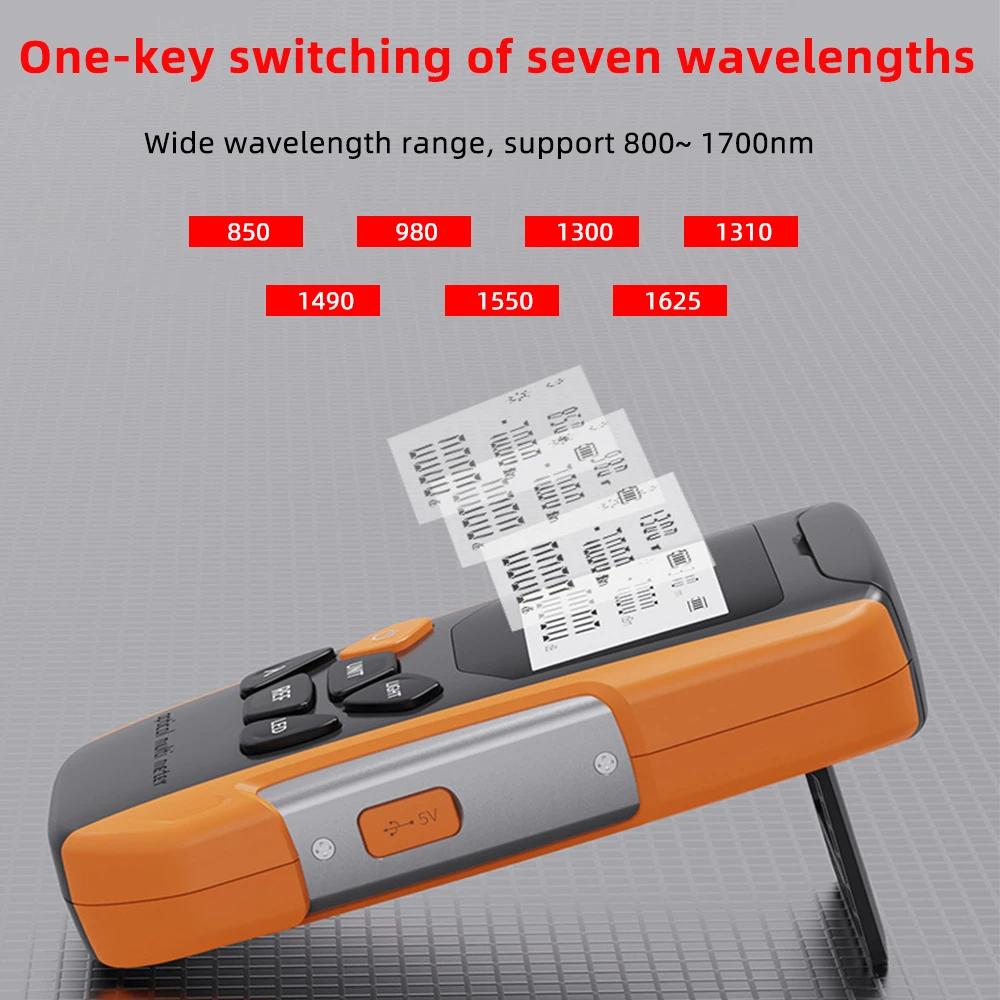

-Wide wavelength range, support 800-1700nm, seven wavelengths can be switched with one key. Specification: Wavelength range:800~1700

Type of Detector:InGaAs

Power measurement range:-70~+6 or -50~+26

Uncertainty:5%

Standard wavelength(nm):

850\980\1300\1310\1490\1550\1625

Display resolution:

Linear indication:0.1%

Logarithmic indication:0.01dBm

Workingw avelength of red light(nm):650

Red power:1MW,5MW,10MW,20MW,30MW( Selectiveconfig uration)

Frequencyidentifi cation(HZ):270,1000,2000

Save the number of data(pcs):20

Input voltage(V):3~6

working temperature(℃):-10～+60

Storage temperature(℃)：-25～+70

Auto off time (min):10

Battery Working Time (h):≥48

lnstrumentsize (mm):142*76*30
