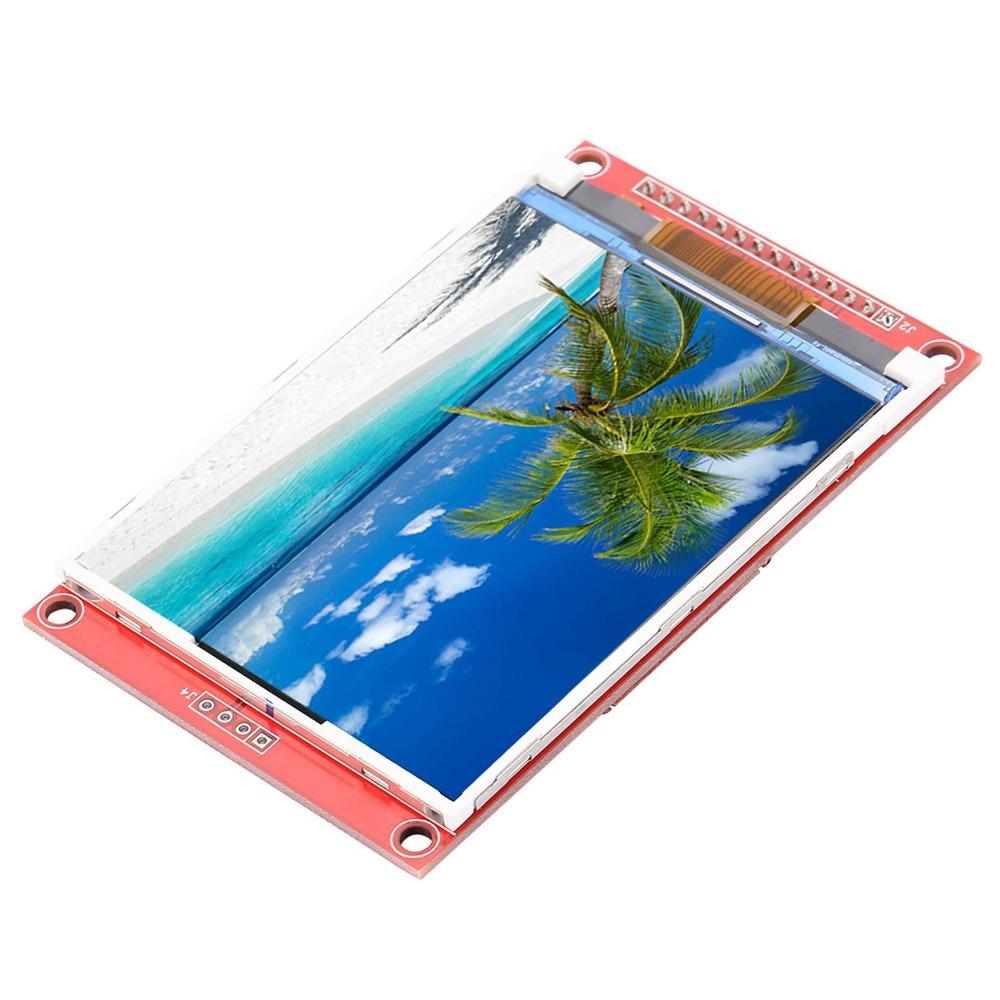

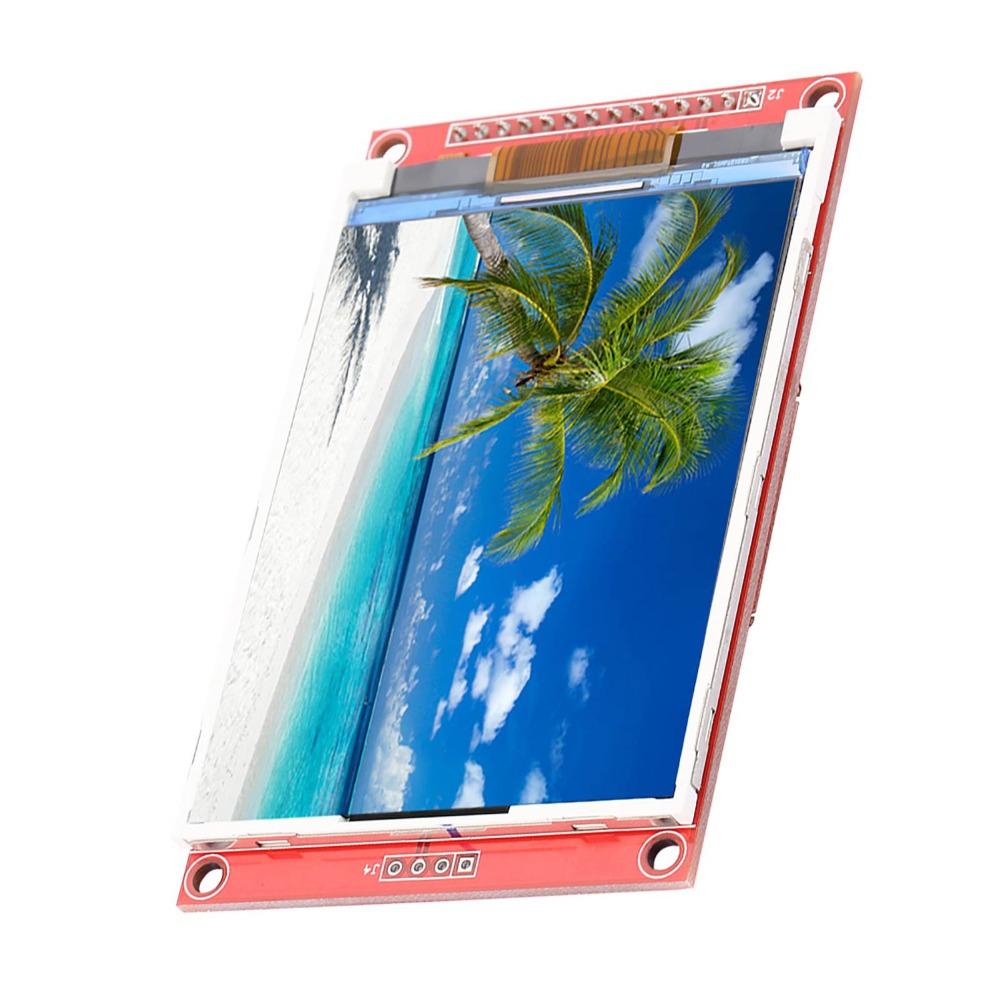

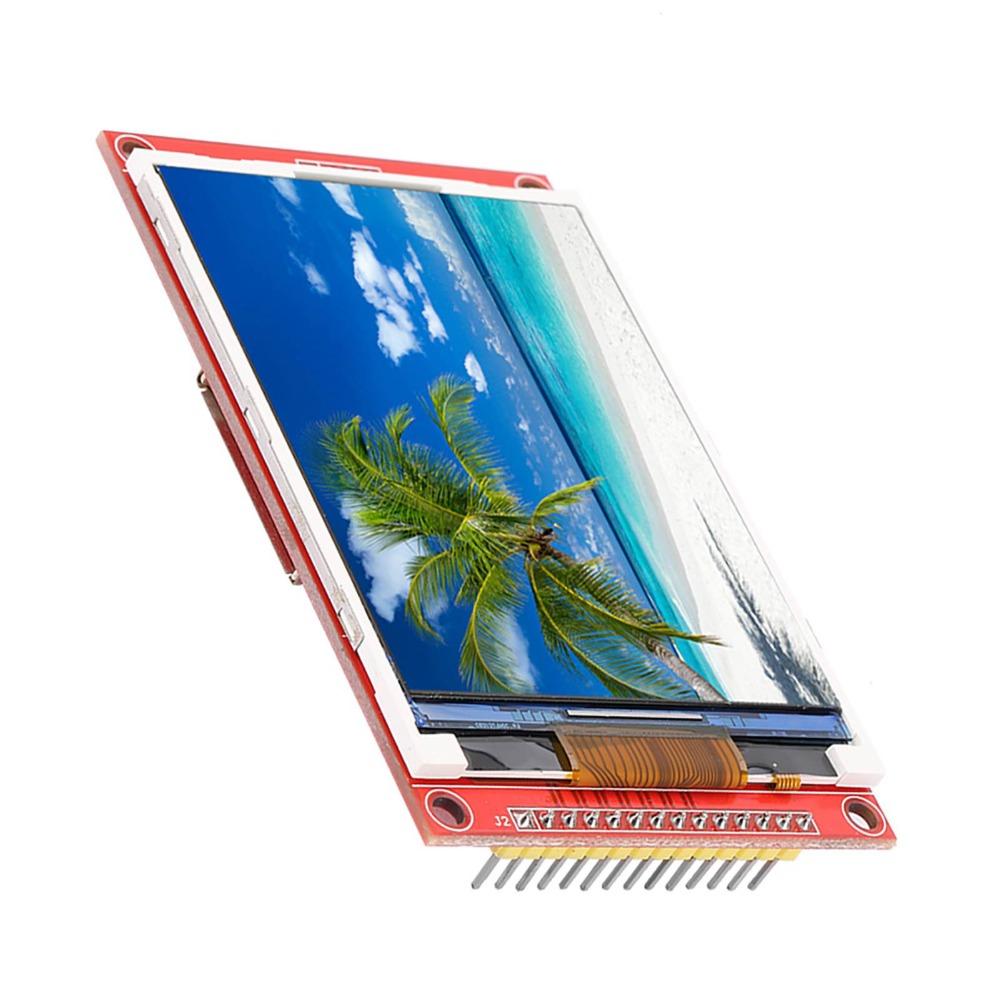

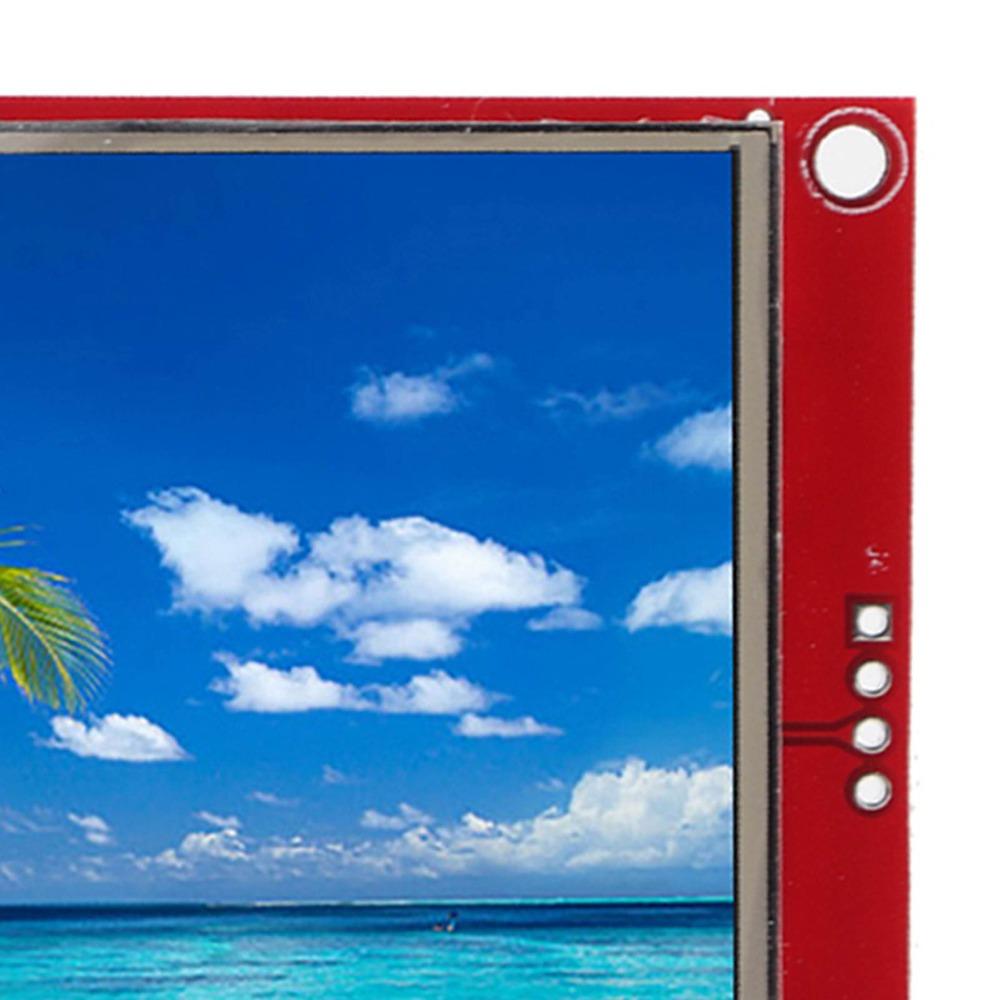

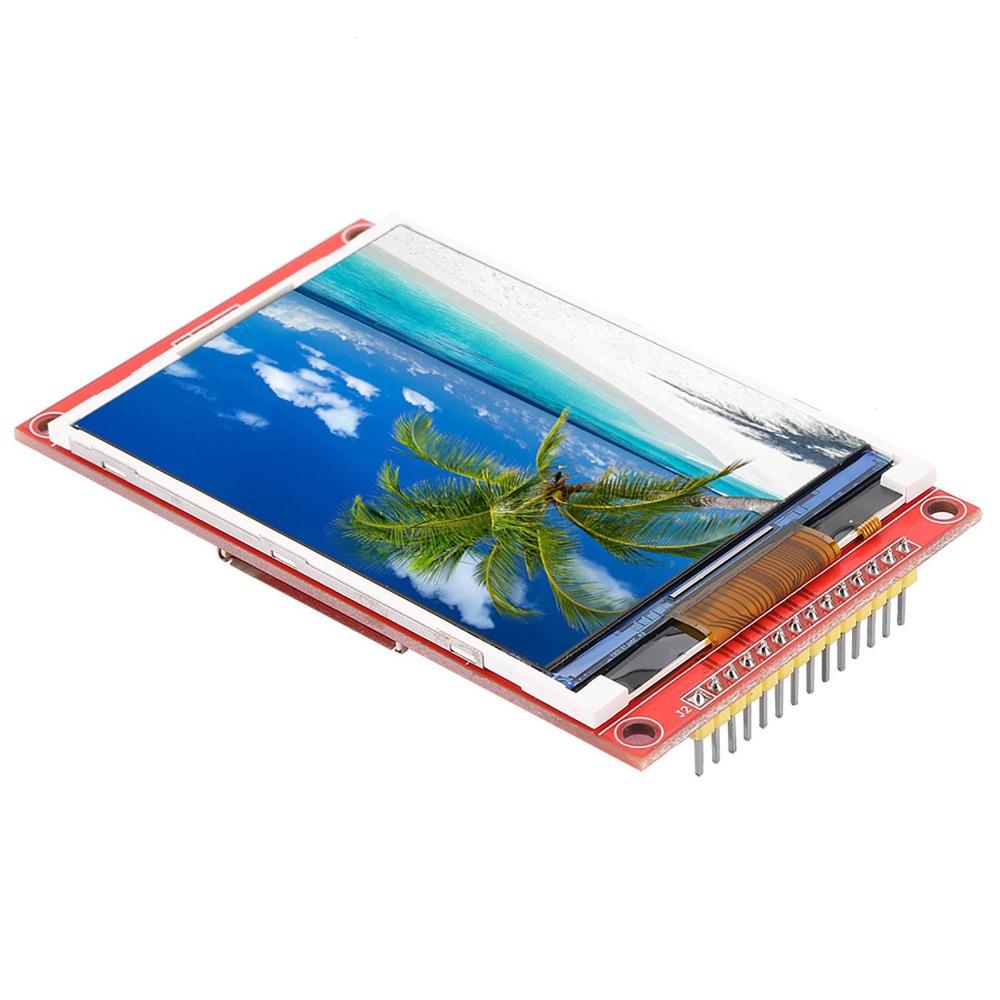

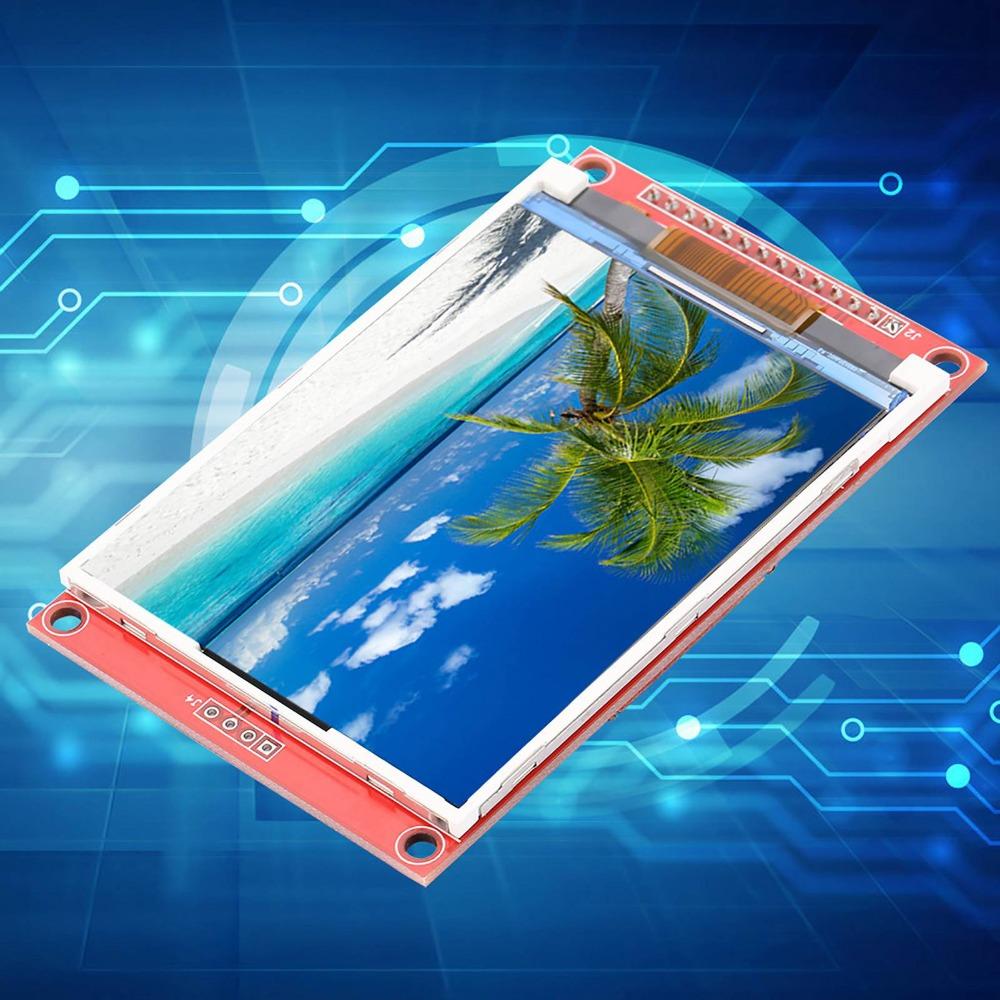

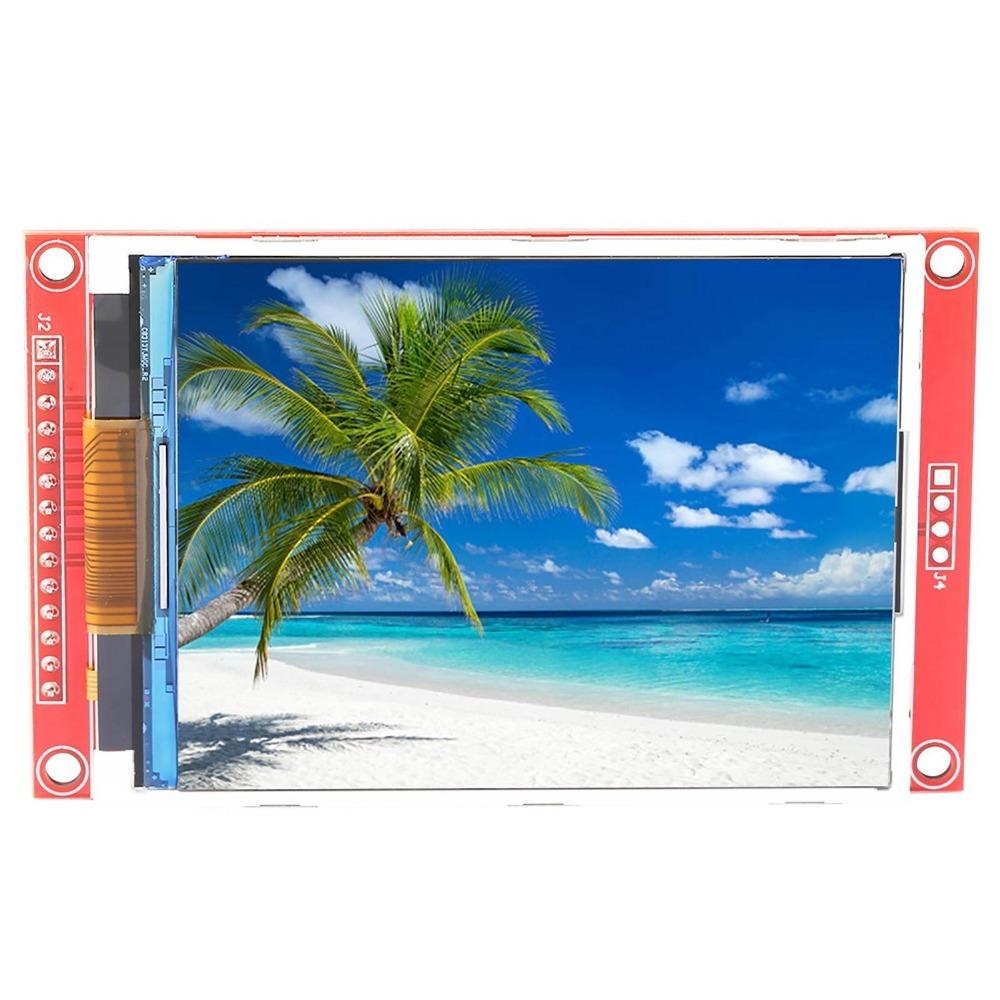

3.2 Inch LCD TFT Display Module 240*320 Resolution LCD Controller Board Kit Embedded Systems

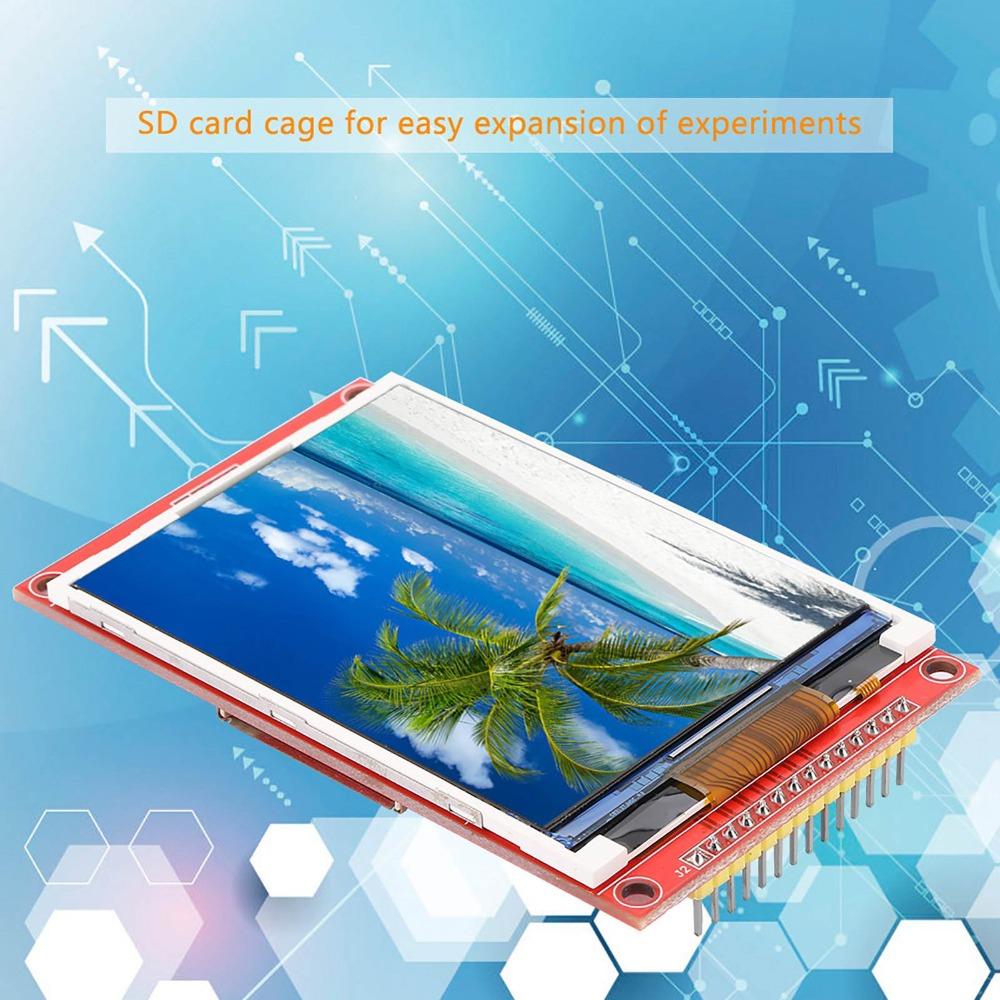

Label:Yes Using Serial Peripheral Interface serial bus, it only needs a few IO to lighten the display. Memory card card cage for easy expansion of experiments. 320X240 HD resolution, with touch function. 3.2 inch color screen, support 65K color display, and the display is colorful. Provides a rich sample program, long - term stable work.

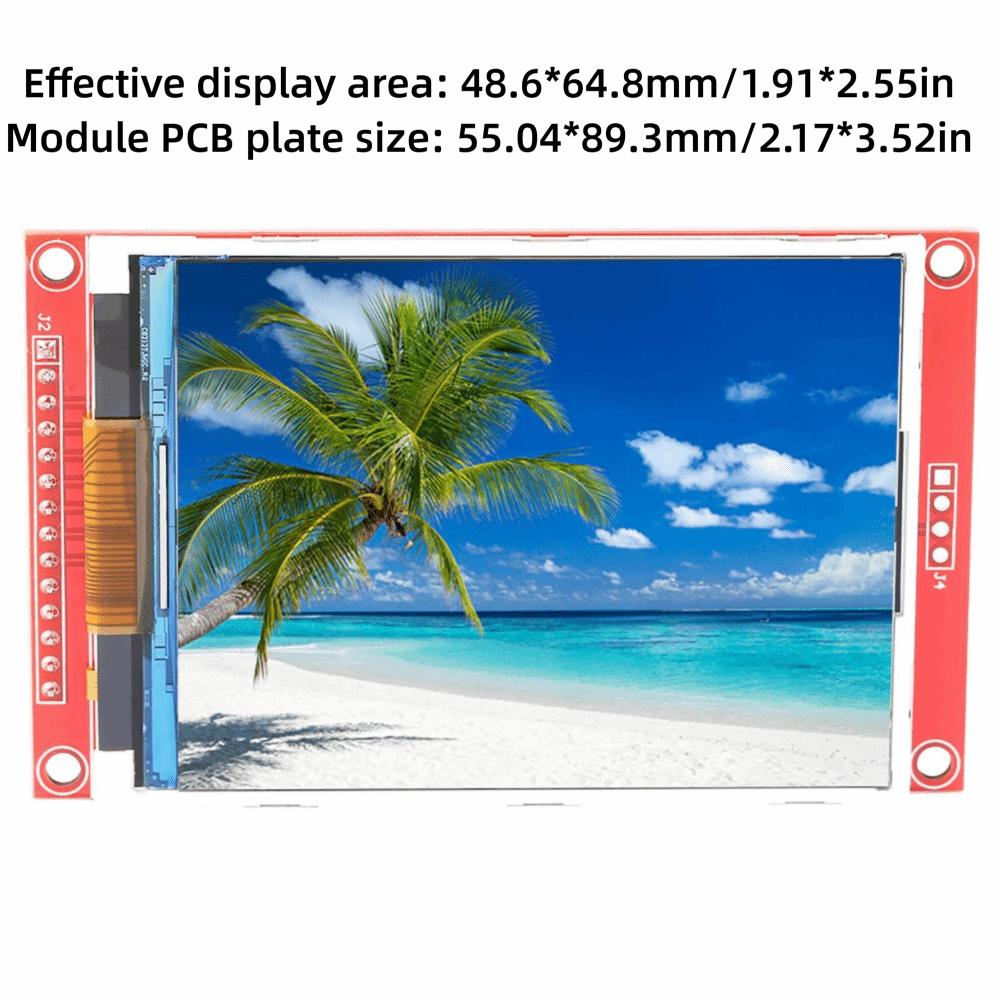

Specification: Size: 3.2 inch Driver chip: ILI9341 Resolution: 320*240 (Pixel) Module interface: 4-wire SPI interface Effective display area: 48.6*64.8mm/1.91*2.55in Module PCB plate size: 55.04*89.3mm/2.17*3.52in Color: Red VCC power supply voltage: 3.3V~5V Logic I/O port voltage: 3.3V (TTL) The power consumption: Approx. 90mA Weight: Approx.42g/1.5oz

Interface definition: VCC: Power input (3.3V-5V) GND: Power Ground CS: LCD Chip Selection RESET: LCD reset DC: LCD Bus instruction/data selection SDI(MOSI): LCD SPI Displays bus data input SCK: LCD SPI Displays bus clock signal LED: LCD Backlight control (high level lighting) SDO(MISO): LCD SPI Displays bus data output T_CLK: Touch panel SPI bus clock signal T_CS: Touch panel SPI bus Chip Selection T_DIN: Touch panel SPI bus data input T_DO: Touch panel SPI bus data output T_IRQ: Touch panel interrupts IRQ signal

Package list: 1 x LCD Display Module
