High Definition Video Converter is a professional game converter that supports all games.
It can convert CGA/EGA/VGA/YUV component input signal to HD monitor (CRT monitor LCD monitor PDP monitor) with VGA interface (VGA video signal), and can automatically scan CGA/EGA/YUV signal, VGA output signal.
Supports CGA/EGA/VGA/YUV component signal input. Automatically scans CGA/EGA/VGA signals (15KHz, 24KHz, 31KHz). Supports VGA output (640x480, 800x600, 1024x768, 1360x768).
True digital 24-bit A/D converter for true 16.7 million color conversion. Supports image position control and image zoom control. On-screen display (English and Chinese). To change the language, press the Menu button, select "Language," and choose your desired language.
Supports all types of VGA monitors (CRT, LCD, PDP, projector, etc.).
Converts CGA/EGA/VGA/YUV component input signals to VGA video signals
CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz).
On-screen display (English and Chinese).
True digital 24-bit A/D converter for true 16.7 million color conversion
Input power: DC 5V +/-0.5V(2A) P7 or P9
Input Signal:
CGA/EGA: 14.5kHz to 16.5kHz/23.5 to 25.5kHz/30.5 to 32.5kHz (Auto Scan) P3 or P11 or P10
RGBHV: 30.5 to 32.5 kHz (auto scan) P10 or P11
VGA: 30.5 to 32.5 kHz (auto scan) P10 or P11
Ypbpr: 480p, 576p, 720p, 1080p (auto scan) P2
Ycbcr: 480i, 576i, 720i, 1080i (auto scan) P2
User Controls:
Input switch, image zoom, input zoom, image position, output resolution, R/G/B adjustment gain, menu key R/G/B VR
Color: Green
Material: Fiberglass panel
Main item size: 11.8 * 10.8 * 1.4 cm / 4.65 * 4.25 * 0.55 in
Menu Control:
"Menu" - Opens and enters the menu.
"Up" Up and increase.
"Down/Auto" Down and reduce.
Press this key: Auto scan CGA/EGA signal
Press and release the key for 5 seconds: Reset the system (This operation is invalid when the O menu is open.)
"SW" Switch input signal Ypbpr/Rgbs/Rgbhv (This operation is invalid when the O menu is opened.)
"Clamp sp"&"Clamp"Do not adjust this button, other than the monitor which has black item or image discoloration.
Package List:

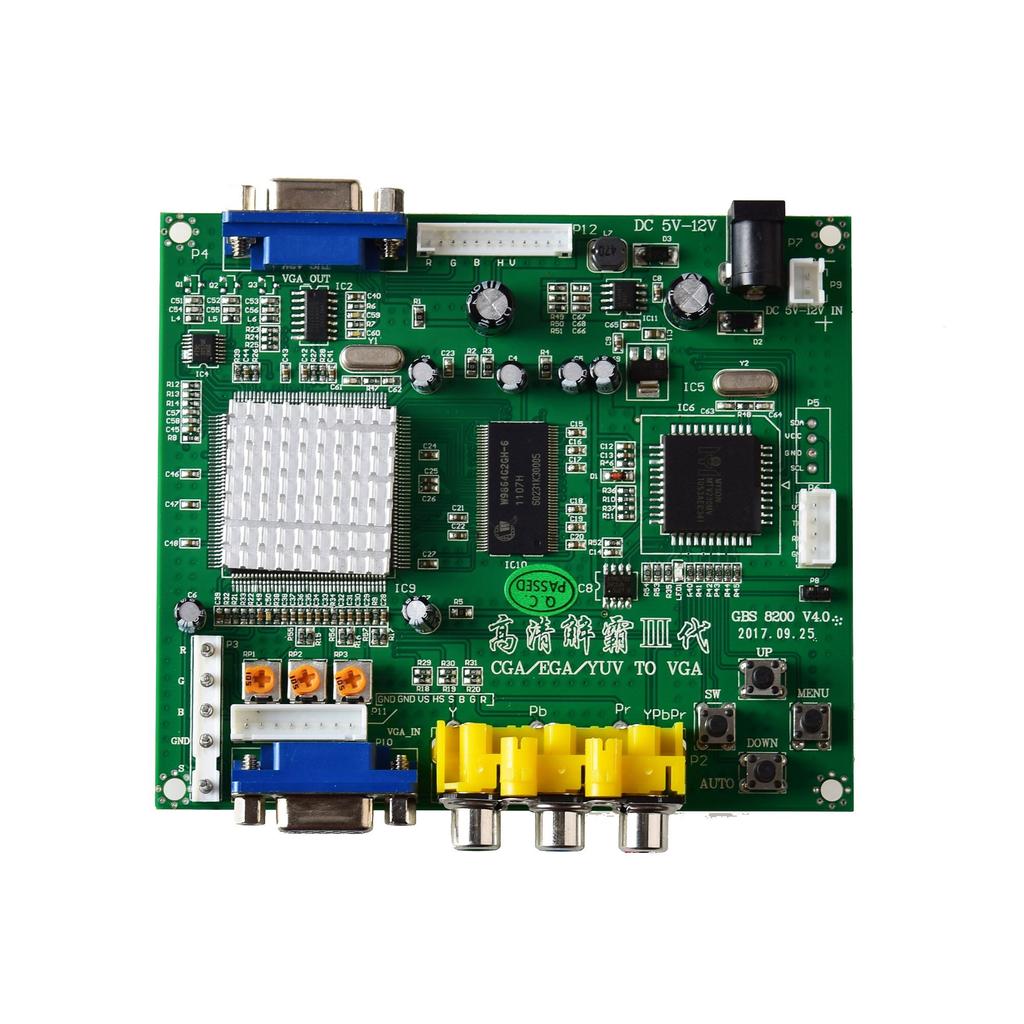

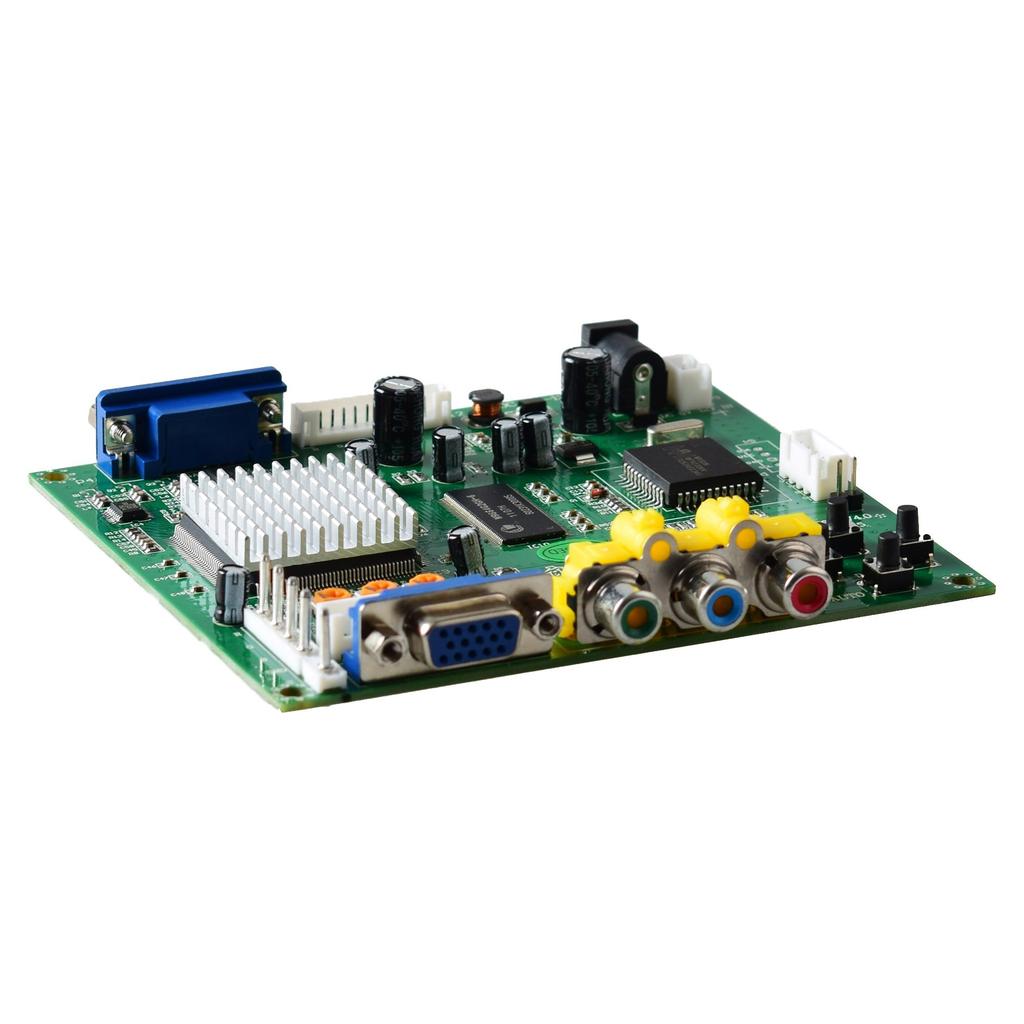

1x CGA/EGA/RGB to VGA Gaming Video Converter Board
1x 6-pin signal line
1x 2-pin power wire
Note: Due to lighting and display differences, the actual color of the item may differ slightly from the color and size shown on the website. The measurement tolerance is 1-3cm.
