2.8-inch IPS full-view color screen oscilloscope multimeter: trigger function auto/normal/single, ±400V input, automatic measurement scan, 200mv/div-10v/div vertical sensitivity, 1.5Sa/s - 48MSa/s horizontal scan range, 20ppm time base accuracy digital oscilloscope.
[Oscilloscope Mode] Single-channel handheld oscilloscope. 10MHz bandwidth, 48MSa/s real-time sampling rate. 64Kb recording depth. Maximum measurement voltage of ±400V. Automatic waveform measurement function, Auto/Normal/Single trigger function. Vertical sensitivity: 20mV/div - 10V/div. Supports saving and exporting waveform images.
Multimeter Mode: 9,999 counts, AC voltage: 0-999.9V, DC voltage: 0-999.9V, AC current: 0-750.0A, DC current: 0-9.999A, resistance: 0-99.99MΩ, capacitance: 0-9.999mF, temperature measurement: (-20-1000)℃/(-4-1832)℉, frequency: 0-999.9kHz, diode and continuity measurement. An ideal versatile instrument for professionals, factories, schools, hobbyists, and homes.

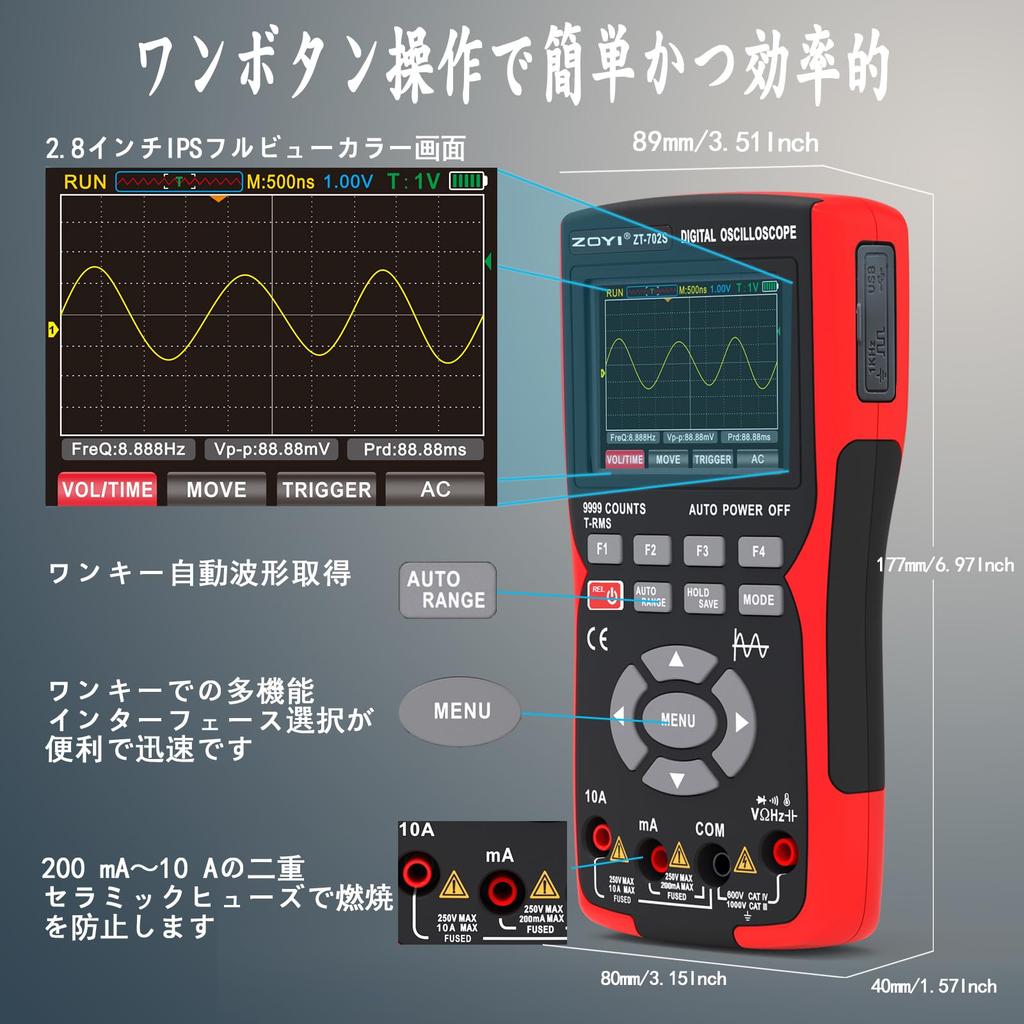

【Excellent Design】Double-injection molded ABS and TPE reinforced construction provides excellent impact resistance and durability. 2.8-inch IPS display with large font design makes data easy to read, and adjustable brightness allows for various measurements even in complex environments.

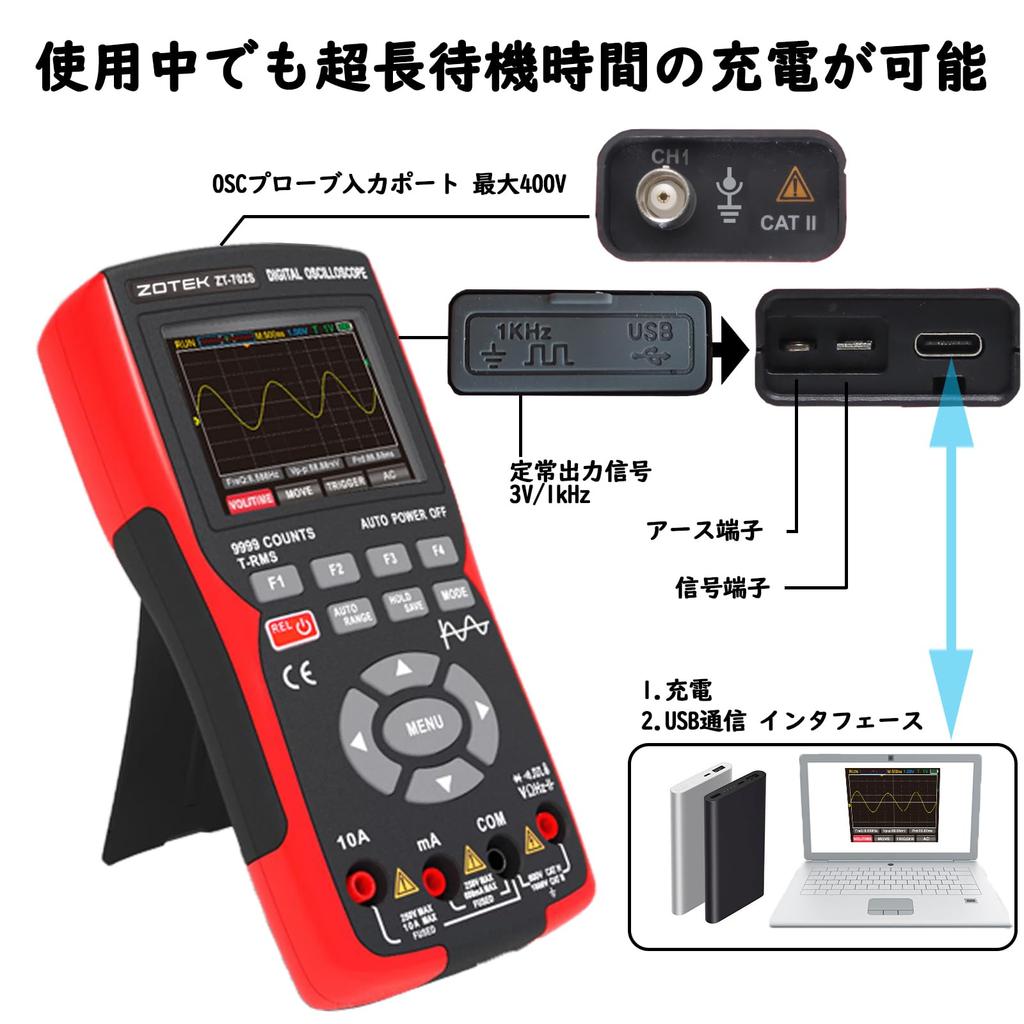

[Multi-function] Built-in 2,000mAh rechargeable lithium-ion battery, charging and data transfer are shared via TP-C interface, allowing use while charging. Intelligent anti-burnout function, switchable between automatic and manual measurement. Automatic shutdown function. Adjustable Chinese and English display. Low warning. Supports transmission waveform storage and display on PC.

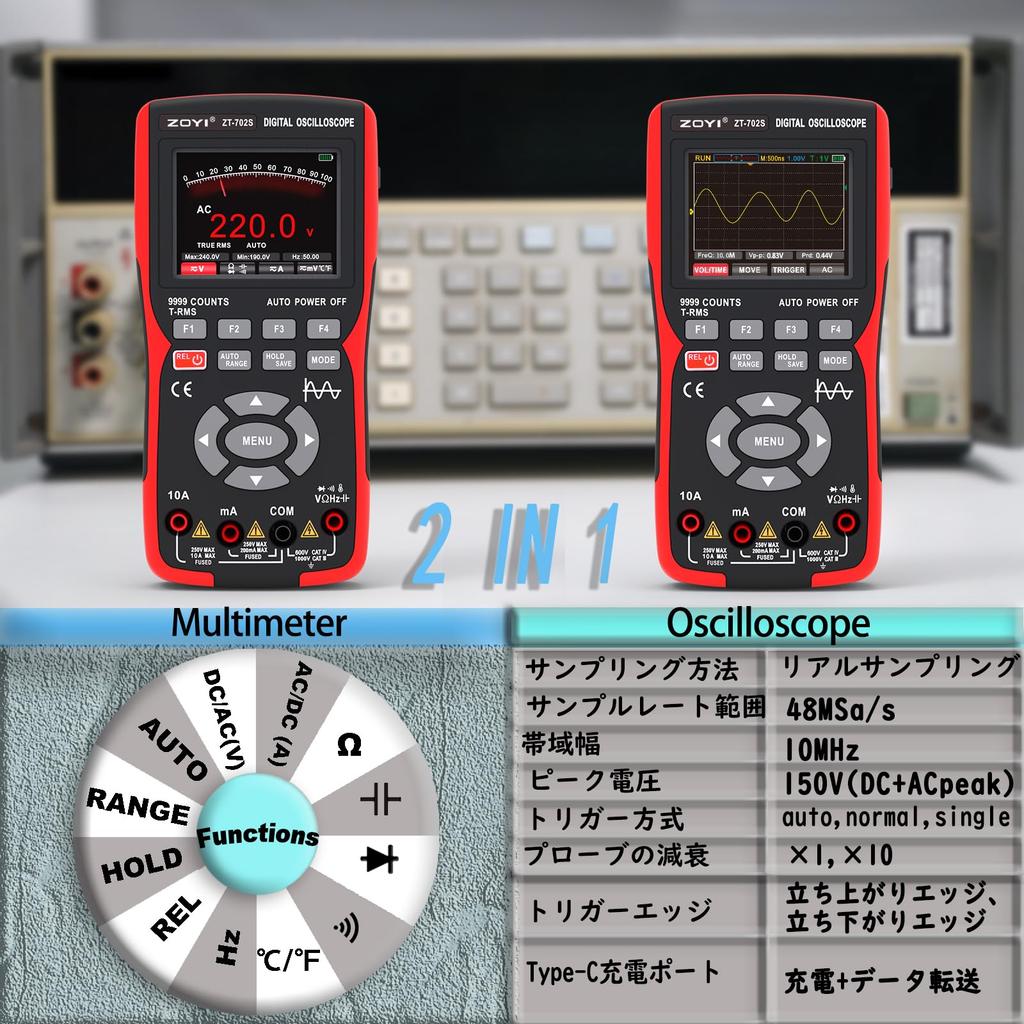

The ZOYI 702S is a single-channel handheld unit that combines the functions of an oscilloscope and a multimeter. It features a 2.8-inch IPS display, 10MHz bandwidth, a high-speed real-time sampling rate of 48MSa/s, ±400V input capability, 9,999 counts, and 64Kb recording depth, improving ease of use and work efficiency.
