4.5~5V Electronic Dice Kit LED Dice Electronic Production Set Funny DIY Set Hobby Building

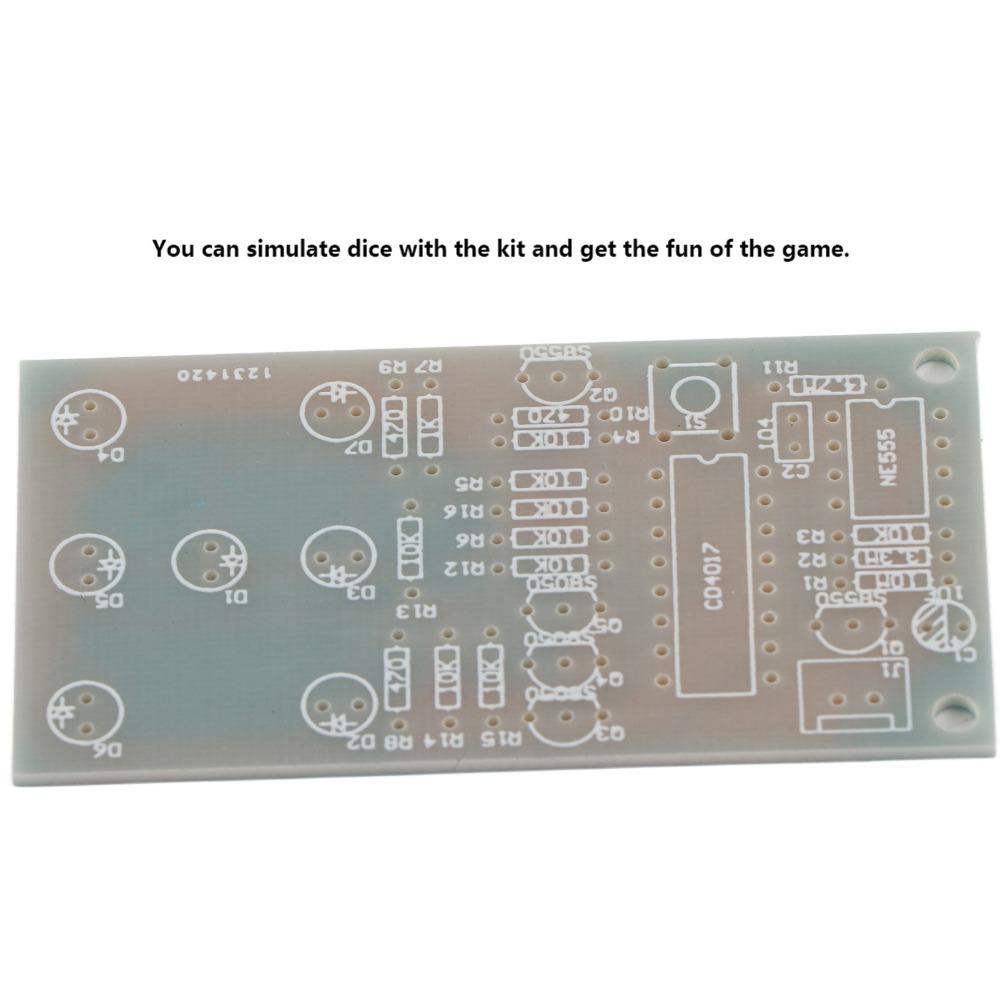

Label:Yes -Can simulate dice with the kit and get the fun of the game. -7 pcs of 5mm(0.20in) red LED electronic tweezers, kit based on NE555 oscillator circuit and circuit CD4017 counter display kit. -Can replace real dice and provides more fun while playing. -The circuit is mainly composed of a pulse generator and a decimal counter circuit. The pulse generator and external components are made up of NE555 multivibrator -Made of premium material,durable and has long service life.

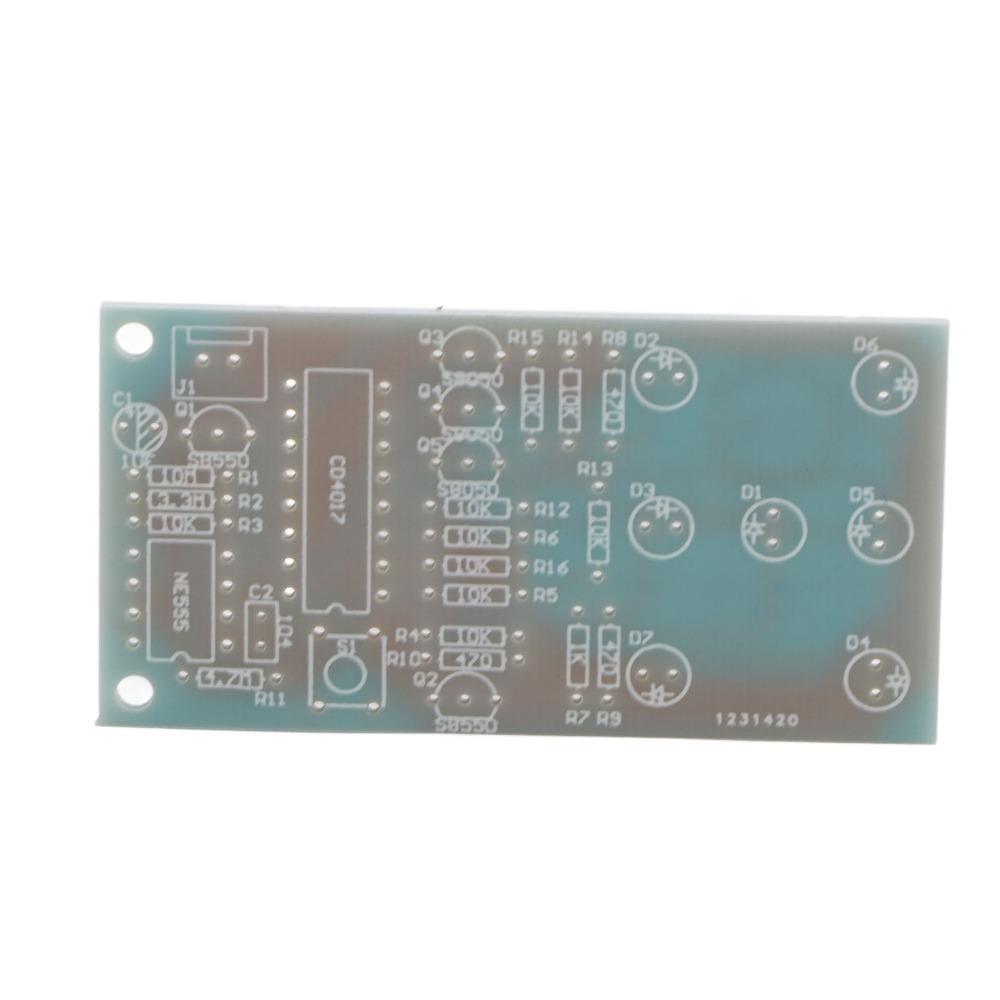

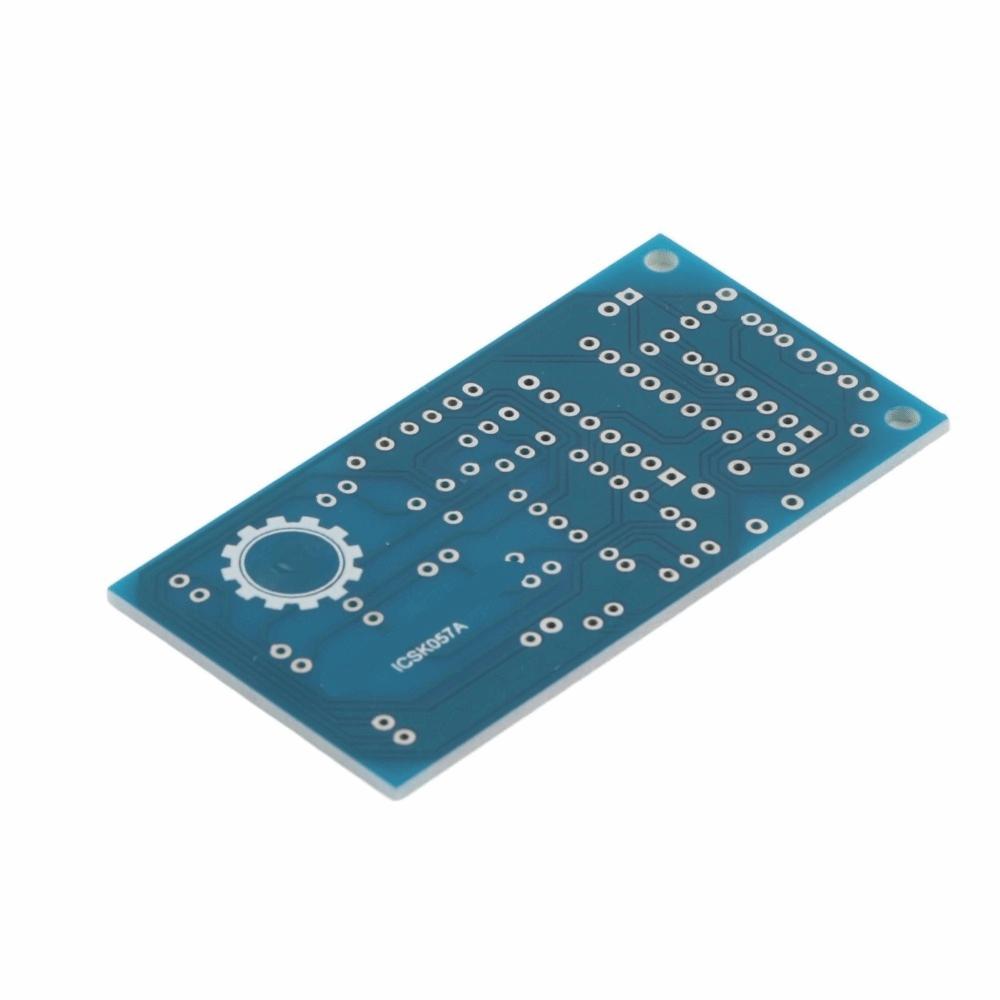

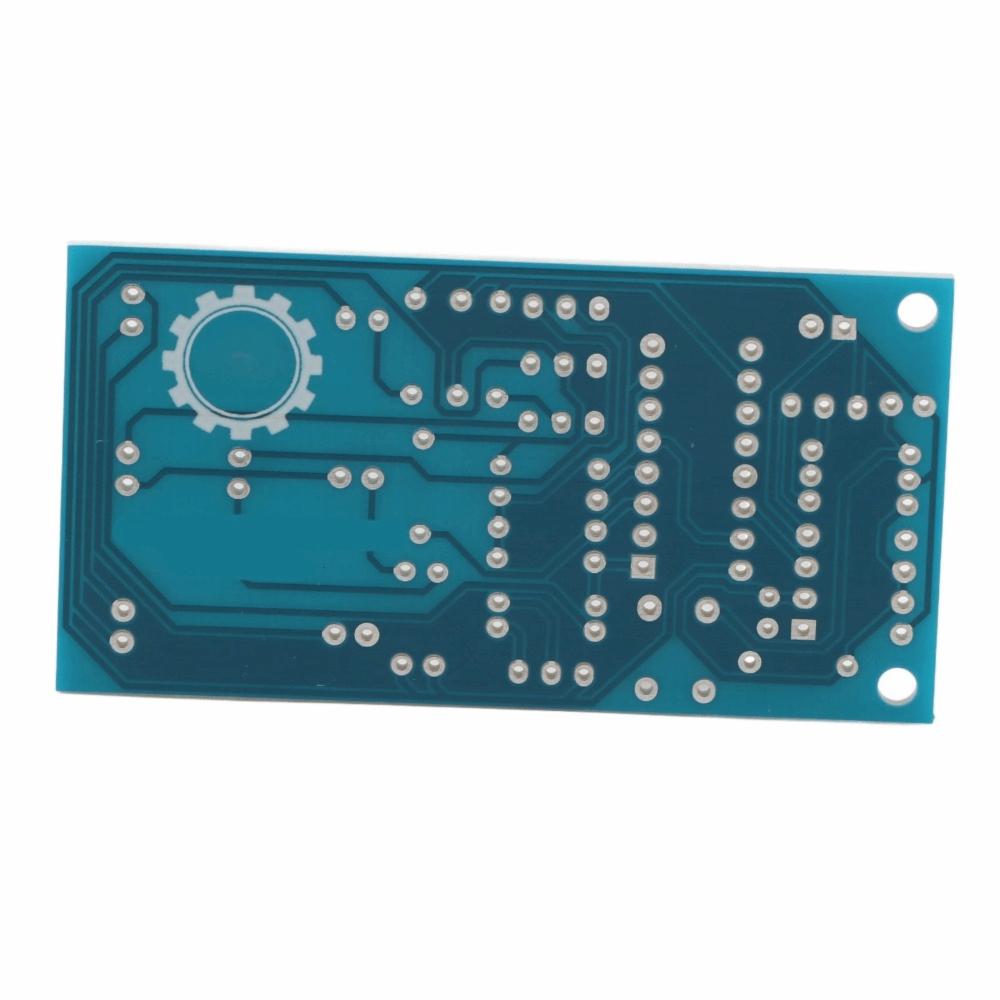

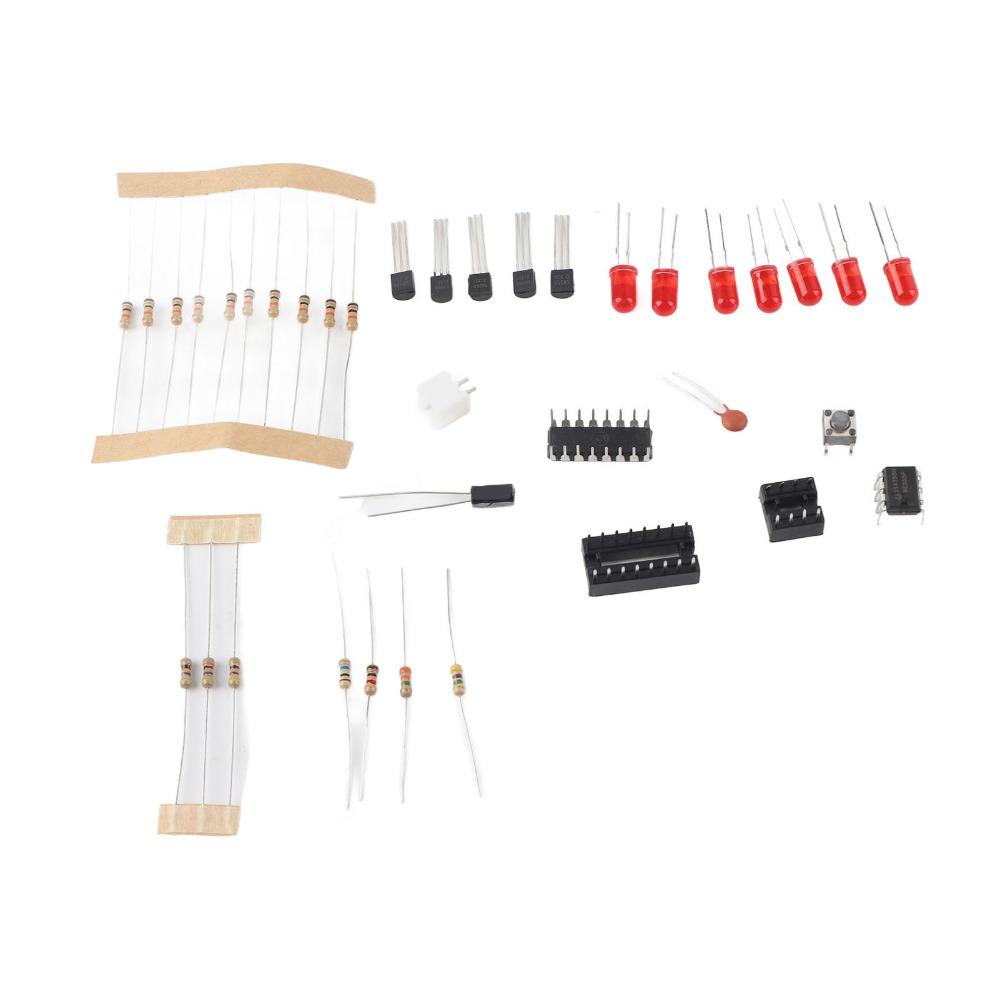

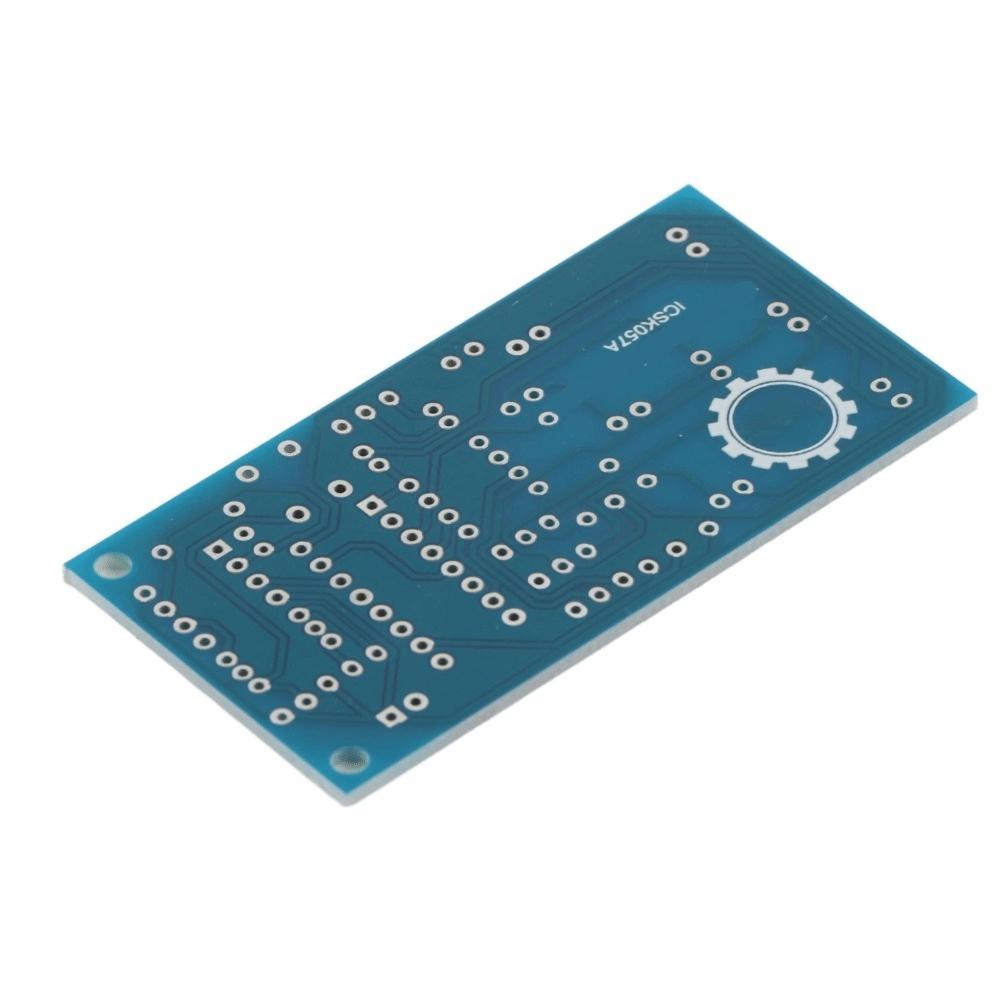

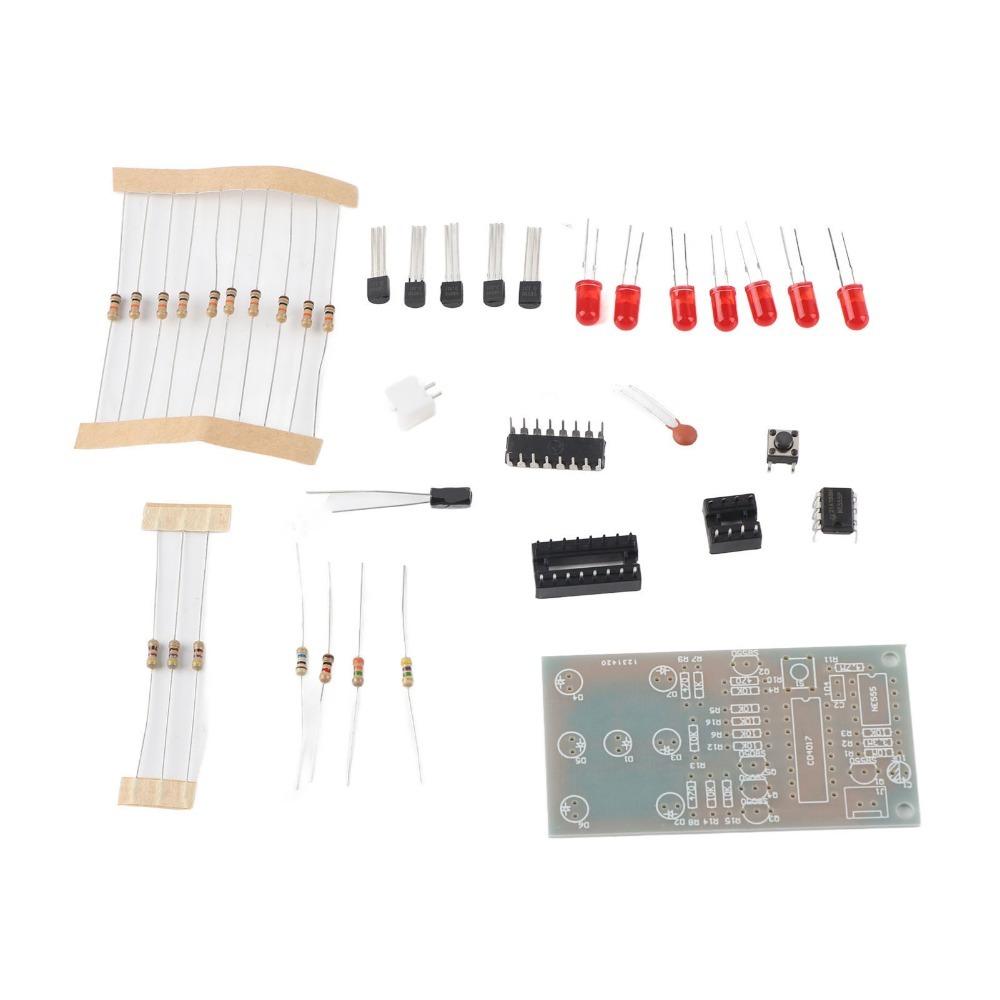

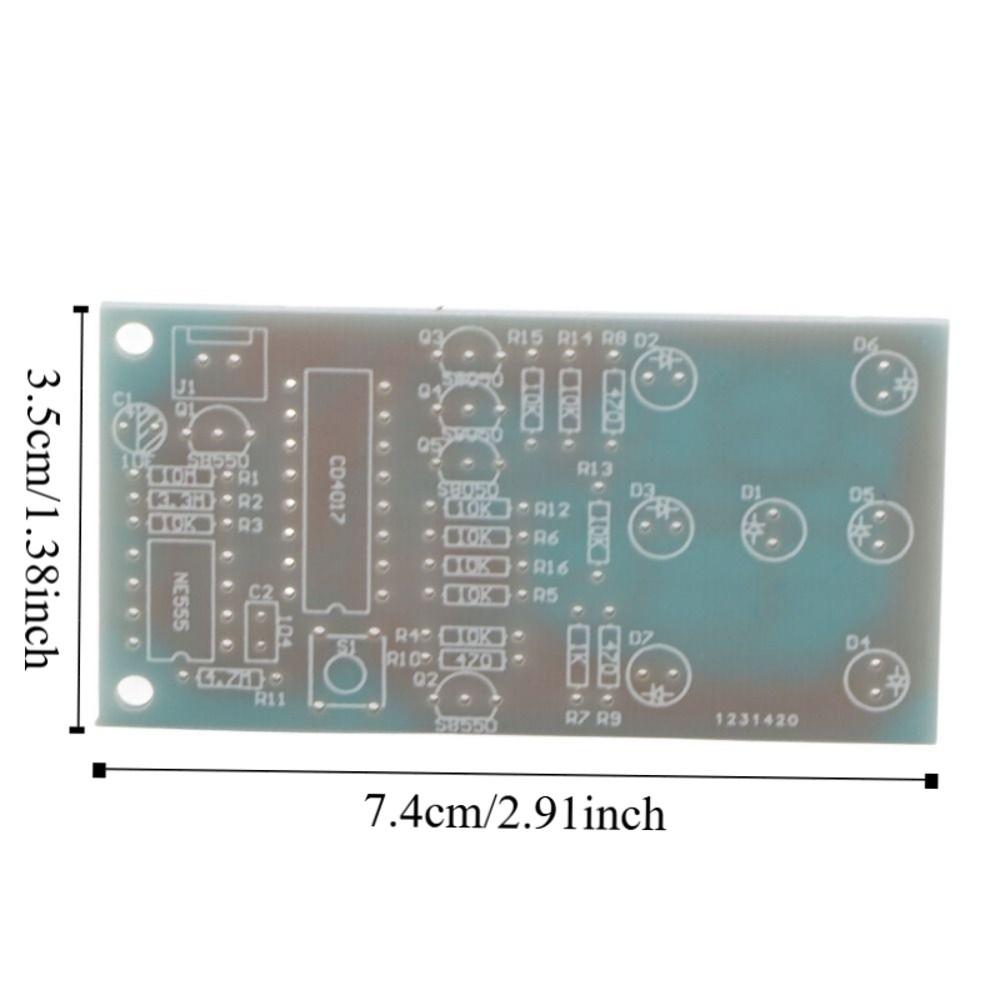

Specification: Type:Logical IC Size:7.4*3.5cm(2.91*1.38in) Color:As shown in the figure Working Temperature:-20~60℃ Voltage:4.5~5V Color:Blue/Green Material:Metal Application:Electronic Circuit Size:68*35mm/2.68*1.38in Function: When power is on, 7 LEDs will randomly display multiple points. The player presses the switches S1 and 7 to light the LEDs. After about 7 seconds, the LEDs will start to flash until the stable point is displayed. The entire first "trial" process ends. Circuit: The circuit is mainly composed of a pulse generator and a decimal counter circuit. The pulse generator and external components are made up of NE555 multivibrator. When you press S1, Q1 turns on, output pulse NE555 3 feet, then outputs CD4017 output high voltage. Different combinations of resistors and transistors can drive 7 LEDs to indicate the number of points. 1-6 points. Components and Parts:PCB 1PCS,NE555 Chip 1PCS,CD4017 Chip 1PCS.IC Base 8P 1PCS,IC Base 16P 1PCS,Switch Button,XH2.54-2P Port 1PCS,Electrolytic Capacitor(50V/1UF) 1PCS,Ceramic Capacitor 1PCS,Resistor 3.3M 2PCS.Resistor 10M 2PCS,Resistor 4.7M 2PCS .Resistor 1k 2PCS.Resistor 10k 10PCS,Resistor 470R 5PCS Audion S8550 Q1,Q2 2PCS,Audion S8050 Q3,Q4,Q5 3PCS,Red LED 5mm 7PCS Note: As different computers display colors differently, the color of the actual item may vary slightly from the above images.

Package List: 1*Electric Dice NE555 CD4017 DIY Set
