Feature:
1. Power and Current: Input voltage range is DC 18V‑36V; Output voltage is DC 12V(non adjustable); Output current is 40A; Output power is 480W.
2. Wide Application: Suitable for Large trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED strip lights, monitoring system, motor, electronic systems and DIY etc.
3. High Conversion Efficiency: Synchronization rectification technology for multiple intelligent protection function with high conversion efficiency and stability. The conversion efficiency may reach 96percent .
4. Strong Protection: Regulator voltage reducer has multiple protections, such as Over load, Over current, Over temperature, Short circuit, Over voltage protection.
5. Rugged Structure: Aluminum shell and silicone sealed design, regulator voltage transformer is waterproof, anti shock, can be used in harsh working conditions.
Specification:

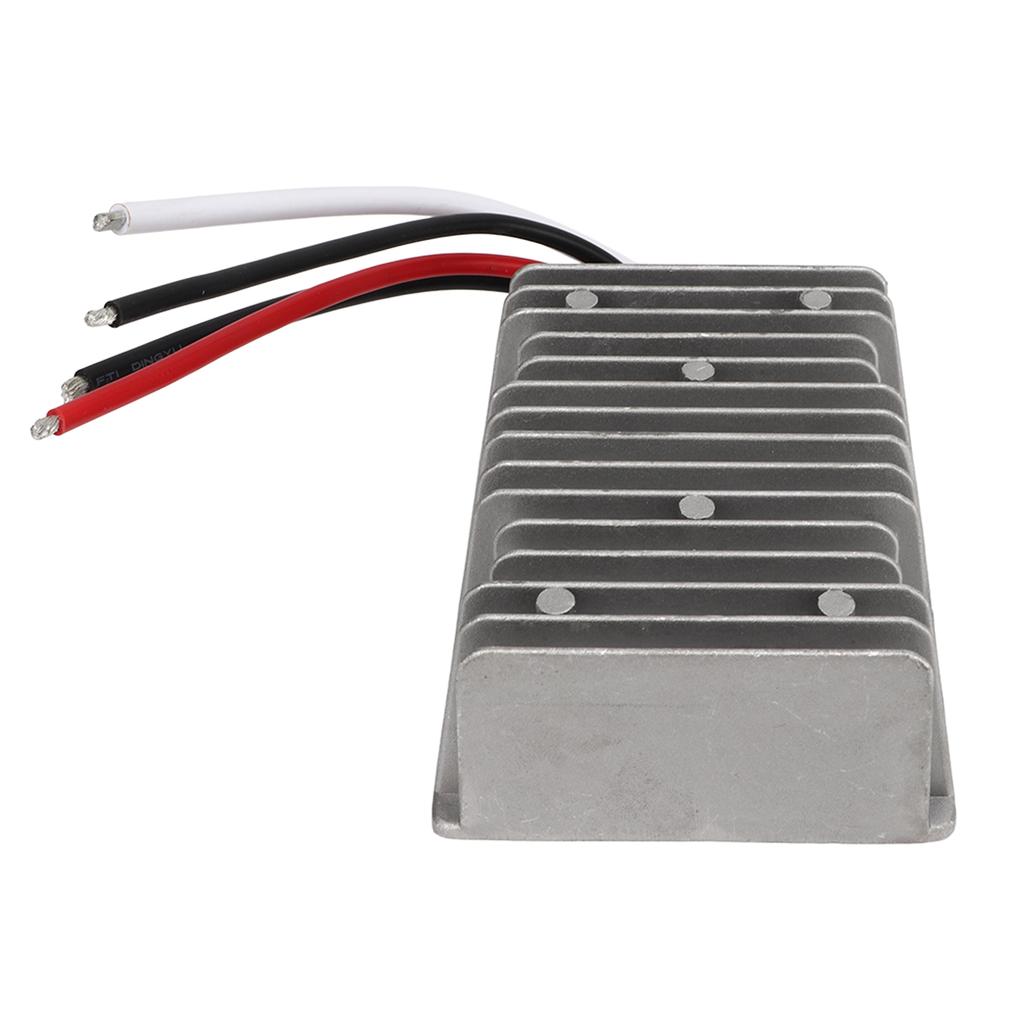

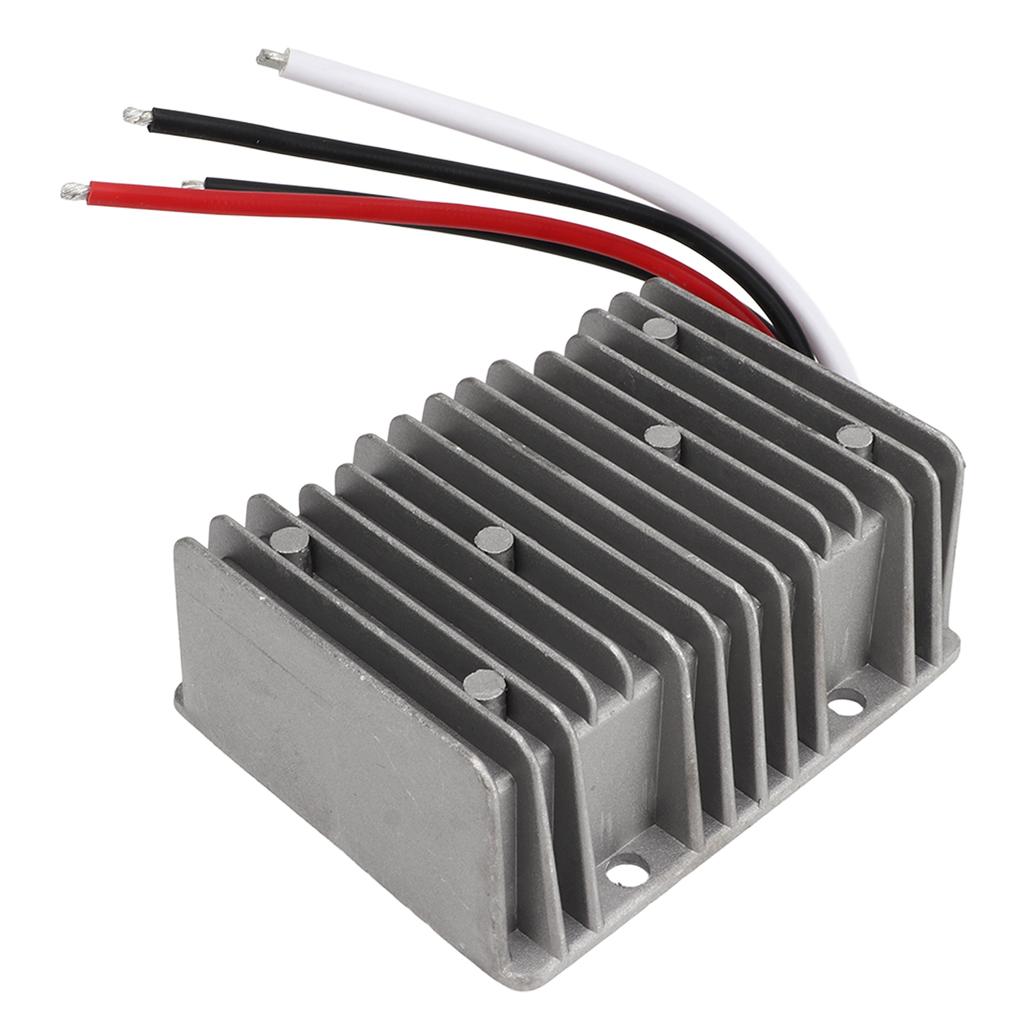

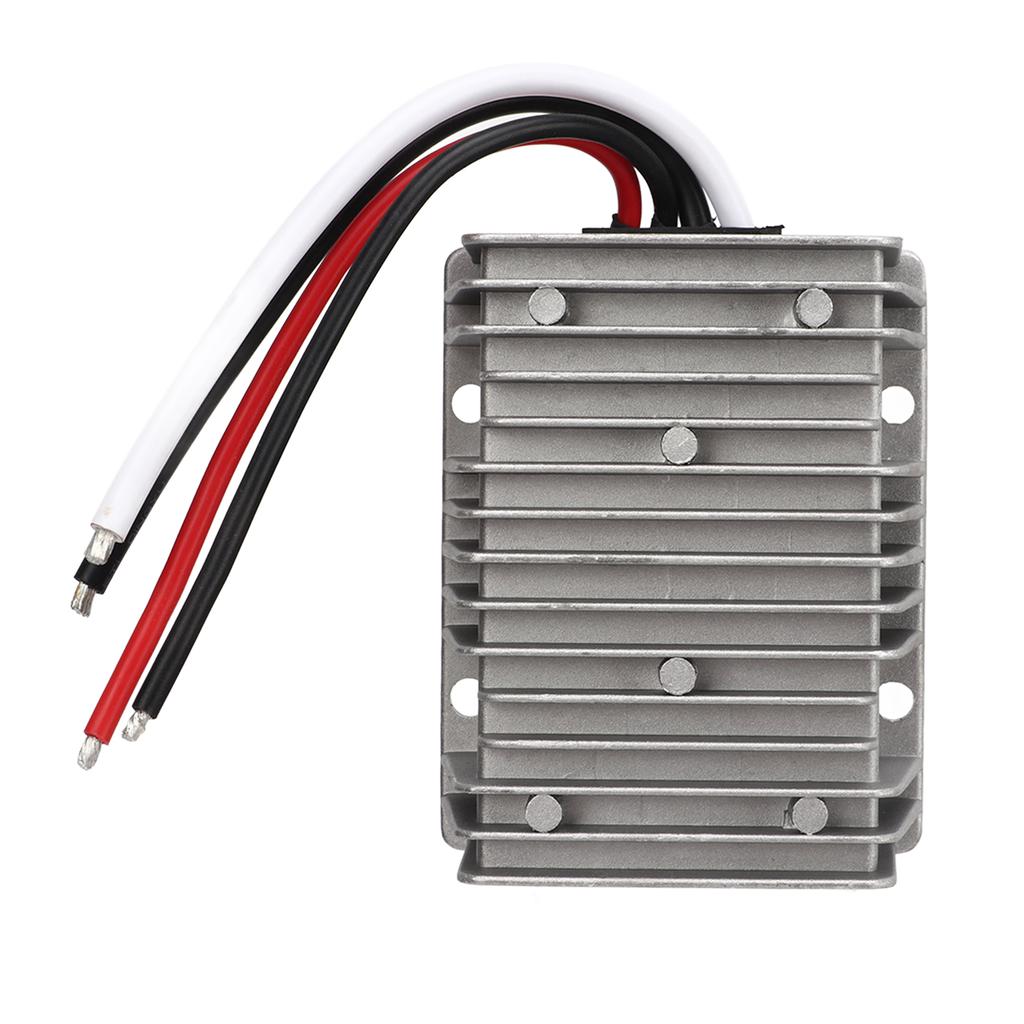

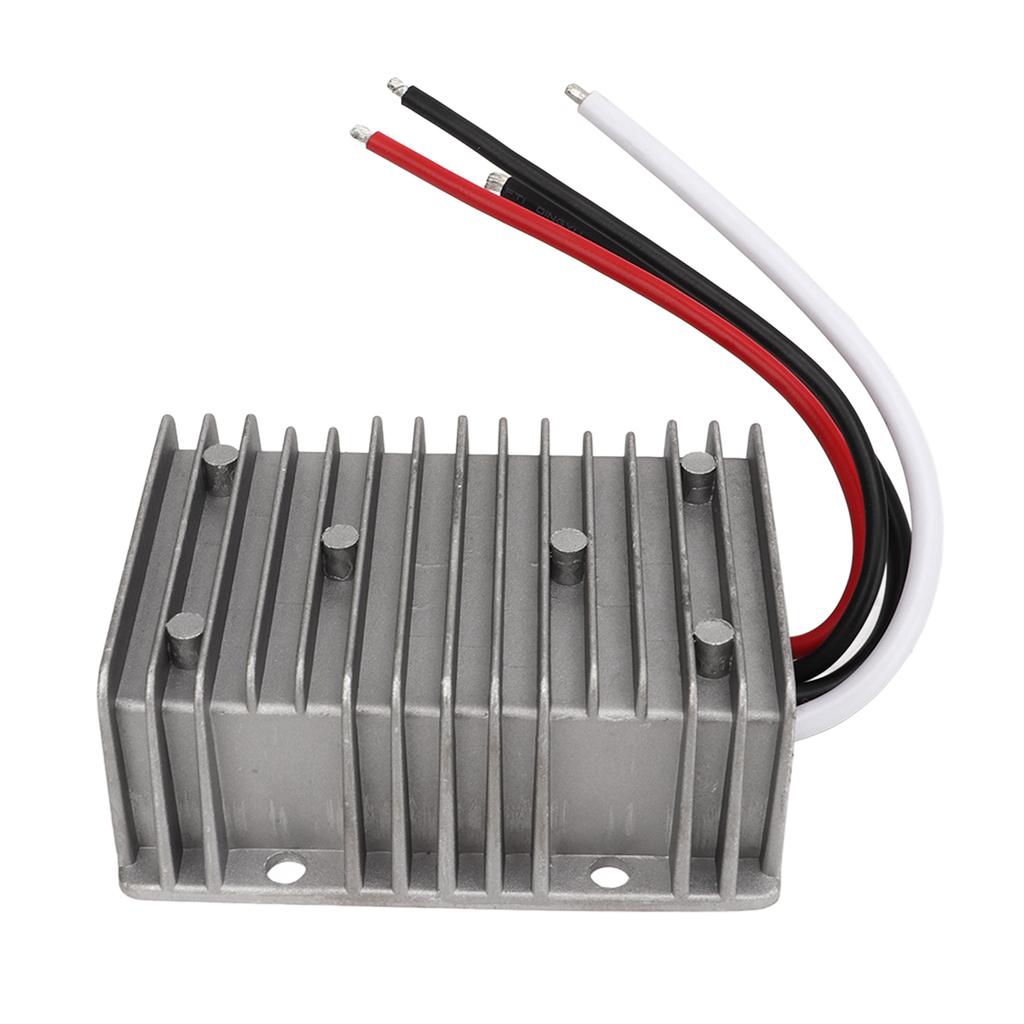

Item Type: Voltage Converter Regulator
Material: Aluminum + silica gel
Input Quota Voltage: 24V DC
Input Voltage Range: 18 36V DC
Conversion Efficiency: 96percent
Output Voltage: 12V DC
Output Current: 40A
Output Power: 480W
Voltage Regulation Frequency: less than 1percent
Load Regulation Frequency: less than 2percent
Ripple&Noise: 160mVp P
No Load Loss: 70mA
Operating Temperature: 40 celsius 80 celsius
Waterproof Grade: IP68
Input Wiring Specification: Wire gauge 12AWG (red positive, black negative)
Output Wiring Specification: Wire gauge 10AWG (white positive, black negative)
Application: For automobile, ship, yacht, railway, aviation, instrument, communication, wind energy photovoltaic system, LED field.
Package List:
1 x Voltage Converter Regulator
