Feature:
1. Brushless DC motor runs smoothly and has low noise, providing you with a quiet environment
2. This 12V electric water pump can work continuously for up to 20,000 hours, also has IP68 proof performance, suitable for aquariums, fountains and hydroponic systems
3. The submersible pump is made of engineering plastics, which is explosion proof and non sparking. Can be disassembled without any tools, easy to separate and clean
4. Used for DC water submersible pumps, electric vehicle water cooling pumps, very practical
5. The rated flow rate is as high as 2500m³ h, and the proof level can reach IP68
Specification:

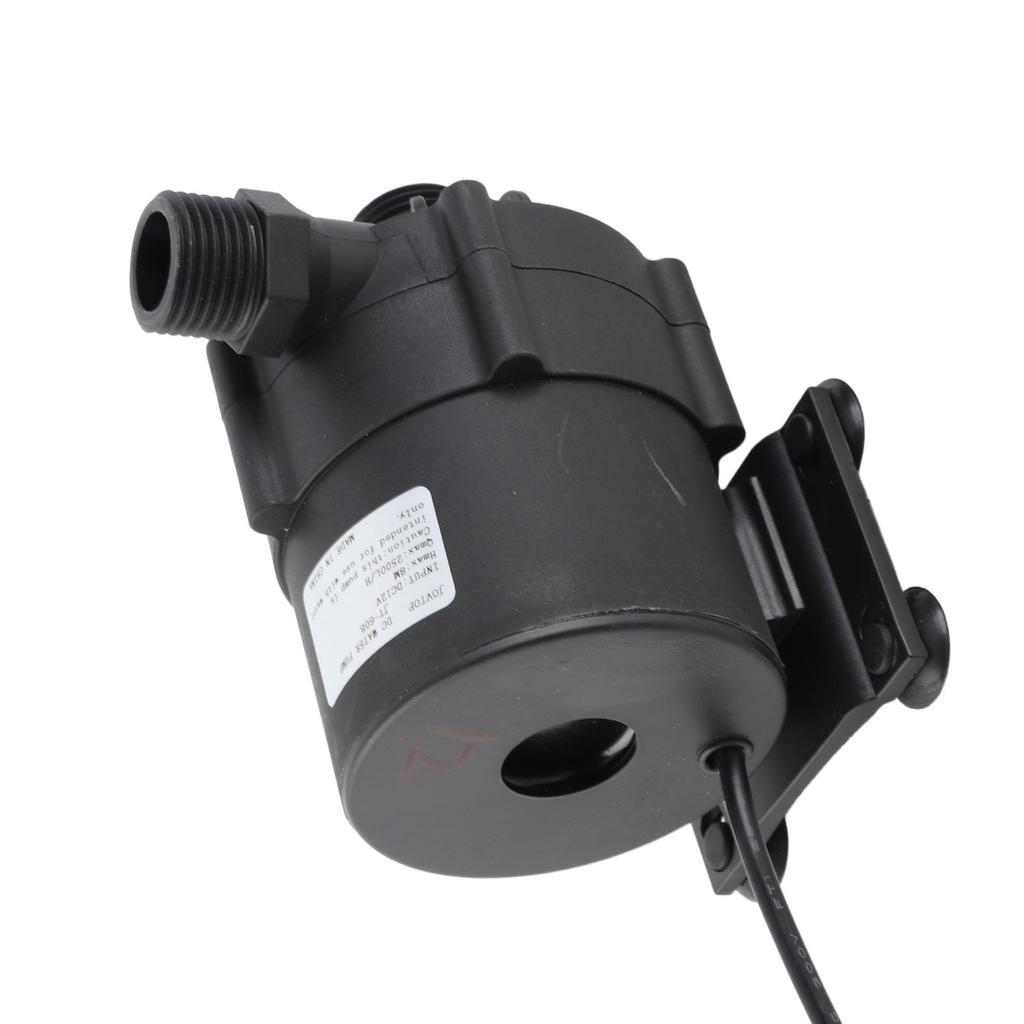

Item Type: DC Brushless Water Pump
Material: Engineering plastic
Uses: DC water submersible pumps, water cooled pumps for electric vehicles
Model: JT‑60B
Rated Flow: 2500m³ h
Voltage: DC12V
Current: 3.72A
Power: 45W
Starting Voltage: 8V
Proof Rating: IP68
Rated Head: Approx. 8meter 26.2ft
Use Environment Temperature: 20 celsius 80 celsius
Use Environment Humidity: Below 90percent RH
Use Medium Temperature: 20 celsius 100 celsius
Use Medium: Water, alcohol, diesel and other liquids with good fluidity
Use Place: Treatment, equipment, electrical appliances, etc.
Life: more than 30000H
Insulation Withstand Voltage Test: 1500V for 60 seconds
Noise: less than 40dB
Water Pump Housing Material: PA66 + 30percent glass fiber
Magnet Material: Plastic magnet
Wire Frame Material: Nylon material PA66
Rotor Material: Graphite
Power Cord Material: PVC
Shaft Material: Ceramic.
Package List:
1 x DC Brushless Water Pump
Note:
1. The water pump is a DC water pump, and the voltage must be DC power supply (such as batteries, DC power supplies marked with DC, transformer), and the voltage is within the specified voltage range before can be used.2. The water pump has its own water off protection function. In the absence of water, the pump will automatically stop after 1 minute of rotation. After adding water, re insert the power supply to operate normally.3. The water pump has a jam protection device. When impurities enter the pump body during use, after the rotor is jammed, the water pump will automatically stop running. After the power is removed to clean the impurities, the power can be re energized.3. It is strictly forbidden to use in strong acid and strong alkaline solutions.4. It is strictly forbidden to use in liquids with impurities and magnetic particles larger than 0.25MM. If the water is too dirty, clean up the impurities in the pump room in time.5. The pump itself is not equipped with a power supply (transformer). If a power supply is required, it must be equipped with a power supply only if it is marked water pump + power supply . If there is no power supply marked, all are pumps! 6. The water pump is a DC water pump, voltage DC24V water pump,with DC24V power supply, voltage DC12V water pump with DC12V power supply can be used. (Can not use 220V AC voltage directly, only the pump with power supply can be used directly by plugging in 220V)
