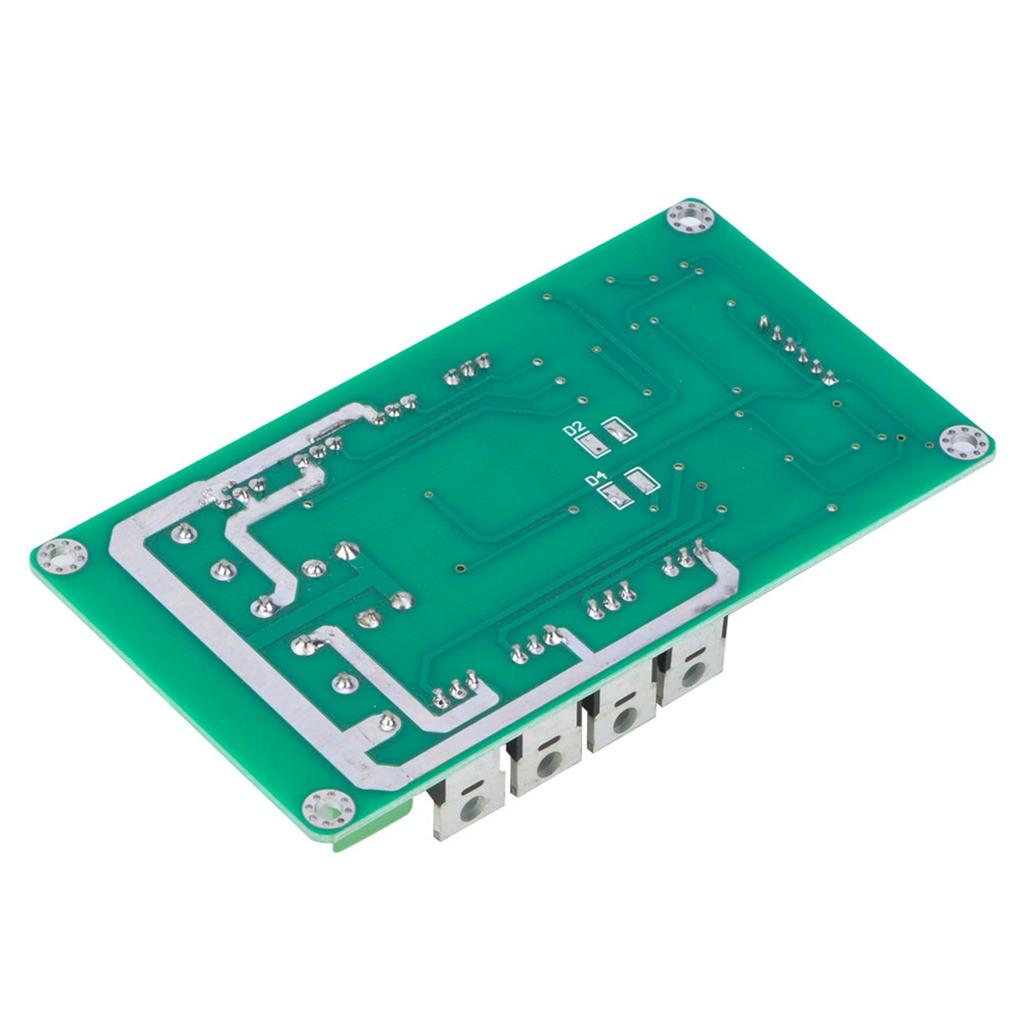

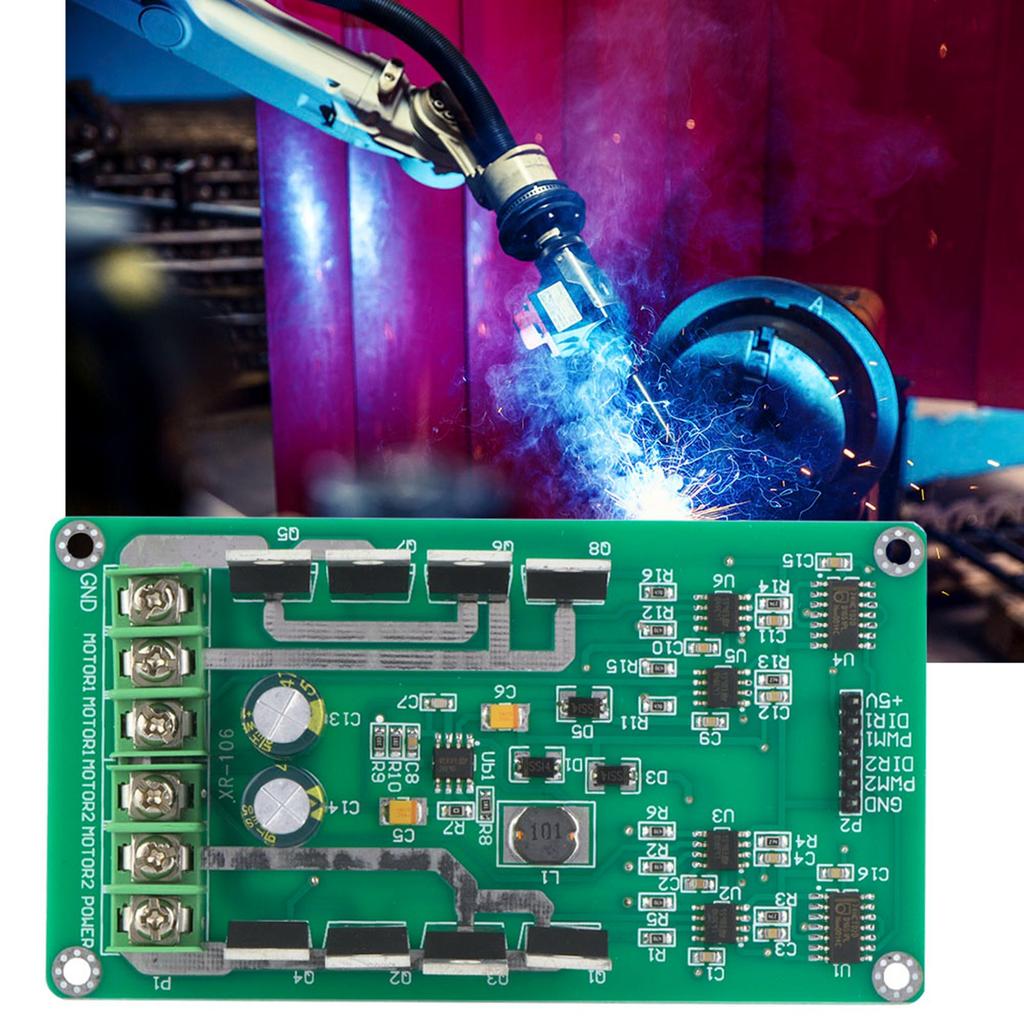

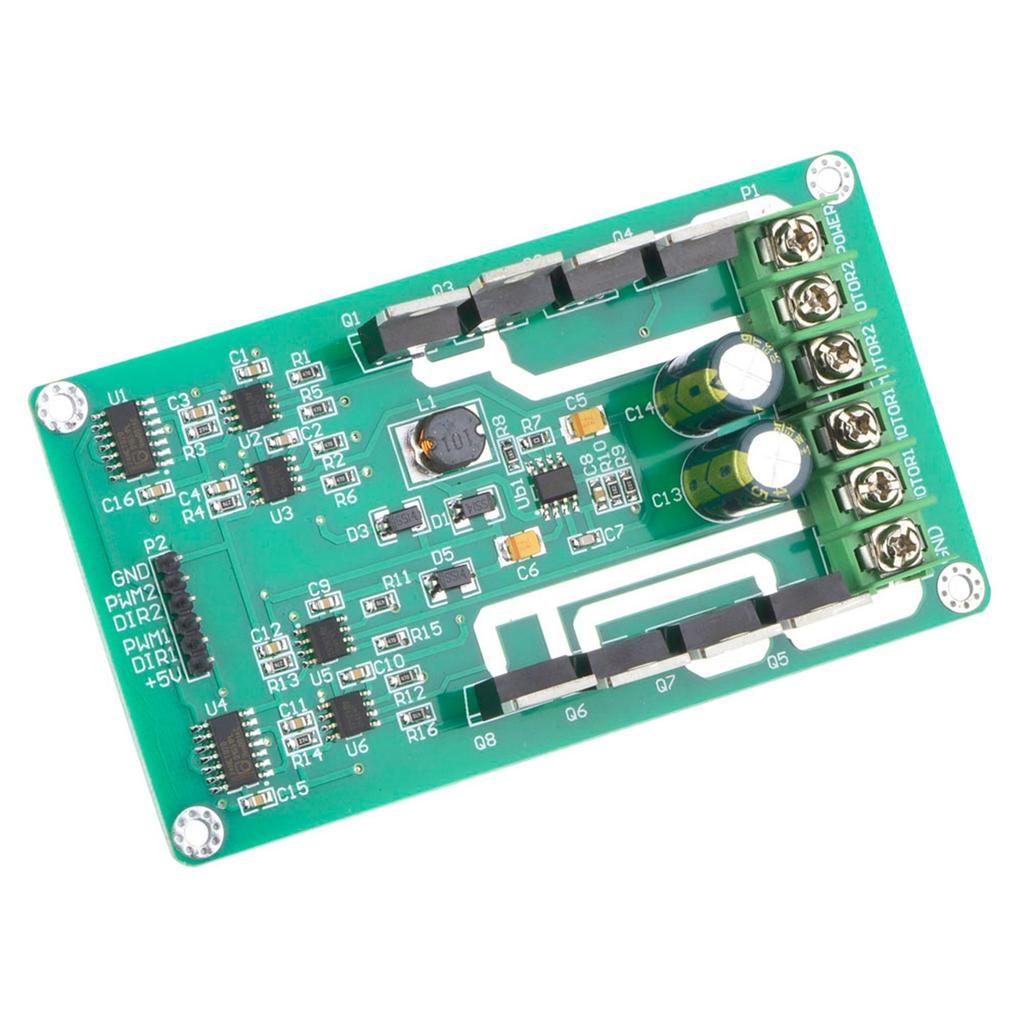

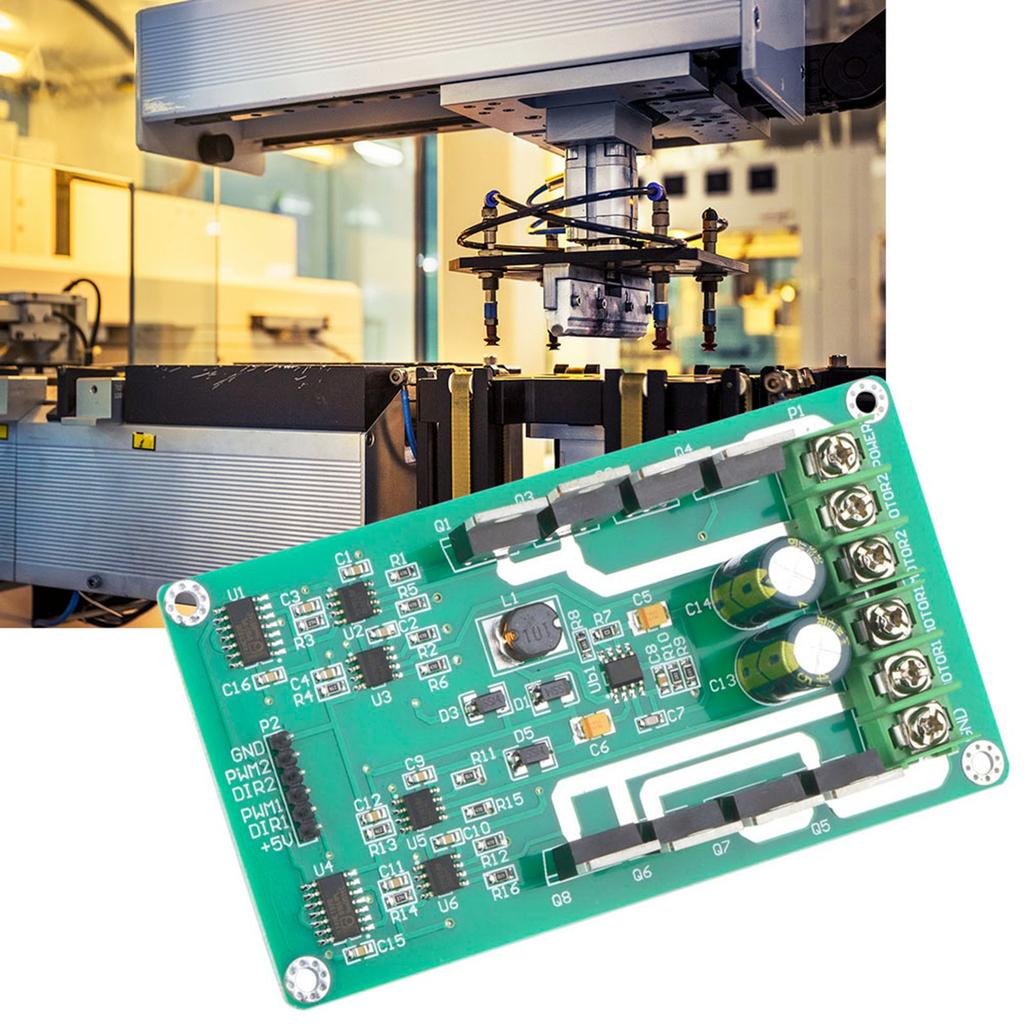

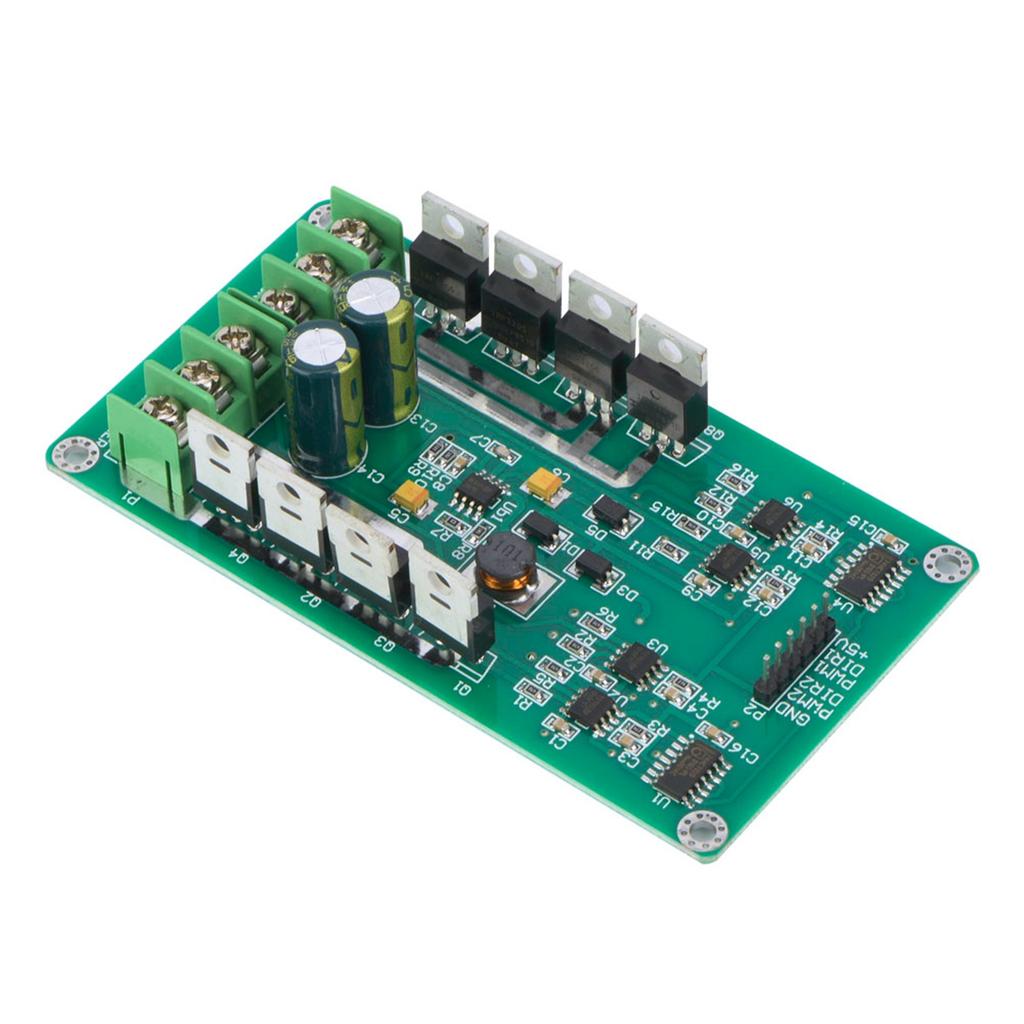

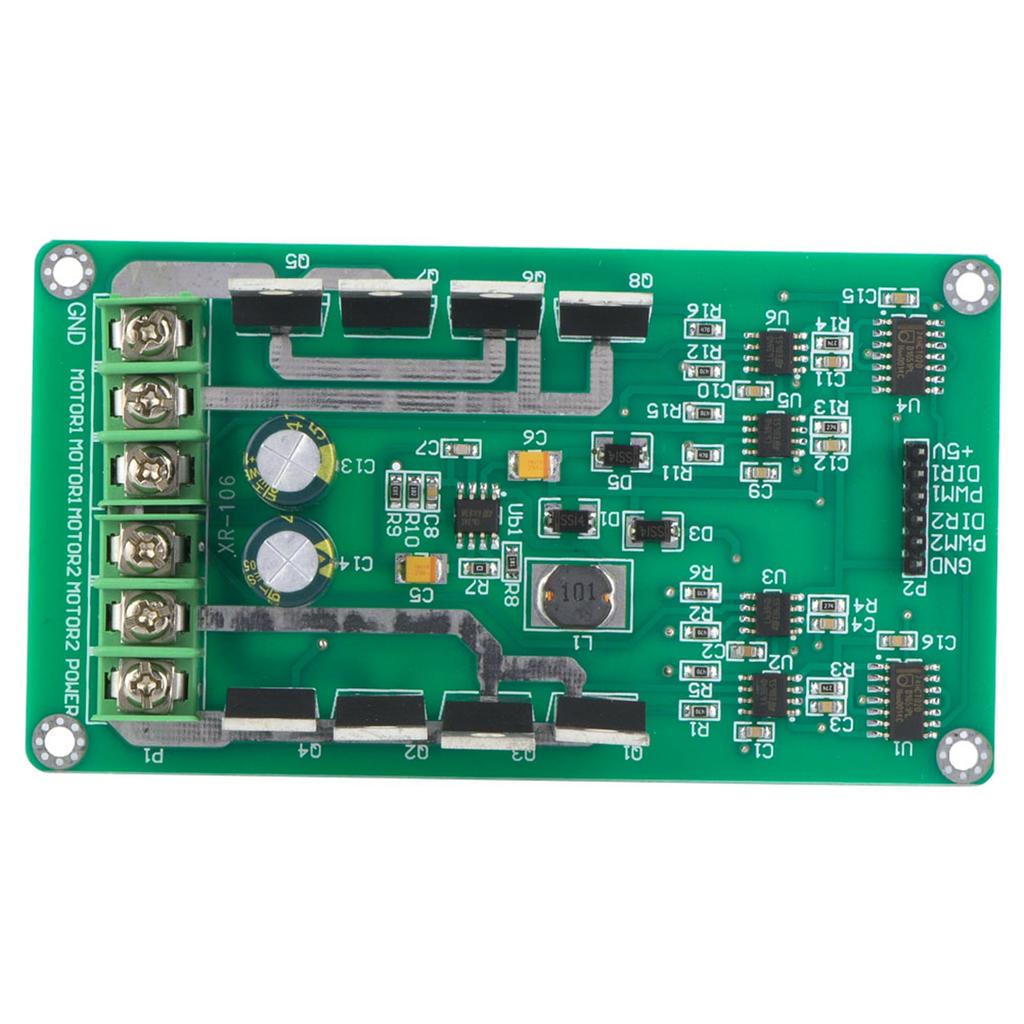

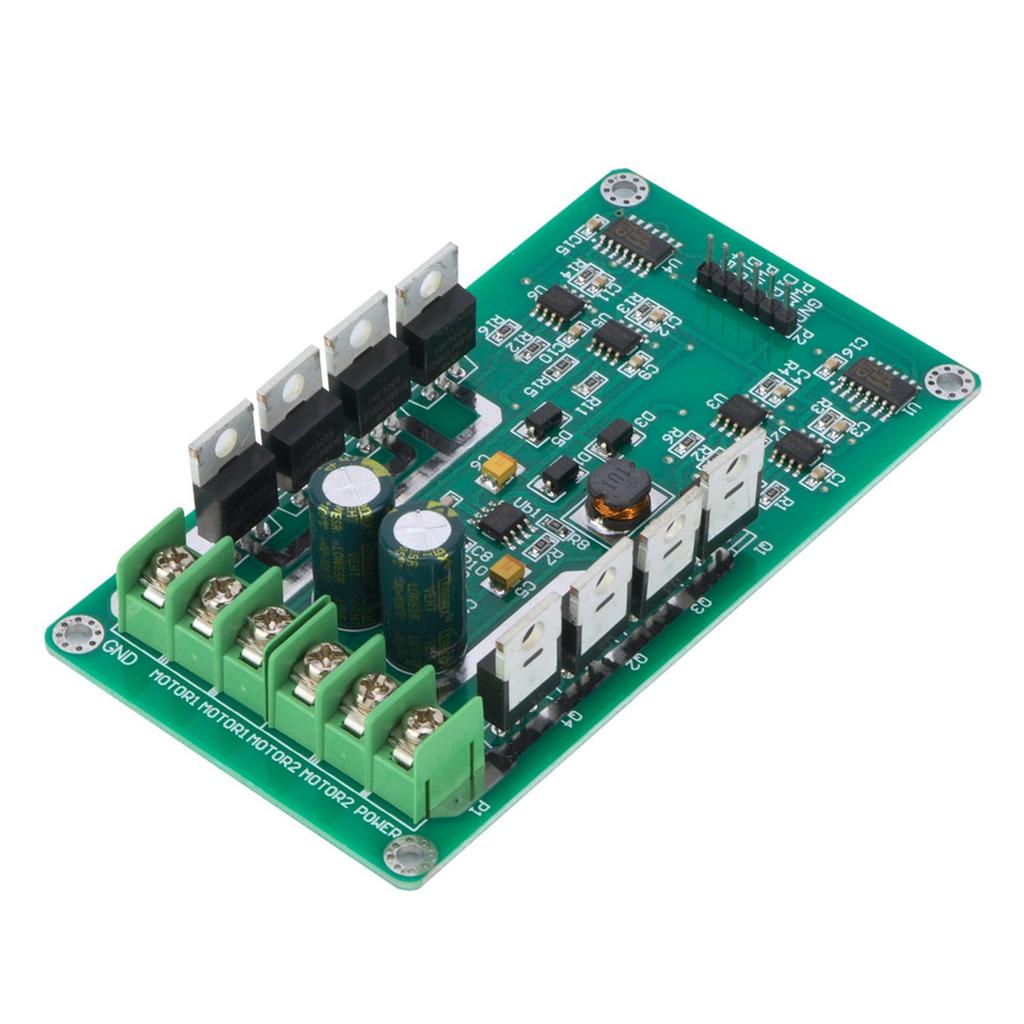

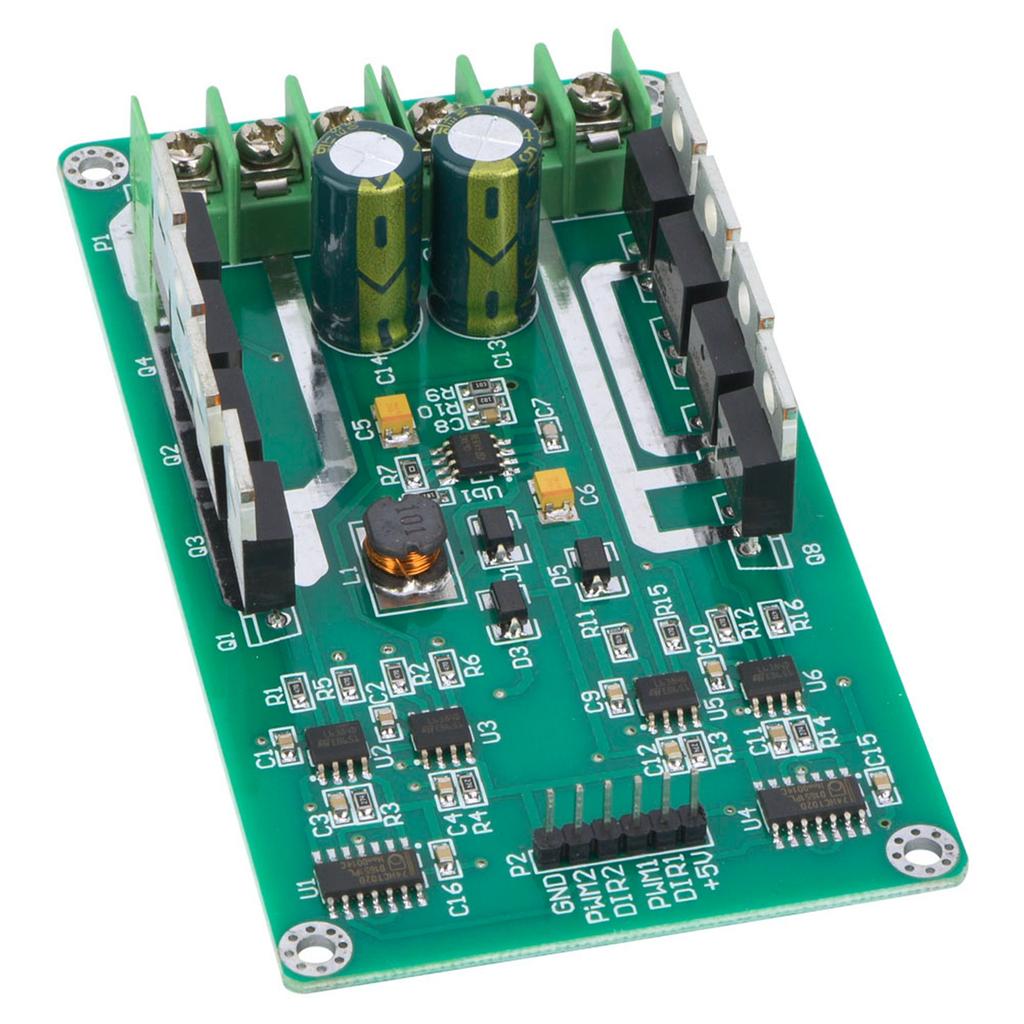

Dual Motor Driver Module Board H Bridge Driver Chip DC IRF3205 MOSFET 3 36V 10A Peak 30A

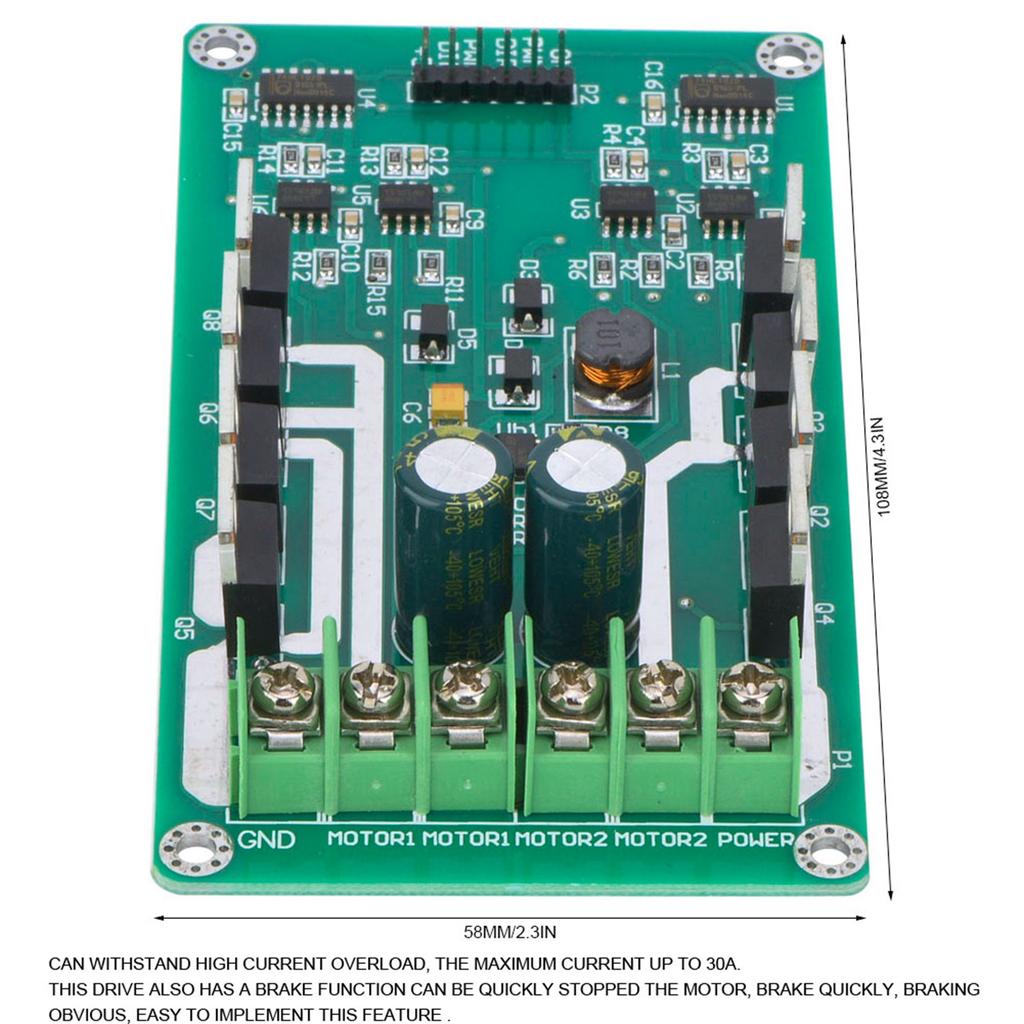

Features: The driver focus on current and efficiency, effectively motor power and battery life. Can withstand high current overload, the maximum current up to 30A. This drive also has a brake function can be quickly stopped the motor, brake quickly, braking obvious, easy to implement this feature . The drive uses the full two half bridge driver chip + low resistance N channel MOSFET components. Completer two half bridge driver chip reliable drive mode, the MOSFET switching losses to a minimum. Improve power utilization. MOSFET driver chip comes with hardware brake function and power feedback. N channel MOSFET IRF3205 MOSFET, use two dedicated half bridge driver chip on the top tube using the boostrap capacitor, so that the tube has enough drive voltage of the MOSFET channel can be opened quickly, improve motor acceleration curvature, but also quickly for the motor brake. This allows the trolley can quickly start can quickly kill the car. The driver can operate at 0 99percent of the duty cycle of the PWM modulation, the motor driving voltage can be obtained sufficiently. Specifications: Condition:100percent Brand New Motor forward: DIR = 1 PWM = PWM Motor reversal: DIR = 0 PWM = PWM Parking brake: DIR = X PWM = 0 (X is an arbitrary state) Motor and power connections POWER connected to the positive power supply, GND power supply is negative. Two motors were connected MOTOR1, MOTOR2 Rated voltage: 3v 36v (can be customized according to the user) Rated Current: 10A Peak current: 30A Size: Approx. 108*58mm 4.3*2.3in(L*W) Package List: 1* Dual Motor driver module board H Bridge DC MOSFET IRF3205 3 36V 10A
