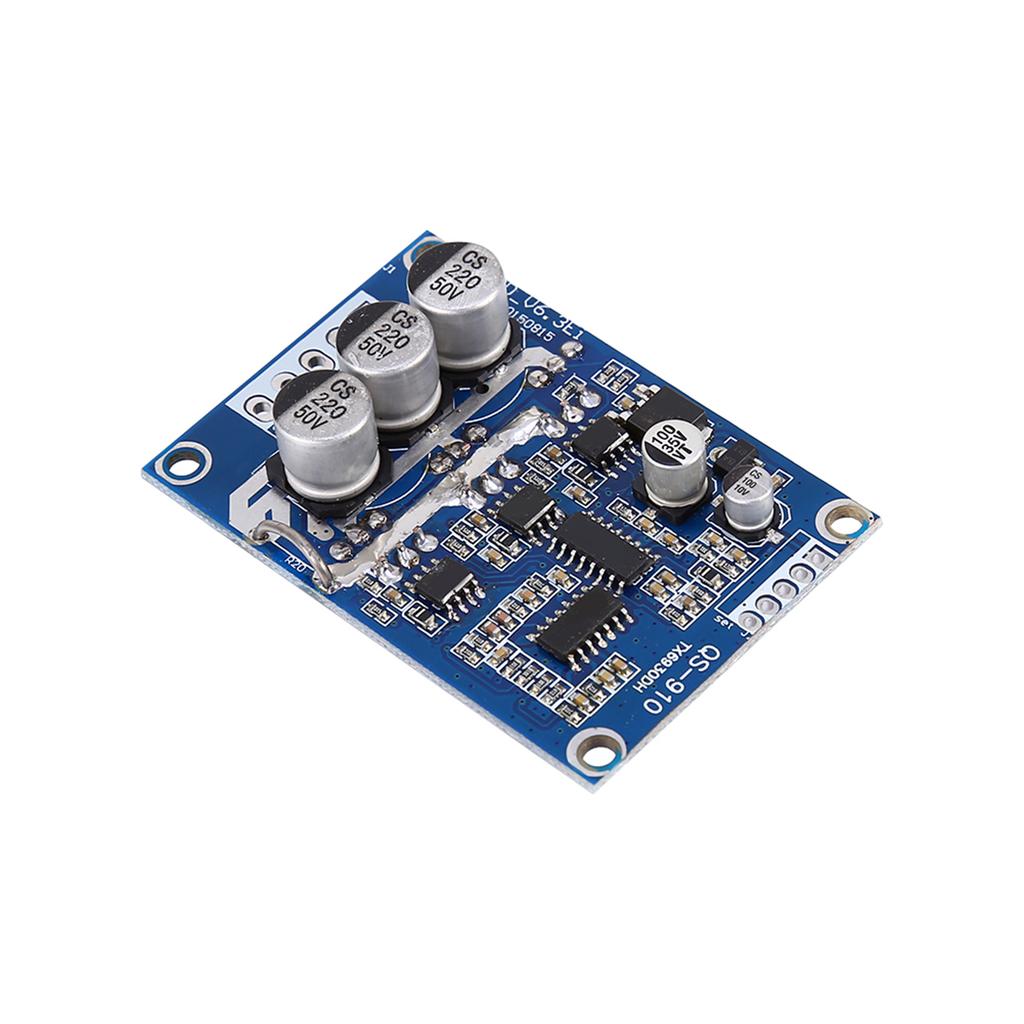

20A 12V 36V 500W DC Brushless Motor Controller Treiber Brett Modul Keine Halle

Specifications: Drive plate type: JYQD_V6.3E1 Voltage range: 12V 36V Peak current: 20A Drive power: less than 500W (related working voltage) Size: 63x43x17mm Speed control function: voltage Speed regulation or single chip microcomputer control PWM Speed regulation Control terminal connection: 1, GND 2, VR Speed control port connection method can be controlled by voltage regulation control or PWM control Speed voltage regulation can be adjusted by the adjustable resistance (20K 3 pin bit VR port side of the port side of the 5V port to connect to the GND port through the regulation of voltage control) 3, ZF positive reverse port connection method to connect 5V a direction to the direction of GND 4, Singnal Speed pulse output port output of a circle of pulse = motor pole number x 3 5, 5V control terminal 5V voltage output port Power end connection: 1, VCC power positive input port (12V 36V) 2, GND power input port 3, MC brushless DC motor without a sense no Holzer motor three line W 4, MB brushless DC motor without a sense no Holzer motor three line V 5, MA brushless DC motor without a sense no Holzer motor three line U Package include: 1 x Brushless DC motor drive plate .
