Feature:
1. 200W power adapter board, using high‑quality PCB material, high performance, high heat resistance, more reliable to use.
2. Eliminate 24 unnecessary wires by plugging directly into the motherboard ATX connector.
3. It is suitable for small ATX boards to save space in the case without affecting power requirements.
4. With over‑current protection and short‑circuit protection: when the output current reaches the peak current, the output is turned off. When the output is short‑circuited, the output is turned off.
5. Suitable for MINI computers, for HTPC computers, for POS machines, ITX cases, network servers, industrial control systems, etc.
Specification:
Item Type: Desktop Computer Power Module
Material: PCB
Model: LD A200WL
Power: 200W
Input Voltage: 17 24V
Output Voltage Maximum Load: +5VSB 2A, +5VDC 8A, +3.3VDC 8A, +12VDC 12A, 12VDC 0.15A
Operating Frequency: IC built in oscillator (250 350) kHz at Vcc 12V
Feedback Reference Voltage: 0.8V+ 2percent at 12VDCInterface: 1 x ATX24Pin, 1 x CPU4+4Pin, 1 x for SATA, 1 x IDE, 1 x DC5525
Cable Length:
DC Cable: Approx. 320mm 12.6in
CPU Cable: Approx. 210mm 8.3in
IDE Cable: Approx. 200mm 7.9in
for SATA Cable: Approx. 150mm 5.9in
Protection Function (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature Humidity: 5 55 celsius 45percent 75percent
Storage Temperature Humidity: 40 celsius 70 celsius 10percent 90percent
Applications: for MINI computers, for HTPC computers, for POS machines, for ITX cases, for web servers, advertising machines, bank terminals, low power systems, industrial control systems, etc.
.
Package List:

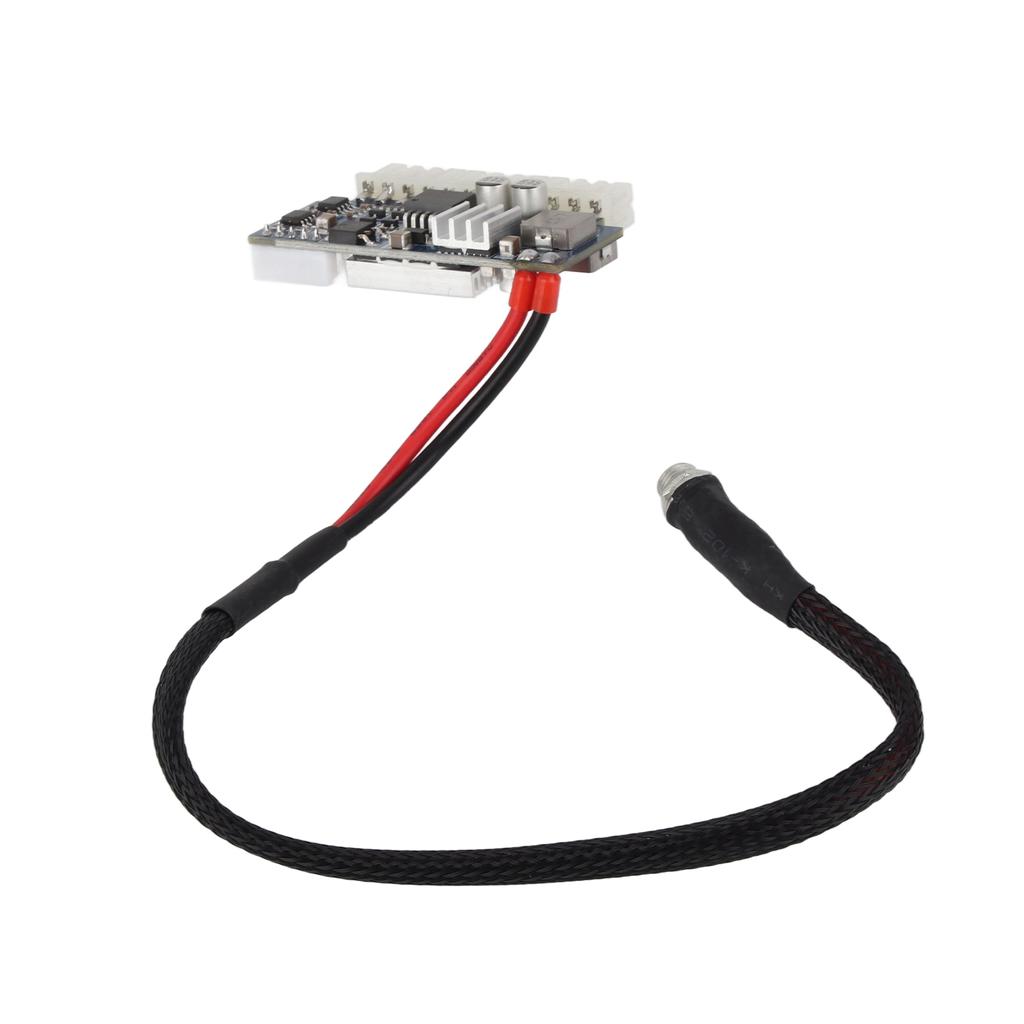

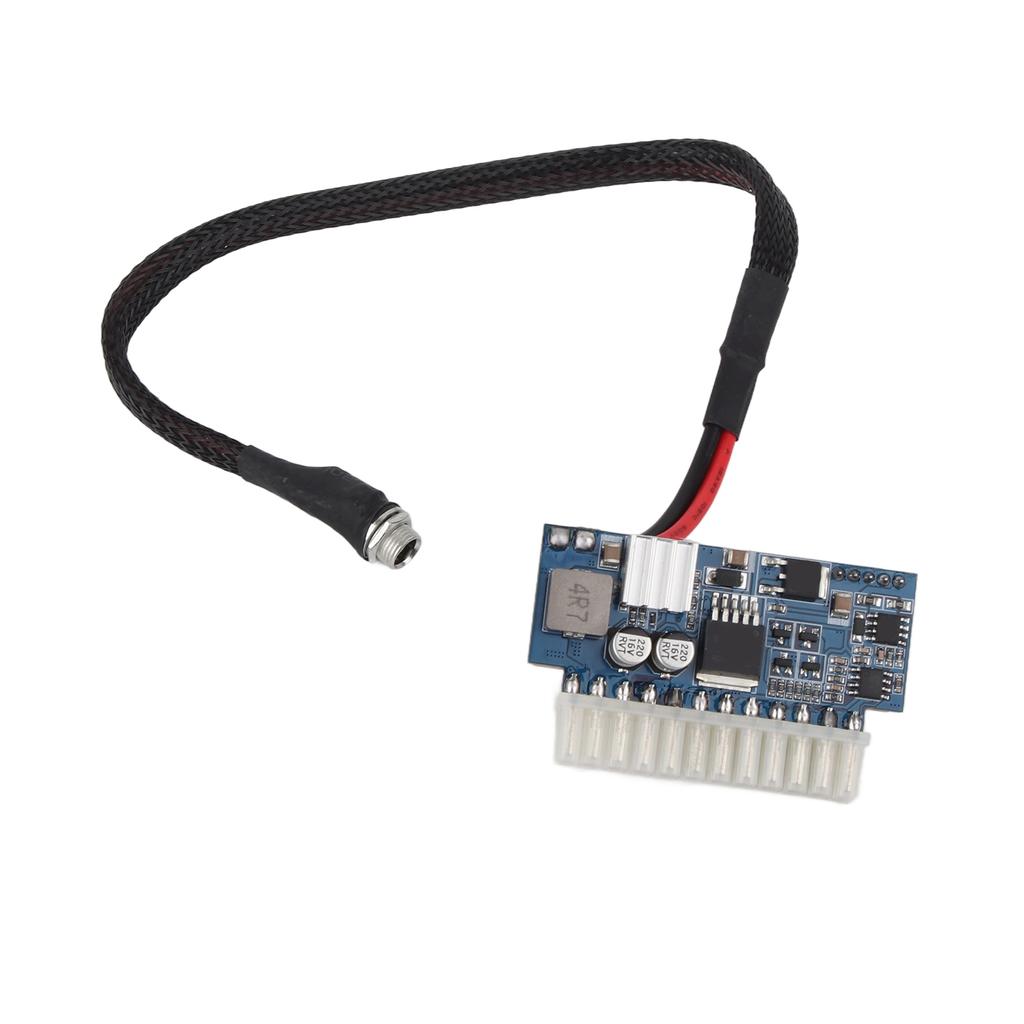

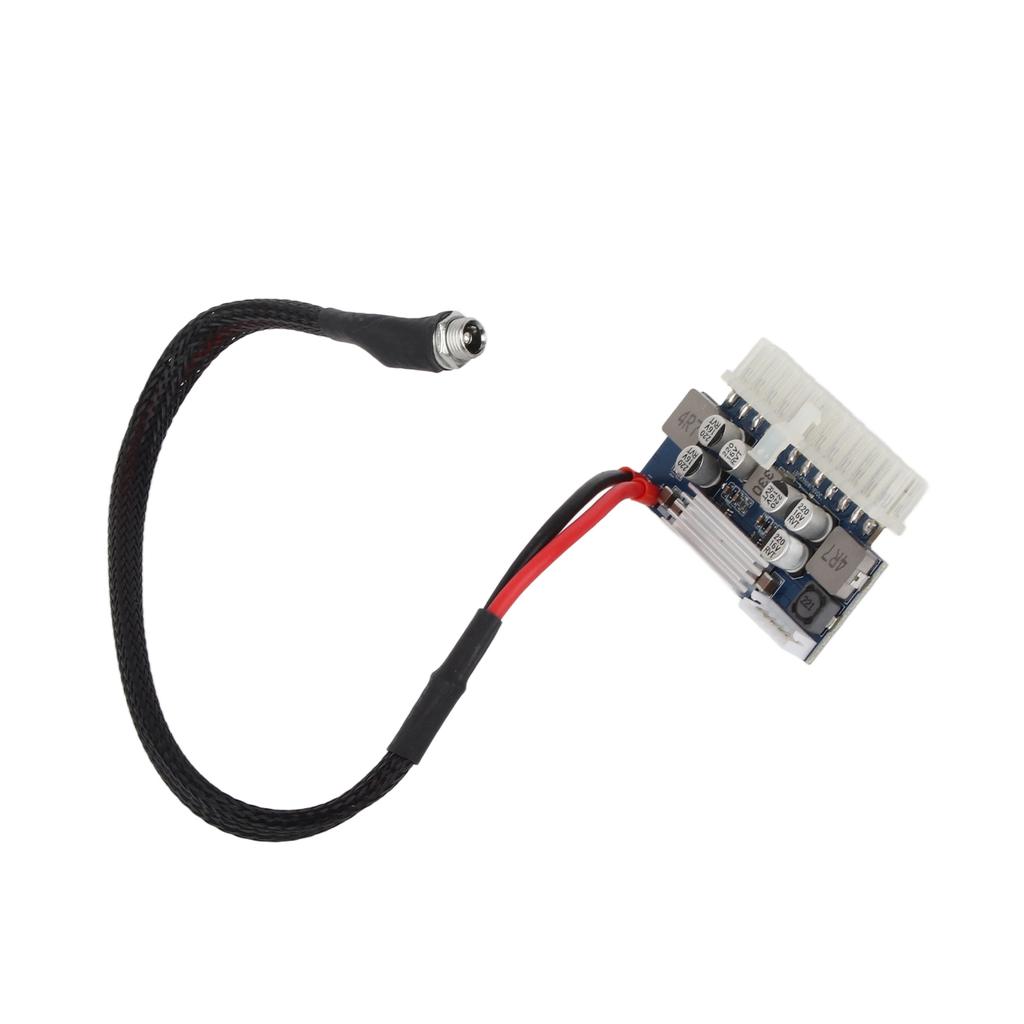

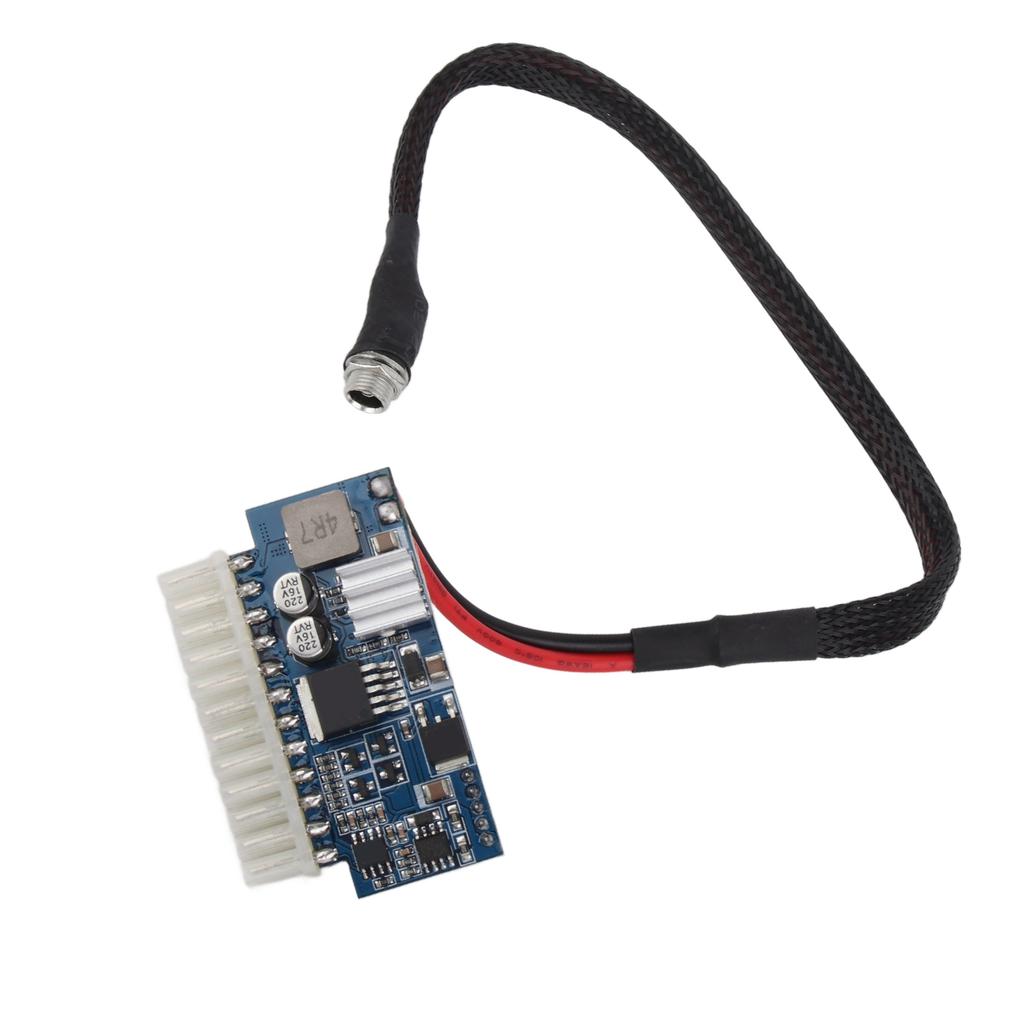

1 x Power Adapter Board
