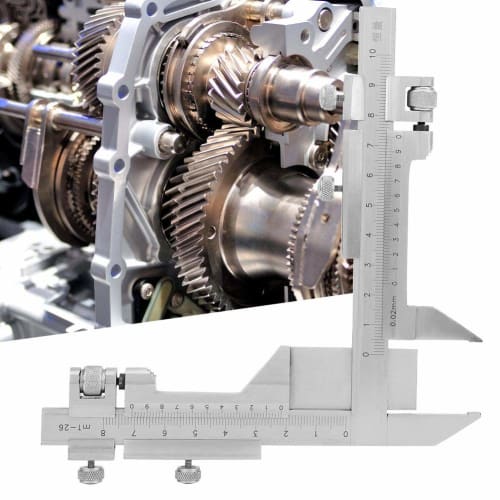

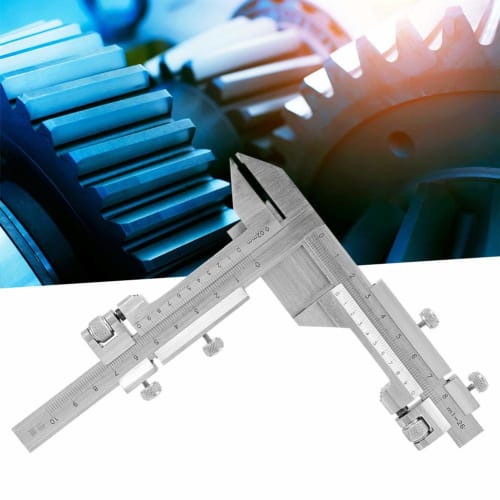

Vernier Caliper, Stainless Steel Gear Teeth Vernier Caliper Thickness Gauge Measuring Tool Has Two Movable Vernier Scales That Are Perpendicular To Ea

Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.

1. KEY FEATURES: - Measuring tool High measuring accuracy, accuracy of 0.0012 inch/0.03mm. - Measuring tool High measuring accuracy, accuracy of 0.0012 inch/0.03mm. - The thickness caliper horizontal scale finely adjusts and measures the thickness of the pitch line carbide tip teeth. - Vernier Caliper Chord Thickness Caliper measures the thickness of gear teeth using the upper circle as a measurement standard. - Thickness Gauge The string thickness caliper has two movable vernier scales perpendicular to each other.

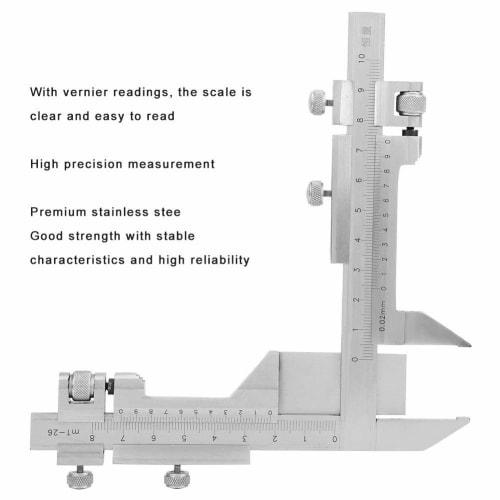

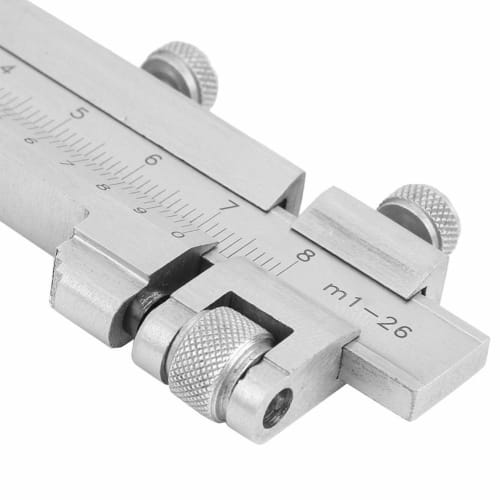

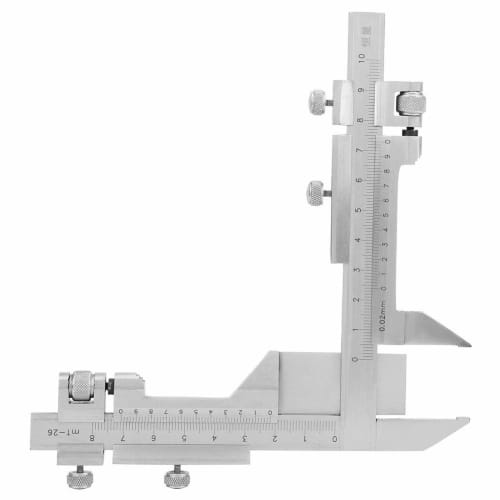

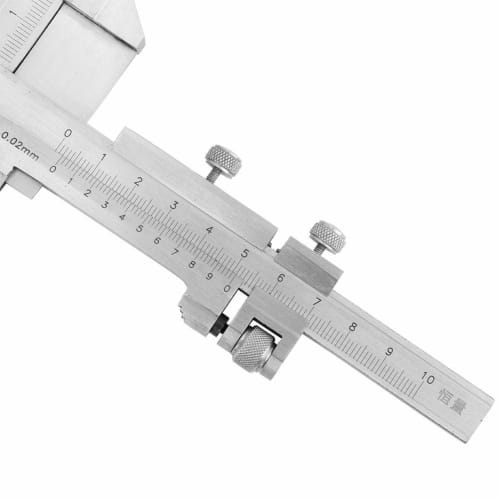

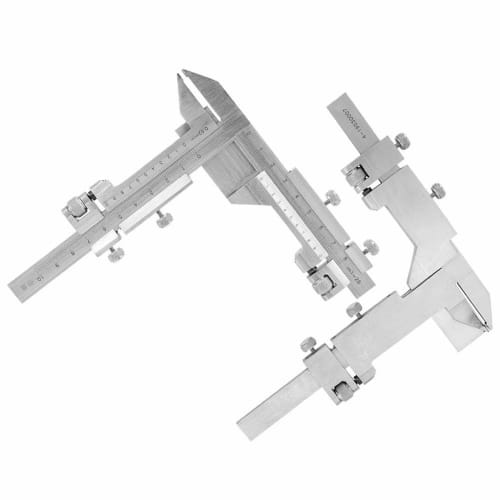

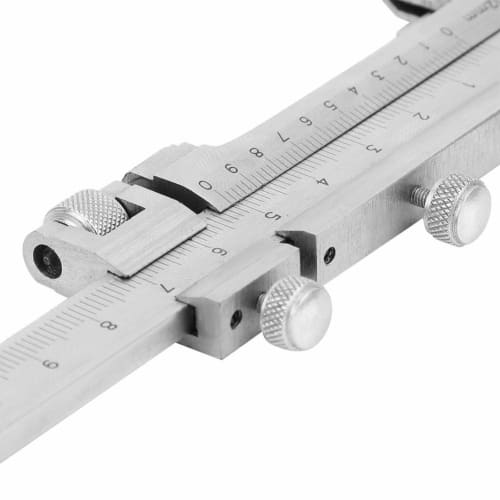

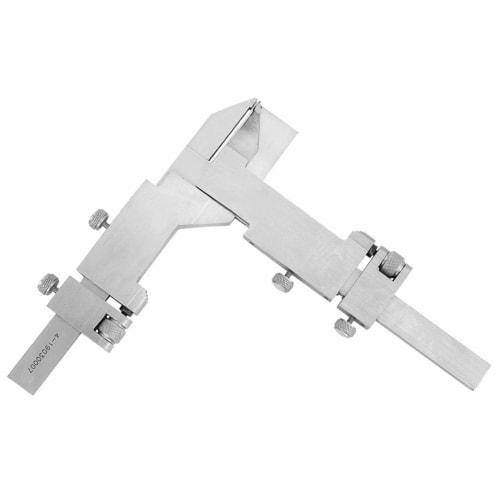

2. PRODUCT DESCRIPTION: Function: 1. The chord thickness caliper measures the thickness of the gear using the upper circle as the measurement standard. 2.The chord thickness caliper has two movable vernier scales perpendicular to each other. 3. The horizontal scale measures by fine-tuning the tooth thickness of the carbide tip on the pitch line. 4.Made of high quality stainless steel, high hardness and not easy to break. 5. High measurement accuracy, accuracy of 0.0012inch/0.03mm. Specifications: Item Type: Caliper Material: Stainless Steel Resolution: 0.001"/0.02 mm Accuracy: 0.0012"/0.03 mm Tooth Thickness Range (Horizontal Scale): 0-1.56" (39.6mm) Chord Thickness Range (Vertical Scale): 0-1.44" (36.7mm) Instructions: 1. The chord thickness caliper measures the thickness of the gear using the upper circle as the measurement standard. 2.The chord thickness caliper has two movable vernier scales perpendicular to each other. There are two measuring jaws that measure the thickness of the string. The other is the "given" string height. 3. Calculate the string height and string tooth thickness based on the gear parameters. The caliper with chord height is fixed and locked in size, the fixed end of the chord height is placed on the top of the teeth, and then the two claws of the chord tooth thickness contact the two different side profiles. The string is measured. My teeth are thick. Package list: 1 x caliper

3. PRODUCT DIMENSIONS & WEIGHT: - Weight: 0.483 kg - Dimensions: 4.0 x 3.0 x 2.0 cm

4. SPECIFICATIONS: - Brand: SEAFRONT - Manufacturer: SEAFRONT
