Label:Yes
1.Stable Electrical Performance: Possess stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion proof and erosion proof
3.Versatile Multi-Core Design: The male plug and female socket feature a multi-core configuration to accommodate a wide range of industrial wiring requirements and control signals.
2.Specifications:WS20 Pins:2Pin; Terminal Diameter: 2 x approx. 2.5mm/ 0.1in, Terminal resistance: 1milliohm ;Wire Size: ≤4mm² /11 AWG;Rated Current / Voltage : 25A / AC 500V;Withstand Voltage : AC 1500V
5.Zinc Alloy Material: Zinc alloy material have good tarnishing resistance, smooth surface, good room temperature mechanical properties and wear resistance
4.Simple Installation: Supports both soldering and crimping connections, enabling easy and secure integration into waterproof LED fixtures and industrial equipment.
Specifications:

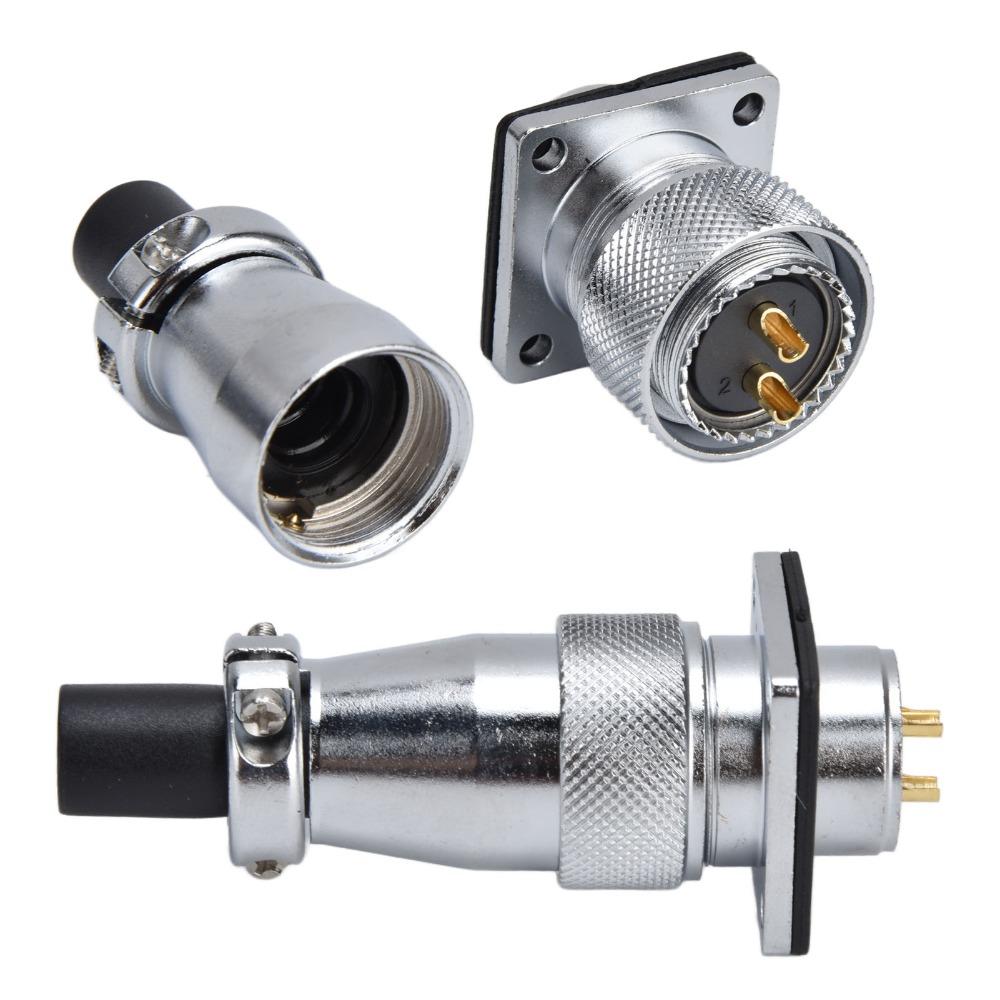

Item Type: Aviation Connector
Material: Zinc Alloy
Rated Current (A): 25
Working Voltage (AC, V): 500
Withstand Voltage (AC, V) 1 Min: 1500
Terminal Resistance (milliohm): 1
Insulation Resistance (megohm): 2000
Temperature Range: -40℃~85℃
Mating Times: 500
Number of Cores: 2
Terminal Diameter: 2 x approx. 2.5mm/ 0.1in
Wire Gauge (mm²/AWG): ≤4/11
Color: Silver
Size:49*26mm(1.93*1.02in)/29*29mm(1.14*1.14in)
Package List:
1 x TQ Plug
1 x Z Socket
1 x Waterproof Cover
4 x Screw
4 x Nut
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
