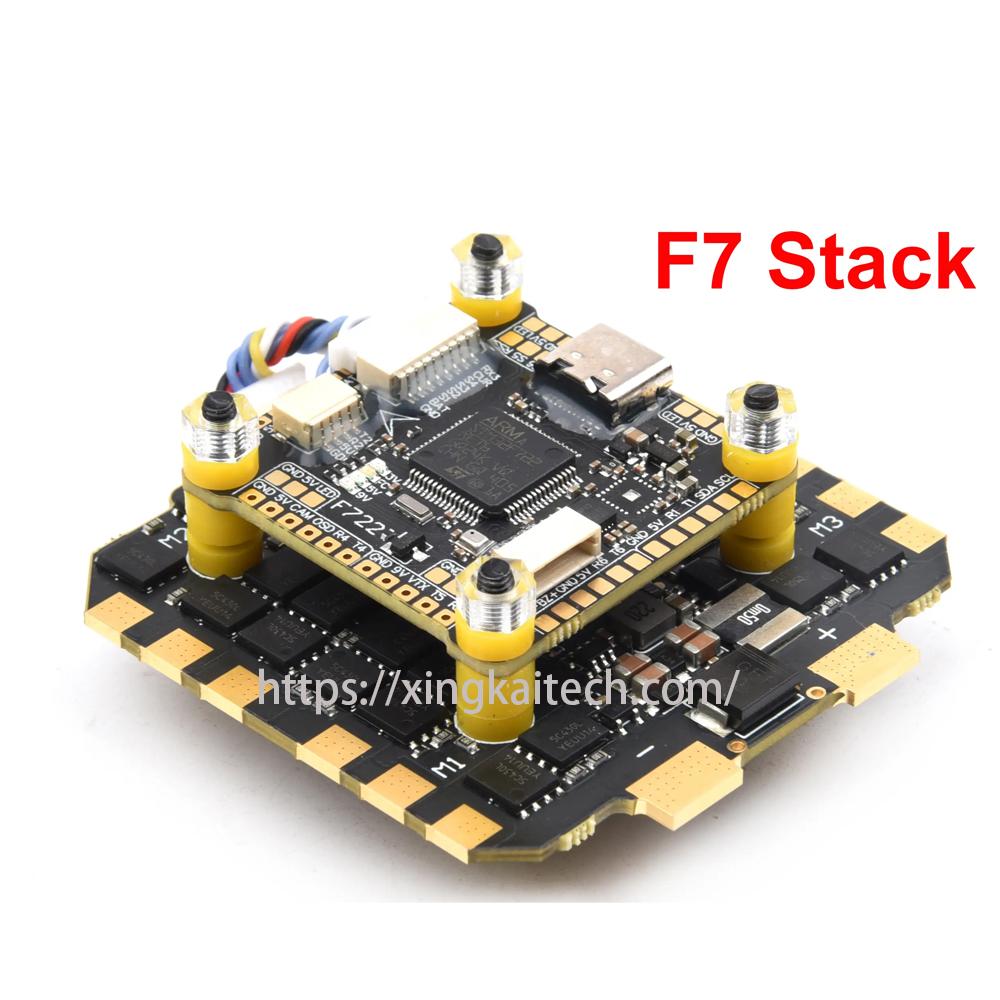

F722 F405 Flight Controller NOXE FC 3-6S 80A BLHeli32 STM32 TYPE-C For ELRS TBS FPV Drone 20X20MM

Package Included: (Send it as your choice, as the option shown)

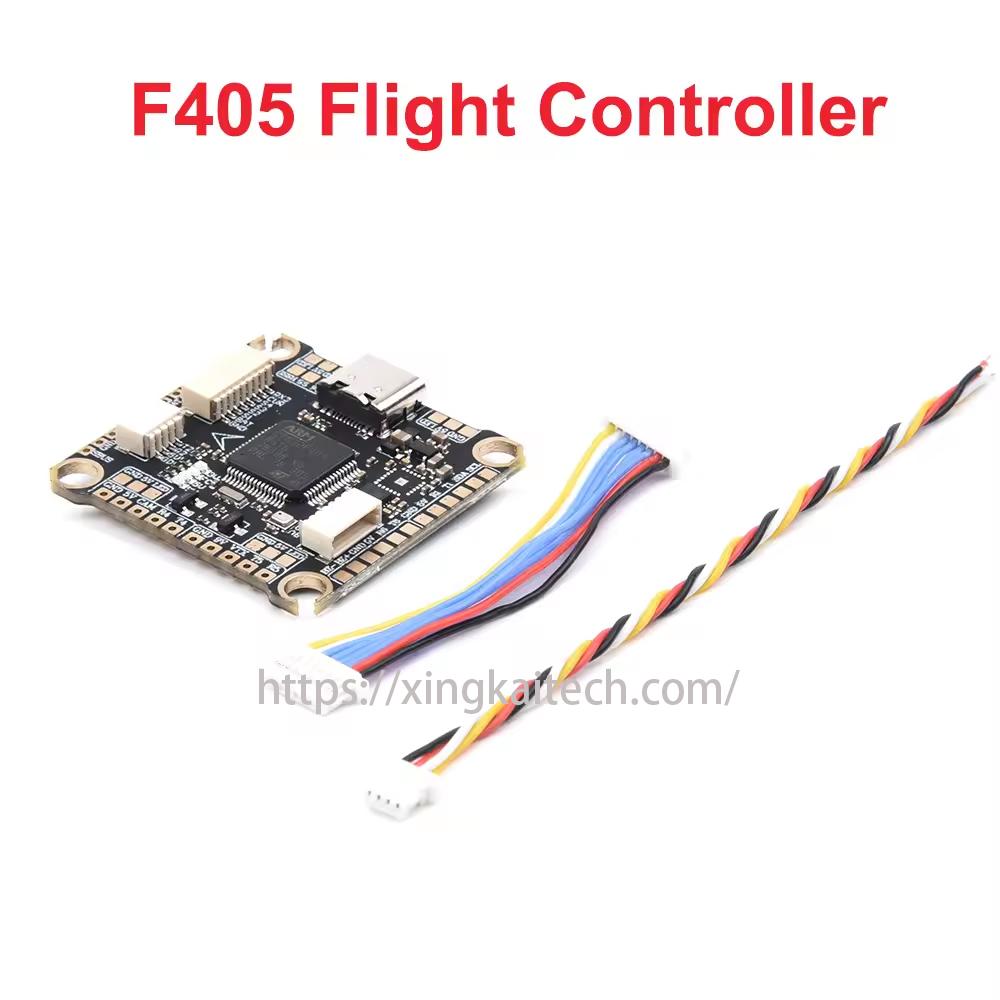

F4 F405 Flight Controller:

Product Parameters:

MCU: STM32F405RGT6 168MHz

Gyroscope: Mpu6500/ICM42688 (send at random)

Baro:Bmp280/DPS310 (send at random)

OSD: Betaflight SPI OSD DJI HD OSD(UART5)

Black box: 16MB

6x Uarts: UART 1/2/3/4/5/6

4x PWM outputs

1x I2C

2x LEDs for FC STATUS (Blue) and 3.3V indicator(Red) and 5V indicator(Red) and 9V indicator(Red)

USB Type-C(USB2.0)

1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Curr/Rx3)

1x JST-SH1.0_6pin connector (9V/GND/T5/R5/GND/R2)

VTX 9V filtered power

DJI FPV OSD is supported by any spare UART

LED: 4 LED independent pads, support WS2812 programming lamp output.

Receiver: Support Sbus, crsf, ibus, SBUS, XBUS receiver, The default receiver input is UART2(You can solder ELRS RX on UART2).

Power:

Input voltage: 3-8S

BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI

LDO 3.3V: Max.1A

FC Firmware:

BetaFlight firmware: DAKEFPVF405

INAV firmware:DAKEFPVF405

Mounting:

Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation

External size 36mm × 36mm

Flight control weight: 6.9g

Flight control onboard voltage sensor.
