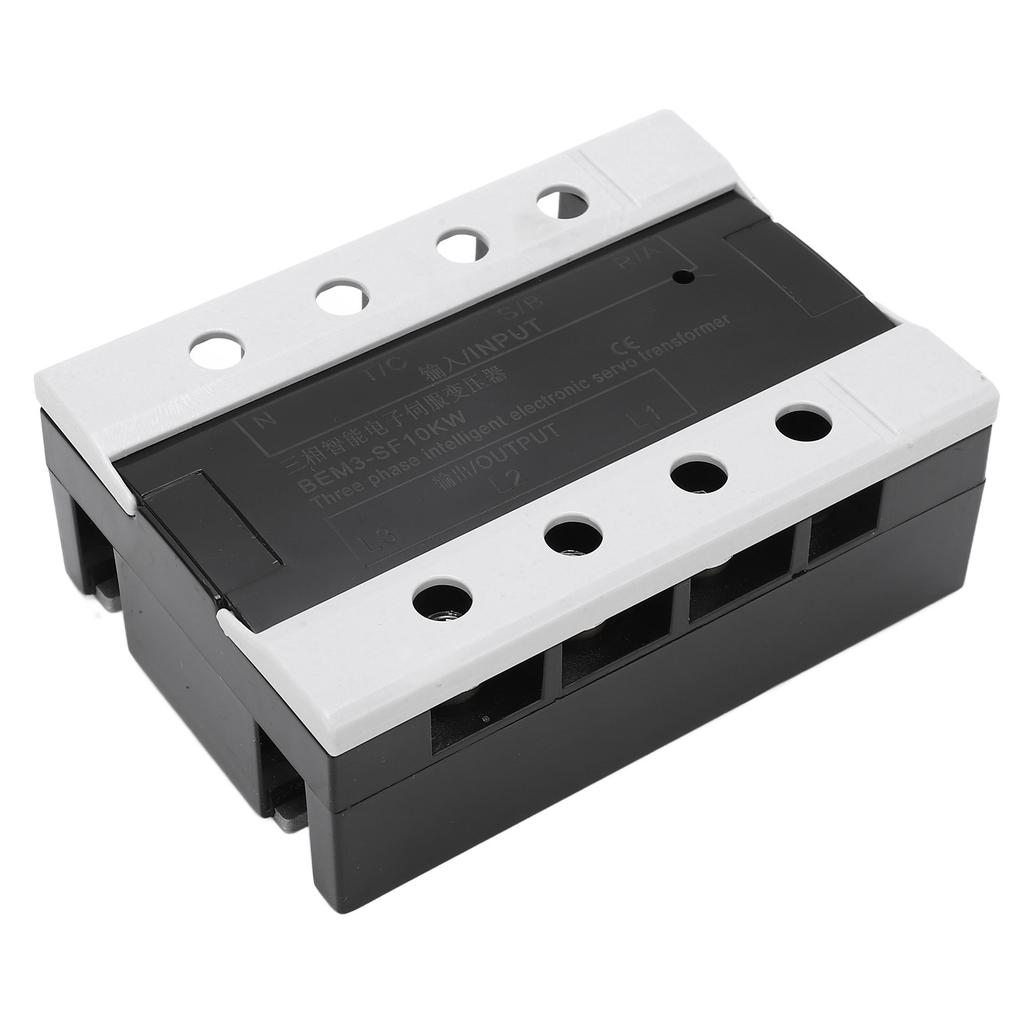

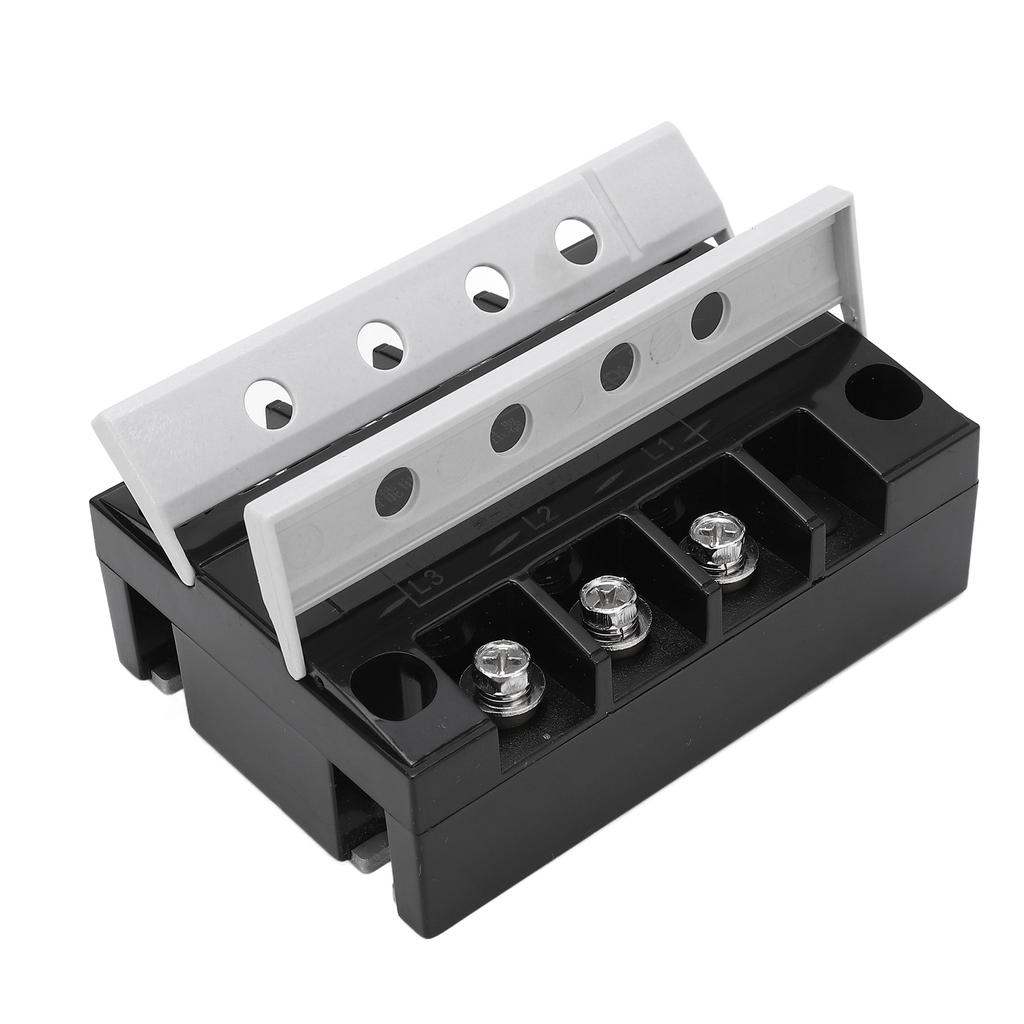

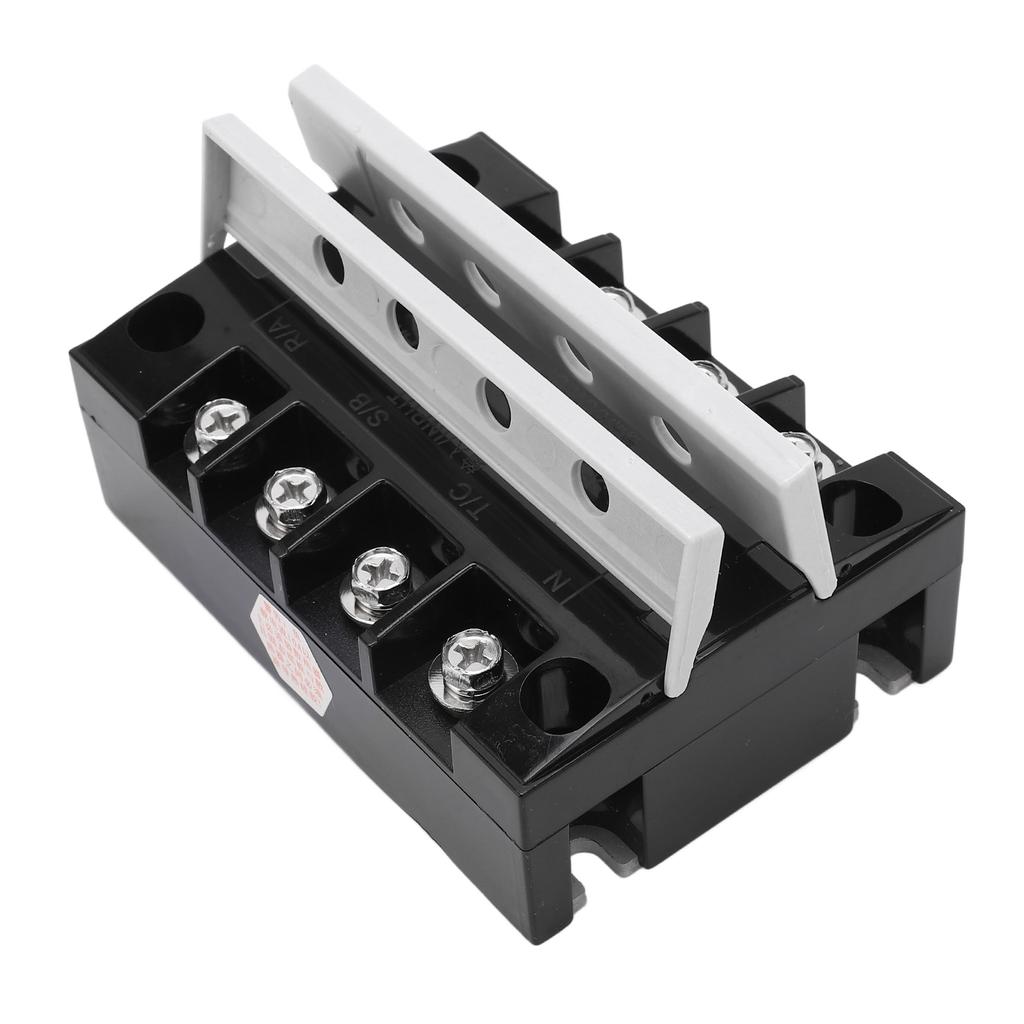

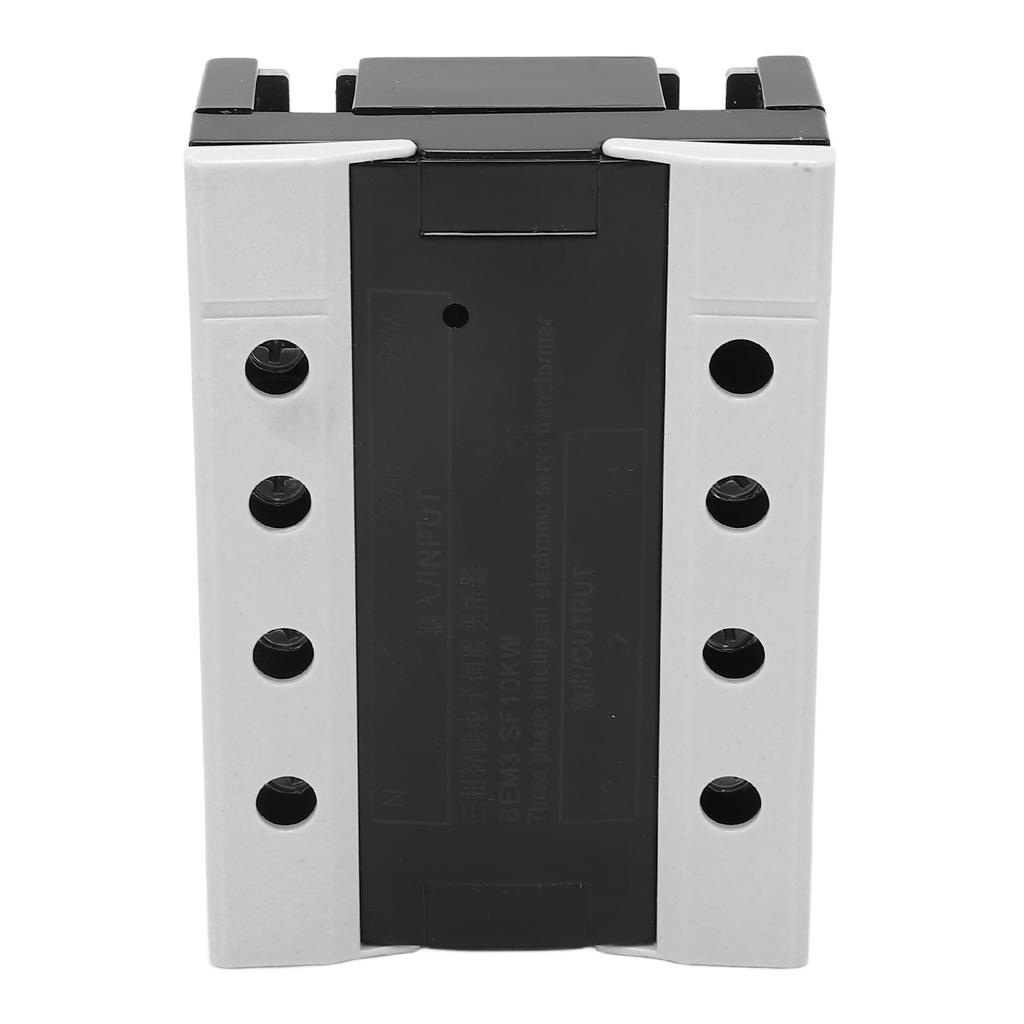

3 Phase Servo Transformer 10KW Electronic Voltage Converter 360‑420V Input 200‑230V Output

Feature: 1. INPUT OUTPUT: 3 phase intelligent electronic servo transformer, 3 phase 360 420V input, 3 phase 200 230V output, which is stable and reliable. 2. GOOD PERFORMANCE: The servo transformer has high efficiency, small heat generation, less interference, no noise and good electromagnetic compatibility. 3. DURABLE MATERIAL: Copper coated ceramic substrate, high heat conduction, aluminum base plate, with instantaneous heat transfer, good heat dissipation. 4. COPPER TERMINAL: The transformer adopts pure copper output port, with small current resistance and strong conductivity, ensuring stable operation. 5. WIDE APPLICATION: Electronic servo transformers are widely used in CNC machine tools, textile equipment, automatic production equipment, etc. Specification: Item Type: Servo Transformer Material: Copper, ABS, Aluminum Power: 10KW Input Voltage: 360 420V Output Voltage: 200 230V Current Mode: Dynamic Tracking Dynamic Working Current Frequency: 1MHz Fundamental Current Frequency: 300Hz Current Waveform: Sine Wave Current Drive Form: SPWM Output Voltage Distortion Rate: 0.1percent Efficiency: 99.6percent Load Step Response Time: <2us Load Adjustment Rate: 0.1percent Scallop Adjustment Rate: 0.1percent Source Voltage Response Time: <1.5us Anti Interference Level: B. Package List: 1 x Servo Transformer Note: Be careful during installation.
