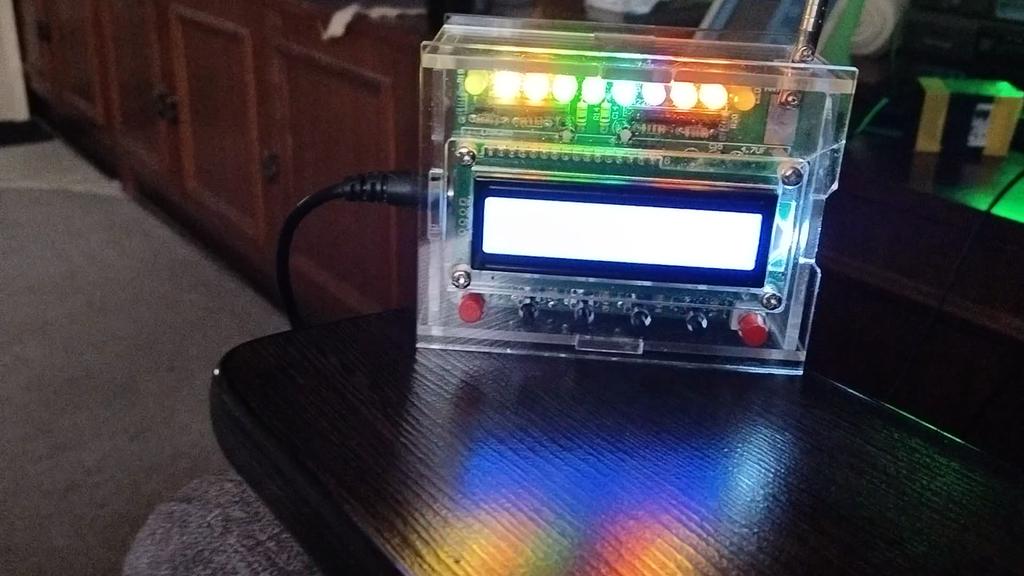

DIY FM Radio 87 To 108MHz LCD Display Digital Radio Receiver with LED Flashing Light for Education Project Parts

Feature: 1. [Clear LCD Display] This radio receiver features a high definition LCD display that provides clear and detailed information, enhancing your user experience. 2. [Wide Frequency Range] With a reception frequency range of 87 to 108MHz, you can easily adjust the frequency and volume to suit your preferences. 3. [RGB Light] Equipped with 10 LED lights that randomly flash in different colors, this audio receiver adds a unique dynamic visual experience to your listening. 4. [Acrylic Transparent Casing] The transparent acrylic casing not only adds an aesthetic appeal but also offers protection for the precise internal components of the receiver. 5. [Versatile Power Options] Operating on a 5V DC power supply, this receiver can be conveniently powered by a computer USB or a portable charger. Specification: Item Type: FM Radio Material: PCB, Acrylic DC Socket Power Supply: 5V, positive inside and negative outside, do not connect it in reverse Features: 1. Built in volume adjustment 2. The RGB indicator light automatically flashes 3. Support 87MHz to 108MHz receiving frequency 4. Built in 5W power amplifier 5. LCD1602 display screen Parameters: 1. Item Type: RDA5807 FM 87 108MHz radio receiver 2. Working Voltage: DC4.5 5.5V 3. Output Impedance: 4ohm 4. Output Power: 5W 5. Output Channel: Mono 6. Receiving Frequency: 87.0MHz to 108.0MHz 7. Frequency Accuracy: 0.1MHz 8. Equivalent Noise: >=30dB 9. Working Temperature: 40 celsius to 85 celsius 10. Working Humidity: 5percent to 95percent RH Use Method: 1. Press the left button to turn on or off the power supply. 2. Press the right button to turn on or off the spectrum indicator light. 3. Press S+ or S to adjust the volume. 4. Press P+ or P to adjust the reception frequency and FM radio station. Brief Introduction: The main control chip is composed of STC89C52 chip and TDA5807 core device, it is connected through the I2C bus between the master and slave devices, and the TDA5807 chip is driven to work by software simulation of bus timing, the program automatically searches for radio stations, with a frequency reception range of 87 to 108MHZ, the frequency band information is displayed in real time on the LCD1602 LCD screen. The output audio signal is amplified and processed through the power amplifier chip LM386, which drives the speaker to work. Effectively reducing noise interference while listening to the radio, and with the help of the power amplifier chip, the sound becomes clear, with level indicator, makes listening to radio stations a pleasure. Product Features: 1. This module adopts a DC 5V working voltage, which is easy to access and supports computer USB power supply and mobile charging bank. 2. This audio receiver adopts digital tuning and quantity volume control. It is more convenient to search for radio stations and adjust the volume.. Package List: 7 x Acrylic Board1 x Circuit Board1 x Antenna1 x LCD LCD Screen1 x Horn1 x Power Cord1 x Accessories Pack1 x Screw Set Pack (Including 5 Copper Pillars) Note: For parts that have not been assembled need to be welded, assembled, and debugged by hand. Please note.
