Tamiya 1 10rc Super Avante Td4 Chassis

Product Name: Tamiya 1/10 RC Super Avante TD4 Chassis

[Brand Introduction]

Tamiya is a renowned RC model manufacturing company headquartered in Japan, known for creating innovative designs and high-performance products loved by RC enthusiasts.

[Product Description]

【A next-generation 4WD buggy that evolves aerodynamics and performance with both chassis and body】 This is a 4WD racing buggy assembly kit inheriting the name of "Avante", which is an icon of Tamiya's electric RC cars. The body features a slim shape achieved by using inboard suspension to maximize aerodynamics and driving performance.

[Usage Instructions]

After assembly, install the necessary 540-type motor and RC equipment as per your preference. Set up the power for the battery and transmitter, and then it is ready for driving.

[Specifications]

● Overall Length: 387mm

● Overall Width: 246mm

● Overall Height: 117mm (wing stay at low position)

● Wheelbase: 283mm

● Tread: Front 214mm / Rear 205mm

● Main Frame: Plastic bathtub type

● Drive Method: Shaft drive 4WD

● Diff Gear: Ball diff on front and rear

● Steering: 3-split tie rod type

● Suspension: Double wishbone 4-wheel independent

● Tire Width/Diameter: Front 32/82mm, Rear 41/82mm

● Damper: CVA oil damper

● Gear Ratio: 10.71:1

● Motor: 540 type (sold separately)

● Full bearing specification

● Speed Controller: ESC type (sold separately)

[Precautions]

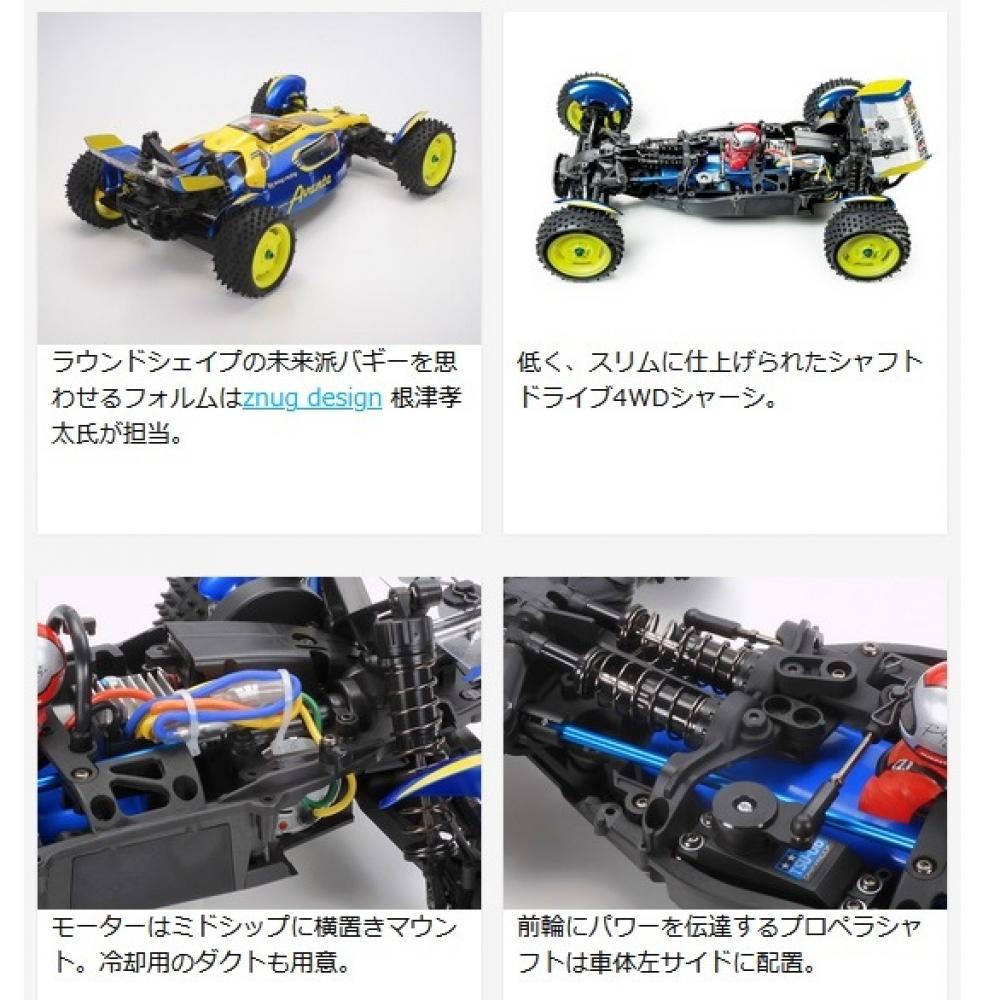

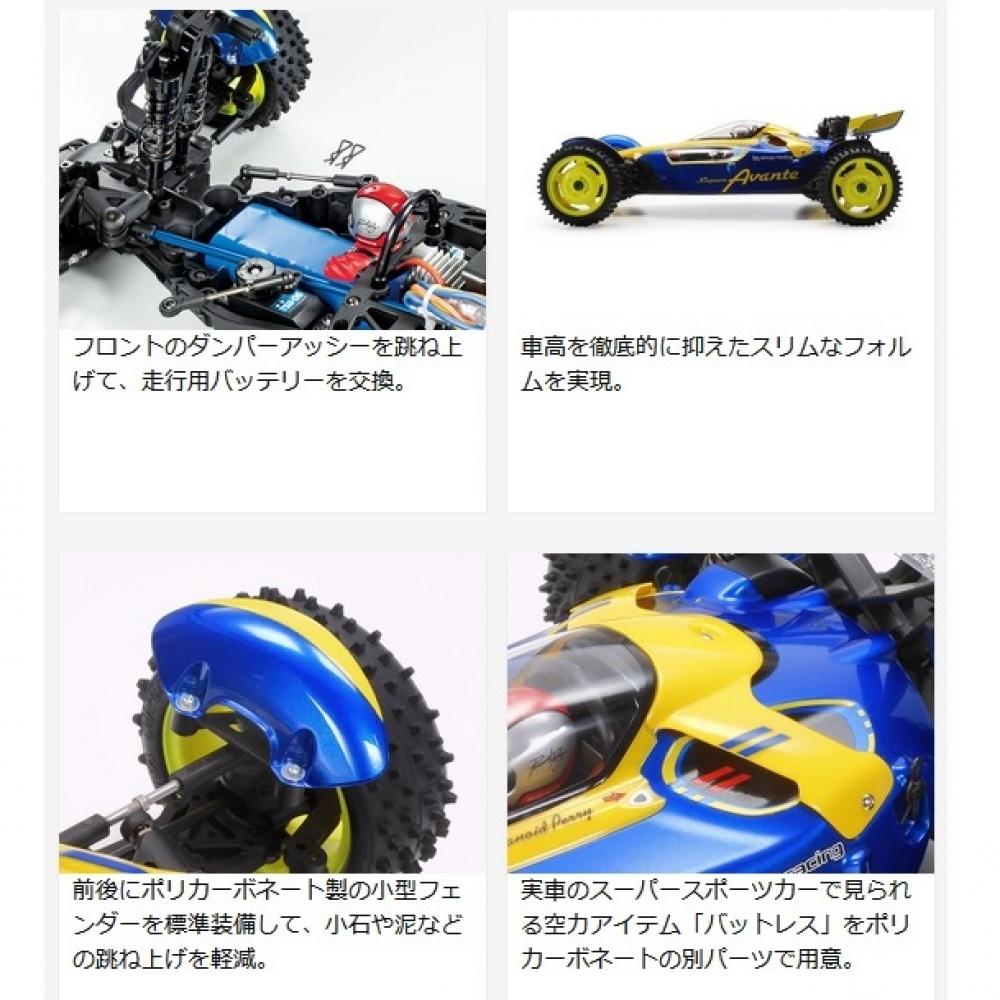

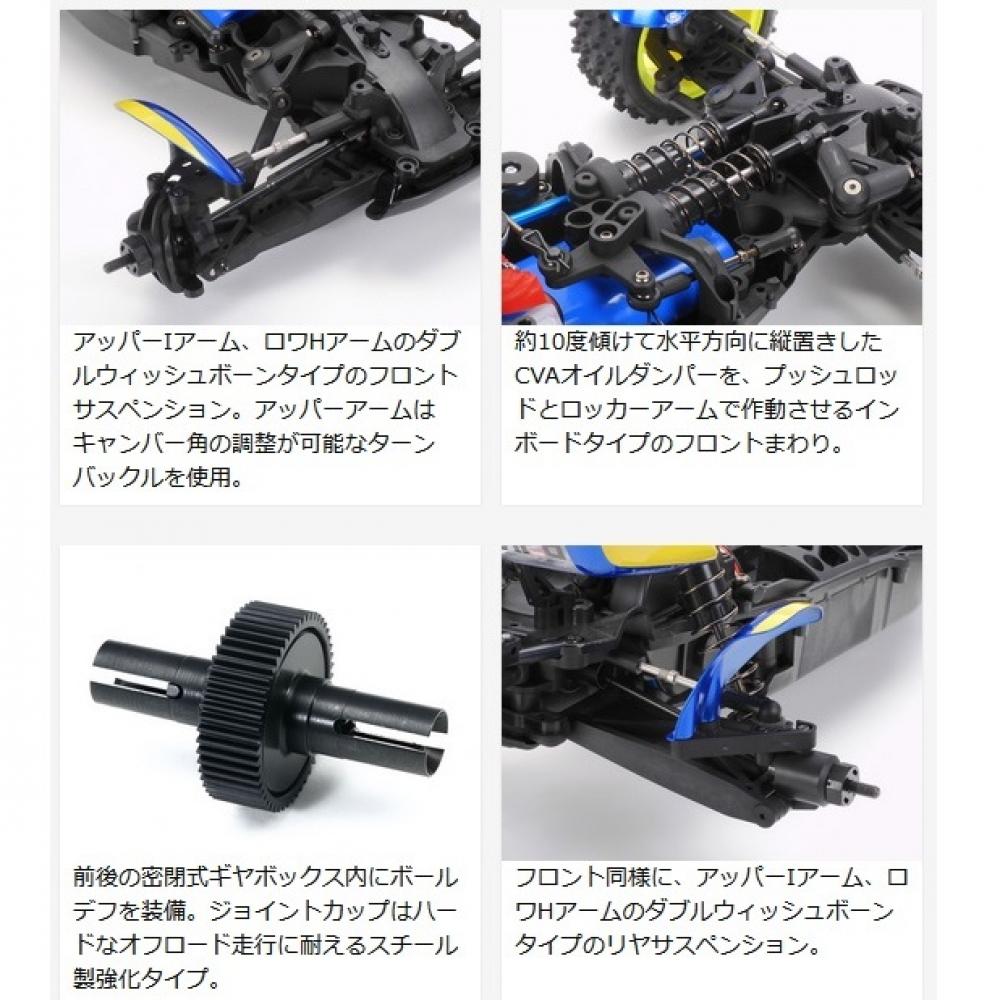

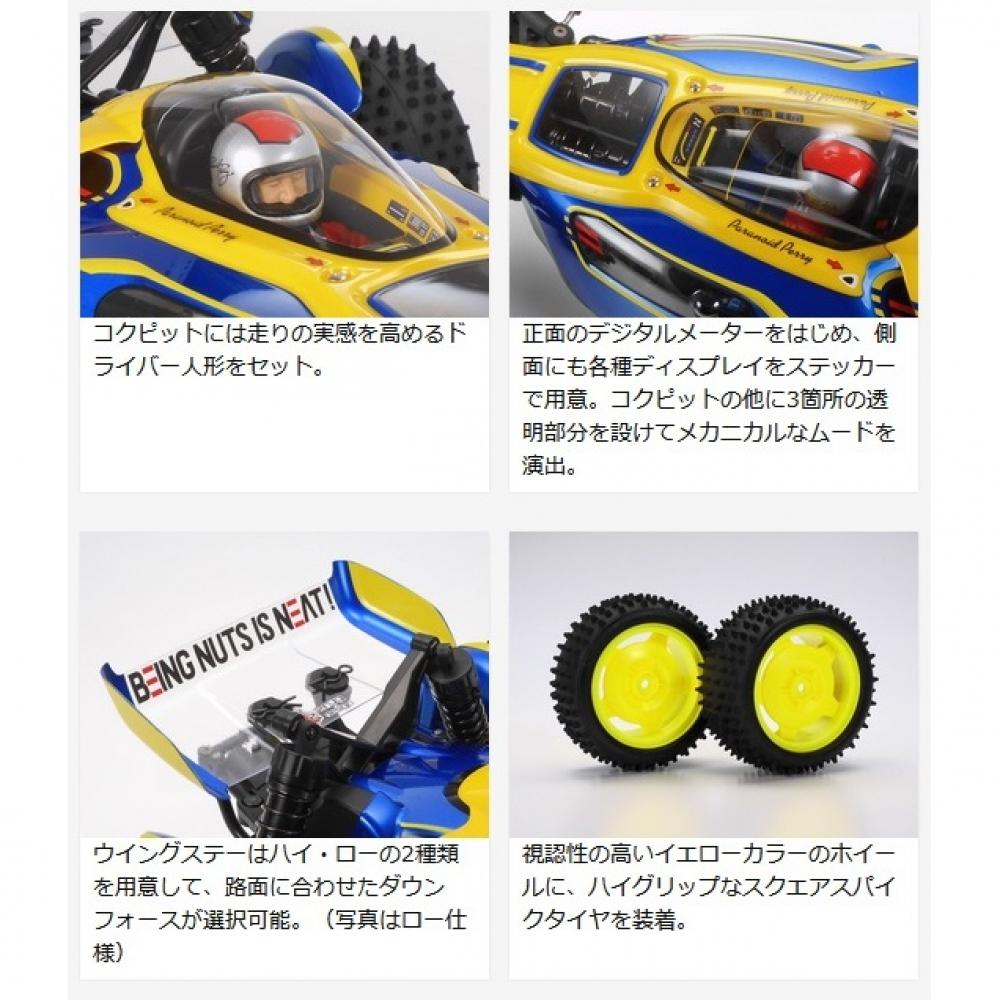

A 540-type motor and RC equipment (transmitter, receiver, ESC, low-profile servos recommended) must be purchased separately. The pictures show the assembled and painted version.

[Size Chart]

Overall Length: 387mm

Overall Width: 246mm

Overall Height: 117mm

Wheelbase: 283mm

Tread: Front 214mm, Rear 205mm

To request a return or exchange, please note that it is mandatory to provide a video of the unpacking of the package.
