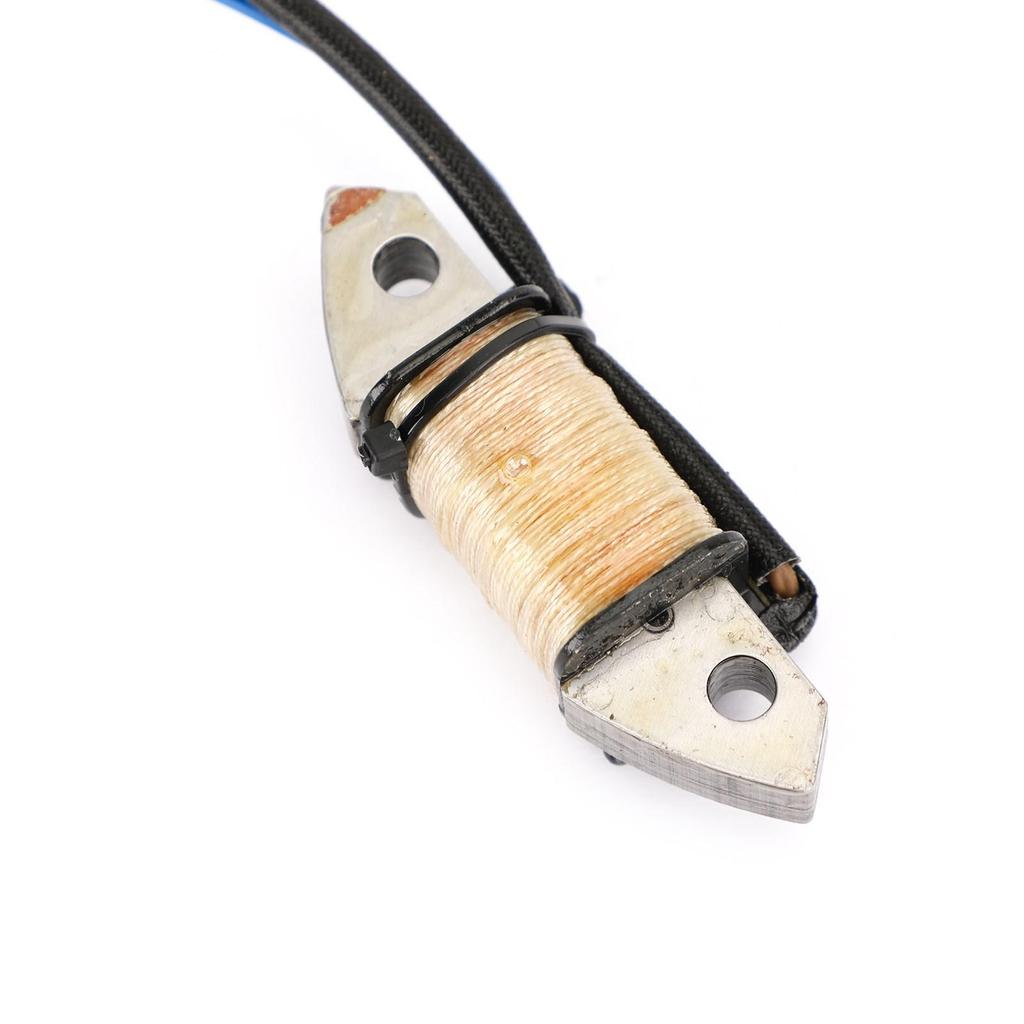

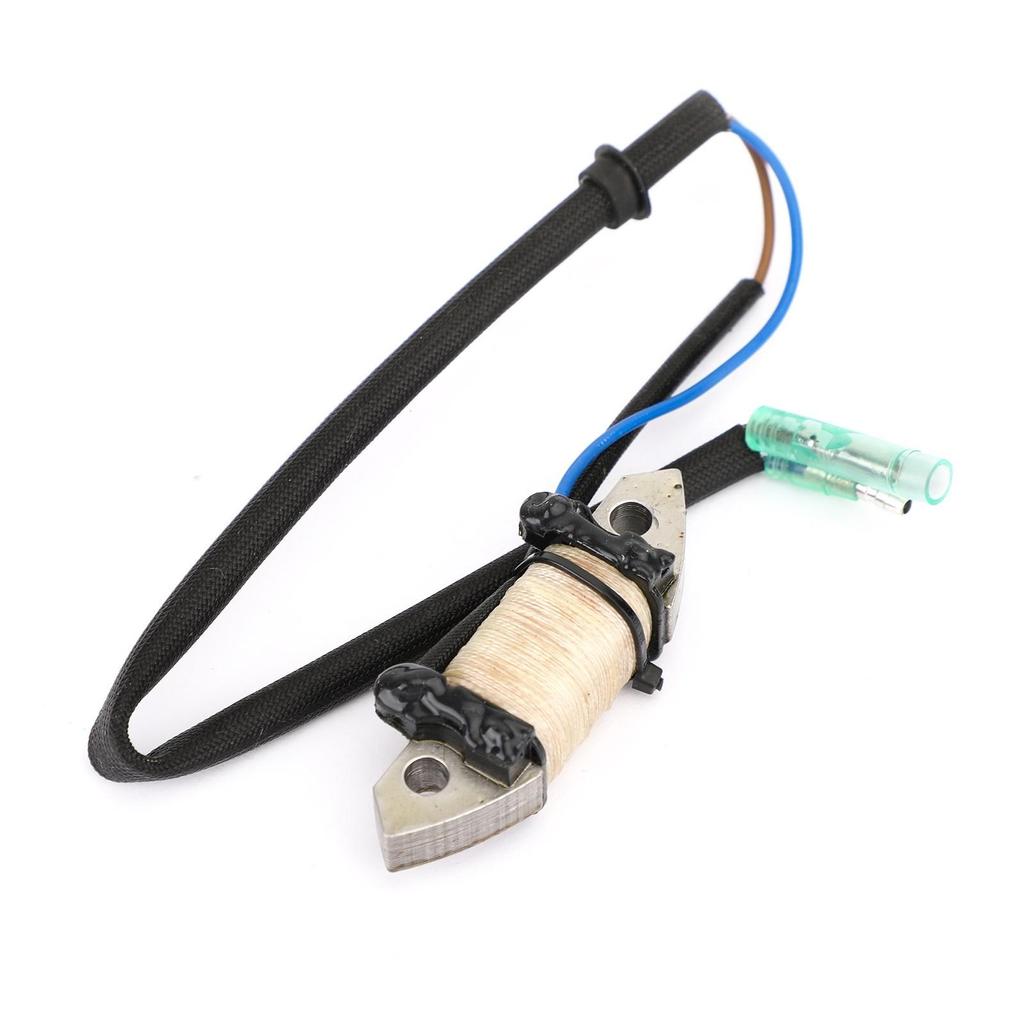

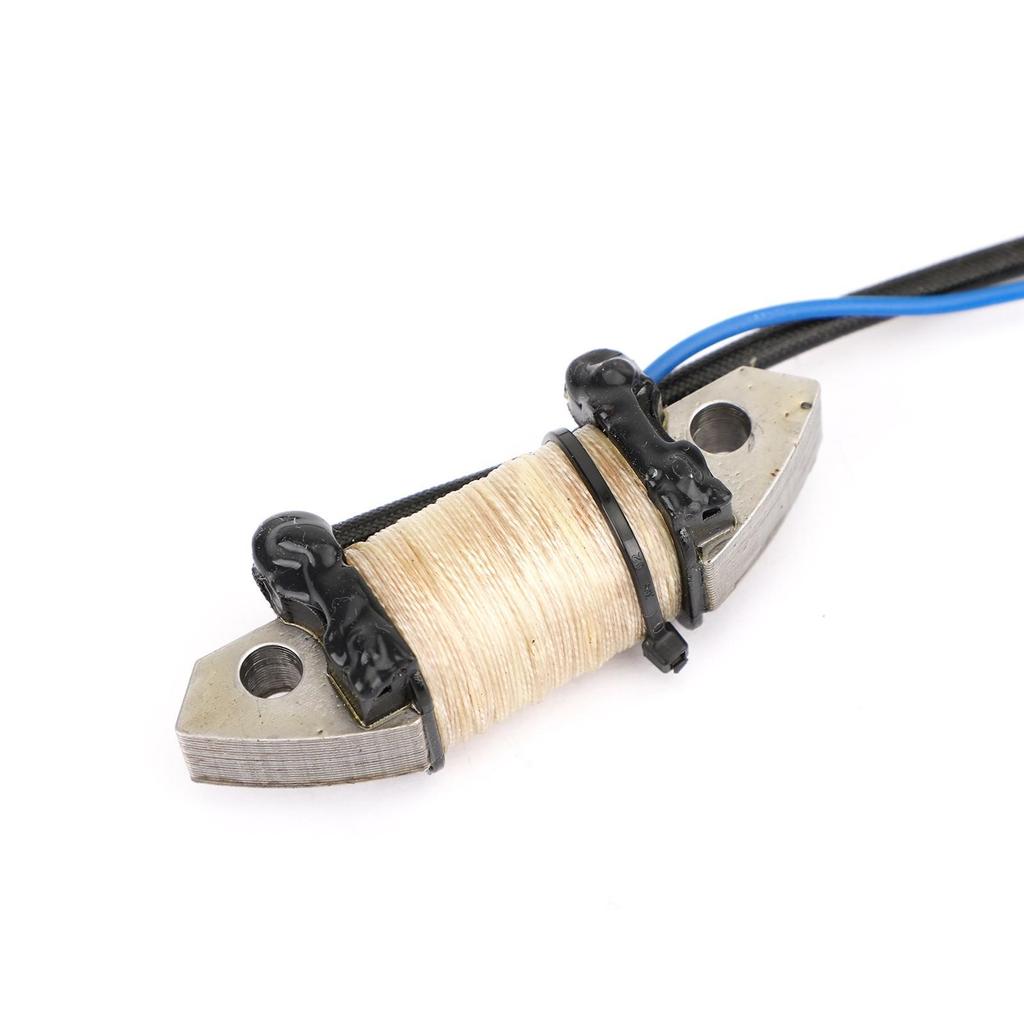

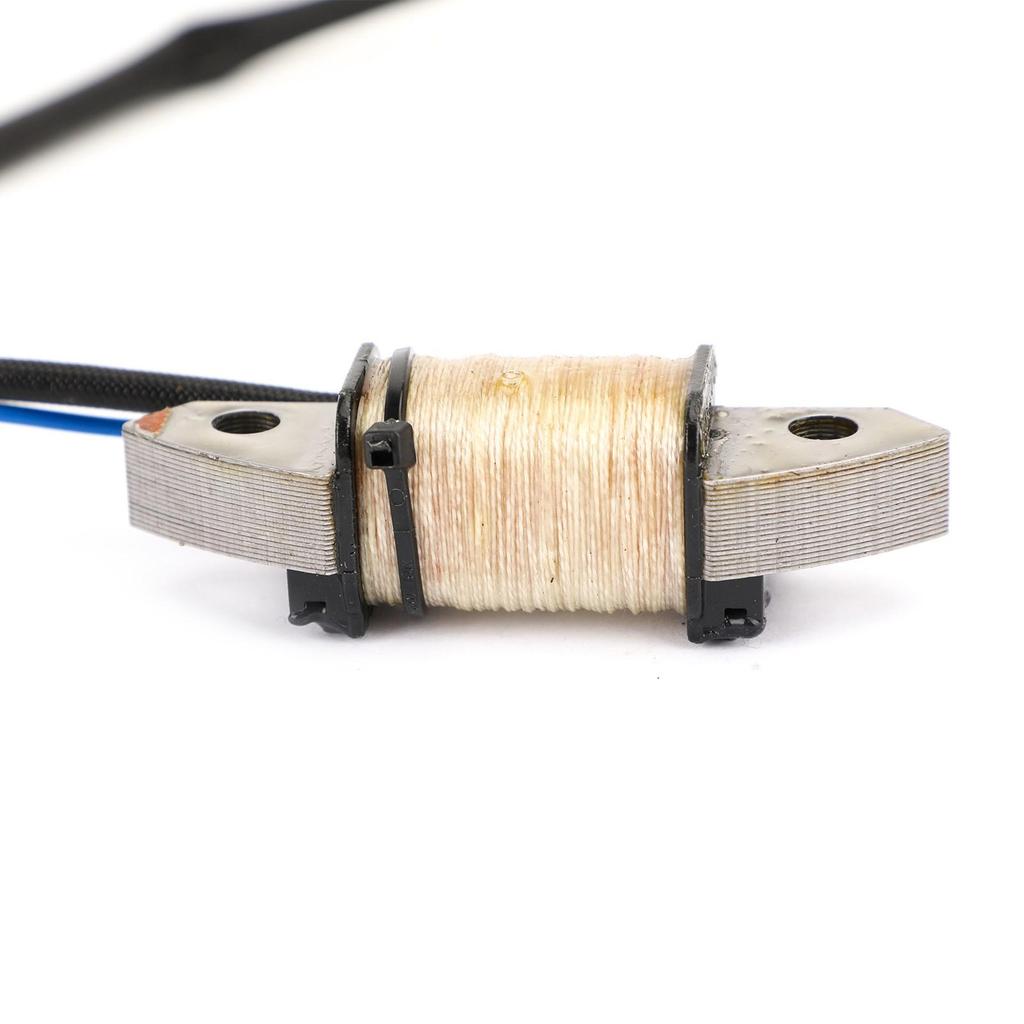

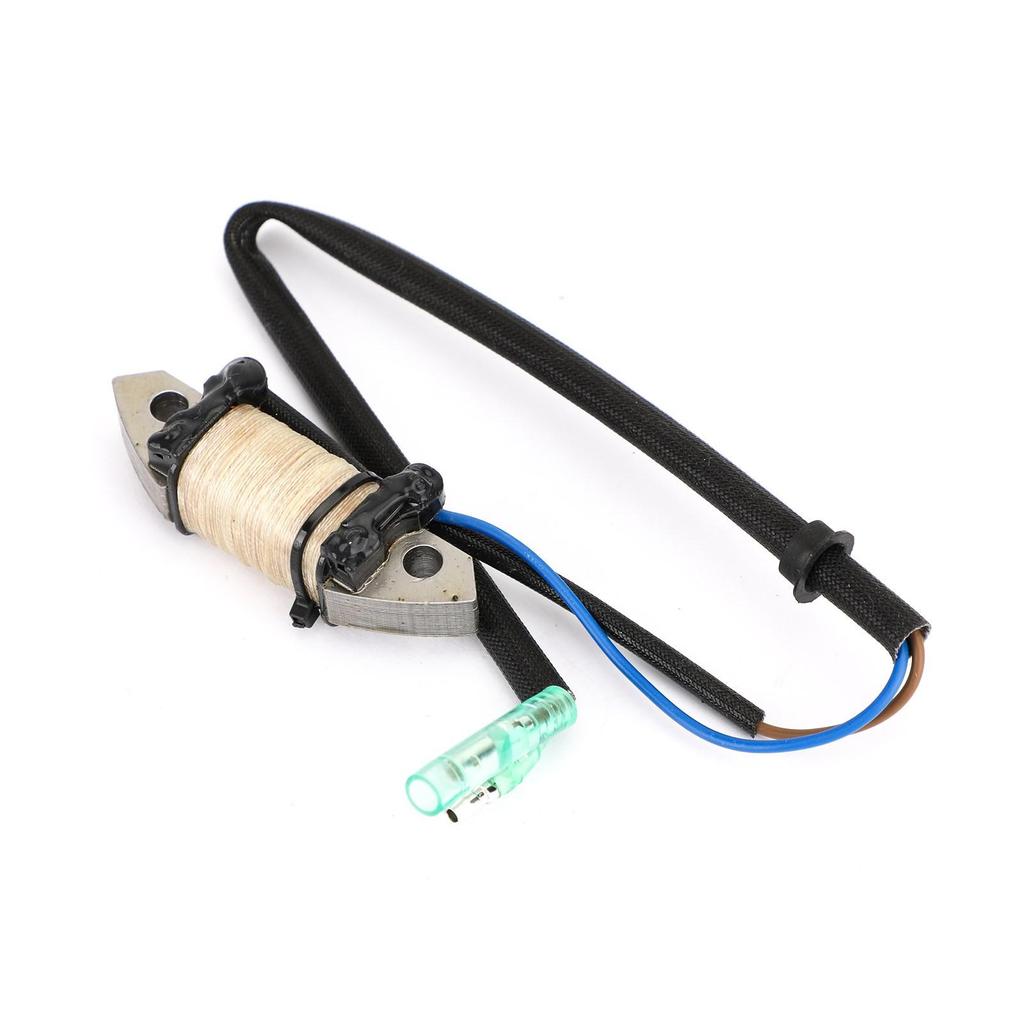

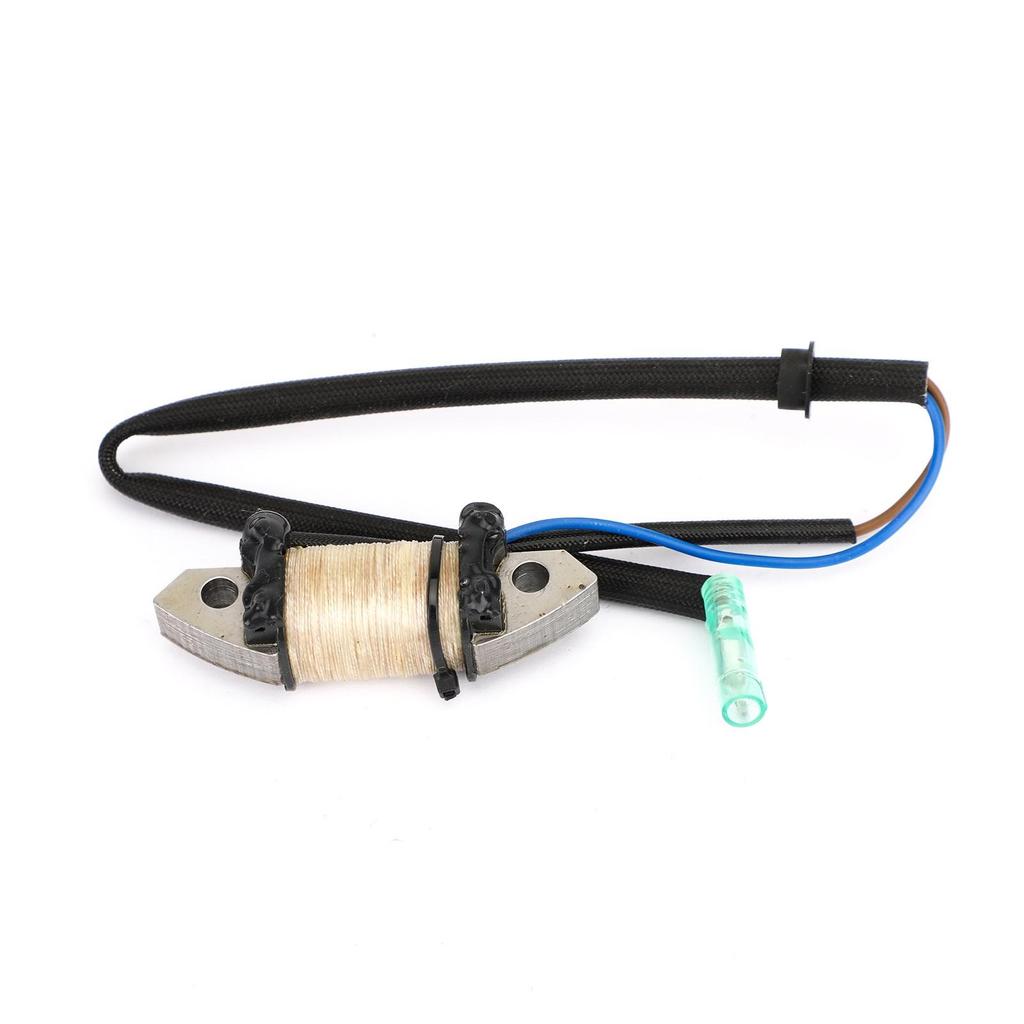

Ignition Charge Coil Fit For Yamaha Outboard 40-50HP 1989-2017 63D-85520-00 63D-85520-00 63D-85520-01
Features:
Direct replacement to your original unit
Plug-and-play , direct fit , easy installation.
Highest grade lamination materials.
Highest grade copper windings , resistant to 200 degrees Celsius.

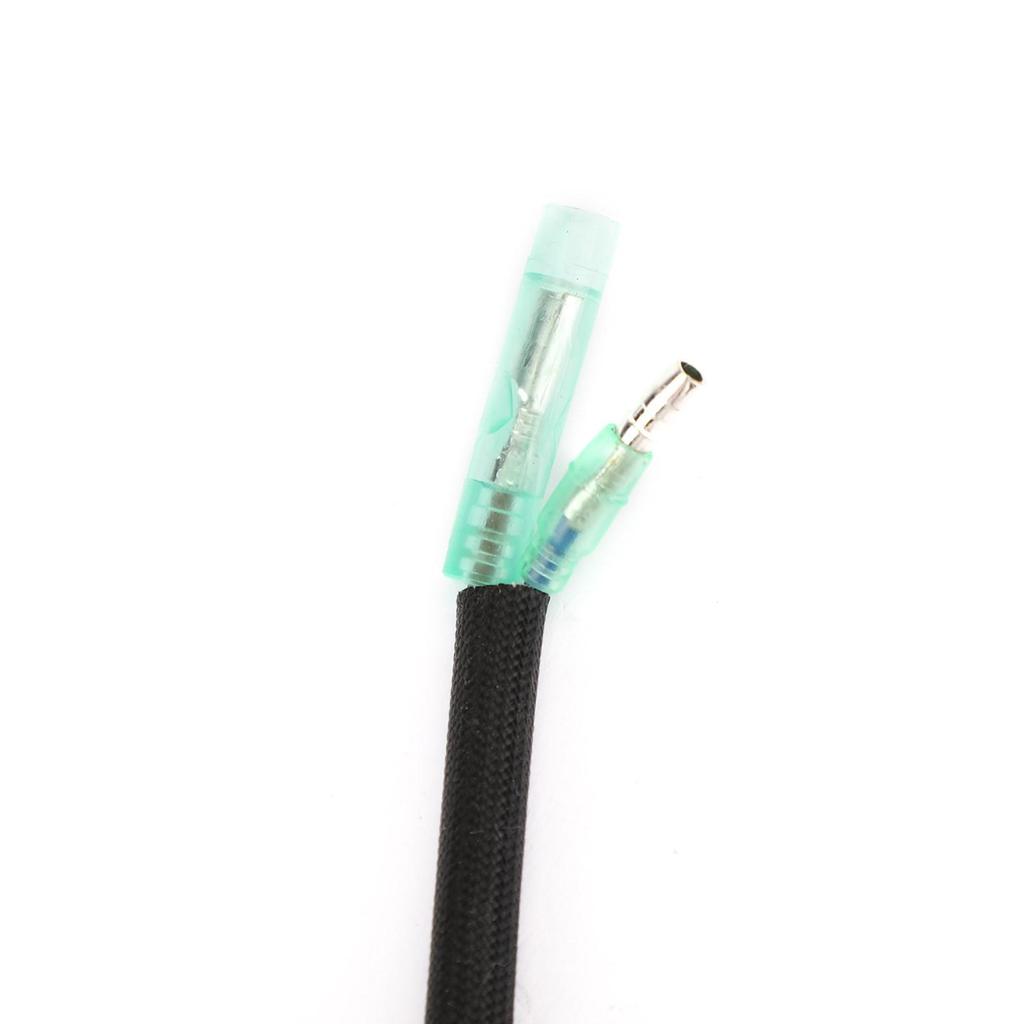

Connector included.
All products shipped are tested.
Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Reference Part Number:
6H5-85520-00-00
63D-85520-00-00
63D-85520-01-00
Fitments:
Fit for Yamaha 25Q EOS/L 1990-1994
Fit for Yamaha 40 TL/UL(H)R 1994
Fit for Yamaha 40 MS/L/ULH 1991-1994
Fit for Yamaha 40 ETL/UL 1989-1994
Fit for Yamaha 40 PLR 1992-1994
Fit for Yamaha 40 PS/LR 1991
Fit for Yamaha 40 S/L/UL 1989
Fit for Yamaha K40J M(E/O)S/L 1993
Fit for Yamaha 40H M(E/O)S/L 1989-1994
Fit for Yamaha 50 M(W/E/T/H/O)S/L 1989-1994
Fit for Yamaha P50 S/L (PRO) 1989-1994
Fit for Yamaha 50D EMTOS/L 1989-1994
Fit for Yamaha 40 ML/ULH 2000-2001
Fit for Yamaha 40 TL/UL(H)R 2000-2001
Fit for Yamaha C40 TS/LR 2000-2001
Fit for Yamaha 40V M(H/E/T)OS/L 2000-2001/2007-2013
Fit for Yamaha 40Y M(E/T/H/O)S/L 2007-2009
Fit for Yamaha 40V MHOS 2010-2014
Fit for Yamaha 40V MHOS/L 2010-2017
Fit for Yamaha 40V MHOL 2012-2017
Fit for Yamaha 40V EOS 2010-2012
Fit for Yamaha 40V EOL 2011-2017
Fit for Yamaha 40V EOS/L 2012
Fit for Yamaha 50 M(W/E/T/H/O)S/L 2000-2001/2006-2009
Fit for Yamaha 50H M(W/E/D/T/H/O)S/L 2000-2001/2009-2012
Fit for Yamaha 50H MHOS 2010
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package includes:
1x Charge Coil
Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in , always use locking compound.
If our stator includes a pickup coil , always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
