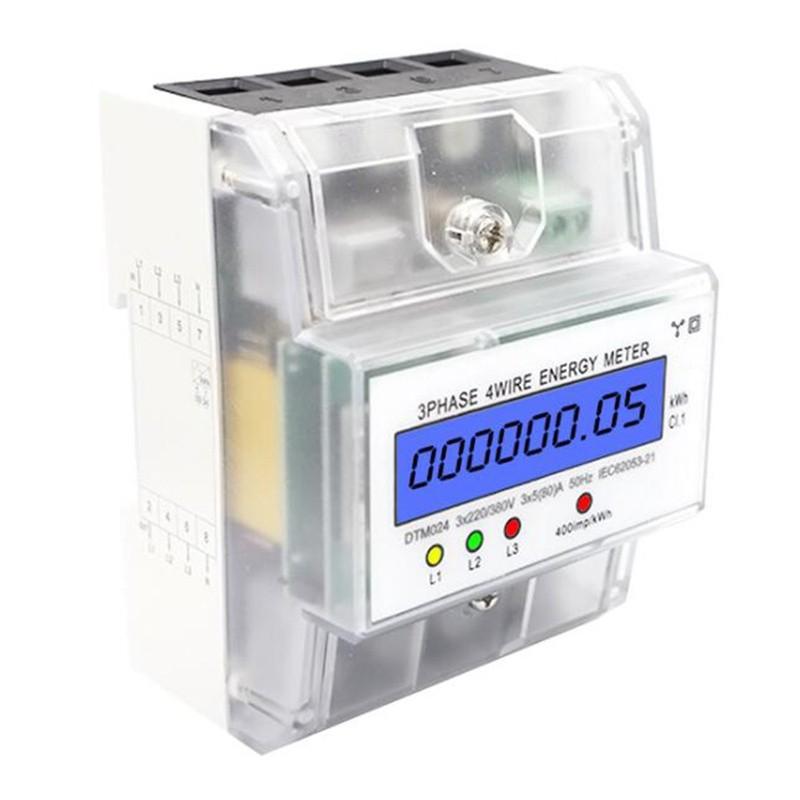

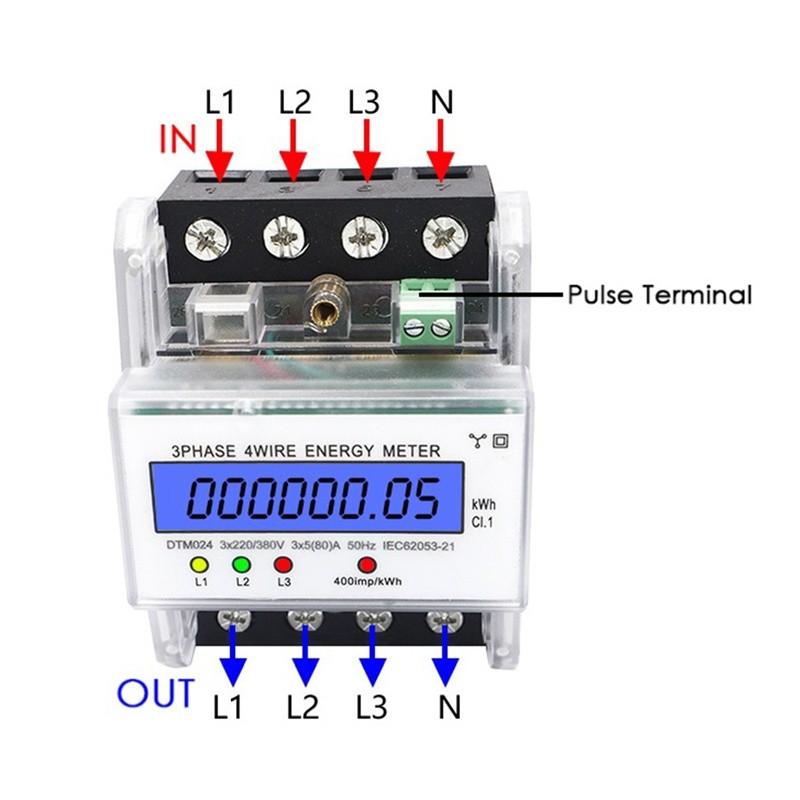

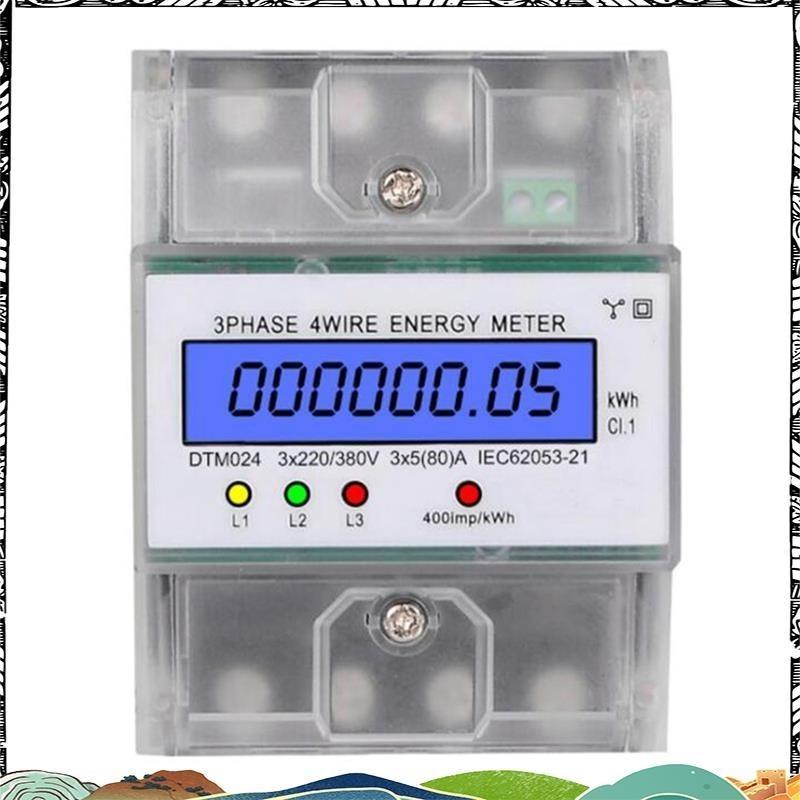

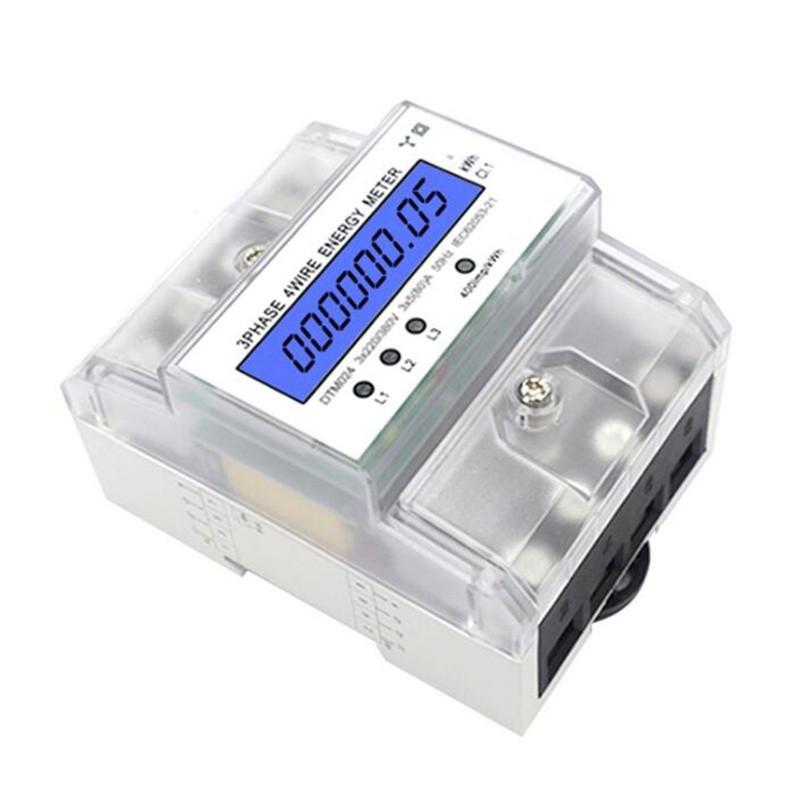

3-phase 4-wire energy meter with high accuracy is designed for the measurement of rated frequency 50 or 60Hz single-phase AC active electricity.
High-quality flame retardant ABS case, with good impact resistance, heat/ cold resistance, insulativity and durability.

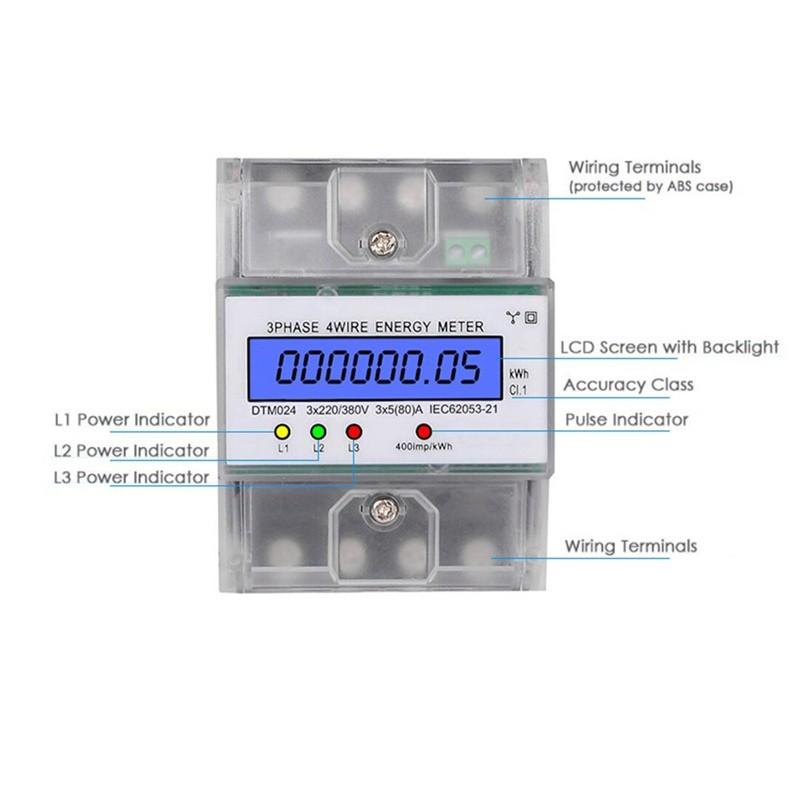

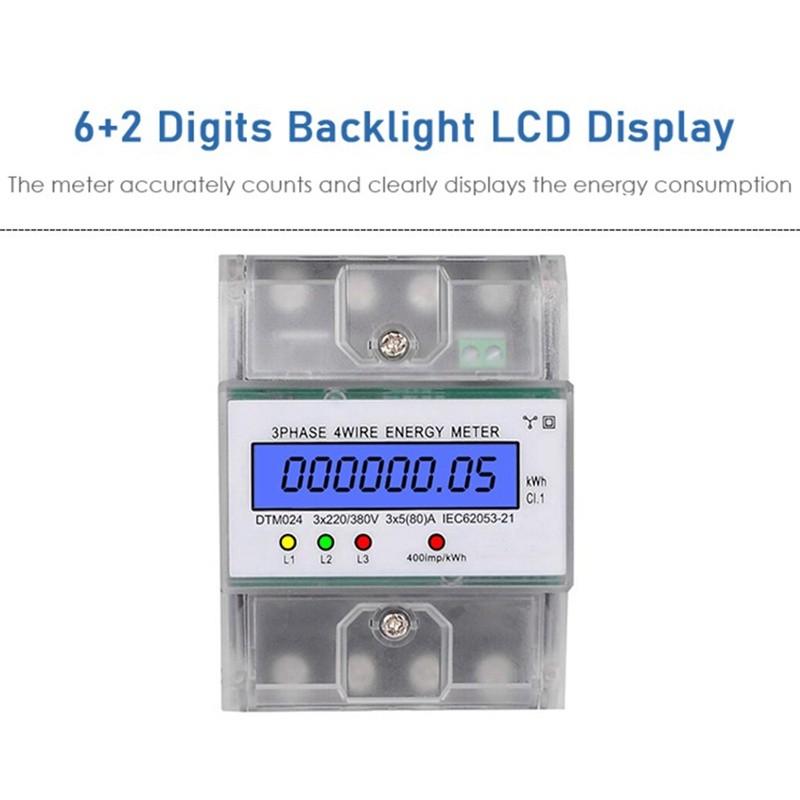

With 6+2 digits backlight LCD display, the meter accurately counts and clearly displays the energy consumption.

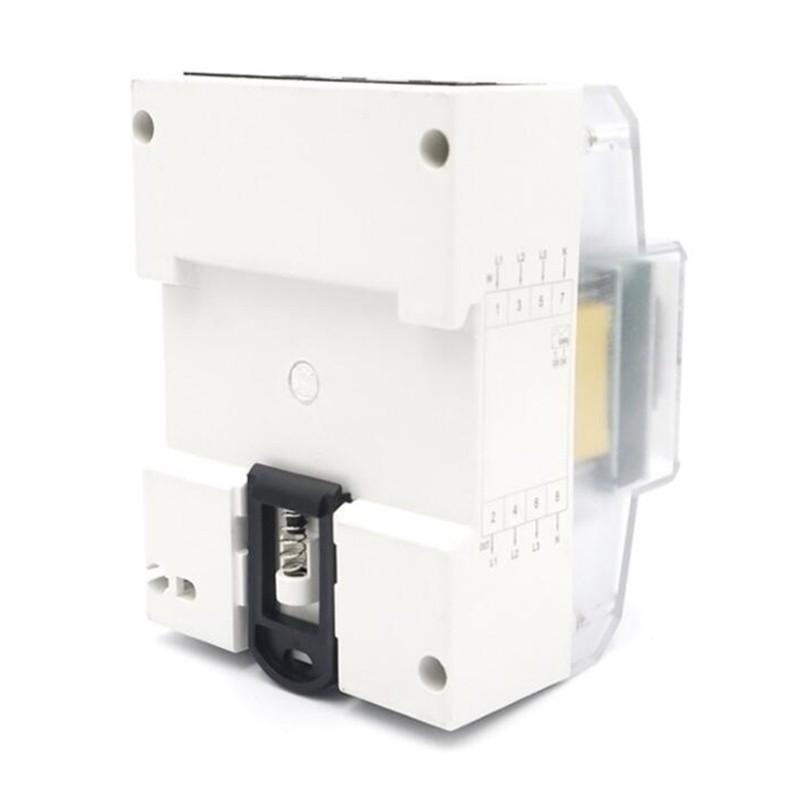

Adopts 35mm DIN standard guide rail installation, compact size and light weight make installation easier.

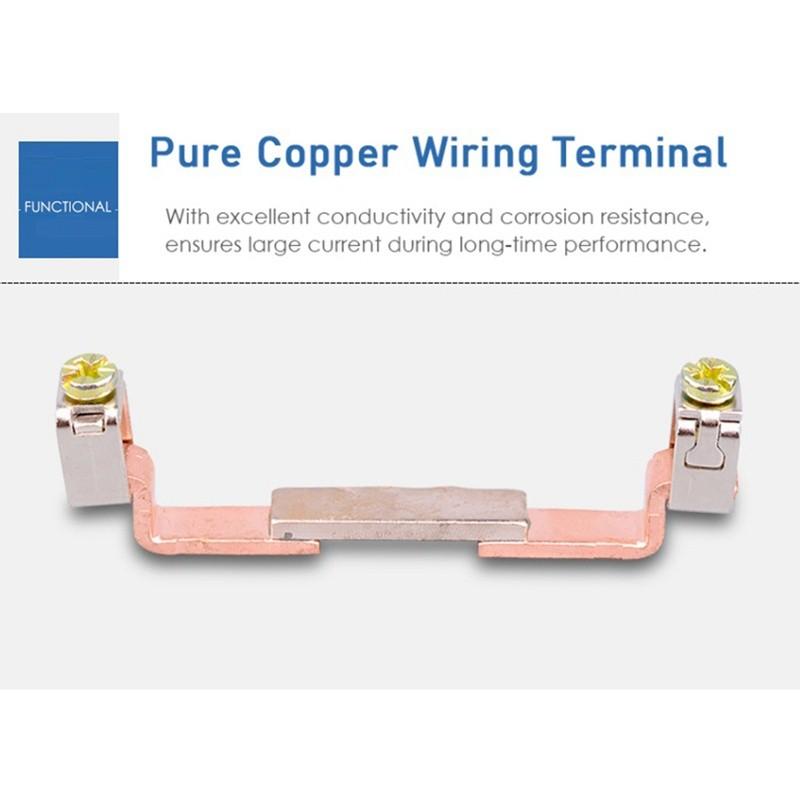

Pure copper wiring terminal with excellent conductivity and corrosion resistance can large current during long-time performance.
It's a simple three phase four module DIN rail meter with flame retardant ABS case, which is widely used in sub-metering system. It's of concise appearance, compact size and good quality to use.
Specifications:
Display: LCD Display with Backlight
Current: 3x5(80)A
Voltage: 3x220/380V
Accuracy Class: 1.0
Standard: IEC62053-21
Frequency: 50/ 60Hz
Impulse Constant: 400imp/kWh
Power Consumption: ≤2W
Starting Current: 0.004lb
Working Temperature: -20~55 Celsius
Storage Temperature: -25~70 Celsius
Colour:Transparent
Material:Flame-retardant ABS+metal
Size:100 x 76 x 65mm
Package Contents:
1 * 3 Phase 4 Wire Energy Meter
Note:
-Due to different producing batches, product details might be a little different. If you minding the difference, please buy it carefully.
-Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
