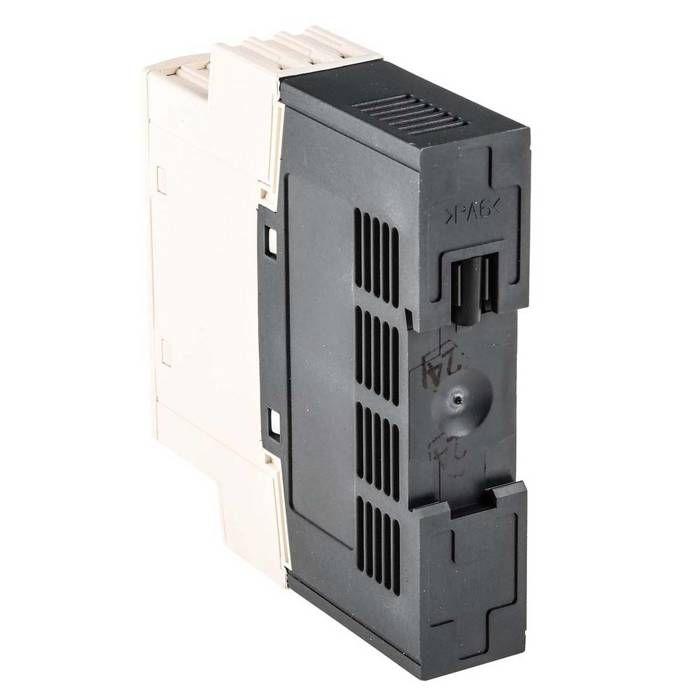

Ats01n106ft Schneider - Soft Starter For Single-Phase And Three-Phase Motor 6a - 230v / 380v - Altistart 01

6A Soft Starter also compatible with single-phase motorFrom the Altistart 01 range by Schneider Electric, this motor starter allows for the progressive starting and slowing down of a single-phase or three-phase asynchronous electric motor.This Altistart allows control of an asynchronous electric motor with a power of 0.75kW in single-phase 230V and 2.2 to 3kW in three-phase 380V.Altistart 01 Range (ATS01)DIN rail mountingStarter size 6ACompatible with single-phase motor 0.75kW at 230VCompatible with three-phase motor 2.2 to 3kW at 380VSoft starter dimensions: 45 x 130.7 x 124mmWe also offer a complete range of variable speed drives for three-phase or single-phase asynchronous electric motors.Main features of the Schneider soft starter reference ATS01N106FT :Product line : Altistart 01 Product or equipment type : Soft starter Product destination : Asynchronous Motors Specific Product Application : Simple machine Name of the device : ATS01 Number of network phases : Single-phase [Us] supply voltage : 110 to 480 V - 10...10 % motor power kW : 3 kW, 3 phases at 400 V0.75 kW, 3 phases at 230 V1.1 kW, 3 phases at 230 V2.2 kW, 3 phases at 400 V0.75 kW, single-phase at 230 V motor power hp : 1 hp, 3 phases at 230 V2 hp, 3 phases at 460 V3 hp, 3 phases at 460 V0.5 hp, 3 phases at 210 V1.5 hp, 3 phases at 230 V starter size IcL : 6 A Employment Category : AC-53B comply with EN/IEC 60947-4-2 Electrical consumption : 30 A at rated load starting type : Startup with voltage ramp dissipated power in W : 1 W at full load and at the end of startup31 W in the transient phase Complementary Construction variant : With heatsink Available functions : Integrated bypass Power supply voltage limits : 99?528 V Power frequency : 50...60 Hz - 5...5 % Mains frequency : 47.5?63 Hz Output Voltage : The Seller confirms that its products comply with all applicable laws and are only offered if they comply with Joom's policies and European laws on product safety and conformity.
