Description:
*Oxidation Resistant & - The housing of the for JST Adapter Cable Connector Socket is made of nylon material. The inside of the is designed with tinned copper, which has electrical conductivity and long life.
*Product Type: 2.0 mm for JST pH for JST Connection Kit. The terminal pitch is 2.0 mm/0.08 inches, and the pins are strong and not easy to loosen.

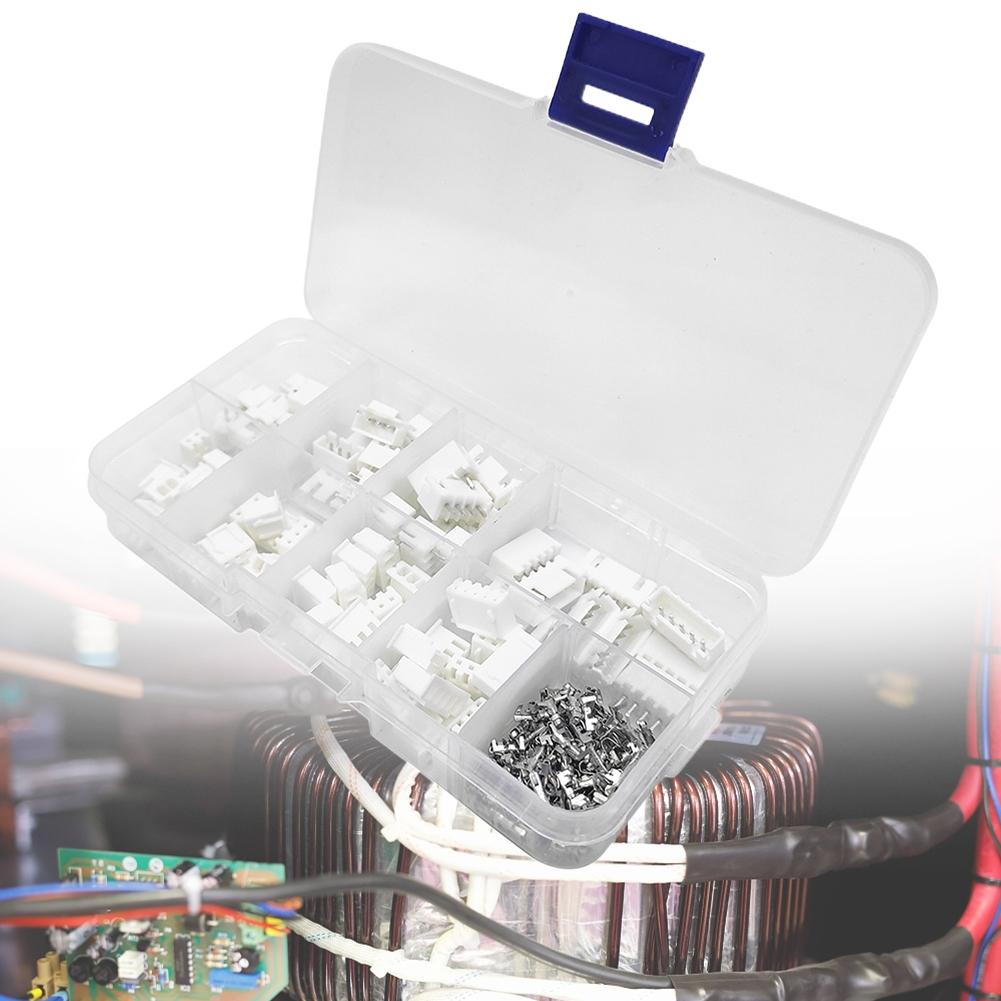

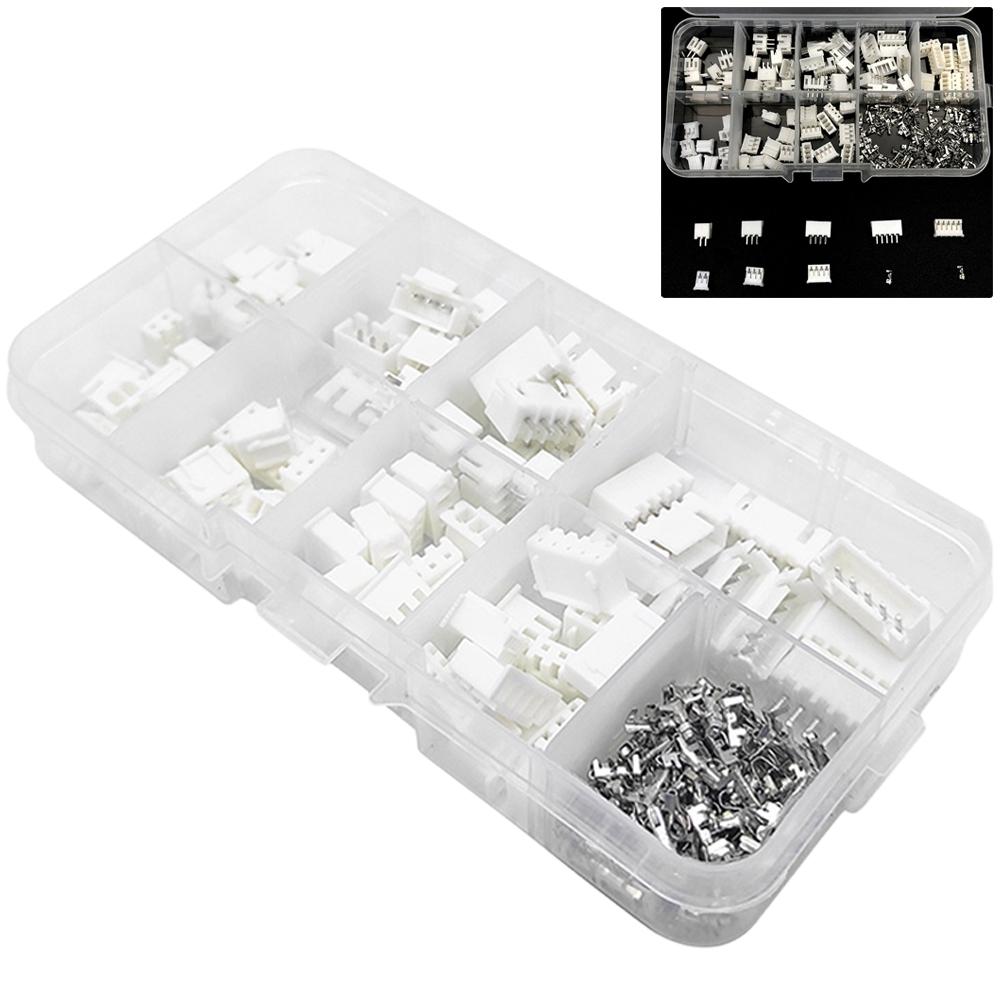

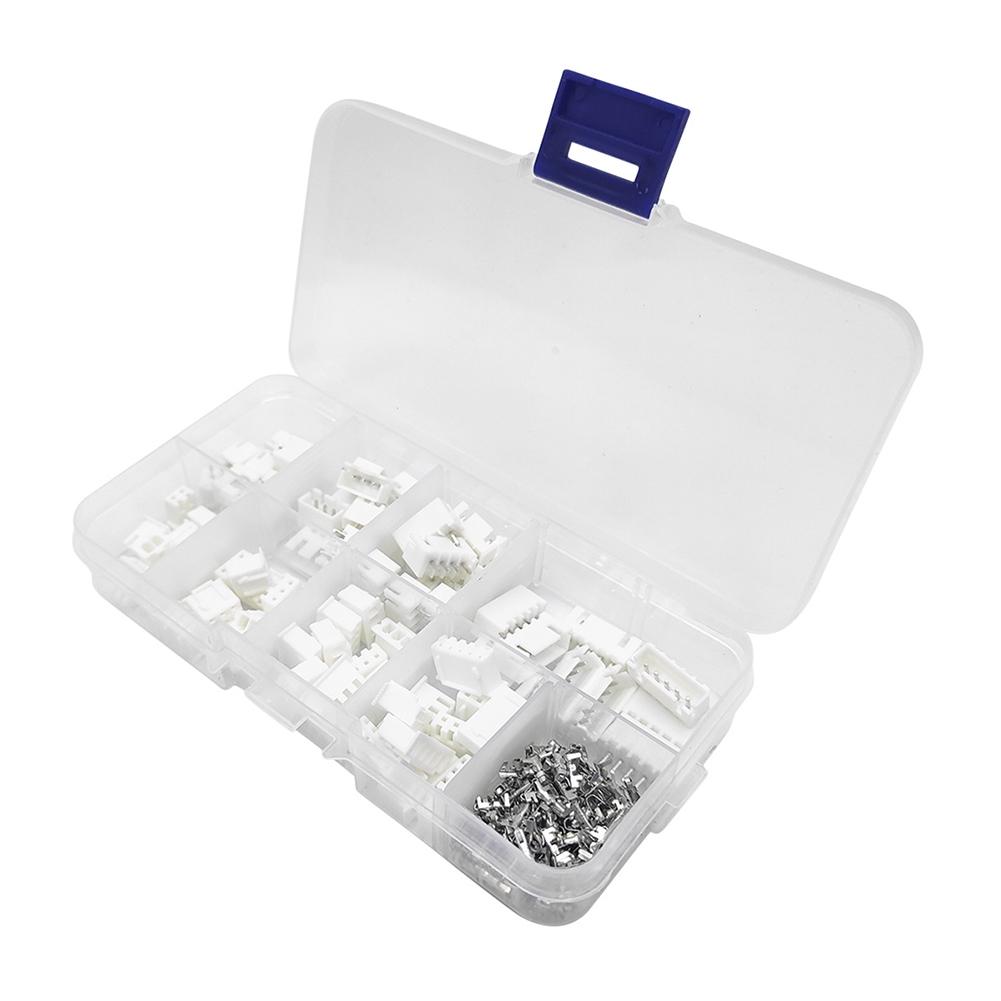

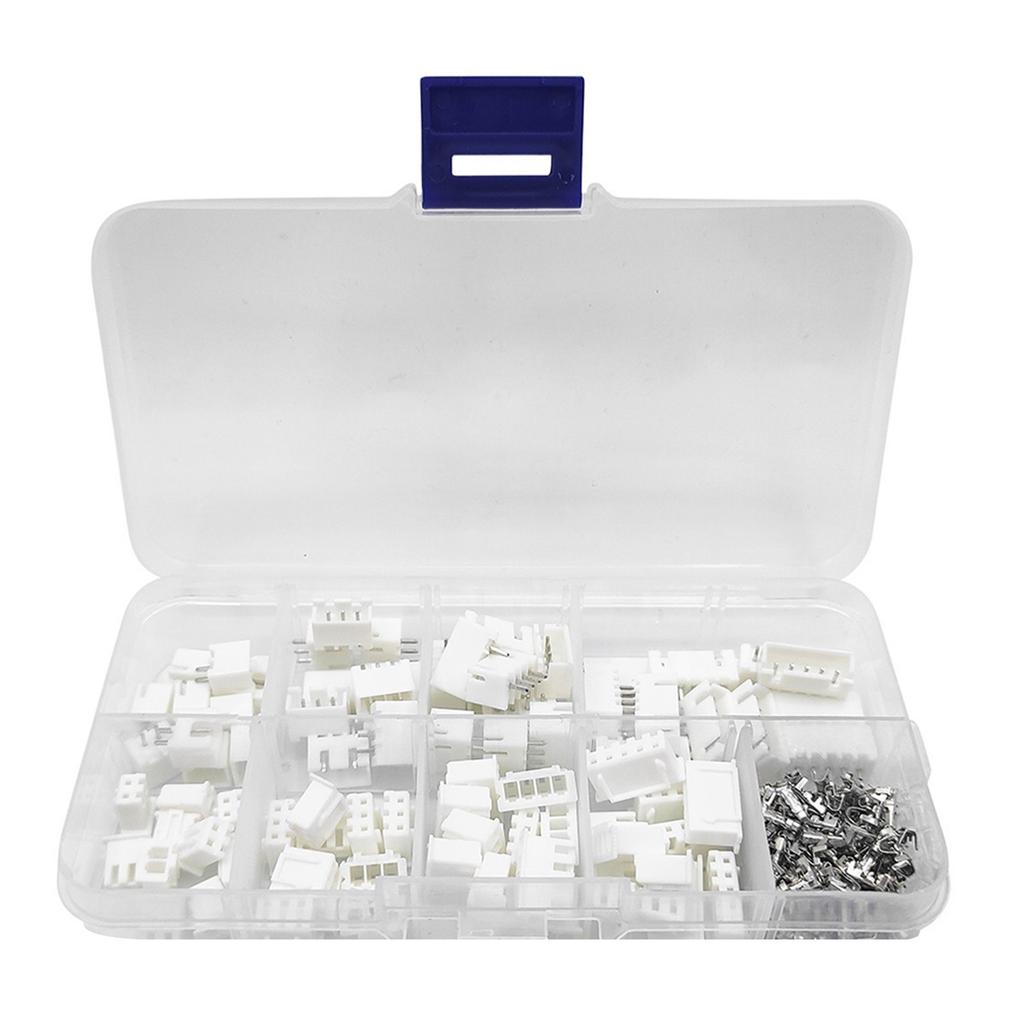

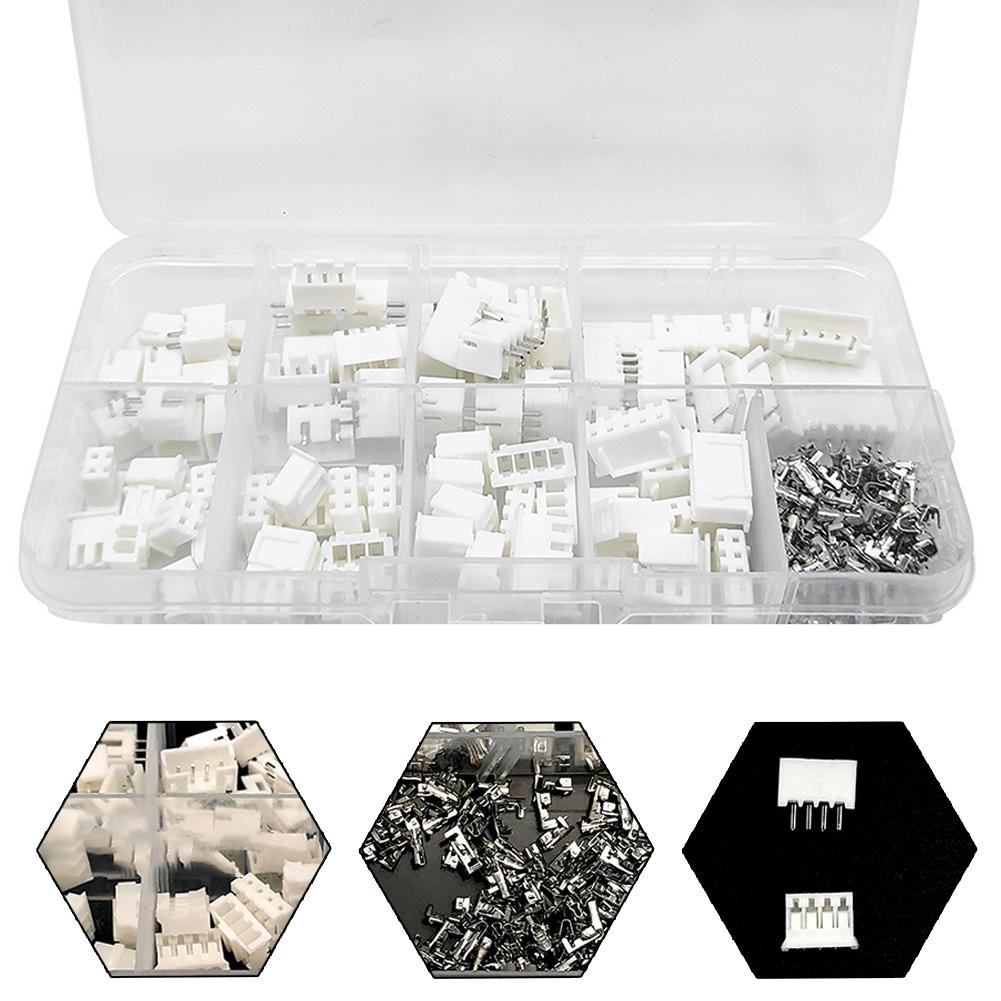

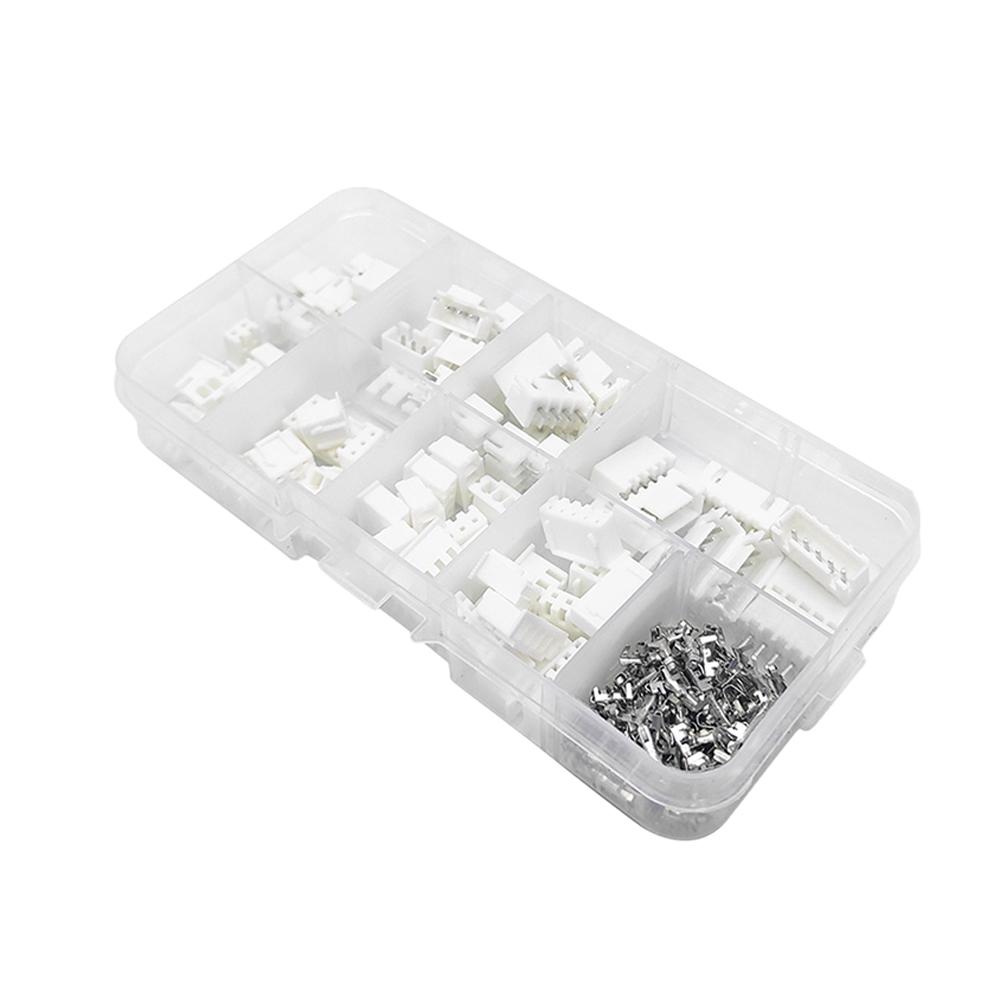

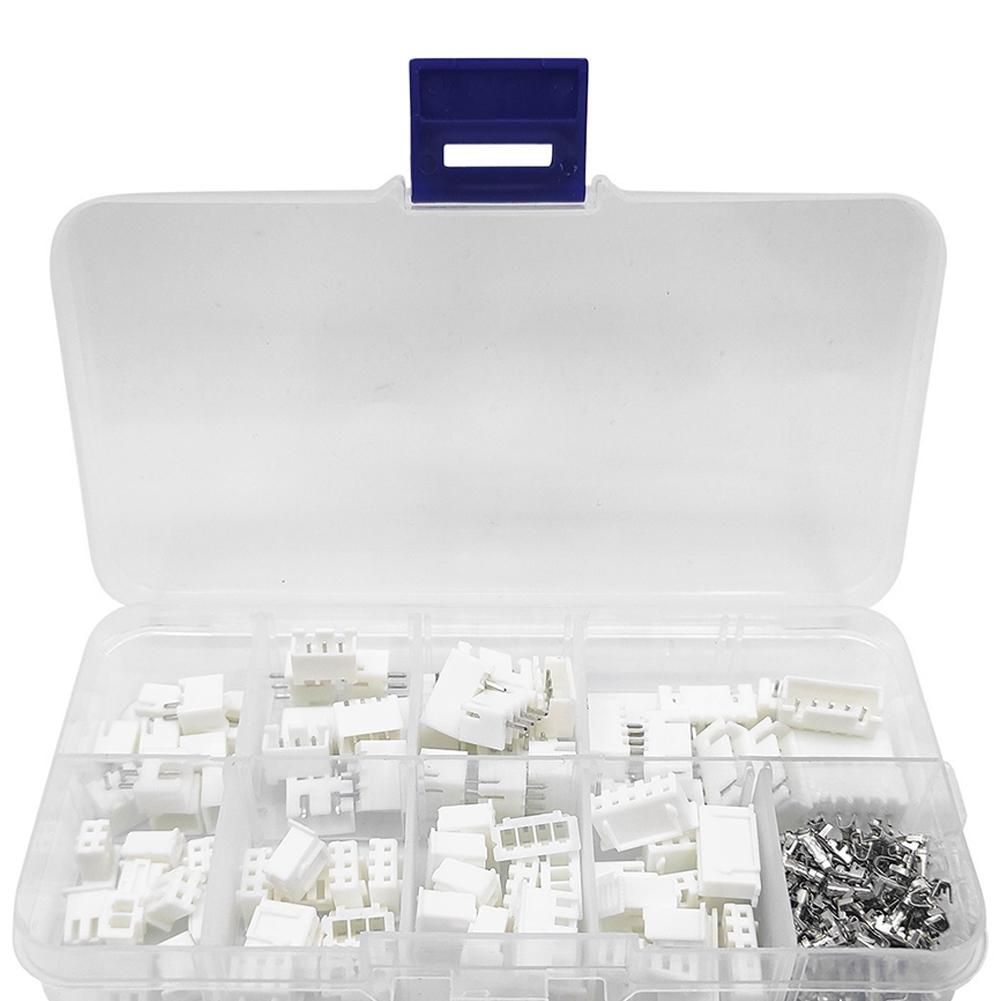

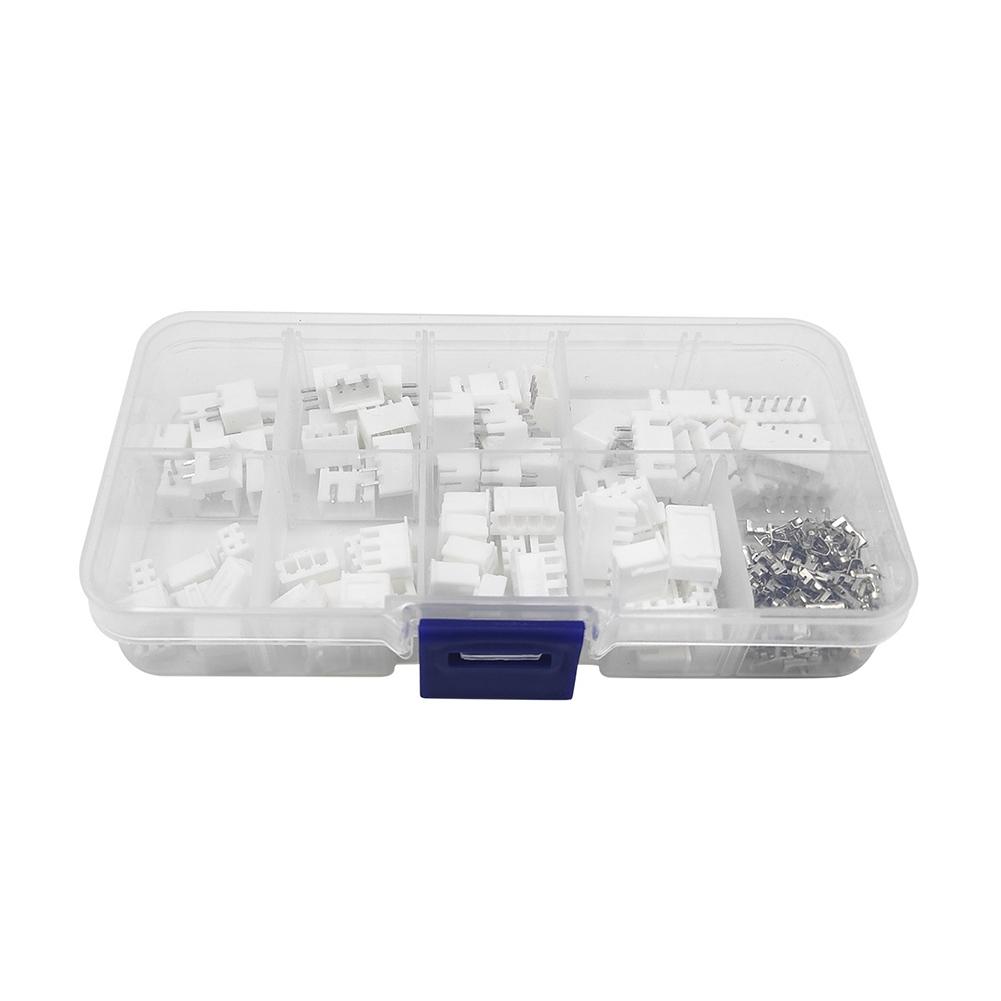

*Package Contents - Total 230pcs in the box, 20pcs each for 2/3/4/5 pin male and female housings, 80pcs in total, 150pcs for 2.0mm female headers.
*Easy to use - just place the clips in the crimping tool and press them down, since the insulated housing of the connector points towards the wire, this is great for your installation.
*WIDE APPLICATION - 2/3/4/5 pin shell connector adapter is compatible with breadboard style pin connector. Widely used in speakers, monitors, household appliances, LED lighting, copiers, fax machines, computers, electronic toys, batteries, circuit boards, .
Specification:
Material: nylon, copper tin coating
Colour: white.
Type: for JST-PH
Spacing: 2.0mm ((0.079")
Pin: 2 pin, 3 pin, 4 pin，5 pin.
Rated current: 2A AC, DC (AWG #24).
Rated voltage: 100V AC, DC.
Temperature range: -25 degrees Celsius to 85 degrees Celsius (including temperature increase when applying electrical current).
Continuity resistance: initial value/10m ohm max.
According to environmental testing/20 m Ohm max.
Insulation resistance: 1000M ohm min.
Voltage strength: 800V AC/minute.
Applicable wire: AWG #32 to #24
Applicable PCB thicknes: 0.8mm to 1.6mm (0.03" to 0.06")
Packing list:
1 box*terminal connector
include
2pin: 10 sets = 20pcs
3pin: 10 sets = 20pcs
4pin: 10 sets = 20pcs
5pin: 10 sets = 20pcs
Connector terminal: 150 pcs (please allow 5% deviation)
There are 230pcs in total in the box
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
