Feature:
1. EASY TO INSTALL: Relay features excellent brass coil for quick start motor. High starting power, lower starting switch current
2. WIDE APPLICATIONS: Relays can be used in automobiles, off road vehicles, utility vehicles, forklifts, snowmobiles, golf carts and lawn mowers, garden tractors, electricians, electrical, etc.
3. DURABLE MATERIALS: The relay is made of high grade materials to ensure excellent quality and long service life
4. TECHNICAL PARAMETERS: Voltage for 12V, current 100A, contact form is normally open, the end using a binding post, pin number for 4
5. EXCELLENT PERFORMANCE: Starter relay solenoid is made with fine workmanship, possess compact appearance and stable performance, can make sure durability and stability
Specification:

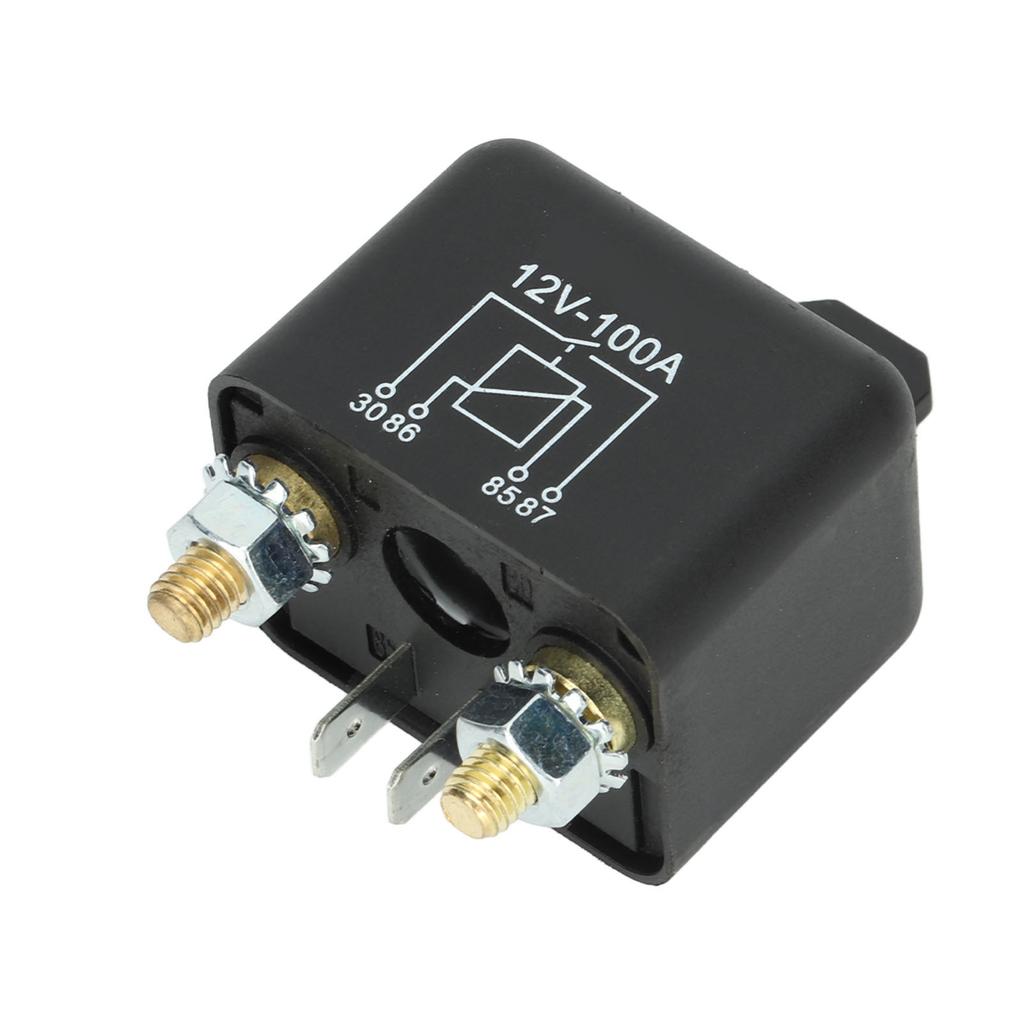

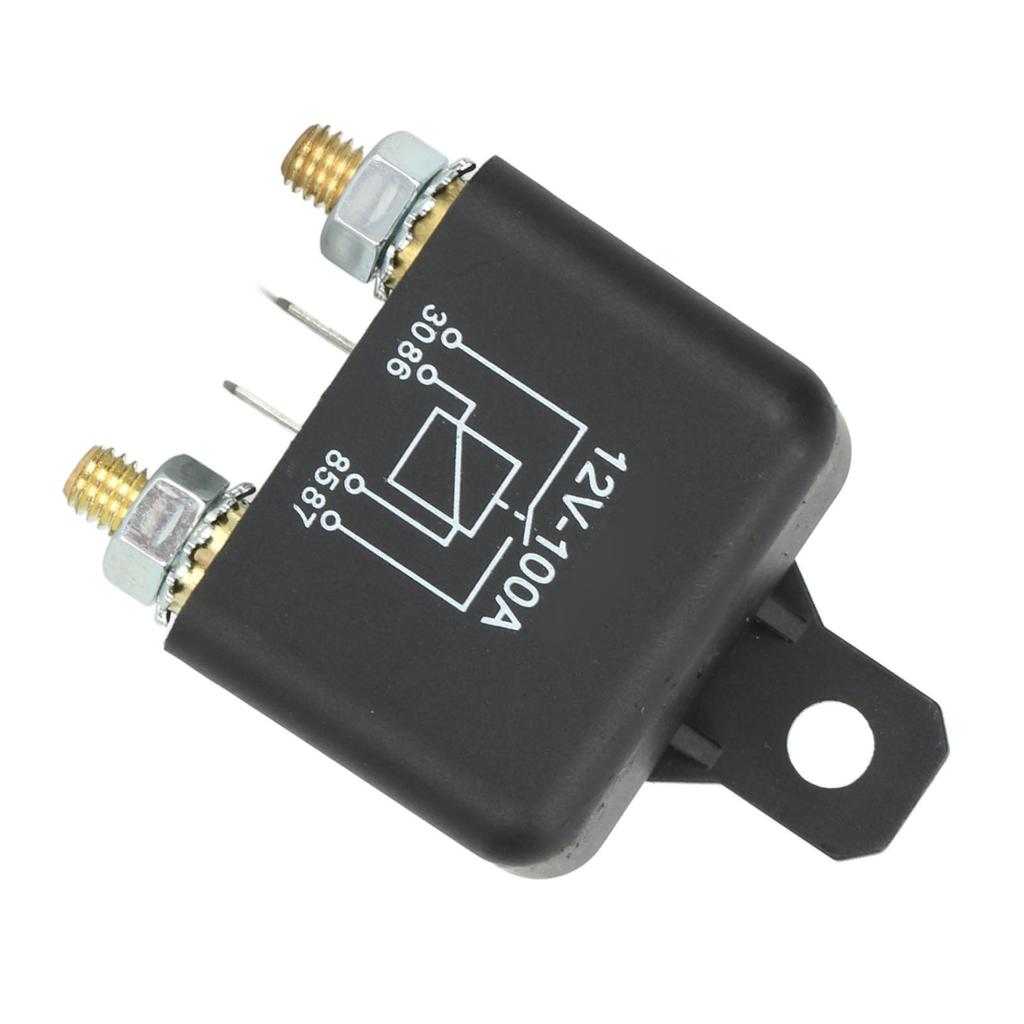

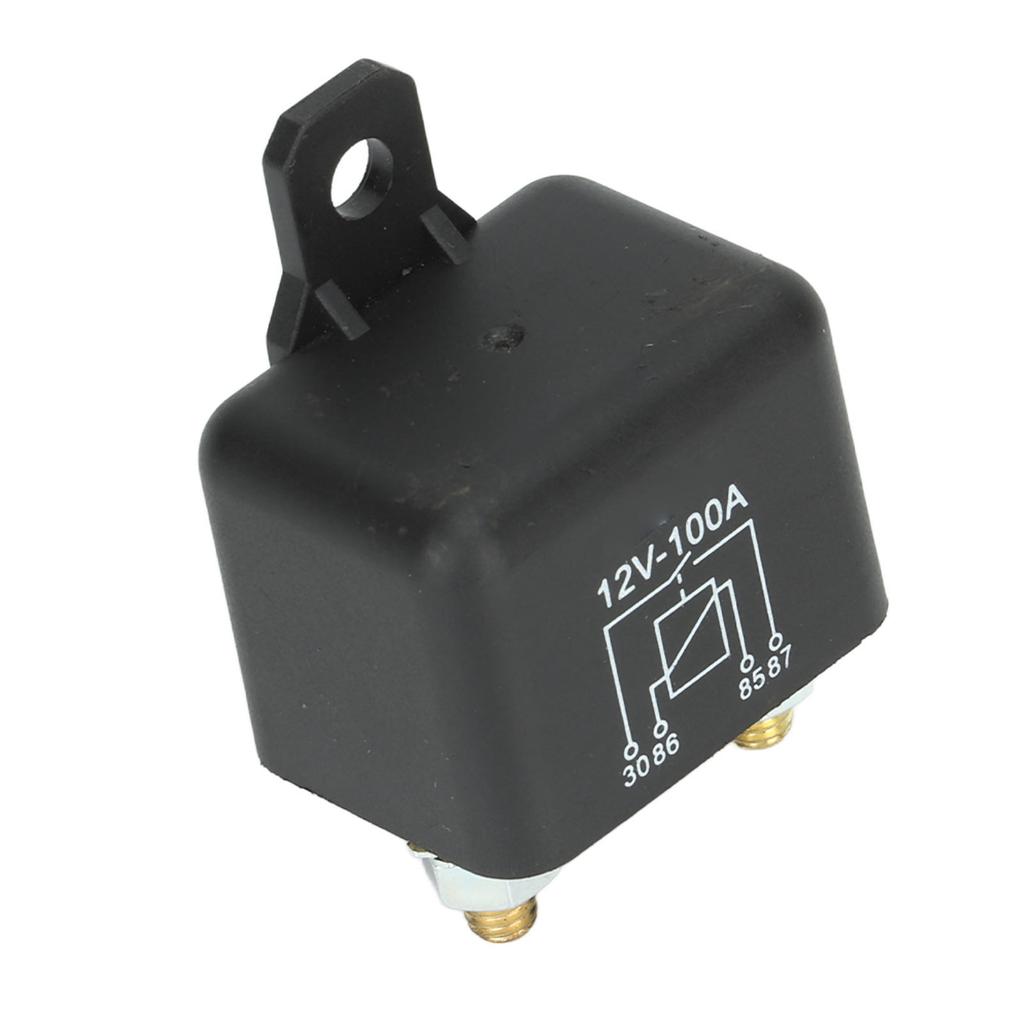

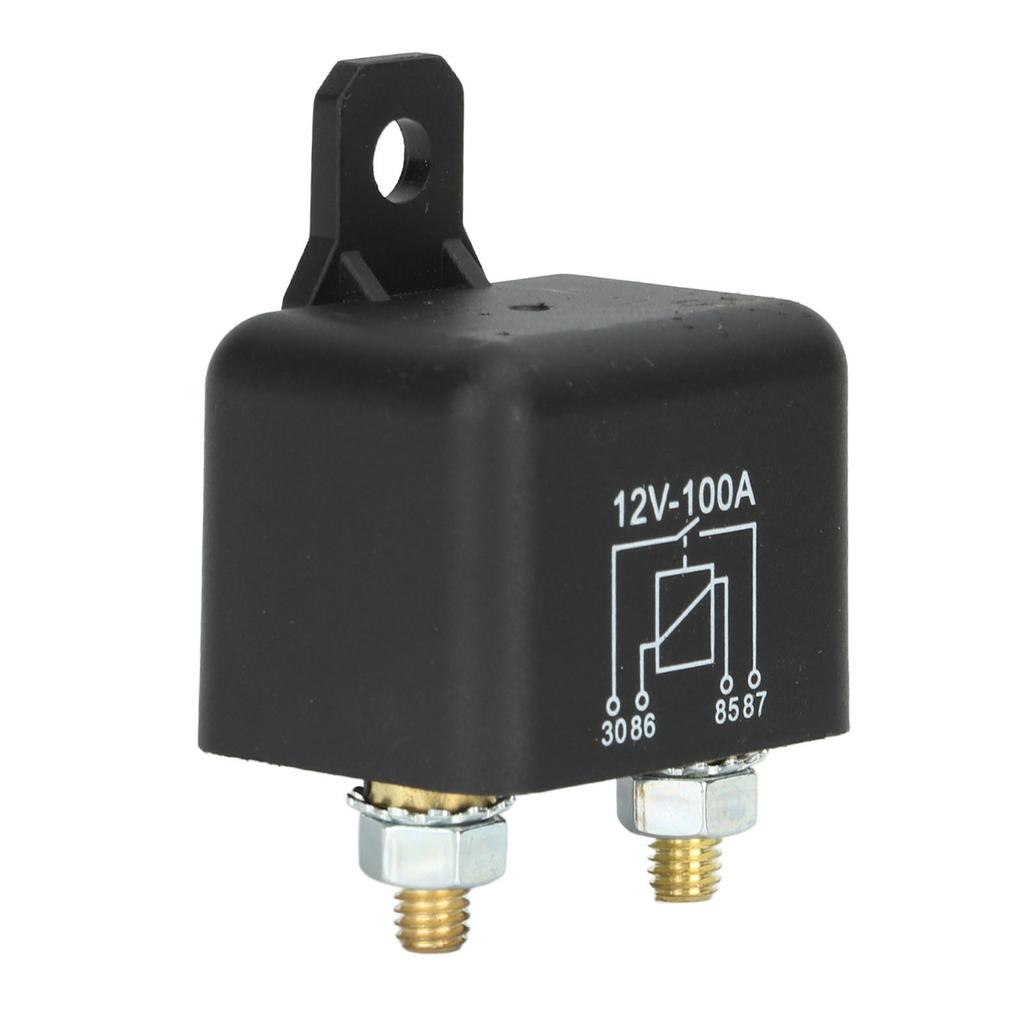

Item Type: Starter Relay Solenoid
Voltage: 12V
Current: 100A
Contact Form: Normally open type
Out End: Binding post
Number of Pins: 4
Power: 4.8W intermittent work, 2.4W long time work
Ambient Temperature: 30 celsius to +80 celsius
Vibration: 10~55hz, 1.5mm
Humidity: 40percent ~85percent
Insulation Resistance: 100m Ohm Min at 500VDC
Voltage Resistance Between Contacts: 2000VAC(for one minute per sec)
Voltage Resistance Between Contact And Line: 1500VAC(for one minute per sec)
Suction Time: 15ms
Release Time: 15ms
Application: Automobiles, off road vehicles, utility vehicles, forklifts, snowmobiles, golf carts and lawn mowers, garden tractors, electricians and electrical, etc..
Package List:
1 x Starter Relay SolenoidEASY TO INSTALL: Relay features excellent brass coil for quick start motor. High starting power, lower starting switch current
WIDE APPLICATIONS: Relays can be used in automobiles, off road vehicles, utility vehicles, forklifts, snowmobiles, golf carts and lawn mowers, garden tractors, electricians, electrical, etc.
DURABLE MATERIALS: The relay is made of high grade materials to ensure excellent quality and long service life
TECHNICAL PARAMETERS: Voltage for 12V, current 100A, contact form is normally open, the end using a binding post, pin number for 4
EXCELLENT PERFORMANCE: Starter relay solenoid is made with fine workmanship, possess compact appearance and stable performance, can make sure durability and stability
