Feature:
1. Superior Craftsmanship: 4 pole 12 slots high torque motor design, CNC machining 6061 billet aluminum heat dissipation tank, oxidation treatment, high grade exquisite appearance.
2. Great Performance: High purity copper winding to maximize power, high speed ABEC5 bearing, small friction, low noise, high precise, long service life.
3. Universal Application: The motor has 2.0mm axle outlet, suitable for all 124 118 remote control brushless cars, with multiple installation methods for M2.5 screws.
4. Detachable Rotor: Removable and replaceable rotors, accurately balanced rotors, better smoothness, can provide better reliability and maximum RPM.
5. High Permeability: Ultra thin stator (0.35mm) laminated, excellent performance, high permeability, high silicon content, great insulation and heat resistance.
Specification:

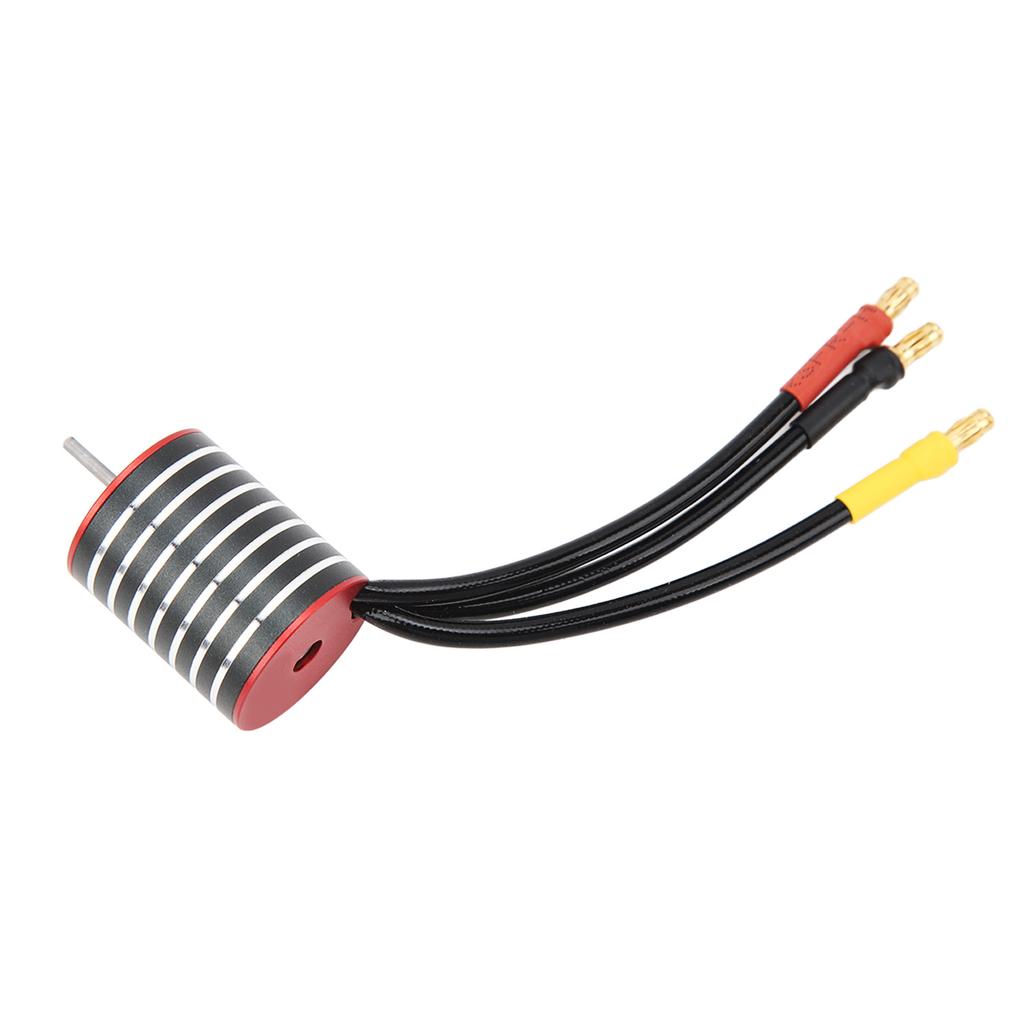

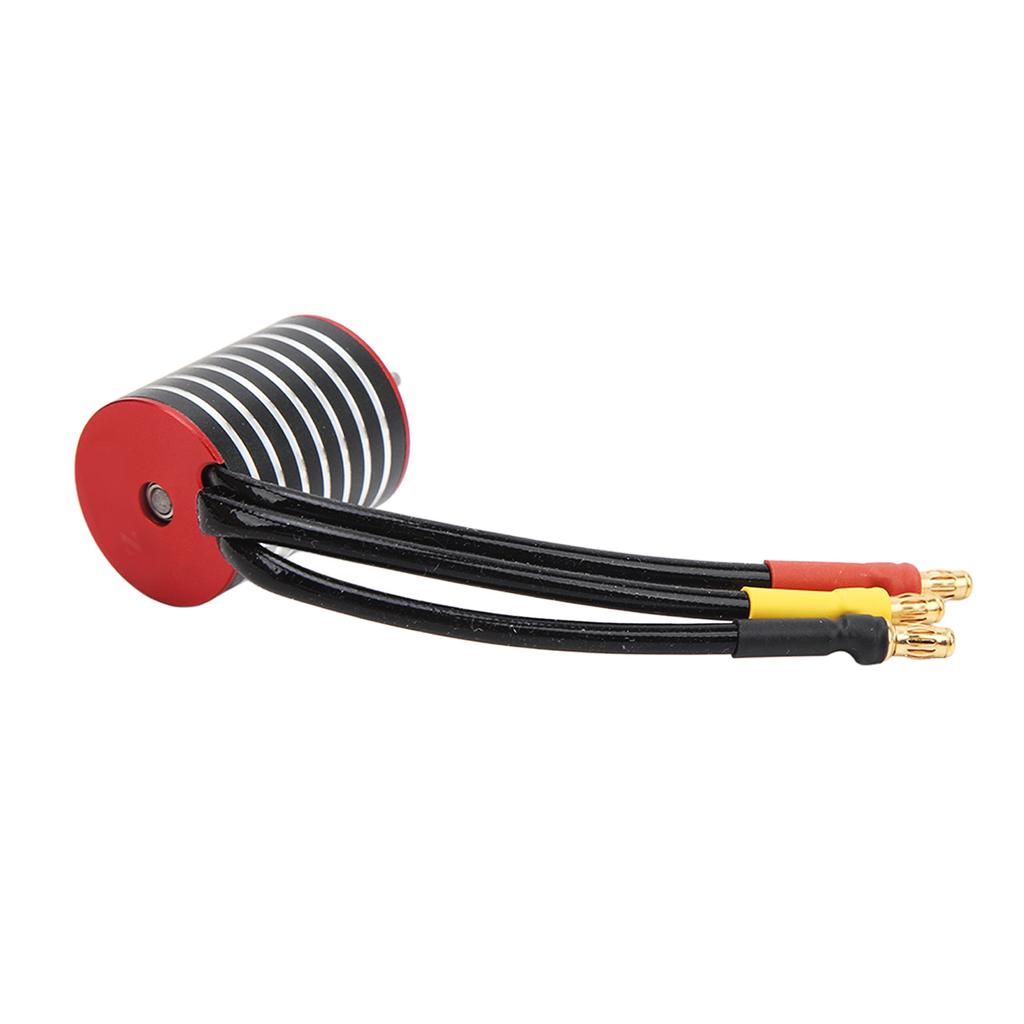

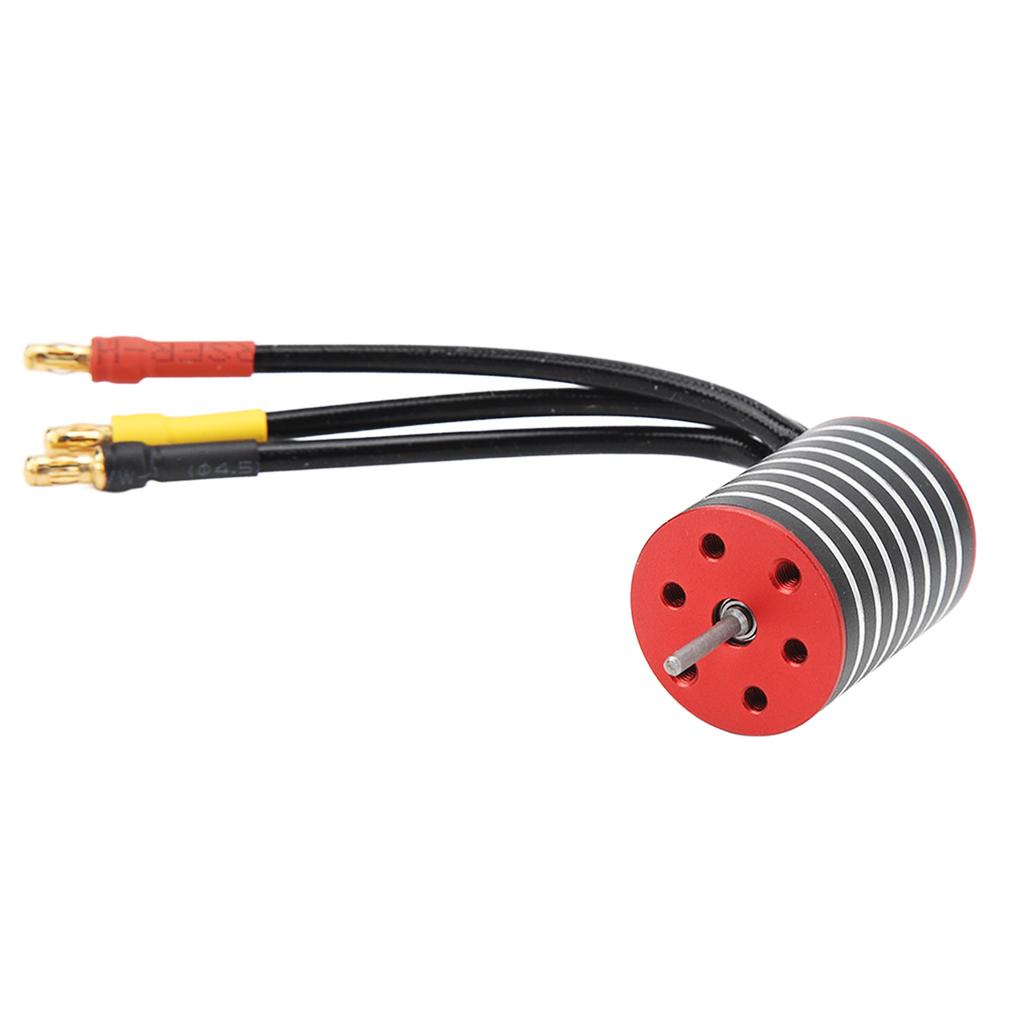

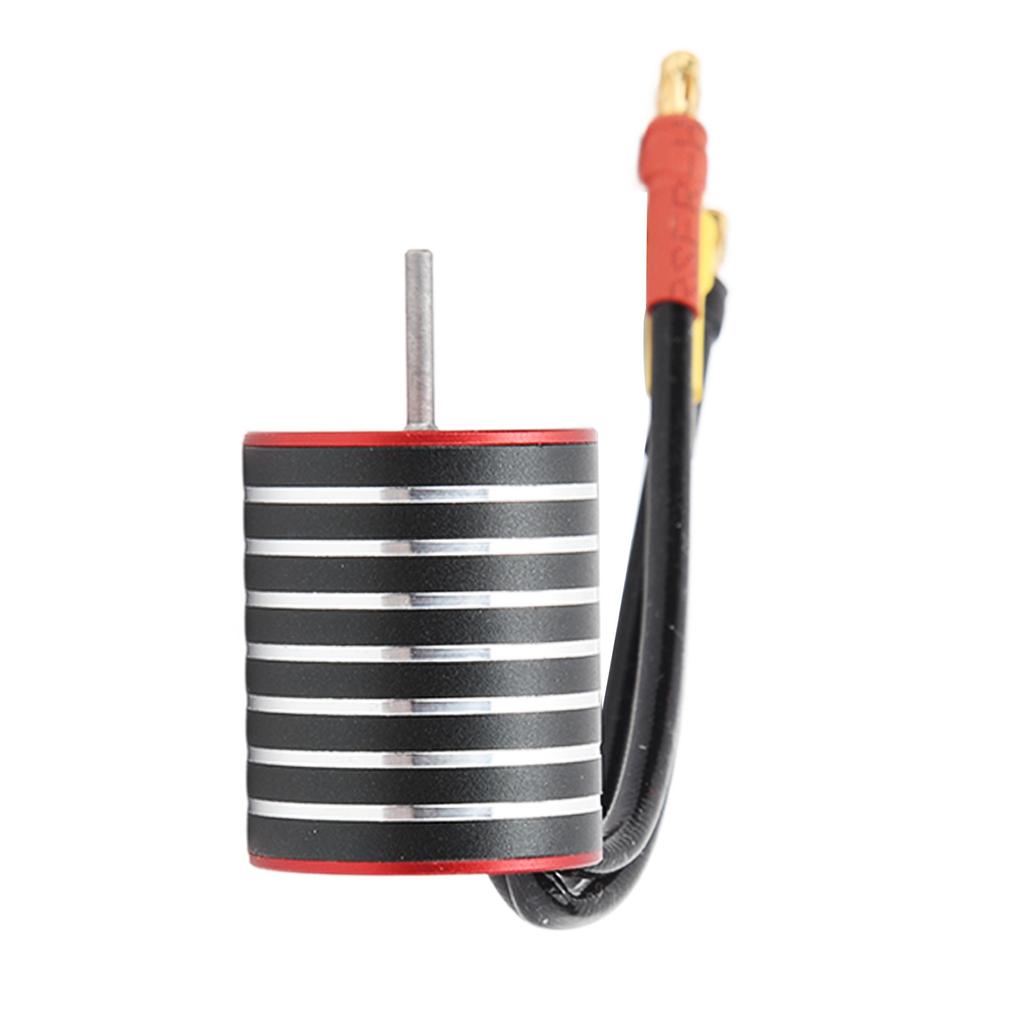

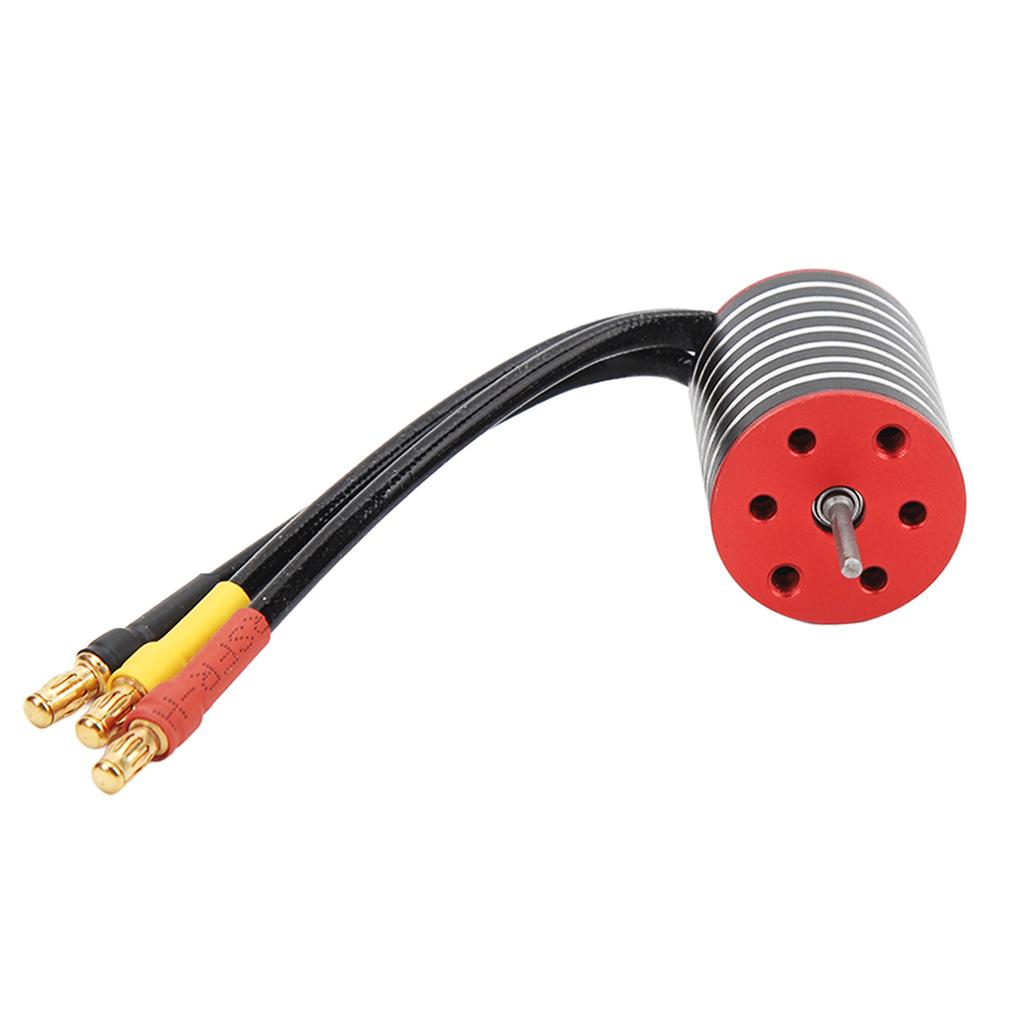

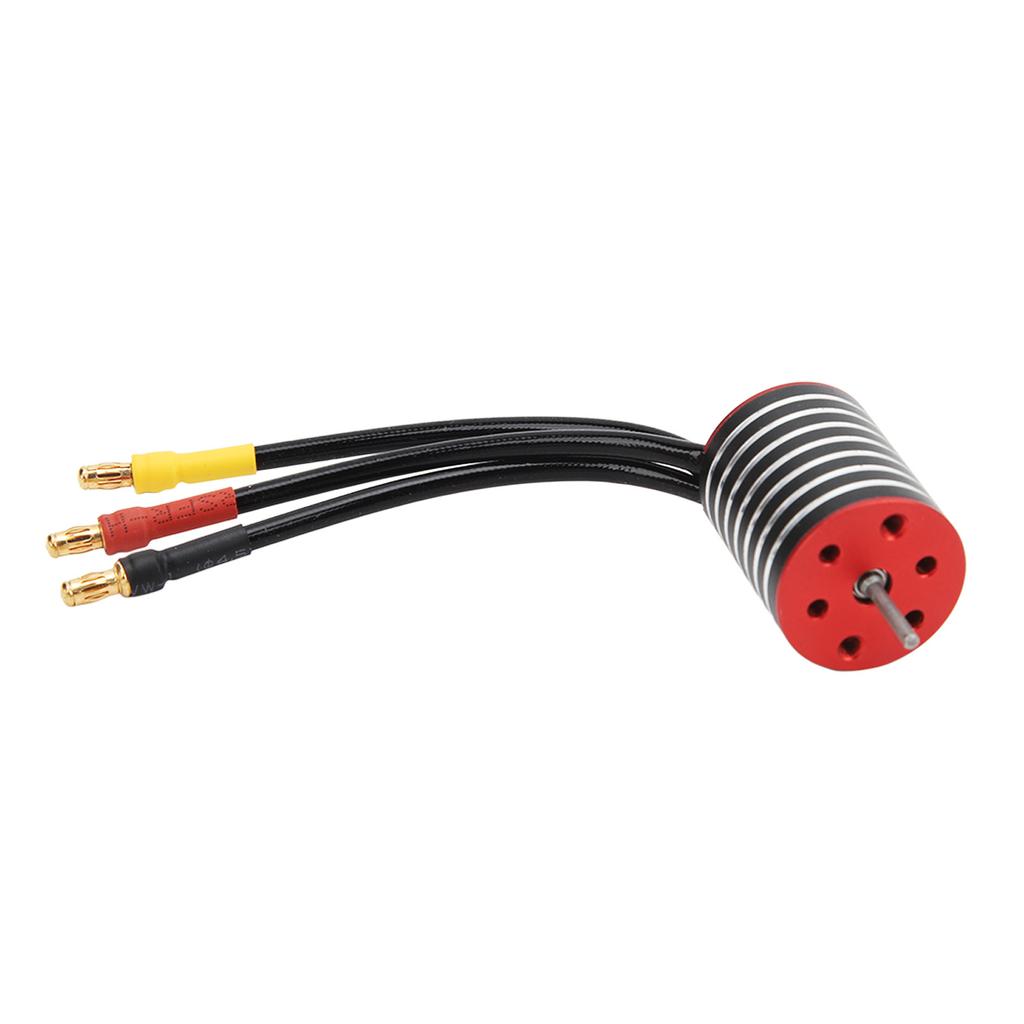

Item Type: RC Car Brushless Motor
Model: 2430
Material: Aluminum slloy, copper
Weight: Approx. 63g2.2oz
Wattage: 200W
Maximum Speed: 50000
No Load Current: 2.0A
Number Of Motor Poles: 4
Motor Length: Approx. 30mm1.2in (Excluding Shaft)
Motor Diameter: Approx. 24mm0.9in
Shaft Diameter: Approx. 2mm0.08in
Shaft Length: Approx. 12mm 0.5in
Gold Plated Plug: Approx. 3.5mm0.14in
Application: Suitable for all 124 118 Brushless RC Car.
Package List:
1 x RC Car Brushless Motor
Note:
1. Due to manual measurement, 1 to 3mm error is allowed, thank you!2. The picture may not reflect the actual color of the item due to differences between different displays.Superior Craftsmanship: 4 pole 12 slots high torque motor design, CNC machining 6061 billet aluminum heat dissipation tank, oxidation treatment, high grade exquisite appearance.
Great Performance: High purity copper winding to maximize power, high speed ABEC5 bearing, small friction, low noise, high precise, long service life.
Universal Application: The motor has 2.0mm axle outlet, suitable for all 124 118 remote control brushless cars, with multiple installation methods for M2.5 screws.
Detachable Rotor: Removable and replaceable rotors, accurately balanced rotors, better smoothness, can provide better reliability and maximum RPM.
High Permeability: Ultra thin stator (0.35mm) laminated, excellent performance, high permeability, high silicon content, great insulation and heat resistance.
