Package : DIY Module
Model Number : TM1637
Dissipation Power : ...
Supply Voltage : 3.3V-5.5V
Application : Computer
Type : Module
Operating Temperature : -40℃~+80℃
Origin : China
Condition : New
Functions : Electronic Module
Range of application : Switch And Sensor For Arduino STM
4 digit nixie display module LED brightness adjustable with hour accessory building blocks

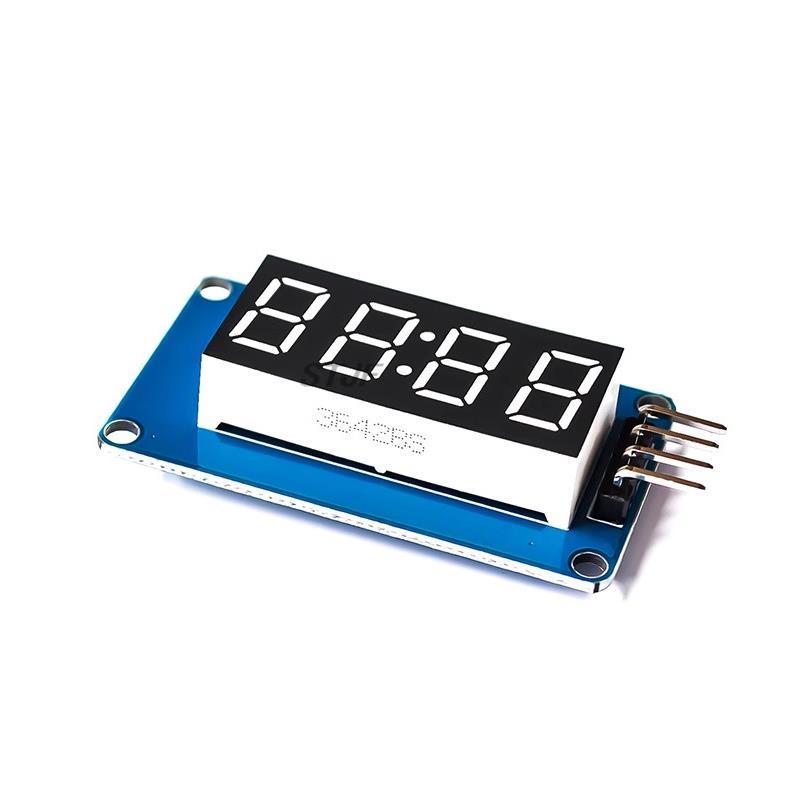

The module is a 12-pin display module with a 4-bit common positive digital tube (0.36 inches), the driver chip is TM1637, only two signal lines can make the single chip computer control the 4-bit 8-segment digital tube.
The module features are as follows:
The display device is a 4-bit common positive red character digital tube
Digital tube 8 level gray adjustable
The control interface level can be 5V or 3.3V
4 M2 screw positioning holes for easy installation
item
Small value
Typical value
Large value
unit
Supply voltage
3.3
5
5.5
VDC
Current (@5V)
—
30
80
mA

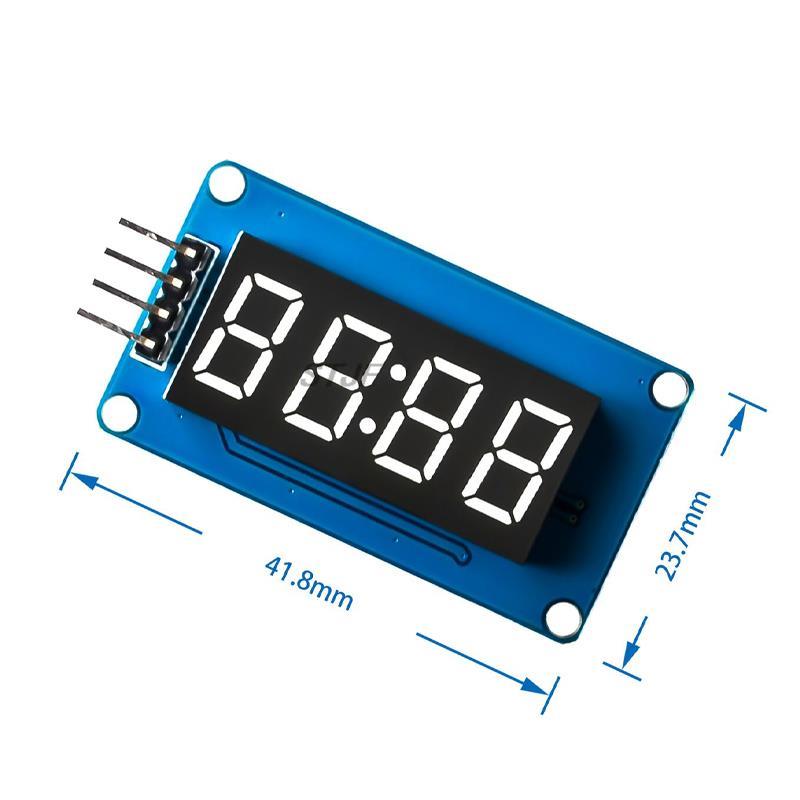

dimension
42X24X12
mm
weight
8
g

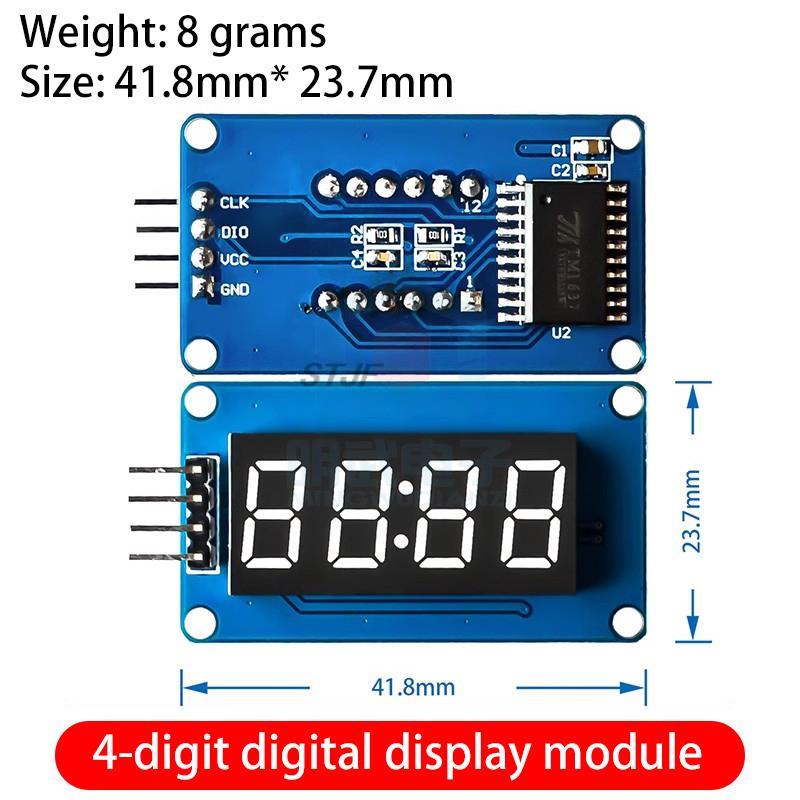

The interface of the 4-digit nixie display module is shown as follows:

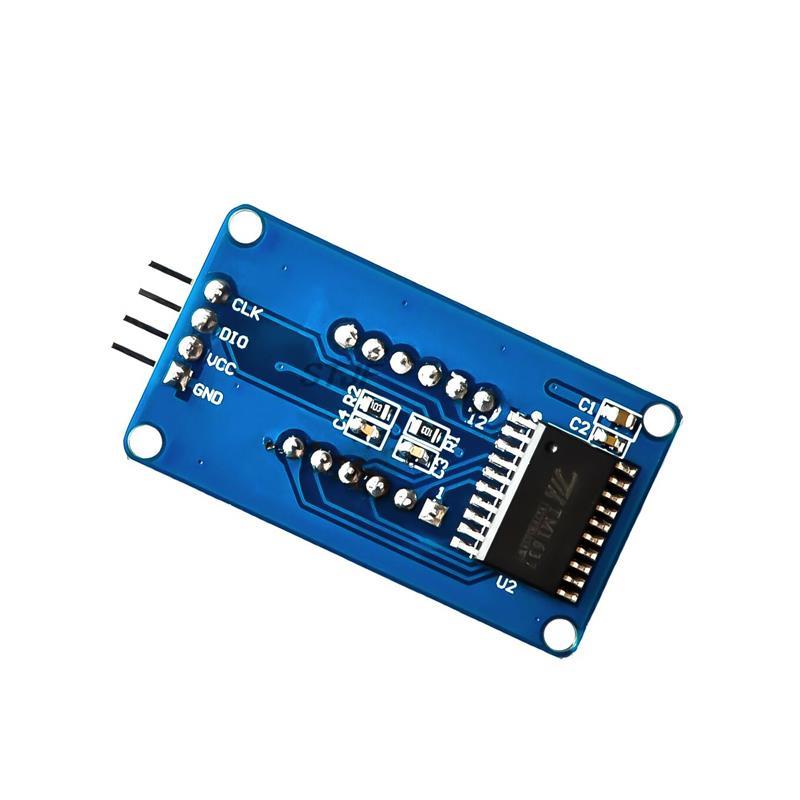

Control interface: a total of 4 pins (GND, VCC, DIO, CLK), GND for ground, VCC for power supply, DIO for data input and output pin, CLK for clock signal pin;
Digital tube: 4-bit common anode 0.36 inch digital tube with score point, red letter highlighted;
Positioning hole: 4 M2 screw positioning holes, the aperture is 2.2mm, so that the module is easy to install positioning, realize the combination of modules
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
