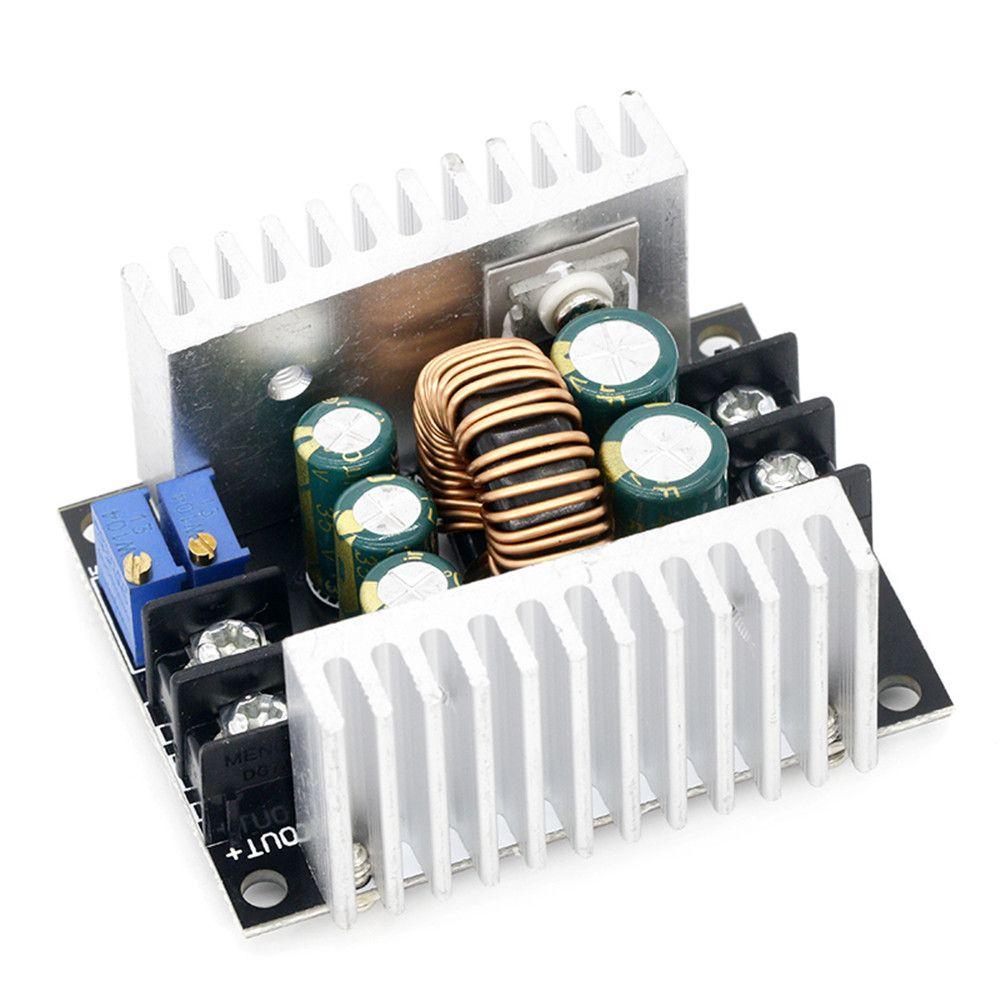

High Power LED Driver 6-40V To 1.2V-36V 300W 20A Step-down Buck Converter DC-DC Step Down Module

Label:Yes VO-: Output negative Wiring Method: Terminal +IN: Input positive CC: Output current adjustment Short Circuit Protection: Self-recovery(cannot short circuit for long time) Input Voltage: 6V to 40V DC(10V to 40V is suggested) EN: Enable, low voltage level shut off output; suspension, high voltage level is effective Output Voltage: 1.2V to 36V DC VO+: Output positive When input and output is common grounded, no-load CV output constant voltage,CC output constant current Output Current: 20A(max.), 15A(suggested) Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06" Output Ripple: 50mV CV: Output voltage adjustment -IN: Input negative Efficiency: 95%(24V to 12V, 20A) Features: With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current. The efficiency can be up to 96%, measured at 20A, converting 24V to 12V. It is designed with 75V/80A large current dual MOS tube. Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output. Wiring is convenient with these large current 30A screw terminals. The buck module has 2 heat sink that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current.

Package Include: 1 x 300W 20A Constant Current Adjustable Buck Converter Step-Down Voltage Module
