Type : Voltage Regulator
Origin : China
Condition : New
Product Introduction:

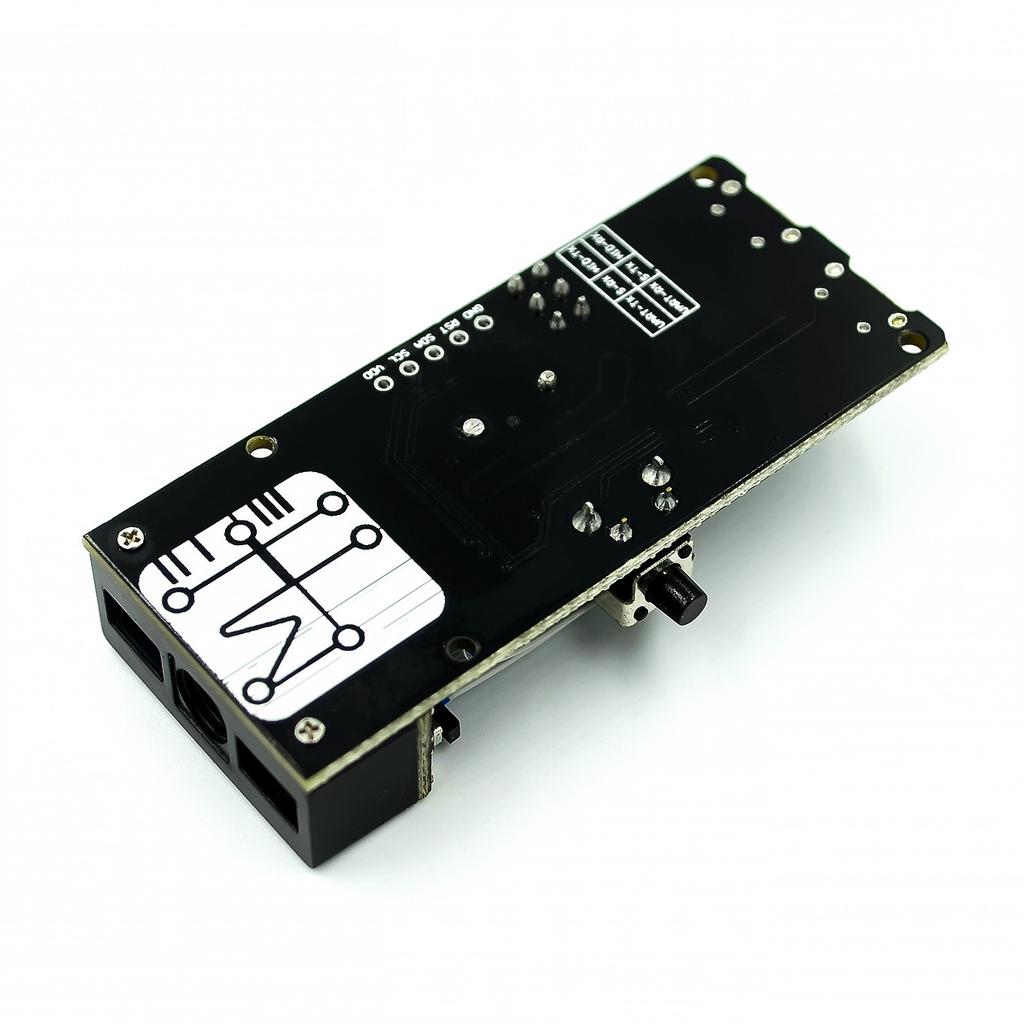

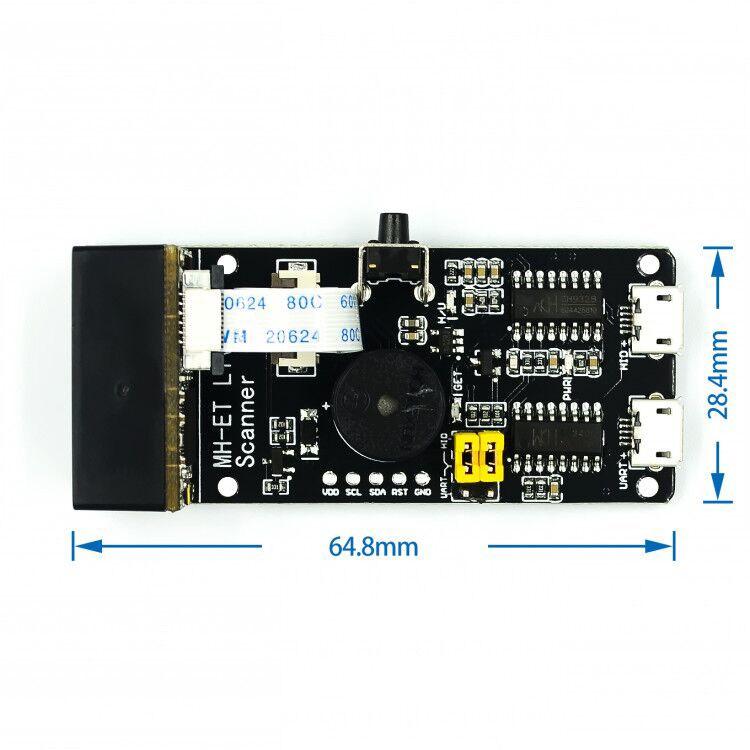

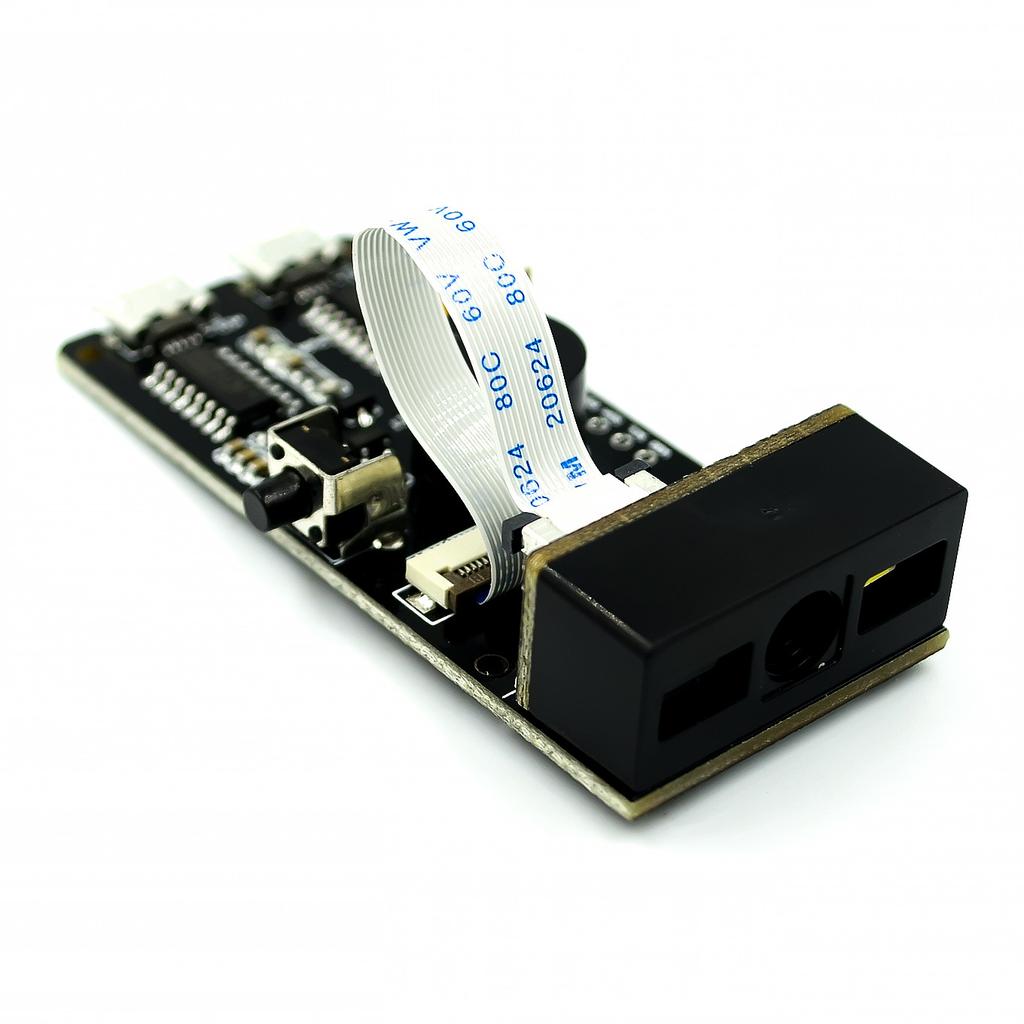

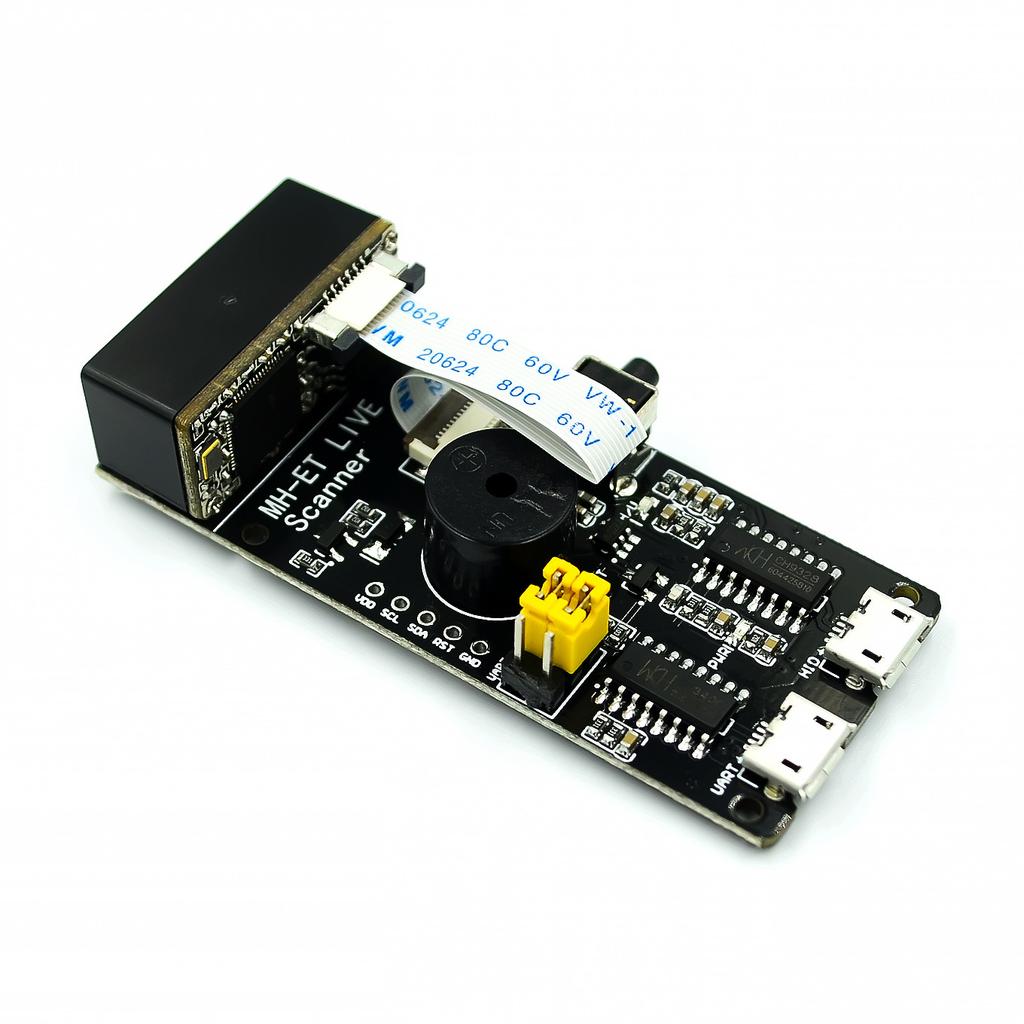

Mh-et LIVE Scanner V3.0 is bar code, two-dimensional code scanning identification module, the use of professional image processing chip for bar code recognition, can maintain fast and stable reading in a complex environment of high performance, can quickly and accurately read paper, screen, plastic and other carriers on the one-dimensional code and two-dimensional code. Compact size, onboard USB and UART interface, can be directly connected to the computer for use, also can be integrated into a variety of devices. The product has the characteristics of low power consumption and low heat. Quick start, cold start and hot start can keep fast start, no need to wait, open and sweep.
Product features:
It is easy to operate without understanding complex image recognition algorithms
Support Barcode, QR and other universal one-dimensional code and two-dimensional code reading
Onboard micro USB and UART serial port, which can be connected to computers or embedded devices
Onboard auxiliary light source, able to read in complete darkness environment
Supports setting module parameters by scanning setting codes (see specifications for details)
Configurable parameters include reading mode, baud rate setting, command mode, prompt tone output adjustment, output format, bar code selective setting.
Barcode/two-dimensional code reading type:
Barcode reading Type (1D) : UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar,MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
Type of QR Code (2D) : QR Code,PDF417,Data Matrix
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
