Size: 41.5 x 5.0 x 2.0 cm
Origin : China
Model Number : YQYB09
Certification : CE
Angle : 0-360
Accuracy : 0~90 below 0.1 the rest below 0.2
Resolution : 0.1
Working current : < 100UA
Work temperature : 0--50c
Magnet : 4 built-in on base plate

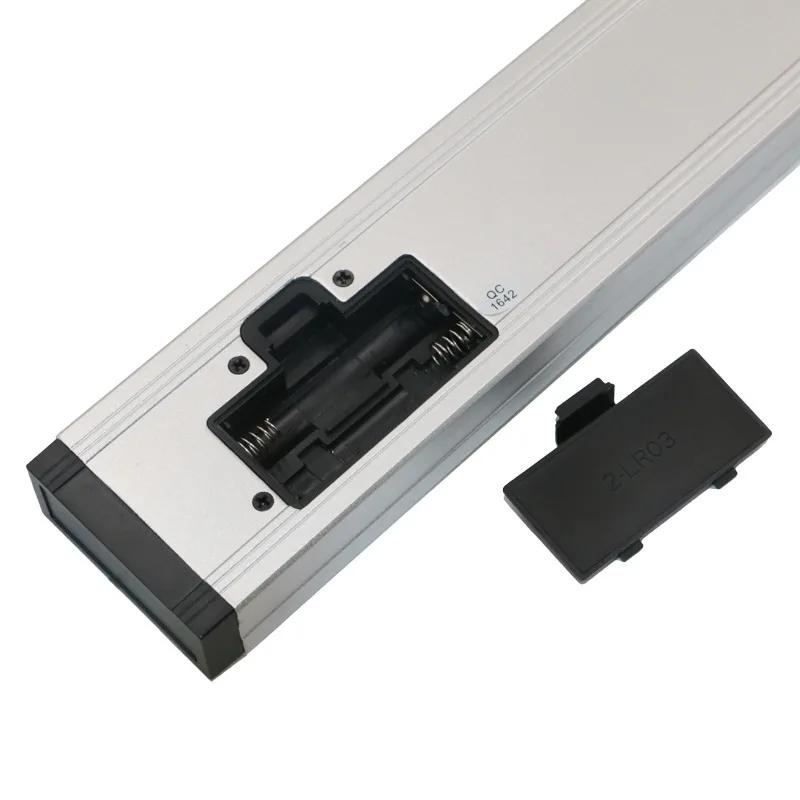

Power : 2 x 1.5V AAA battery
Dimension : 41.5 x 5.0 x 2.0 cm (L x W x H)
Work humidity : below 85% RH
Place of Origin : China

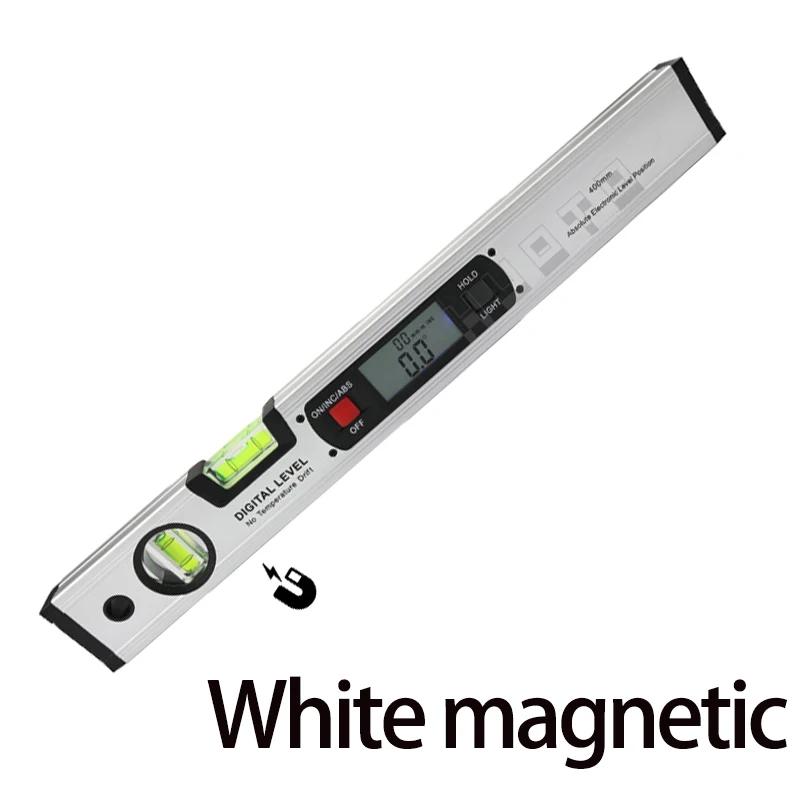

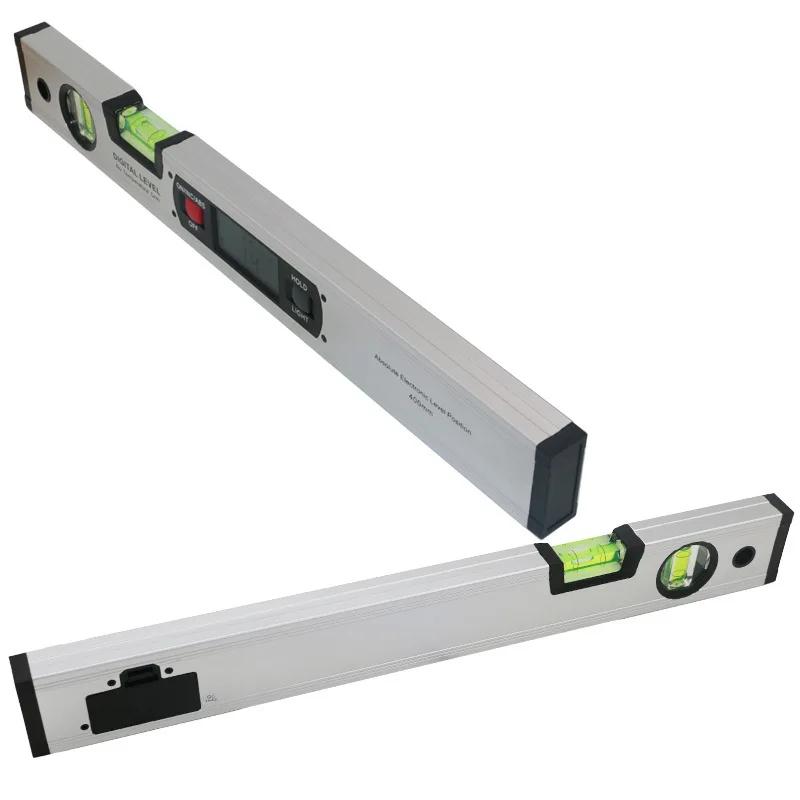

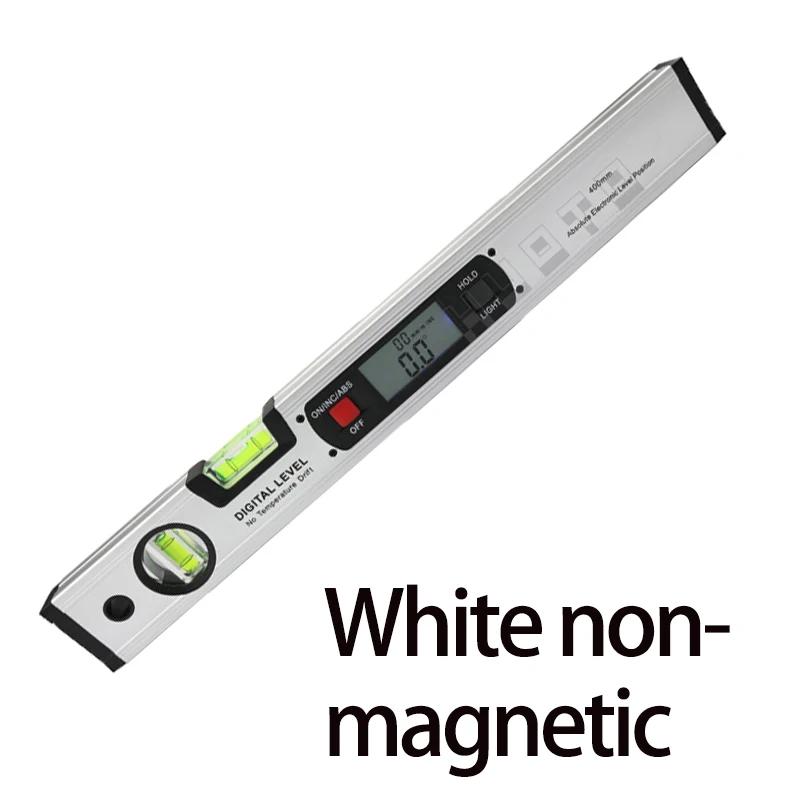

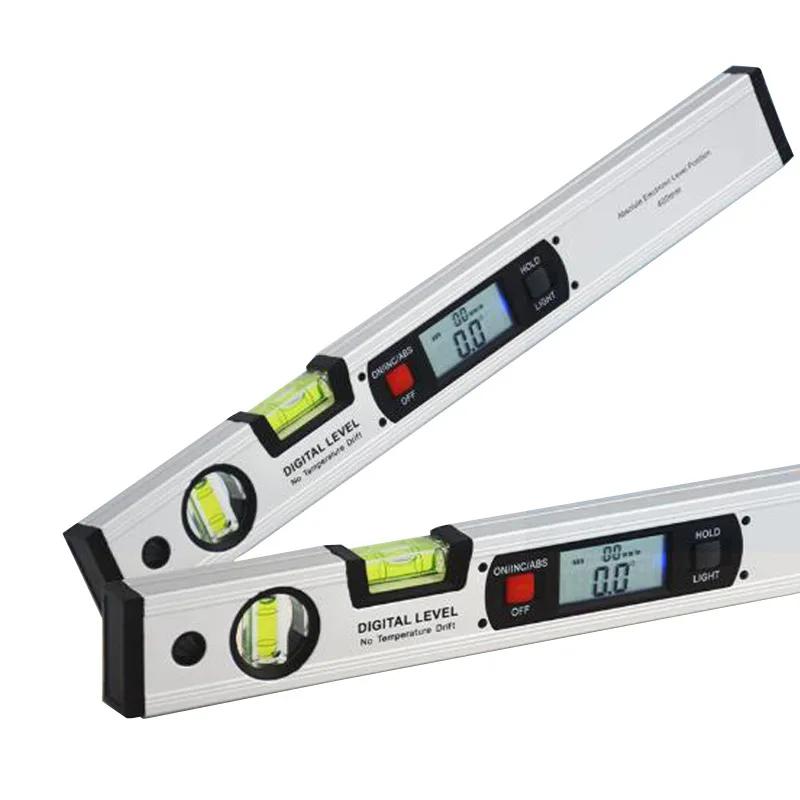

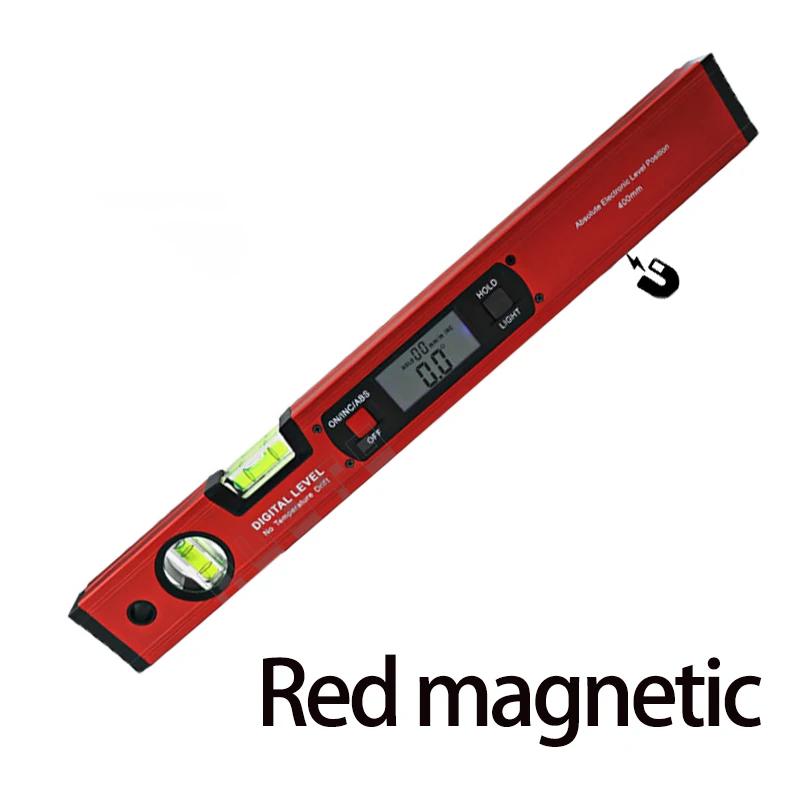

Digital Protractor Angle Finder Inclinometer electronic Level 360 degree with/without Magnets Level angle slope test Ruler 400mm
Description:
This digital level measure all angles in either360°range or four90°quadrants. It can display both degree and slope .have two versions---with magnets on the buttom and without magnets.Display isalways in uprightposition which best specially when working overhead. Not only this instrument canmeasure the horizontalandvertical surface, it also canmeasure the angles of all slopes rise & fall.
Features:
Precision:0.1°
Flip-up LCD,readingalways in upright position
Measuring range of0~360°
Holdfunction to freeze measurements
Absolutemeasurement andrelativemeasurement conversation
Auto power off
Measures precise inclines in degree or mm/m (up to 100mm/m)
Specifications:
Resolution : 0.1°29.4
Accuracy : 0~90°≤0.1°; the rest ≤0.2°
Range : 4 x 90° (0~360°)
Working current : < 100µA
Work temperature : 5~50°C
Work humidity : ≤85% RH
Magnet: 4 built-in on base plate
Power: 2 x 1.5V AAA battery not include in shipping for safety reasons
Battery Life : >2000 hours
Dimension: about 41.5 x 5.0 x 2.0 cm (L x W x H)
Features:
As a common measuring tool, the horizontal scale plays an important role in construction, decoration and mechanical manufacturing.
It is widely praised for its simple design and precise measurement functions.
The body of the level ruler is made of a durable material to ensure the stability of the measurement.
Whether it is installing doors and windows, laying floors, or debugging mechanical equipment, it is an indispensable right-hand assistant.
Help staff to quickly and accurately complete level measurements to ensure the accuracy and quality of the project.
