【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.

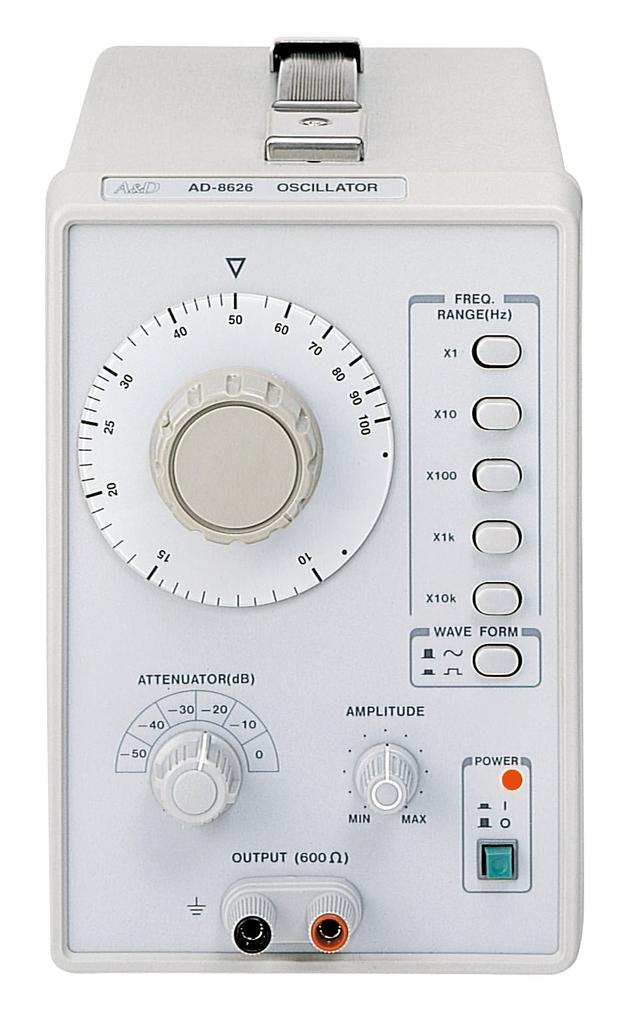

Signal output section Output frequency range: 10Hz~1MHz (5 ranges)
Signal output section Output waveform: square wave, sine wave
Signal output section Output amplitude: Sine wave 5Vrms or more (at 600Ω load), square wave 10Vpp or more (at no load)
Signal output section Output frequency accuracy: Dial accuracy ±(3%+1Hz) (accuracy at dial positions 10 and 100)
Signal output section Output impedance: Approx. 600Ω
Signal output section Attenuator: 0, -10, -20, -30, -40, -50 (dB), (6 steps, accuracy ±1dB, at 600Ω load)
Sine wave distortion rate: 0.02% or less (500Hz~20kHz)
Square wave rise/fall time/symmetry: 200ns or less/±5% (1kHz, maximum output)
Input voltage: AC100V±10%, 50Hz/60Hz
