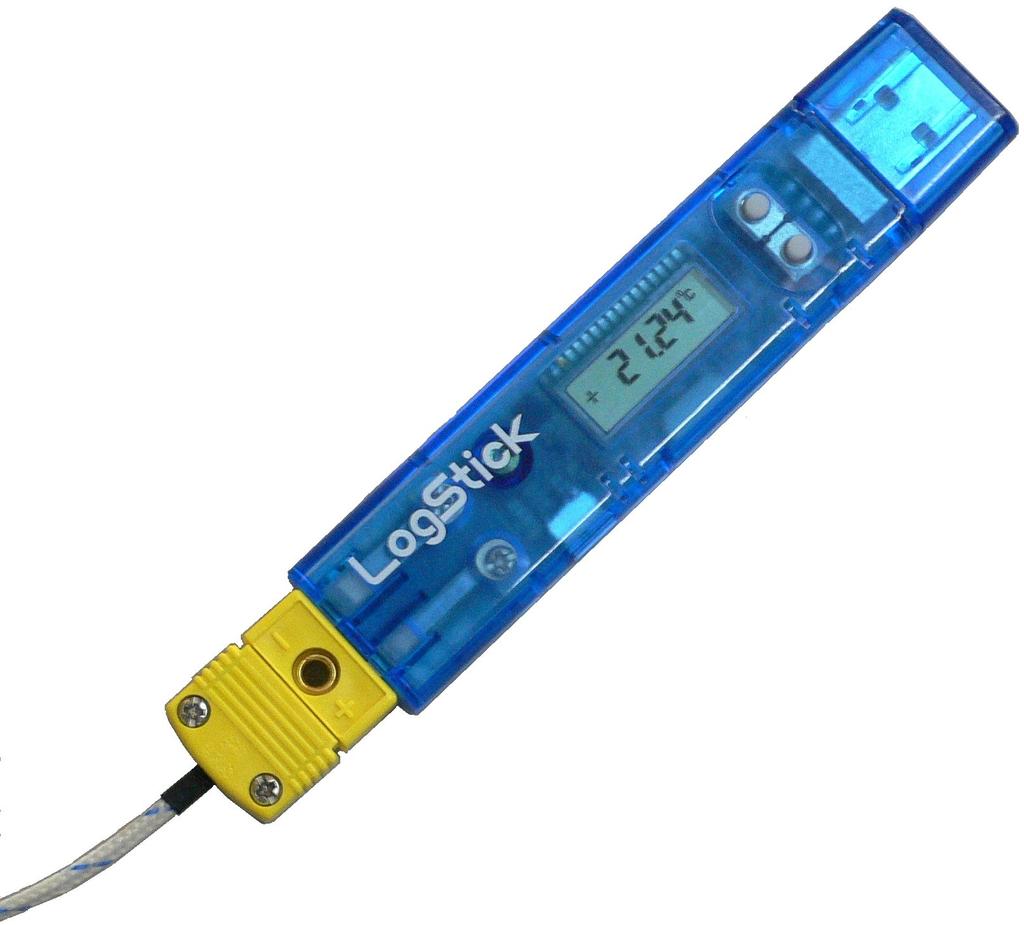

A small temperature data logger that can measure and record temperature at regular intervals. The small and compact design makes it easy to install and carry.
By achieving low power consumption, it can be used with a button battery (CR1220), making it compact and capable of long-time recording. This product is coated with antivirus, antibacterial, and deodorizing titania.

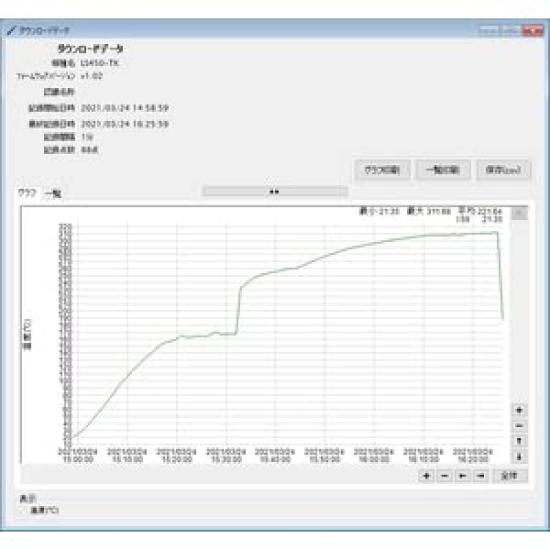

By incorporating a clock function into the main unit, detailed data on temperature changes over time can be checked. A free application is available for download, and detailed data can be viewed in list view and graphs.

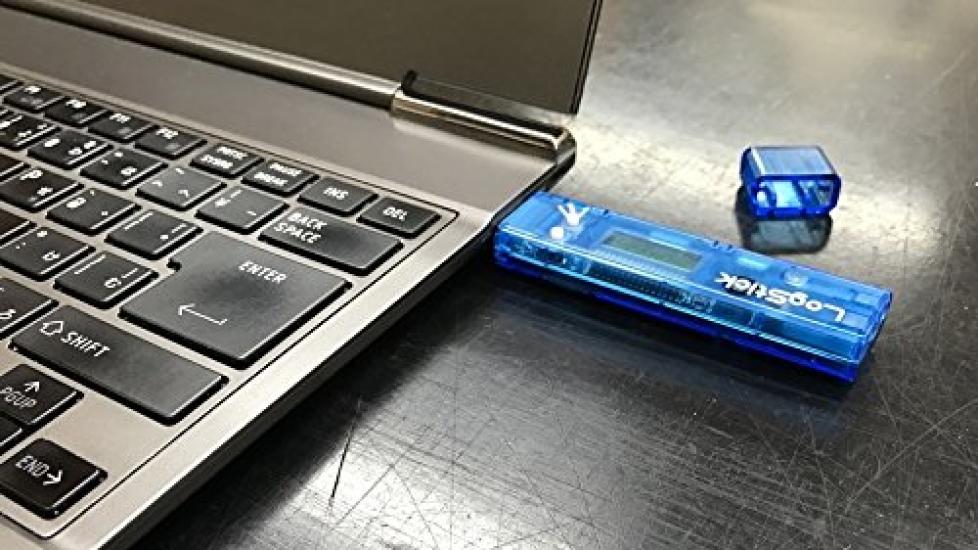

Since it can be connected directly to a computer's USB interface, recorded data can be easily transferred. No need for annoying cables. Since it is also equipped with an LCD, it is not only a data logger, but also allows you to check real-time temperatures.

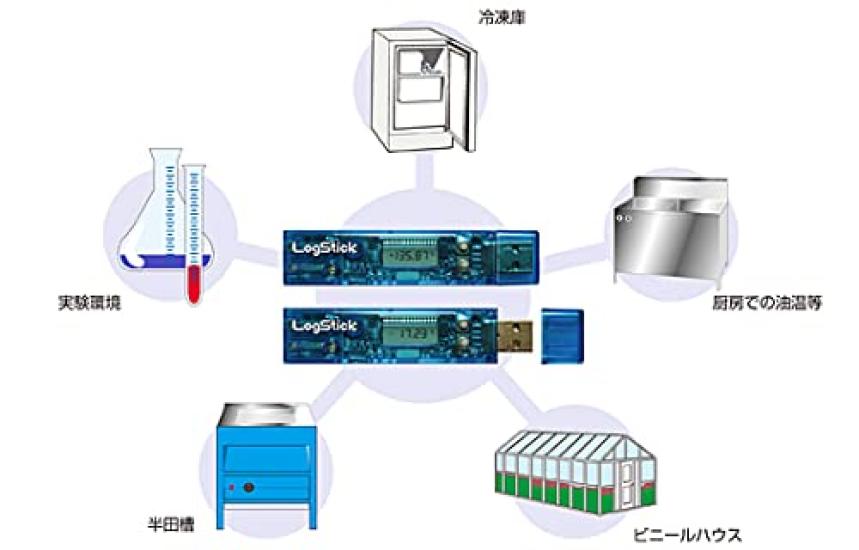

By using a K-type thermocouple, it is possible to measure from low temperatures (-200℃) to high temperatures (1,300℃). (*However, the measurement temperature range depends on the type of K-type thermocouple. The liquid crystal display is -200℃ ~ 999.9℃.) It can be used to control the temperature of chemicals in beakers, flasks, petri dishes, etc., the temperature of oil and solder baths in the kitchen, the temperature of refrigerators and freezers, the soil temperature of greenhouses, etc., and the water temperature of swimming pools.
The temperature logger LogStickLS450-T(K) is powered by a button battery. Moreover, the power-saving design allows continuous temperature recording for long periods of time without the need to replace batteries. In addition, because it is battery powered and has a compact body, it can be easily installed and recorded anywhere. By using a K-type thermocouple, it is possible to measure from low temperatures (-200℃) to high temperatures (1,300℃). Furthermore, the inclusion of a liquid crystal display makes it possible to perform measurements on the spot.
[Main specifications] ＜Product specifications＞ ■Number of channels: 1ch ■Measurement range: -200℃ ~ 1,300℃ (included thermocouple cable: 0 ~ 250℃) (Note ■Measurement accuracy: ±0.8℃ (at 25℃) ■Storage capacity: Maximum 15,000 points ■Measurement interval: 5 seconds to 59 seconds (in 1 second increments), 1 minute to 240 minutes (in 1 minute increments) ■Interface: USB ■Clock function: Built-in ■Battery used: CR1220 (replaceable) ■Battery life: 1 year (measurement interval = 1 hour) ■Liquid crystal specification: Reflective TN ■Compatible thermocouple: K type (Omega connector) *However, the measurement temperature range depends on the type of K type thermocouple. *The liquid crystal display will be from -200℃ to 999.9℃.
＜Compliant standards＞ ■EMS[EN61326-1 Table2]EN61000-4-2/-3/-8 ■EMI[EN61326-1]EN55011 ClassB

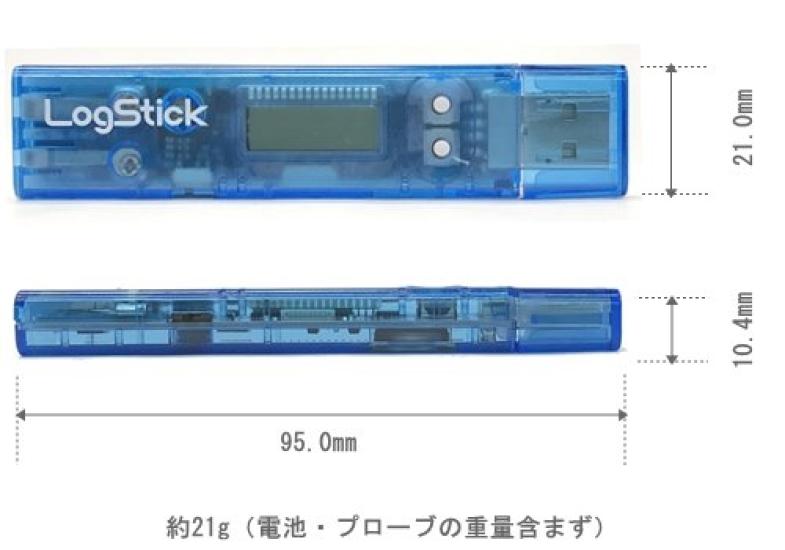

＜Dimensions＞ ■95.0(W)×10.4(H)×21.0(D) (mm)
＜Weight＞ ■Approx. 20g (excluding battery and K-type thermocouple weight)
＜Supported OS＞ ■Windows 8/8.1 (32/64 bit) ■Windows 10 (32/64 bit)
＜Accessories＞ ■CR1220 test button battery (included with the main unit) ■K-type thermocouple (length 1m, measurement temperature range: 0 to 250℃) ■Storage bag for the main unit ■For use (warranty included)
