【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.

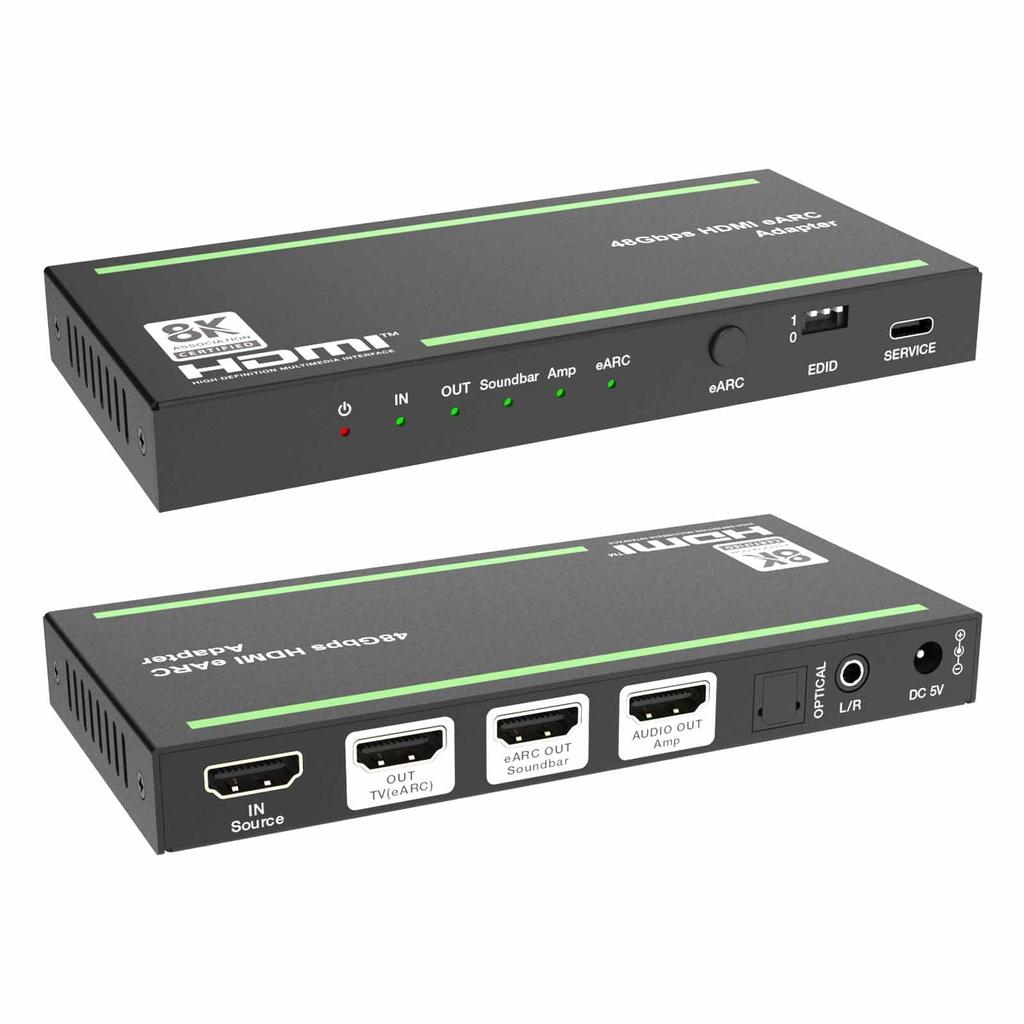

[HDMI ARC/eARC Audio Adapter] This BUNGPUNG 8K@60Hz HDMI ARC/eARC audio extraction adapter can convert HDMI audio to ARC/eARC audio such as Dolby Atmos from an HDMI source to an eARC/ARC sound system. You can also convert ARC/eARC audio from eARC TV to HDMI audio to AV receiver. Compliant with audio formats such as LPCM, Dolby True HD, and DTS-HD Master Audio, making it the perfect solution for connecting SONOS ARC/BOSE 500/700/900 soundbars and other eARC/ARC AV receivers.

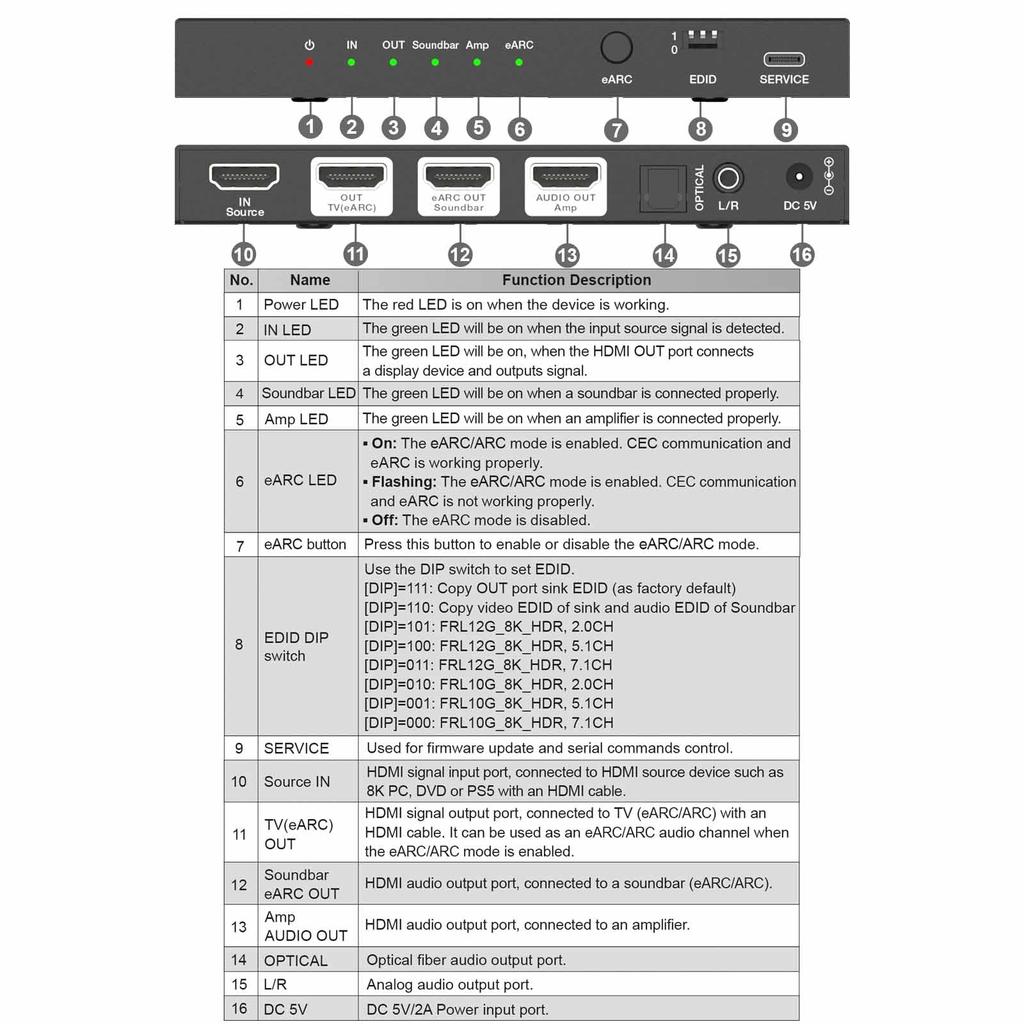

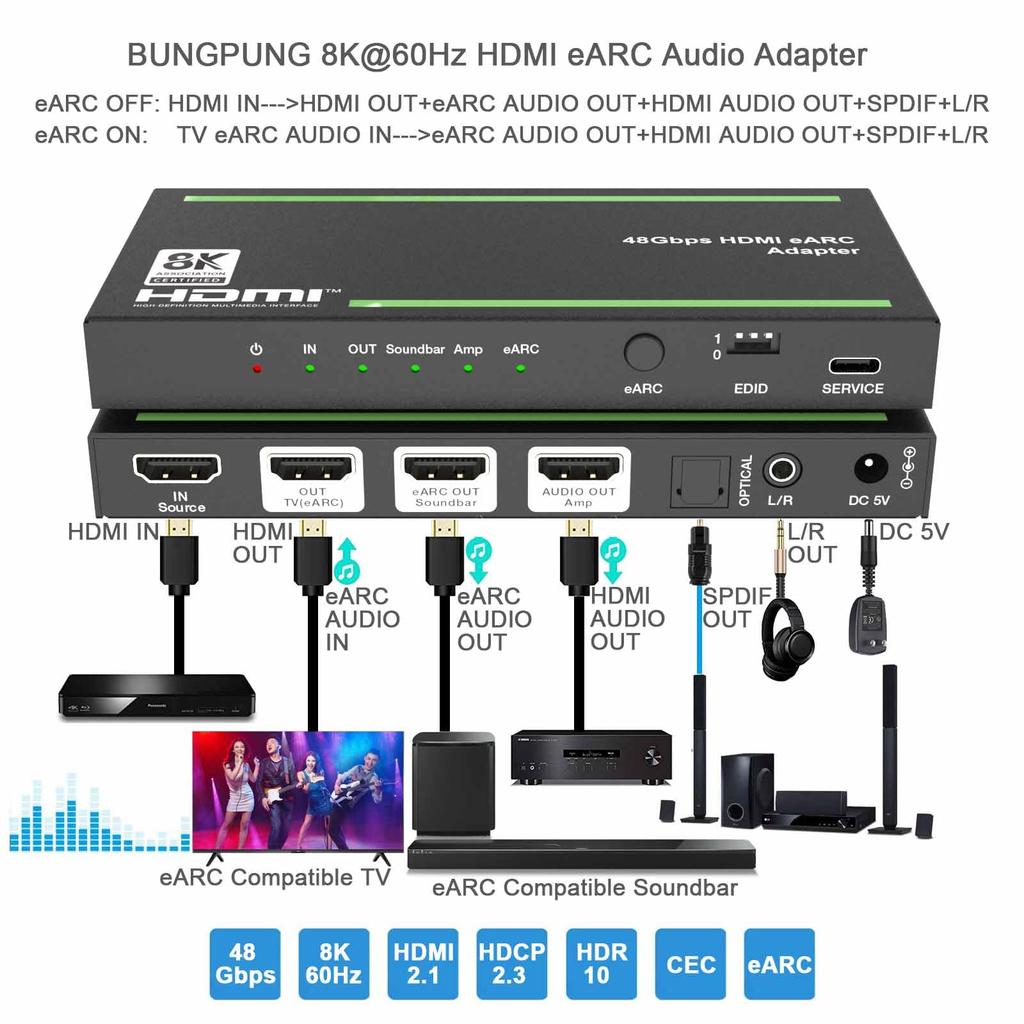

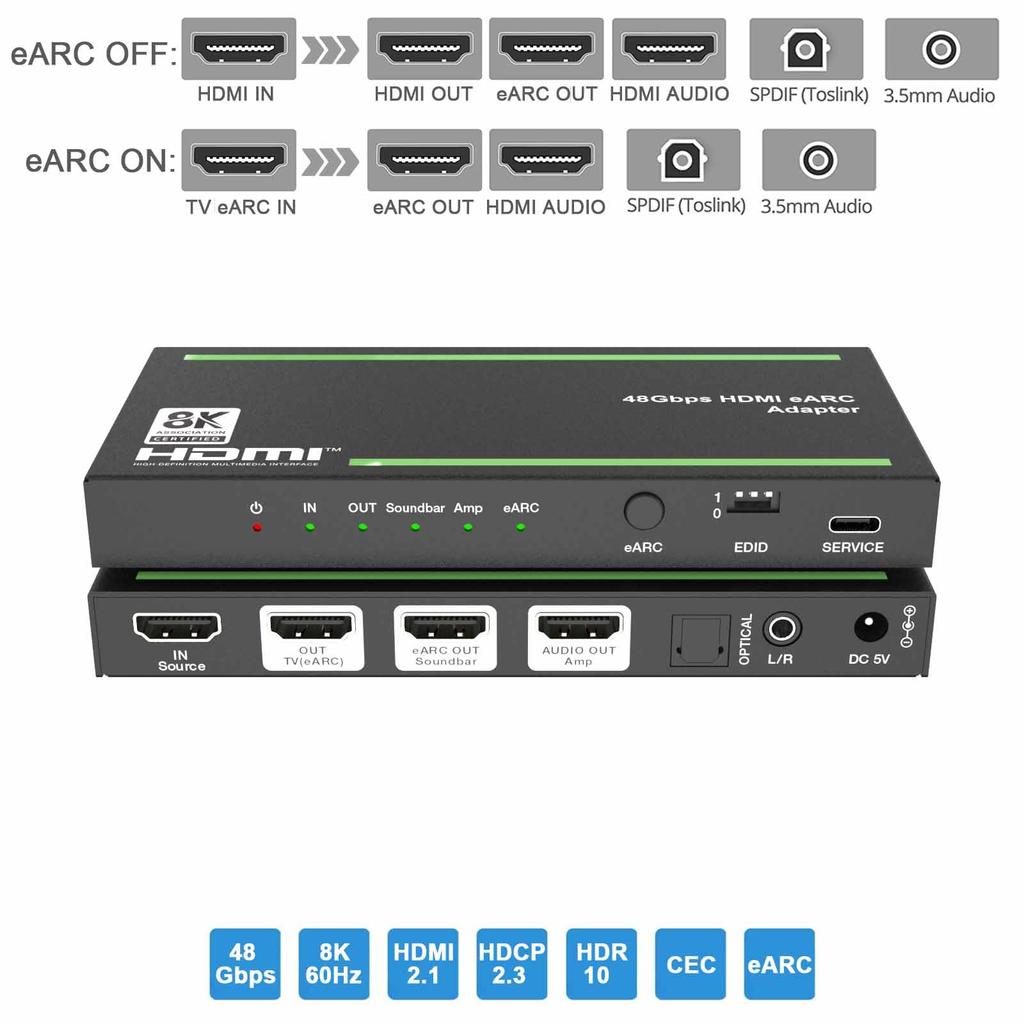

[Convert HDMI audio to eARC audio] When ARC/eARC function is off: eARC off: HDMI input---＞HDMI output + eARC audio output + HDMI audio output + SPDIF output + L/R output.
[Convert eARC audio to HDMI audio] If the ARC/eARC function is enabled: TV eARC audio input---＞eARC audio output + HDMI audio output + SPDIF output + L/R output, there is no need to connect an HDMI source device at this time.
[8K@60Hz Ultra HD Image] Supports up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz 4:4:4 12-bit, 48Gbps HDMI 2.1, HDCP 2.3 HDR CEC compliant video resolutions. Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS Hi-Res, DTS-HD Master Audio, DTS:X

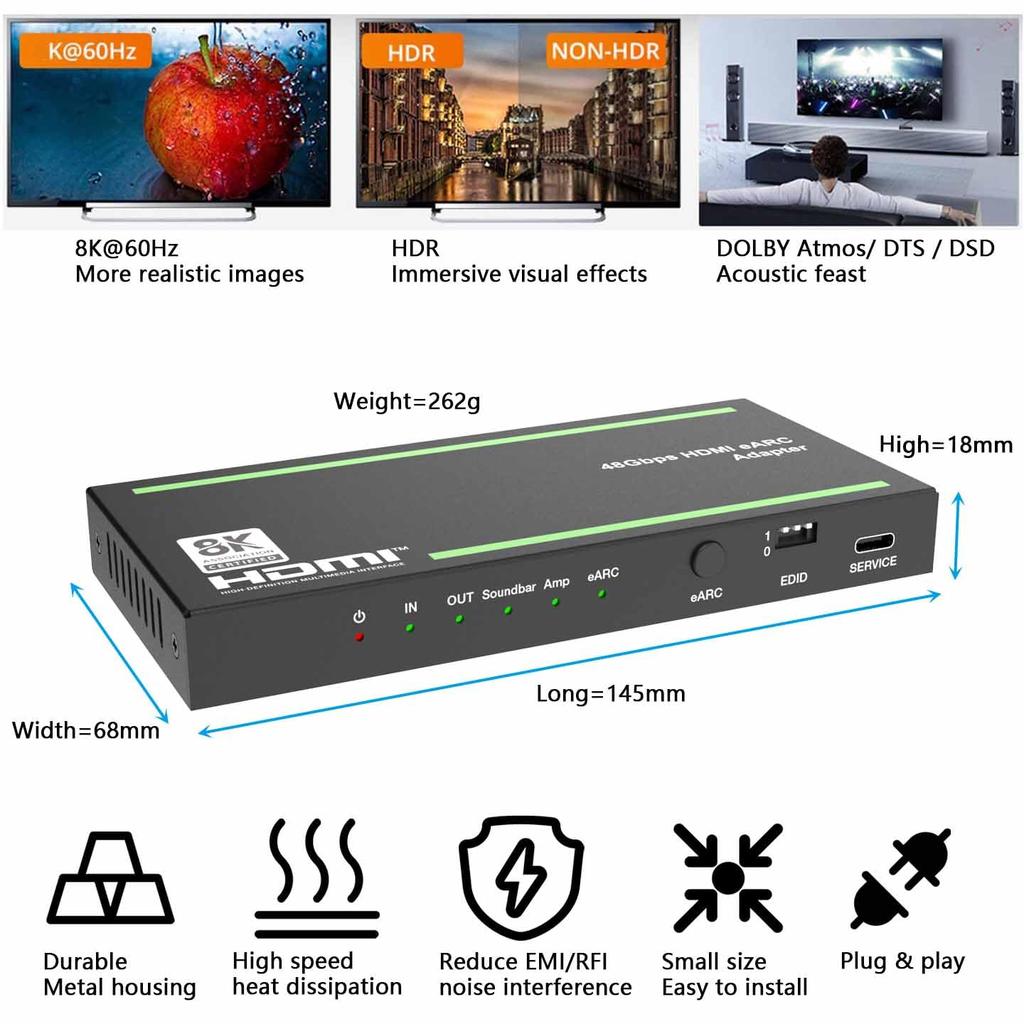

[Durable Metal Body] Cools the unit by supporting rapid heat absorption and heat dissipation. Reduced EMI/RFI noise interference. Compact size and easy plug-and-play installation. Independent power supply to ensure stable work. This product comes with a one year warranty from the date of purchase.
This BUNGPUNG 8K HDMI ARC/eARC audio adapter can convert HDMI audio to ARC/eARC audio such as Dolby Atmos from an HDMI source to an eARC/ARC sound system. You can also convert ARC/eARC audio from eARC TV to HDMI audio to AV receiver. Compliant with audio formats such as LPCM, Dolby True HD, and DTS-HD Master Audio, this adapter is the perfect solution for connecting SONOS ARC/BOSE 500/700/900 soundbars and other eARC/ARC AV receivers. It also provides a dedicated HDMI audio output port, digital S/PDIF audio or analog audio for connecting to legacy AVRs without eARC/ARC functionality.
