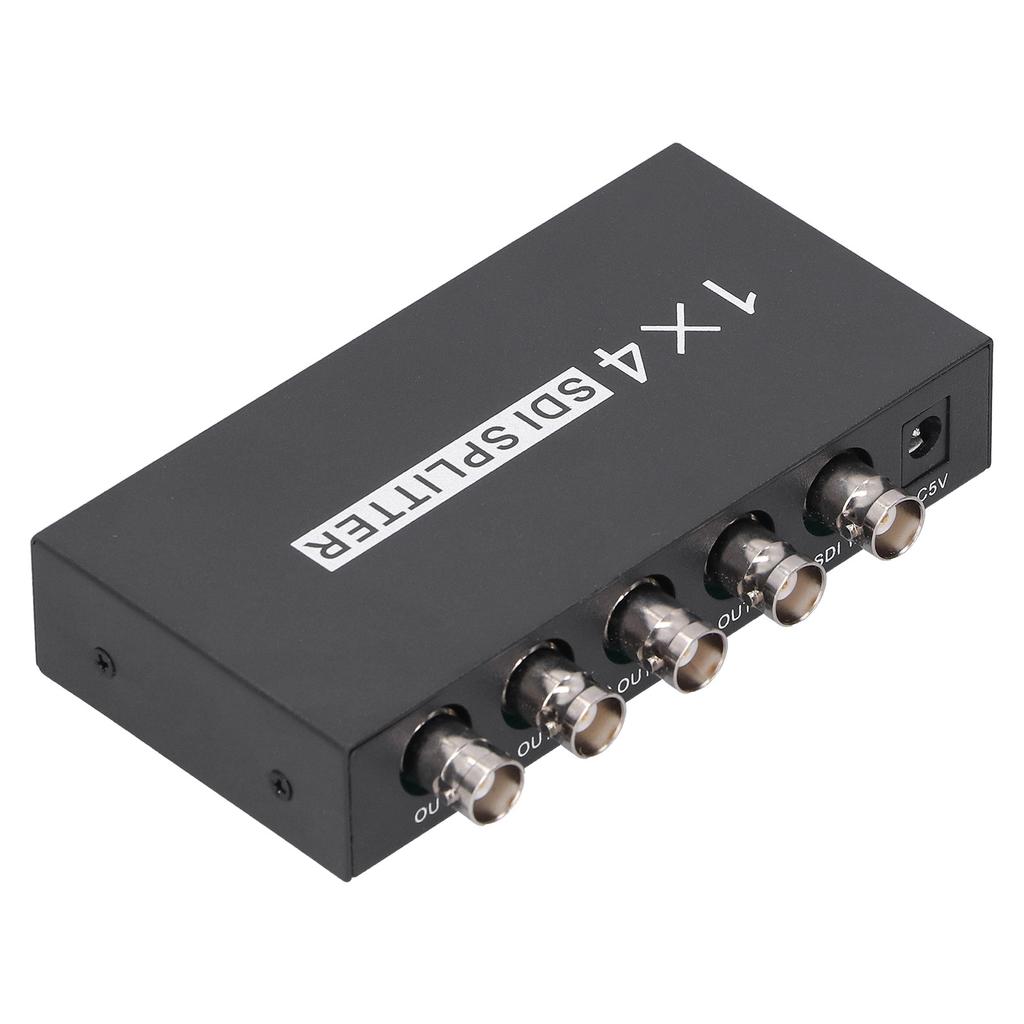

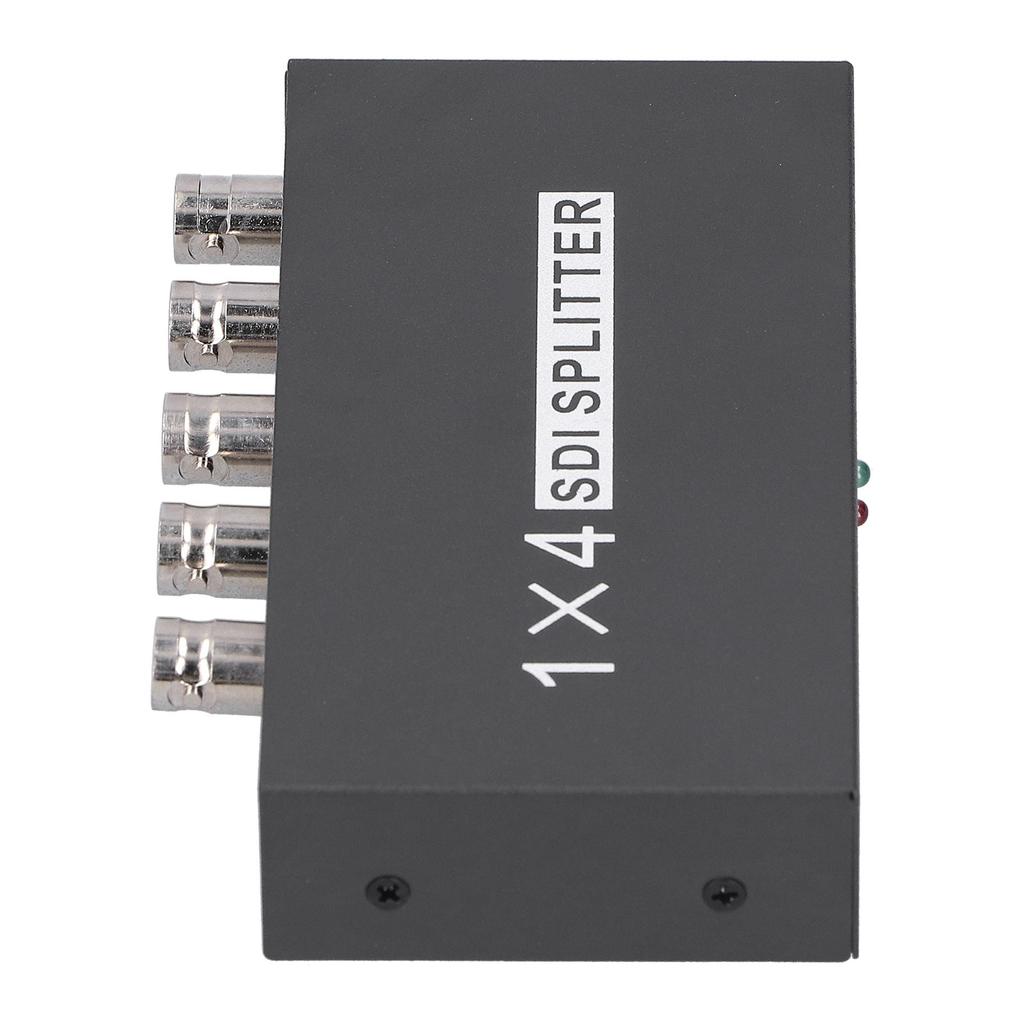

F214 SDI Splitter 1x4 1 In 4 Out Supports SDHD3GSDI Repeater Extender(Prise )

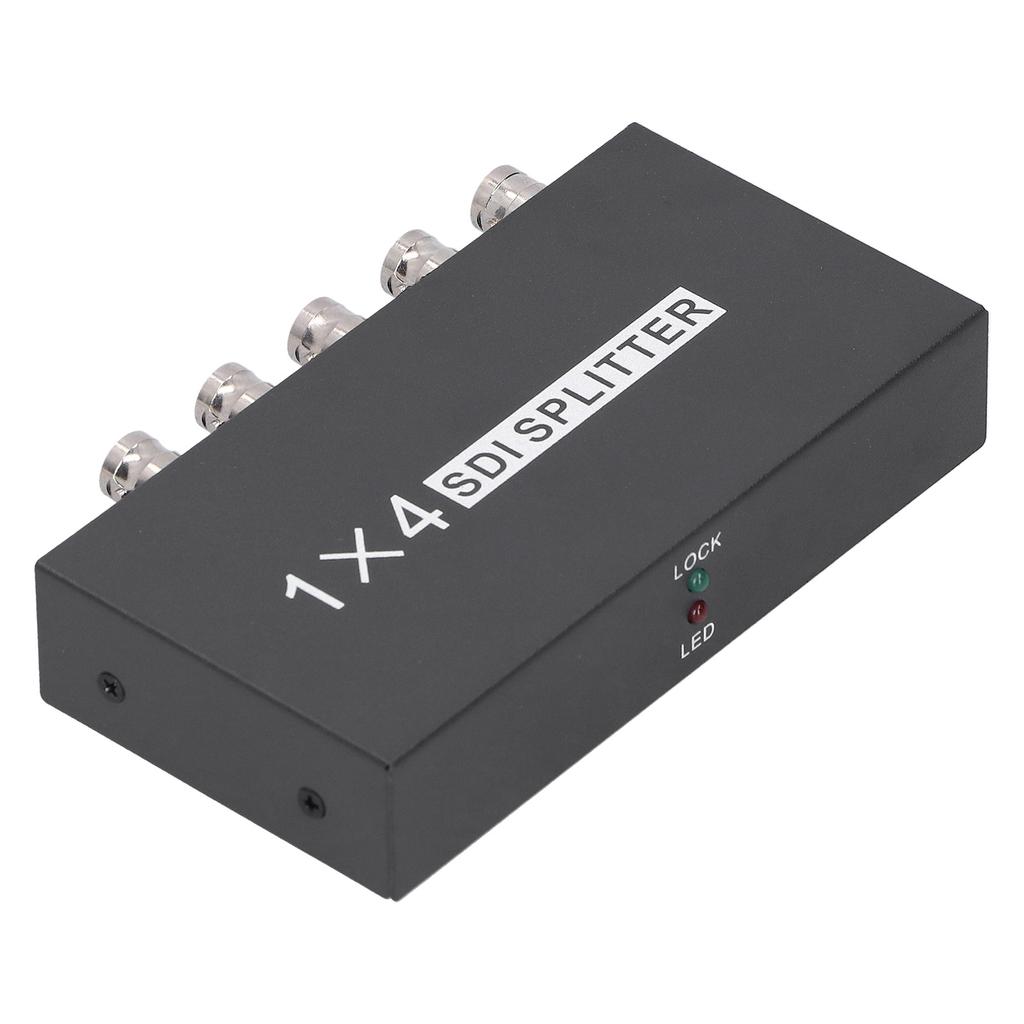

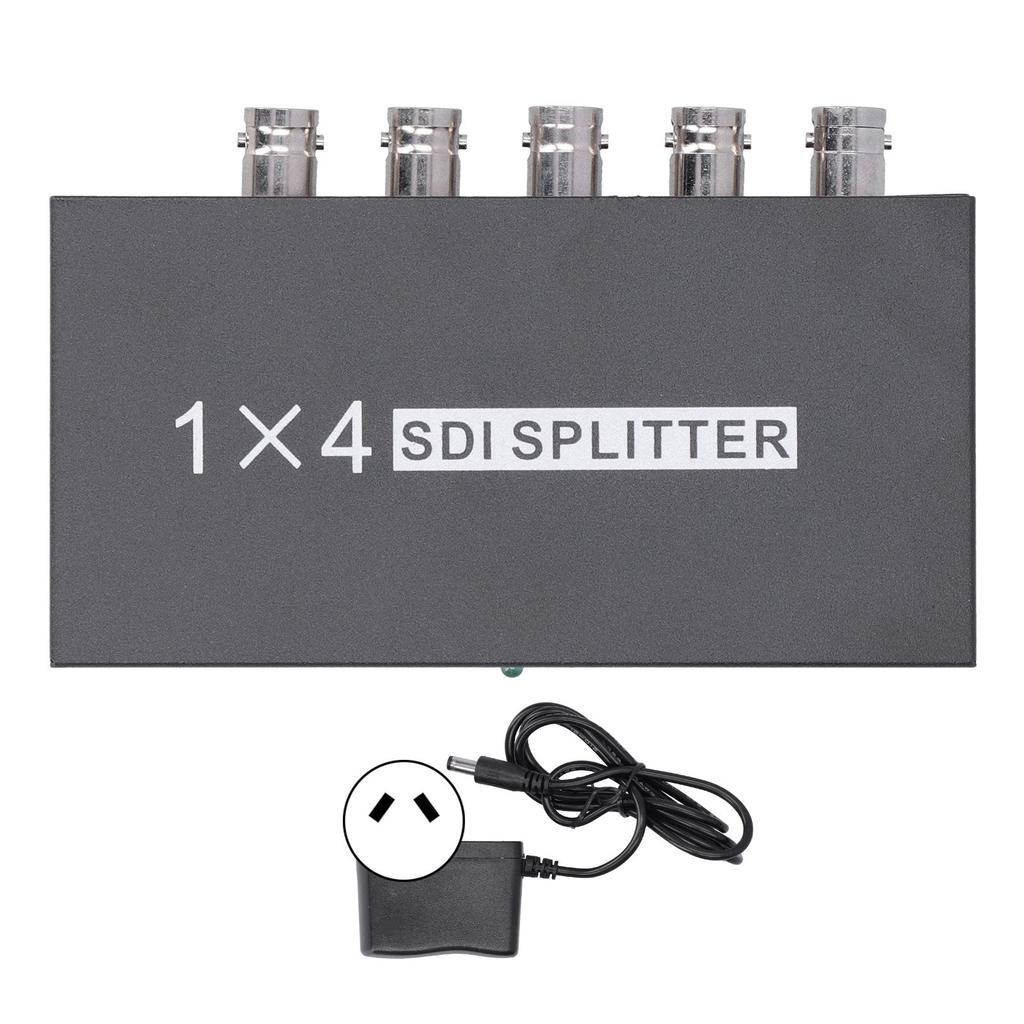

Feature: 1. Built‑in Cable Equilizer, Reclocker circuit and Cable Driver, support for maximum Cable length (for Belden‑1694A). 2. SDI line input and output distance: SD supports 400m, HD supports 200m, 3G supports 100m (theoretical value, the specific distance is related to the cable quality). 3. Built‑in wide voltage design, support DC5V‑36V voltage input (power maximum 2W), more suitable for engineering use. 4. 2 SDI signals are output at the same time, without any setting. 5. The pure hardware processing plug and play, but also can automatically detect different SDI signals, when the input of effective SDI signal, LED indicator will show green, if there is no signal or signal non‑character and standard LED indicator will be extinguished, so that engineering customers more easily judge the problem. Specification: Item Type: SDI Splitter Material: Metal Color: As Pictures Shown Product Size(LxWxH): Approx. 117x60x23mm4.6x2.4x0.9in Weight: Approx. 285g10.1ozPower supply range: DC5V-36V Power consumption: < 2W Power supply hole diameter: 2.1mm0.1in Standard: 5V1A power supply SDI output interface: BNC SDIx4 SDI standard: Compatible with SMPTE 424M,SMPTE 292M and SMPTE 259M-C SDI signal format: SD-SDI, HD-SDI, 3G-SDI Support SDI rate: 143-2970MBS SDI impedance: 75 Ohm 480i@60Hz576i@50Hz720@50Hz720P@60Hz1080i@50Hz1080i@60HZ1080P@24@25@30@50@60Hz SDI output resolution: 480i@60Hz576i@50Hz720P@50Hz720P@60Hz1080i@50Hz1080i@60Hz1080p@24@25@30@50@60Hz SDI signal output amplitude: 800mVp-p Adaptability and stability: 0 celsius -60 celsius How to use: 3. Connect the mainframe power, the machine starts to work. . Package List: 1 x SDI Splitter 1 x Power Adapter1 x Manual
