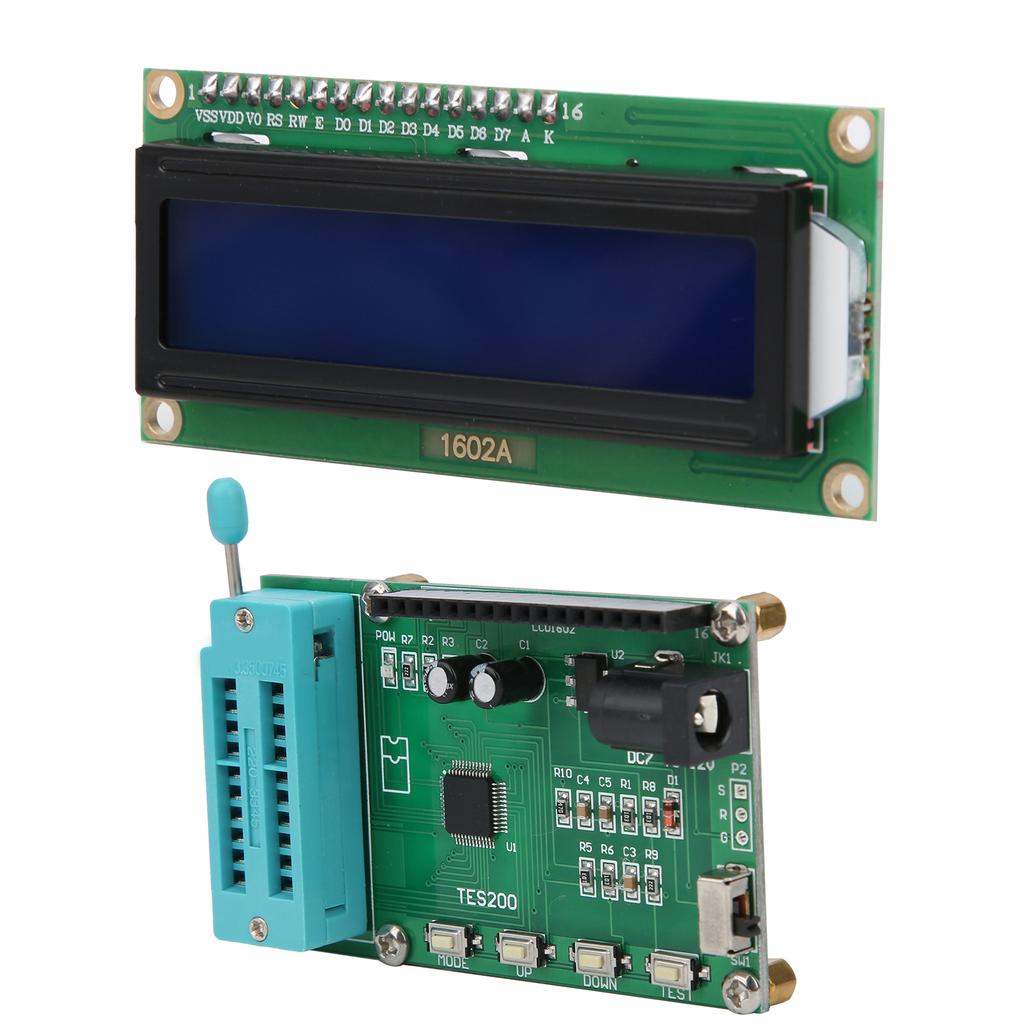

Feature:
1. Mainly to test 74 series and 40 series digital integration, can test more than 200 kinds of integration.
2. Through the button operation to select the test integration, you can judge which logic gate is broken, which is simple and convenient to use.
3. Made of PCB material, it is corrosion?resistant and anti?oxidation, which increases the life of the product.
4. With small size, easy to carry and store, convenient to use and with good performance.
5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.
Specification:
Item Type: IC Tester Material: PCB
Working Current: <30 mA
Working Temperature: 104 Fahrenheit ~149 Fahrenheit
Storage Temperature: 104 Fahrenheit ~149 Fahrenheit
Key Description:
MODE: Select the integration type (74 series or 40 series)
UP: Select the last integrated model
DOWN: Select the next integrated model
TEST: : Test the selected integrated model
74 Series:
7400 ,7401 ,7402 ,7403 ,7404 ,7405 ,7406 ,7407 ,7408 ,7409
7410,7411,7412,7413,7414,7415,7416,7417,7418,7419
7420 ,7421 ,7422 ,7424 ,7425 ,7426 ,7427 ,7428 ,7430 ,7432
7433 ,7434 ,7435 ,7436 ,7437 ,7438 ,7439 ,7440 ,7442 ,7443
7444 ,7445 ,7446 ,7447 ,7448 ,7454 ,7464 ,7470 ,7472 ,7473
7474,7475,7476,7477,7478,7480,7482,7483,7485,7486
7487 ,7489 ,7494 ,7495 ,7496 ,74101 ,74102 ,74103 ,74107 ,74108
74109 ,74112 ,74113 ,74125 ,74126 ,74128 ,74130 ,74132 ,74133 ,74134
74135 ,74136 ,74137 ,74138 ,74139 ,74140 ,74145 ,74147 ,74148 ,74151
74152 ,74153 ,74155 ,74156 ,74157 ,74158 ,74160 ,74161 ,74163 ,74164
74165 ,74166 ,74171 ,74173 ,74174 ,74175 ,74176 ,74177 ,74180 ,74182
74190 ,74191 ,74192 ,74193 ,74194 ,74195 ,74197 ,74242 ,74243 ,74247
74248 ,74249 ,74251 ,74253 ,74256 ,74257 ,74258 ,74259 ,74260 ,74266
74279 ,74280 ,74283 ,74290 ,74293 ,74295 ,74298 ,74350 ,74352 ,74353
74365 ,74366 ,74367 ,74368 ,74375 ,74378 ,74379 ,74390 ,74393 ,74395
74425 ,74426 ,74445 ,74447 ,74490 ,74595 ,74670
40 And 45 Series:
CD4000, CD4001, CD4002, CD4006, CD4007, CD4008, CD4009, CD4010, CD4011, CD4012,
CD4013, CD4014, CD4015, CD4016, CD4017, CD4018, CD4019, CD4020, CD4021, CD4022,
CD4023, CD4024, CD4025, CD4026, CD4027, CD4028, CD4029, CD4030, CD4033, CD4035,
CD4040, CD4042, CD4043, CD4044, CD4048, CD4049, CD4050, CD4051, CD4052, CD4053,
CD4060, CD4066, CD4068, CD4069, CD4070, CD4071, CD4072, CD4073, CD4075, CD4076,
CD4077, CD4078, CD4081, CD4082, CD4085, CD4093, CD4094, CD4099, CD4502, CD4503,
CD4504, CD4510, CD4511, CD4512, CD4516, CD4518, CD4520, CD4522, CD4526, CD4529,
CD4532, CD4539, CD4543, CD4555, CD4556, CD4584, CD40106, CD40110, CD40161, CD40162, CD40174, CD40175, CD40192, CD40193..
Package List:

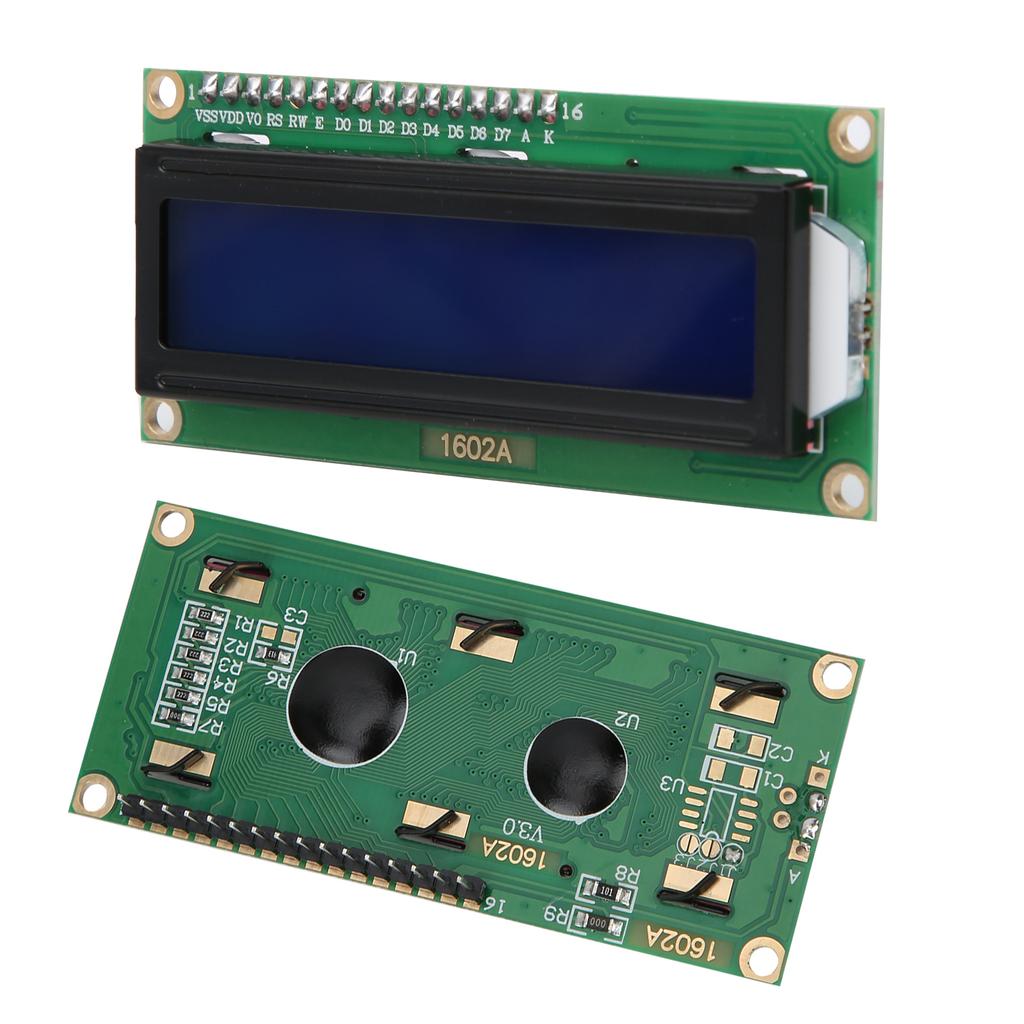

1 x Tester1 x LED DisplayMainly to test 74 series and 40 series digital integration, can test more than 200 kinds of integration.
Through the button operation to select the test integration, you can judge which logic gate is broken, which is simple and convenient to use.
Made of PCB material, it is corrosion?resistant and anti?oxidation, which increases the life of the product.
With small size, easy to carry and store, convenient to use and with good performance.
Strict quality control and quality assurance, high safety factor, can be used with peace of mind.
