Feature:
1. NON CONTACT: When the sensing surface of the object proximity switch reaches the operating distance, no mechanical contact and application of any pressure are required.
2. MULTIPLE USAGES: The proximity switch sensor can be used in automatic control system, used for limit, counting, position control and automatic protection, etc.
3. SPECIFICATIONS: With the function of non contact travel switch, the action distance is 4mm, 2 wire normally open, with high repeated locationing accuracy.
4. GOOD PROTECTION: The proximity switch shell is made of ABS and aluminum alloy, with IP65 protection grade, and supporting insulation resistance of more than 50M Ohm .
5. WIDE APPLICATION: The inductive proximity sensor is widely used in machine tool, metallurgy, chemical industry, light textile, printing and other industries.
Specification:
Item Type: Proximity Sensor
Material: ABS, Aluminum Alloy
Product Voltage: 636VDC
Maximum Output Current: 300mA
Action Distance: 4mm
Repetitive Location
Accuracy: 0.1mm
Working Frequency: 200Hz
Output Type: 2 Wire Normally Open
Working Temperature: 2575 celsius
Protection Grade: IP65
Withstand Voltage: 1500V Per MIN
.
Package List:

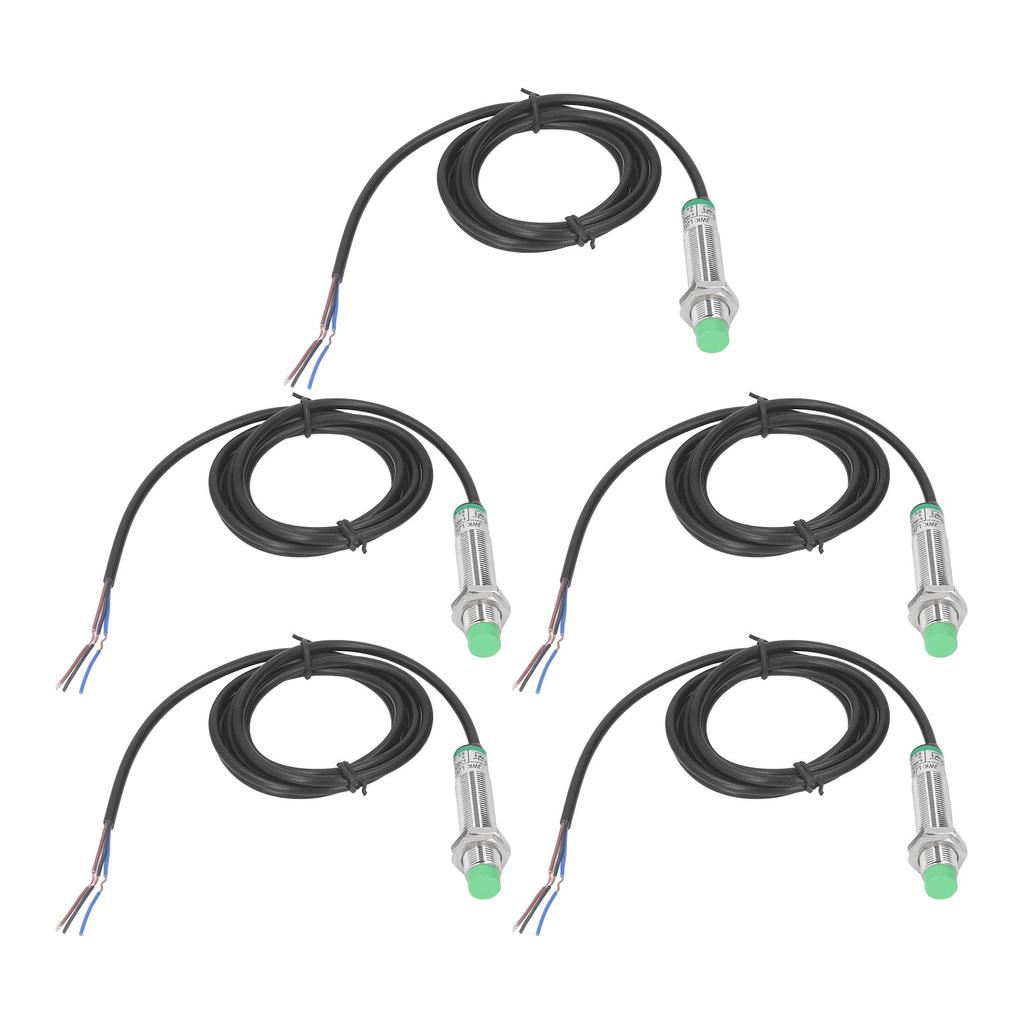

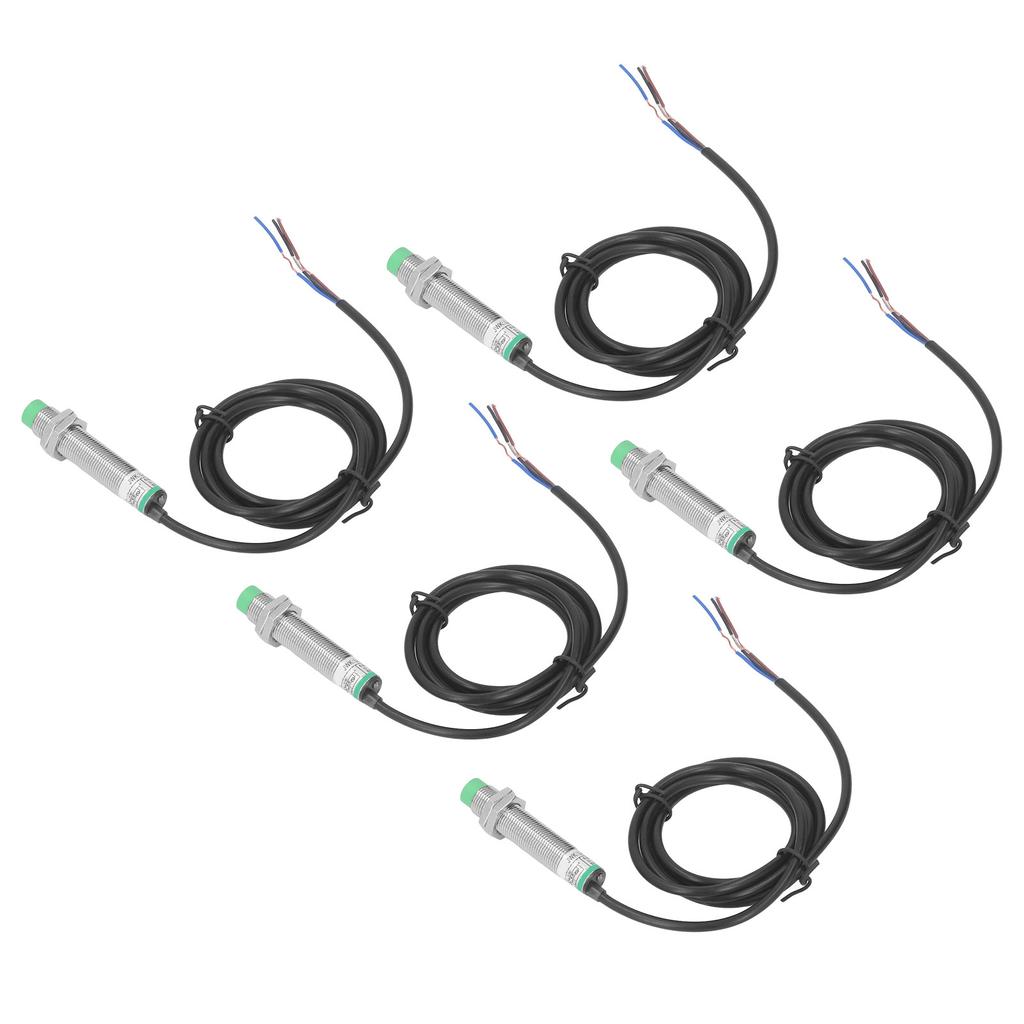

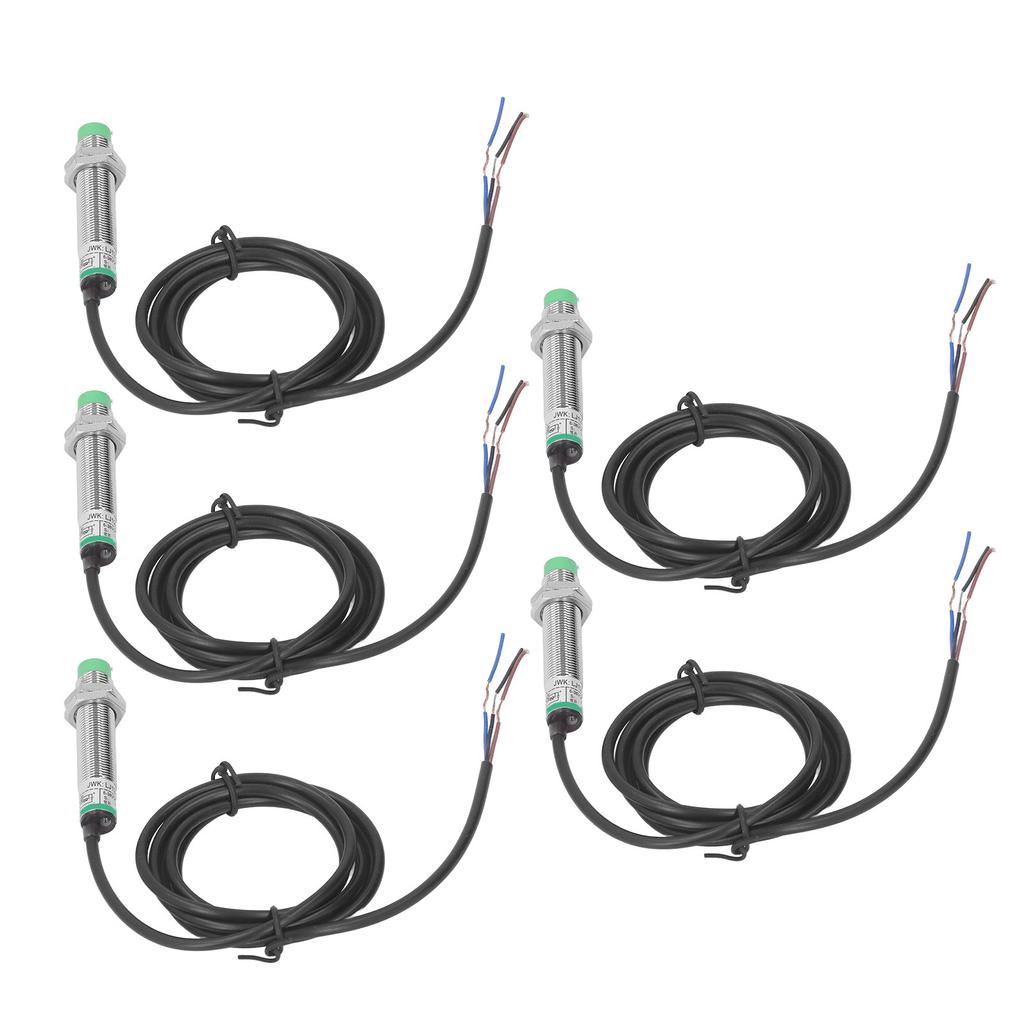

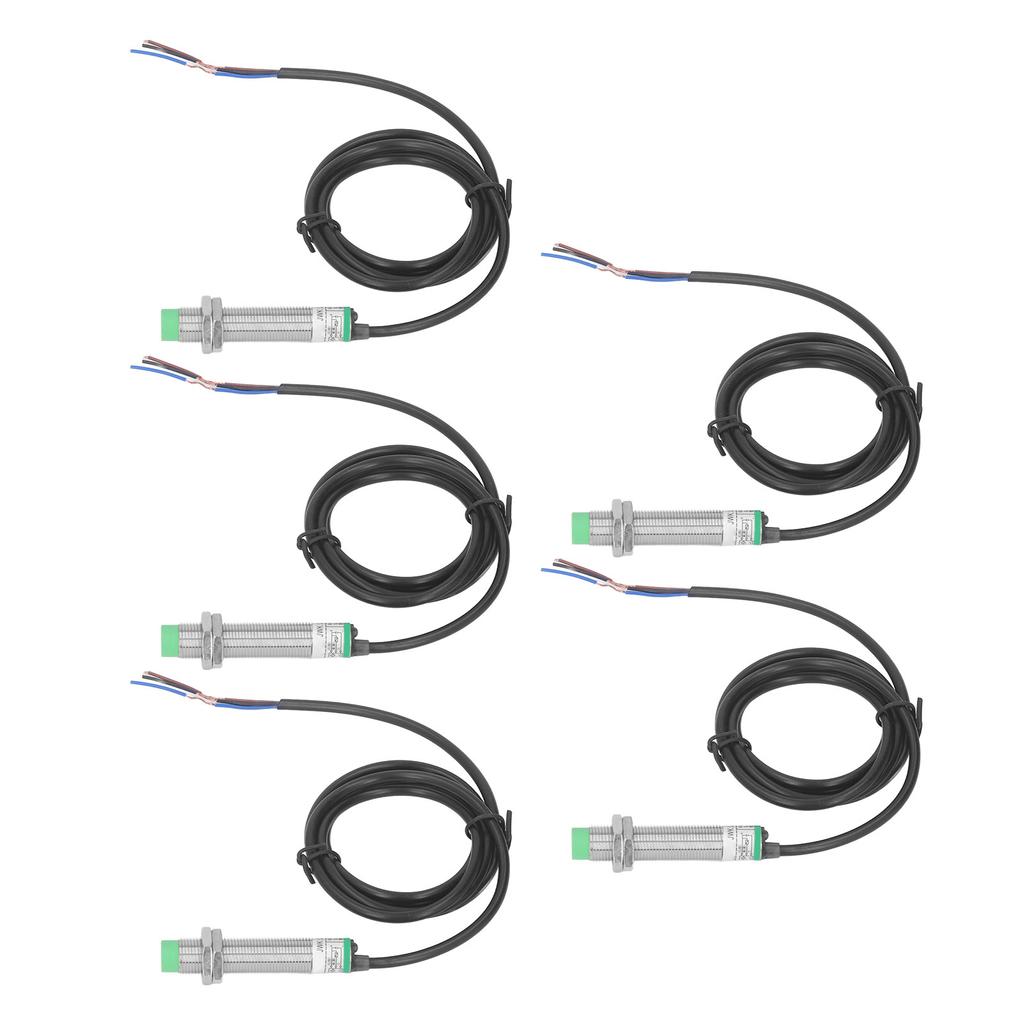

5 x Proximity SensorNON CONTACT: When the sensing surface of the object proximity switch reaches the operating distance, no mechanical contact and application of any pressure are required.
MULTIPLE USAGES: The proximity switch sensor can be used in automatic control system, used for limit, counting, position control and automatic protection, etc.
SPECIFICATIONS: With the function of non contact travel switch, the action distance is 4mm, 2 wire normally open, with high repeated locationing accuracy.
GOOD PROTECTION: The proximity switch shell is made of ABS and aluminum alloy, with IP65 protection grade, and supporting insulation resistance of more than 50M Ohm .
WIDE APPLICATION: The inductive proximity sensor is widely used in machine tool, metallurgy, chemical industry, light textile, printing and other industries.
