Feature:
1. Fast and Accurate: The multifunctional optical power meter has a built in sensitive chip for accurate measurement results and quick response.
2. Strong Functions: Multifunctional optical power meter with relative power calculation and calibration function, stable performance.
3. 10 Wavelengths: Can measure 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650nm wavelengths, covering most of the needs of communications engineering maintenance.
4. Clear Display: The power meter"s clear on screen display allows you to take clear readings, both in low and bright light.
5. Automatic Power Off: This optical power meter will automatically shut down after 10 minutes of no operation, reducing power consumption and extending service life.
Specification:
Item Type: Optical Fiber Power Meter
Material: ABS
Wavelength Range: 8001700nm
Optical Connector: Universal connector (SCFCST)
Connector Type: InGaAs
Power Measurement Range: 70+10dBm
Measurement Accuracy Error: <+5percent
Standard Wavelength: 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650nm
Display Resolution: Linear display 0.1percent , logarithmic display 0.1dBm
Identifiable Frequency: 270Hz, 300Hz, 1kHz, 2kHz
Power Supply: Lithium battery 3.7V capacity 700mah (built in)
Interface: Micro USB
Battery Duration: Greater than or equal to 120 hours (optical power meter function)
Automatic Power Off Time: 10min
Red Source Function:
Working Wavelength: 650nm+30nm
Working Mode: CW, 1Hz, 2Hz.

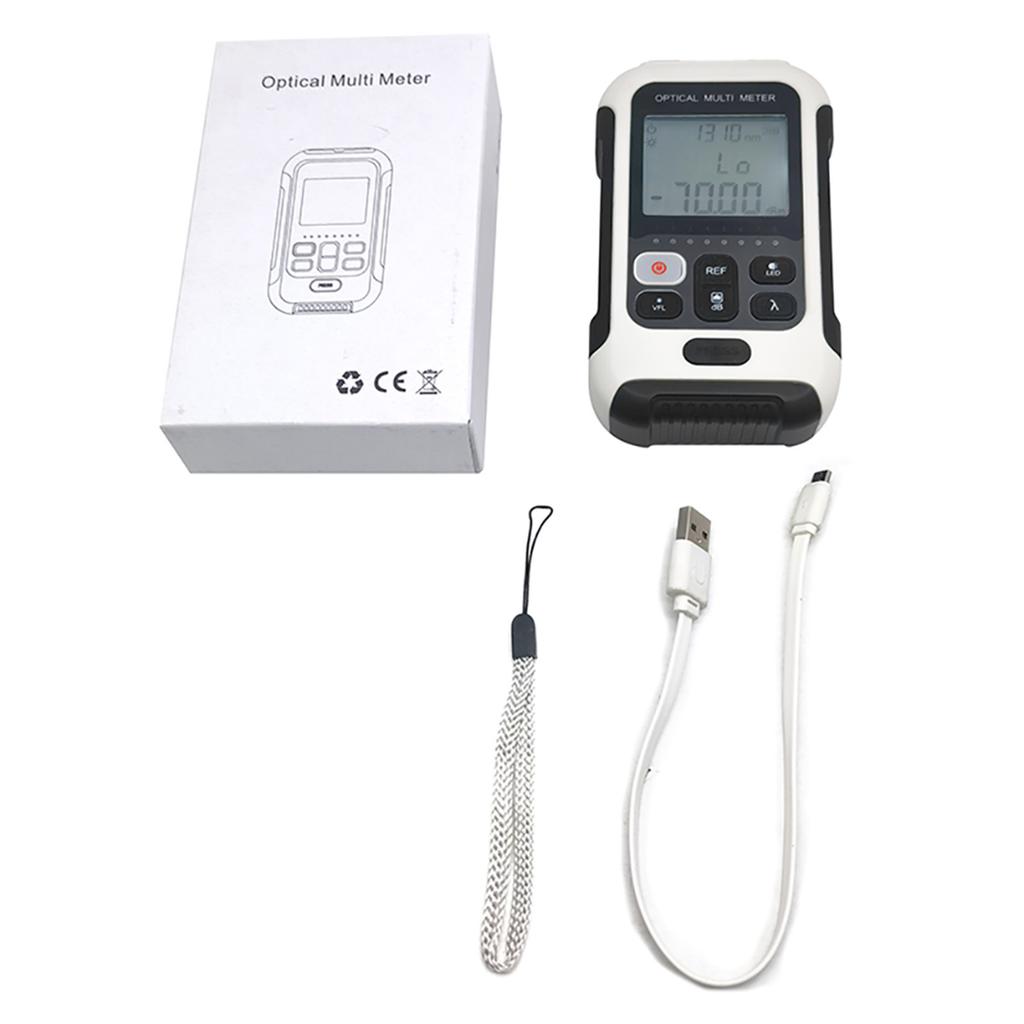

Package List:
1 x Optical Fiber Power Meter1 x USB Cable1 x Instruction1 x LanyardFast and Accurate: The multifunctional optical power meter has a built in sensitive chip for accurate measurement results and quick response.
Strong Functions: Multifunctional optical power meter with relative power calculation and calibration function, stable performance.
10 Wavelengths: Can measure 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650nm wavelengths, covering most of the needs of communications engineering maintenance.
Clear Display: The power meter"s clear on screen display allows you to take clear readings, both in low and bright light.
Automatic Power Off: This optical power meter will automatically shut down after 10 minutes of no operation, reducing power consumption and extending service life.
