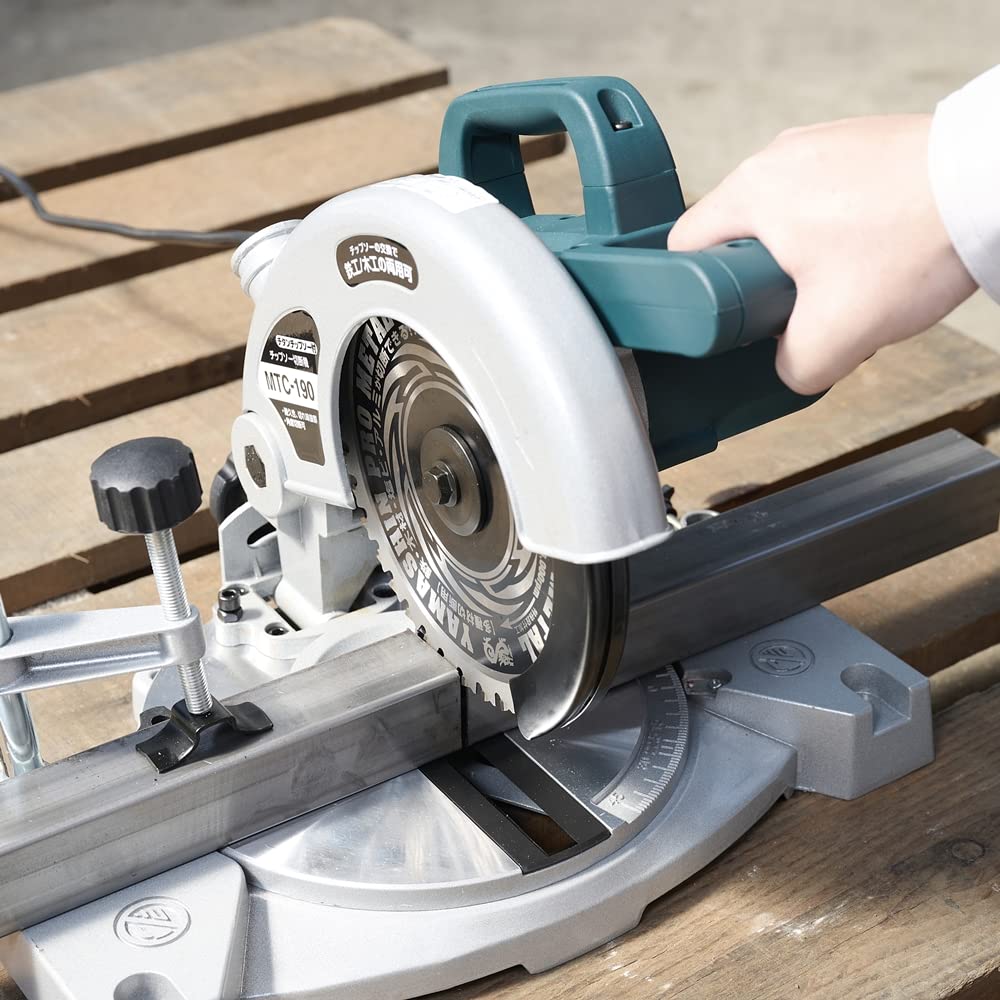

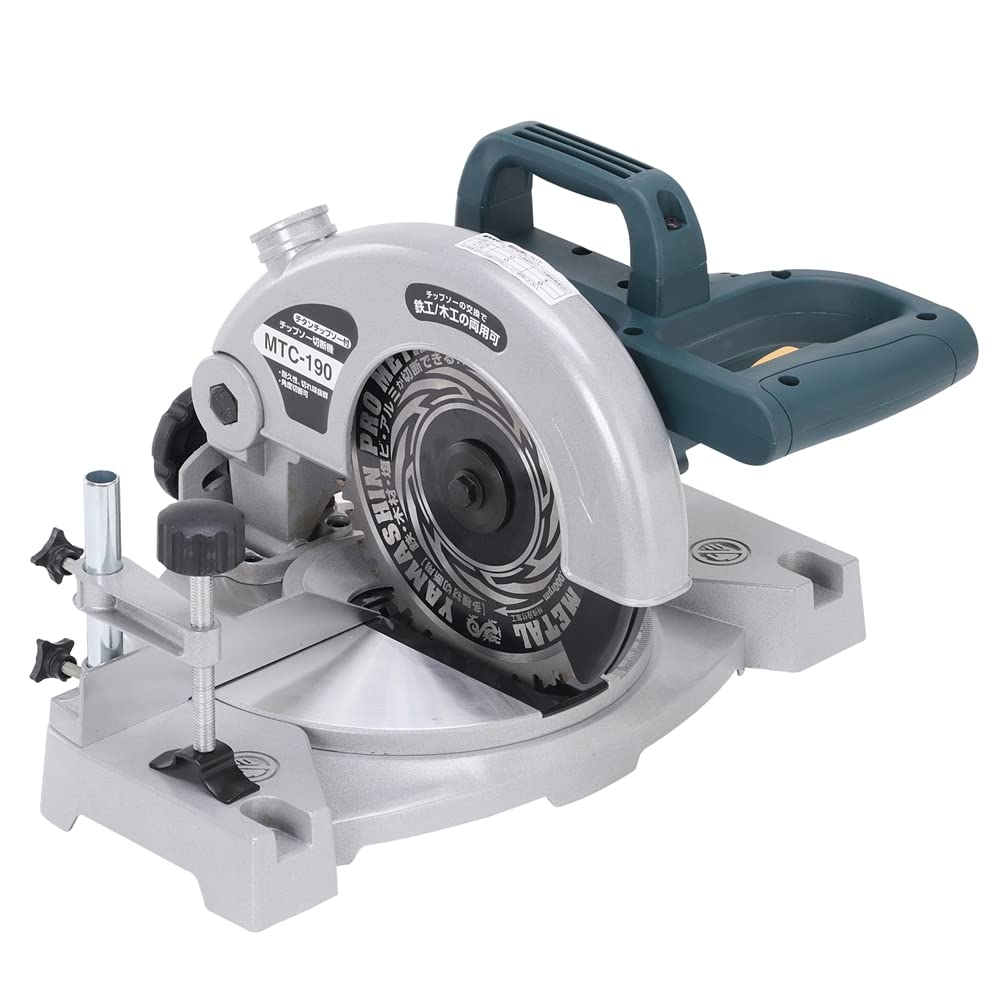

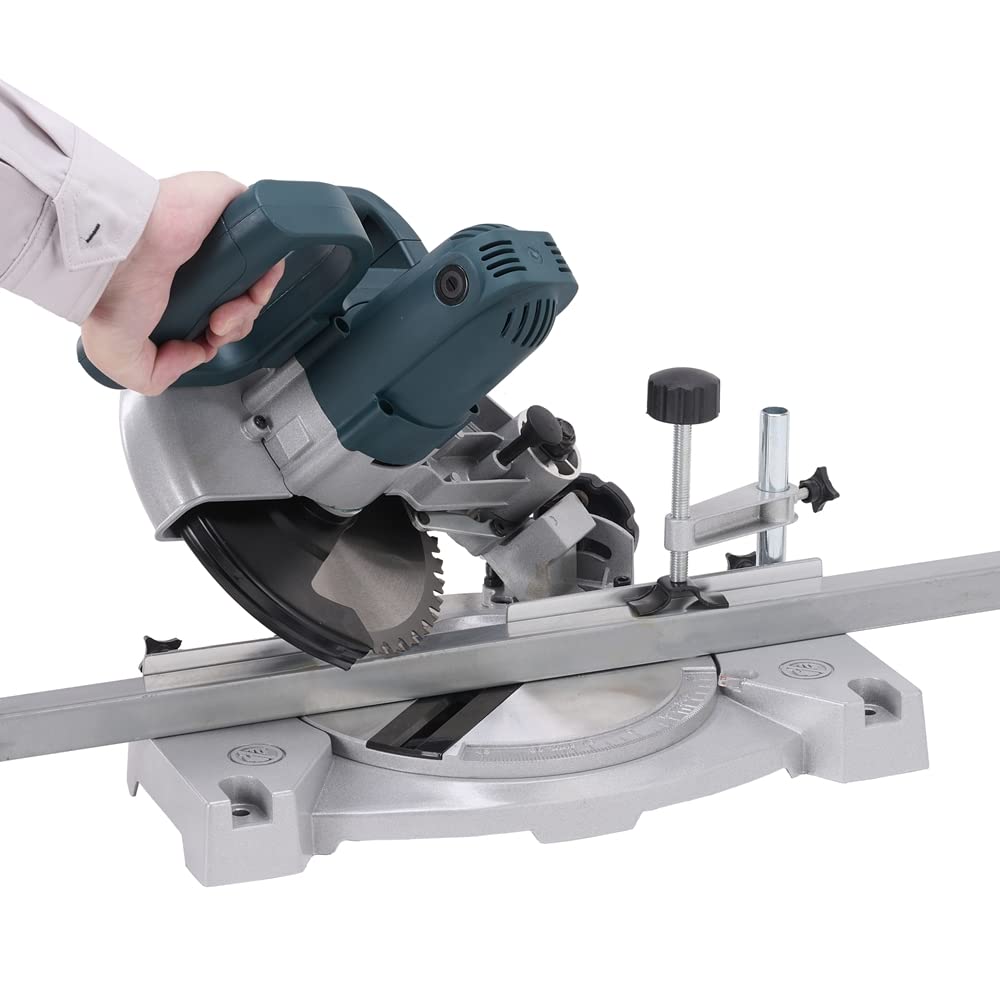

Shinko Seisakusho Chip Saw Cutting Machine MTC-190

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. Attached saw blade: Outer diameter 190mm, inner diameter 20mm, number of blades 40P (Japanese made multi-material chip saw) Maximum cutting capacity: Round bar diameter 20mm, pipe diameter 60mm, L-shaped steel 65mm x 65mm, wood 45mm 85mm (right angle) Turntable rotation: 45 degrees ~ 0 degrees ~ 45 degrees Saw blade slope: 45 degrees Power supply: 100V, frequency: 50/60Hz, power consumption: 600W, current: 6.2A Rotation speed: 4.800min-1 Mass: 5.3kg Power cord: 1.9m Standard accessories: Chip saw (installed on the main unit), vertical vise x 1, spanner x 1, safety glasses x 1, hex wrench x 2, dust collection bag for woodworking.
