Features:
MC7430 PCIExpress rd is a compact, lightweight, wireless modems based on LTE and UMTS.
It provides LTE-FDD, LTE-TDD, HSPA +, HSDPA, HSUPA, WCDMA and GNSS connections fornetworks
Support M2Mapplications on multiple radio frequency bands and supports 3Groaming.

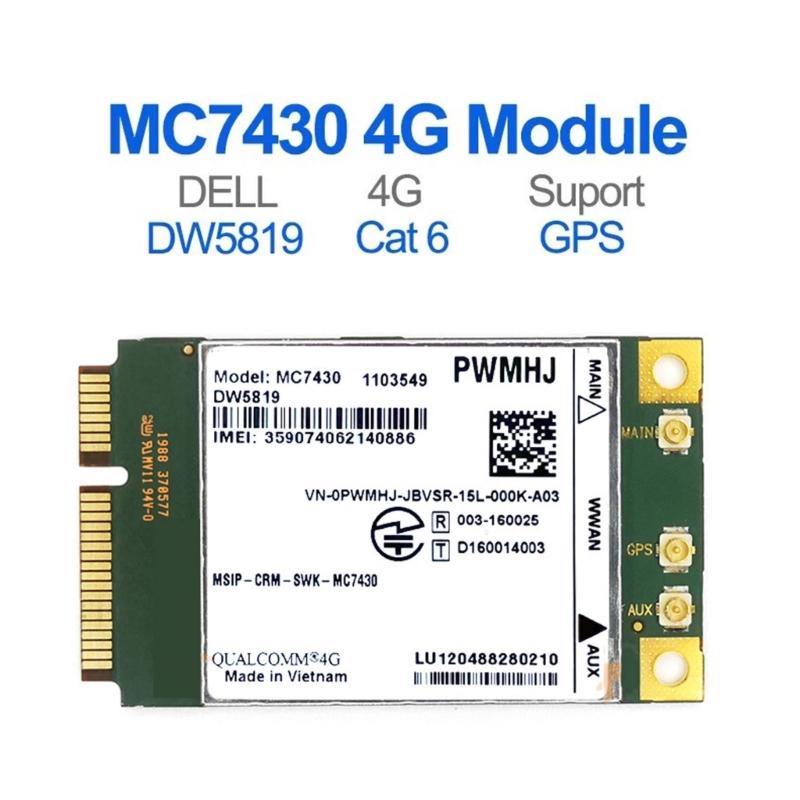

MC7430 This is 4G-LTECat 6 Module (FDD & TDD), with a reduced data rate of up to 300Mbps, support for s aggregation andMIMO.
Return to 3G-HSPA + DCwith a variety ofRx. GNSS receiver integrated.
Specifications:
MC7430 Specifications:
Form Factor: PCIe rd
Chipset: MDM9230
Air Interface: 4G-LTE t 6 (FDD & TDD) with ( aggregation) and MIMO, 3G-HSPA + DCwith a variety of Rx, GNSS
Support 4G bands: B1 (2100), B3 (1800), B5 (850), B7 (2600), B8 (900), B18 (850), b19 (850), B21 (1500), B28 (700), B38 (2600 / TDD), B39 (1900 / TDD), B40 (2300 / TDD), b41 (2500 / TDD)
Support for 3G bands: B1 (2100), B5 (850), B6 (800), B8 (900), B9 (1700), B19 (800)
PeakLTE data support: DL 300Mbps, UL 50Mbps

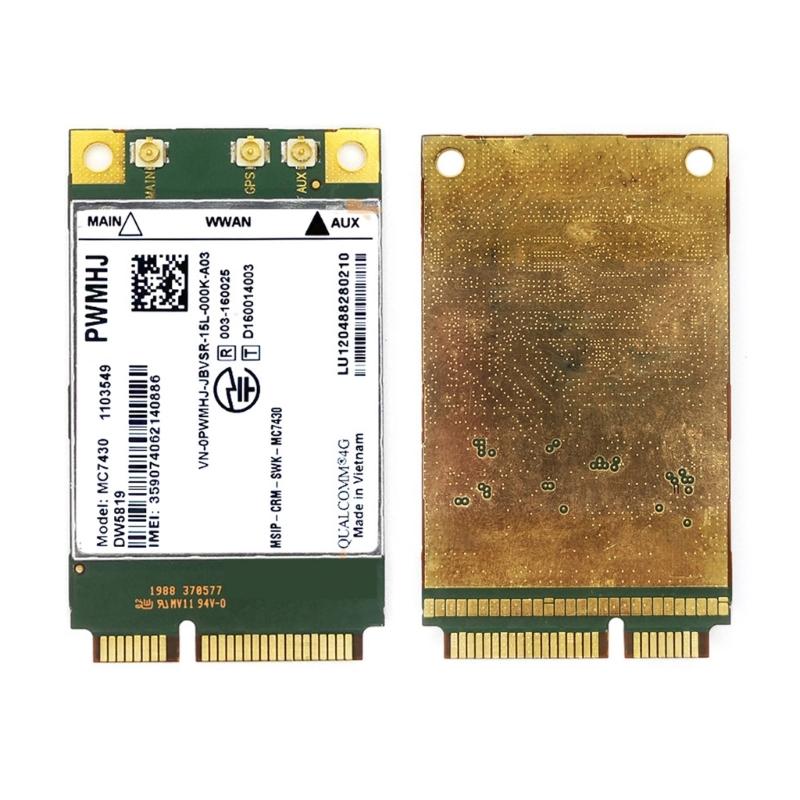

Dimensions: as Pictures
Supply voltage: 3.3V
Connectors
System Connector: 52 Position PCIe
3x antenna control (muxed with GPIO 1-3)
1x dynamic power management, DPR (muxed with GPIO4)
Note:
Due to the problems of lighting effects and shooting angles, there will be certain tolerances in the product, please understand.
Please allow 0-2mm error due to manual measurment.
Package includes:
1PC MC7430 4G module
