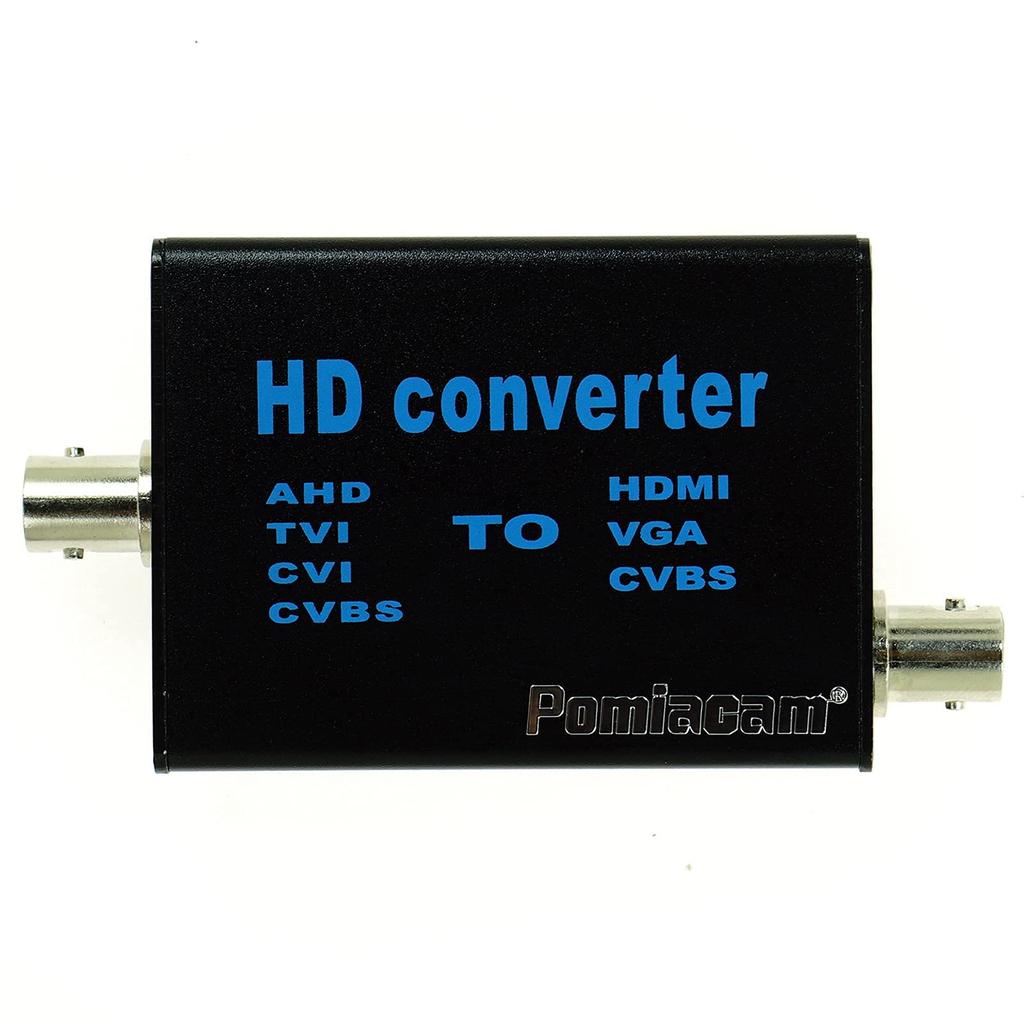

AHD41 4 In Convert Signal To Video Signal Converter 1, AHD/TVI/CVI/CVBS HDMI/CVBS

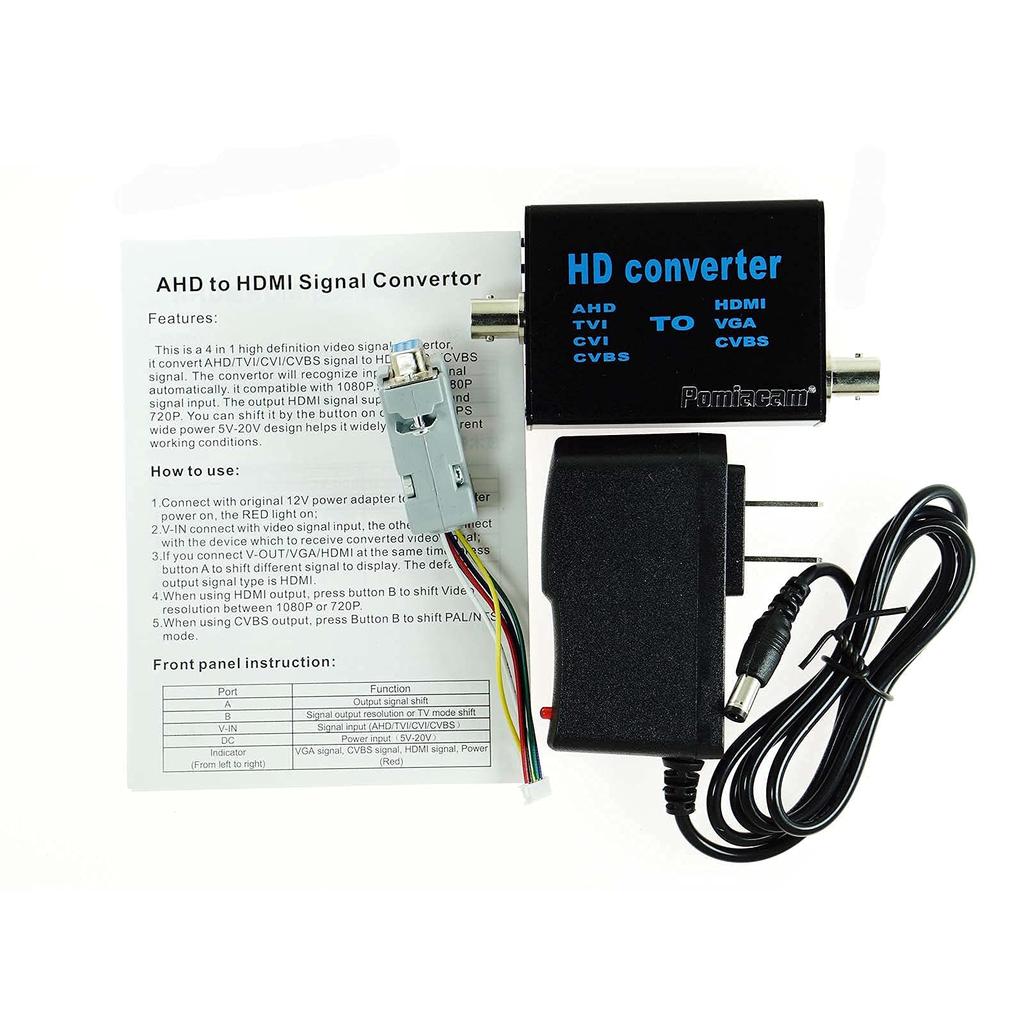

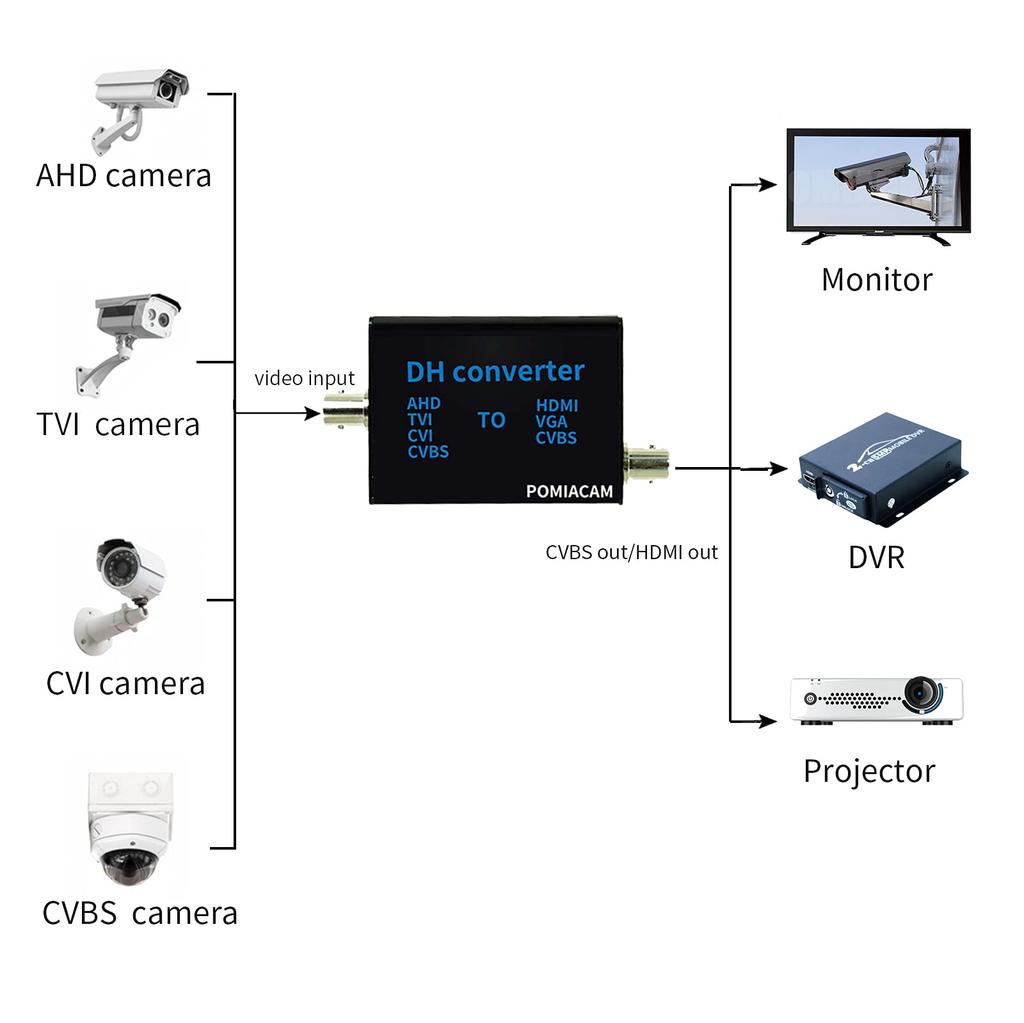

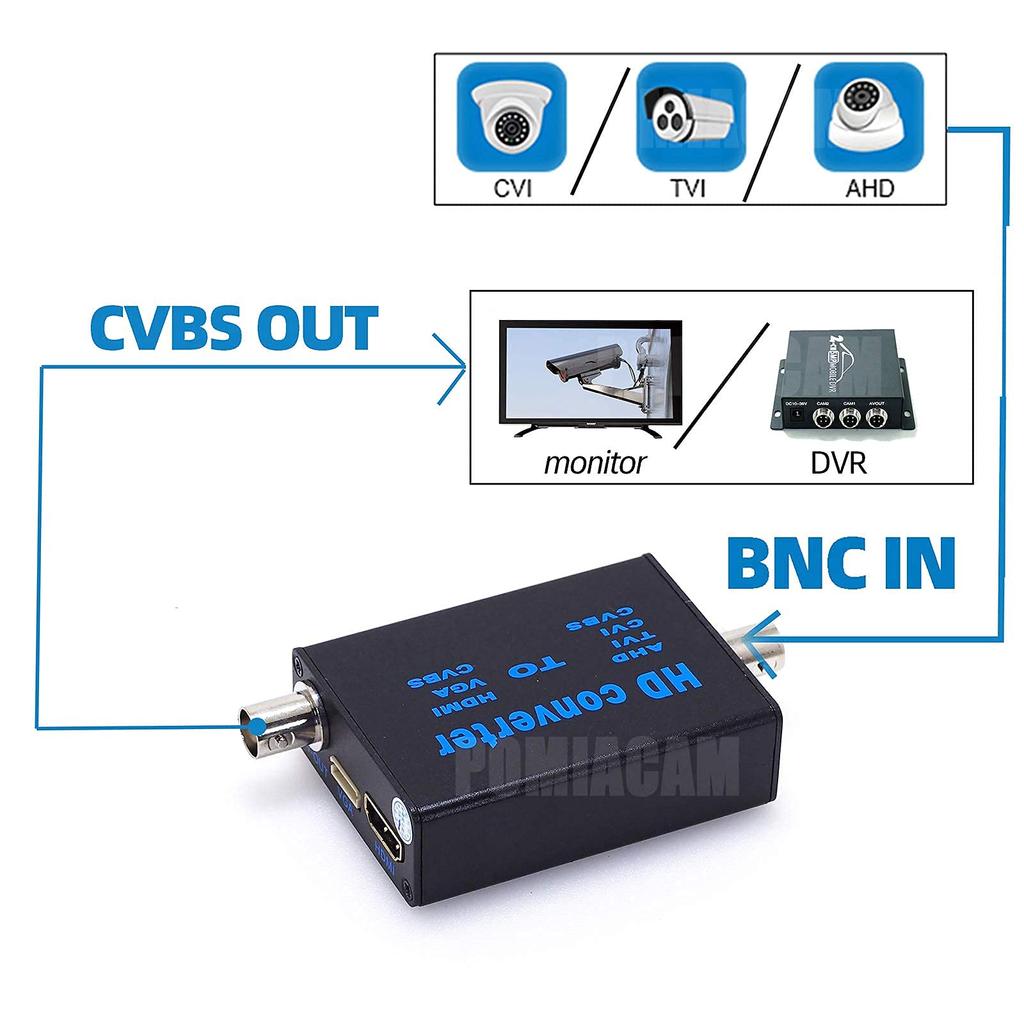

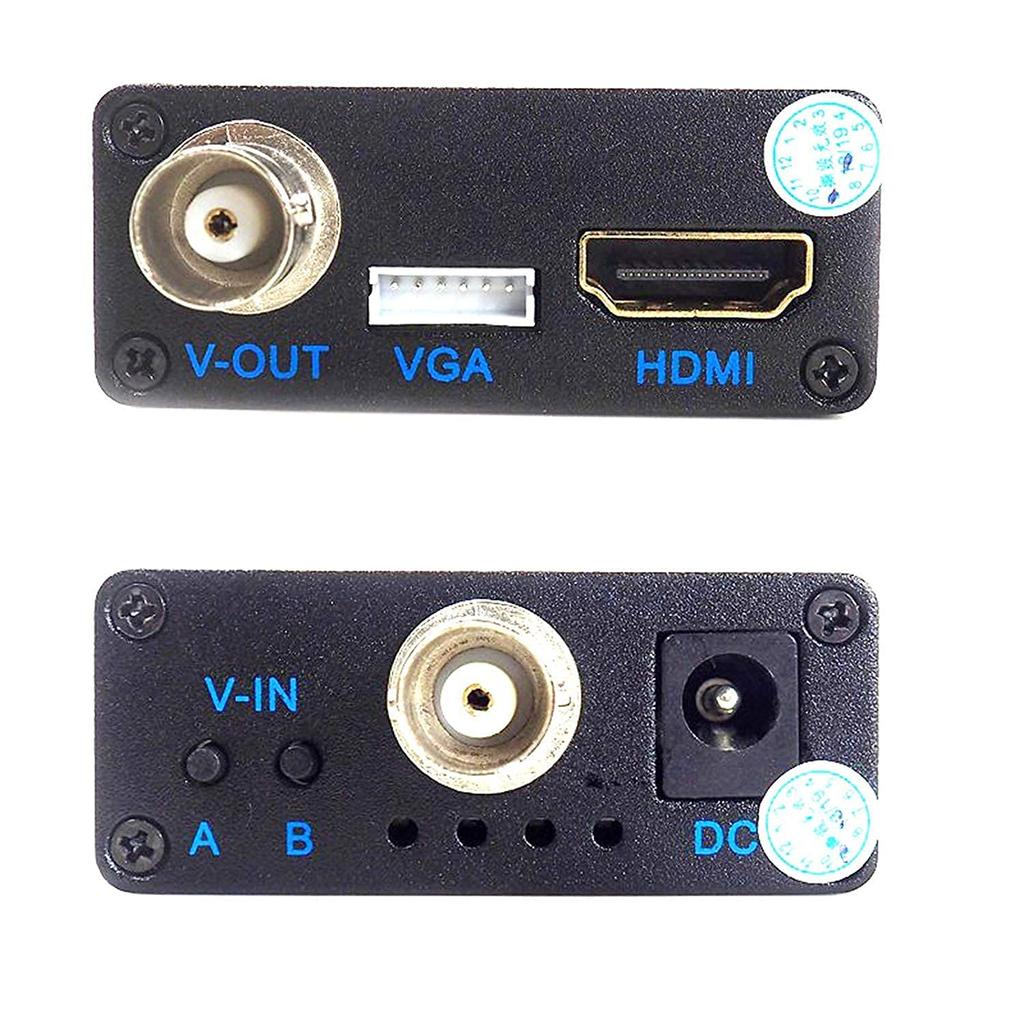

【Converter from AHD/TVI/CVI/CVBS Signal to HDMI/VGA/CVBS Signal】This is a 4 in 1 high-definition video signal converter that converts AHD/TVI/CVI/CVBS signal to HDMI/VGA/CVBS signal It automatically recognizes the input video signal and is compatible with 1080P, 960P, 720P and 480P signals. Output HDMI signal supports 1080P and 720P. You can shift using the converter button. MPS wide power 5V-20V design can be widely used in different working conditions. [Front Panel Description] Ports/Functions: A: Output signal shift / B: Signal output resolution or TV mode shift / V-IN: Signal input (AHD TVI CVI CVBS) / DC: Power input (5V-20V) / Indicator (From left to right): VGA signal, CVBS signal, HDMI signal, power (red) [Rear panel description: ] Ports/Functions: V-OUT: CVBS signal output (NCTS or PAL option) / VGA: VGA signal output / HDMI: HDMI signal output (720P or 1080P option) [Signal input] AHD/TVI/CVI/CVBS (1080P/960P/720P) [Signal output] HDMI / VGA / CVBS (1080P/720P) Factory Direct 4-in-1 High Definition Video Signal Converter AHD41, AHD/TVI/CVI/CVBS Signal to HDMI/VGA/CVBS Signal Converter How to use: 1.Use the original 12V power adapter to connect to the DC port, after power on, the red light will be on. 2. V-IN connects with the video signal input, and the other side connects with the device that receives the converted video signal. 3. If you connect V-OUT/VGA/HDMI at the same time, press button A to shift and display different signals. The default output signal type is HDMI. 4. When using HDMI output, press button B to shift the video resolution between 1080P or 720P. 5. If you want to use CVBS output, press button B to switch PAL/NTSC mode. specification: Power supply: DC 5V-20V Working current: 150mAh Consumption: ≤2Wat Signal input: AHD/TVI/CVI/CVBS (1080P/960P/720P) Signal output: HDMI/VGA/CVBS (1080P/720P) Dimensions: 66*53*21mm Net weight: 73g Accessories: Converter * 1 12V power adapter * 1 Manual * 1 (VGA module needs to be purchased separately) FAQ: 1. Why is there no video after connecting V-IN and V-OUT? A. Please check whether the type of monitor signal is the same as the output type of the converter. And check if the converter signal shifts to the correct mode. 2. Can I use my own power adapter with the converter? A. The converter supports 5V to 20V power input. Please use a quality adapter within this range.
