Feature:

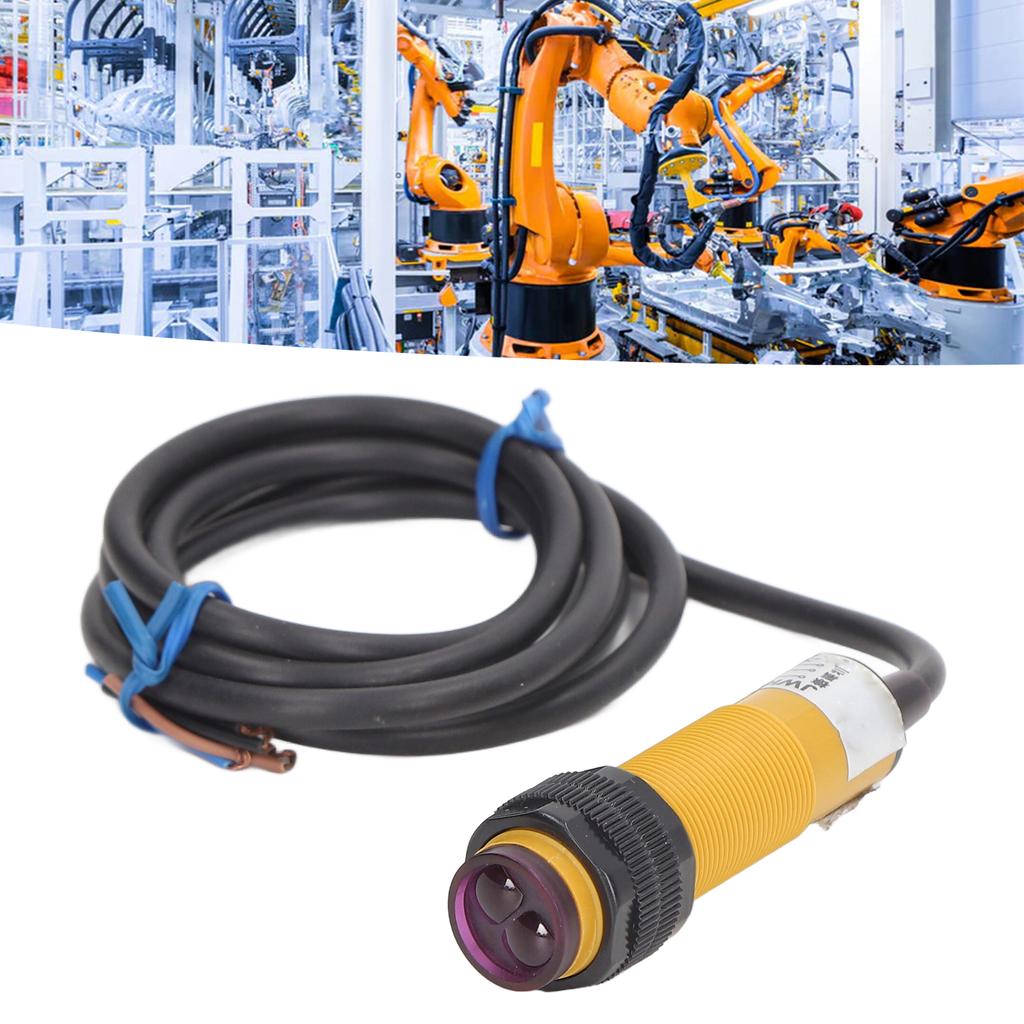

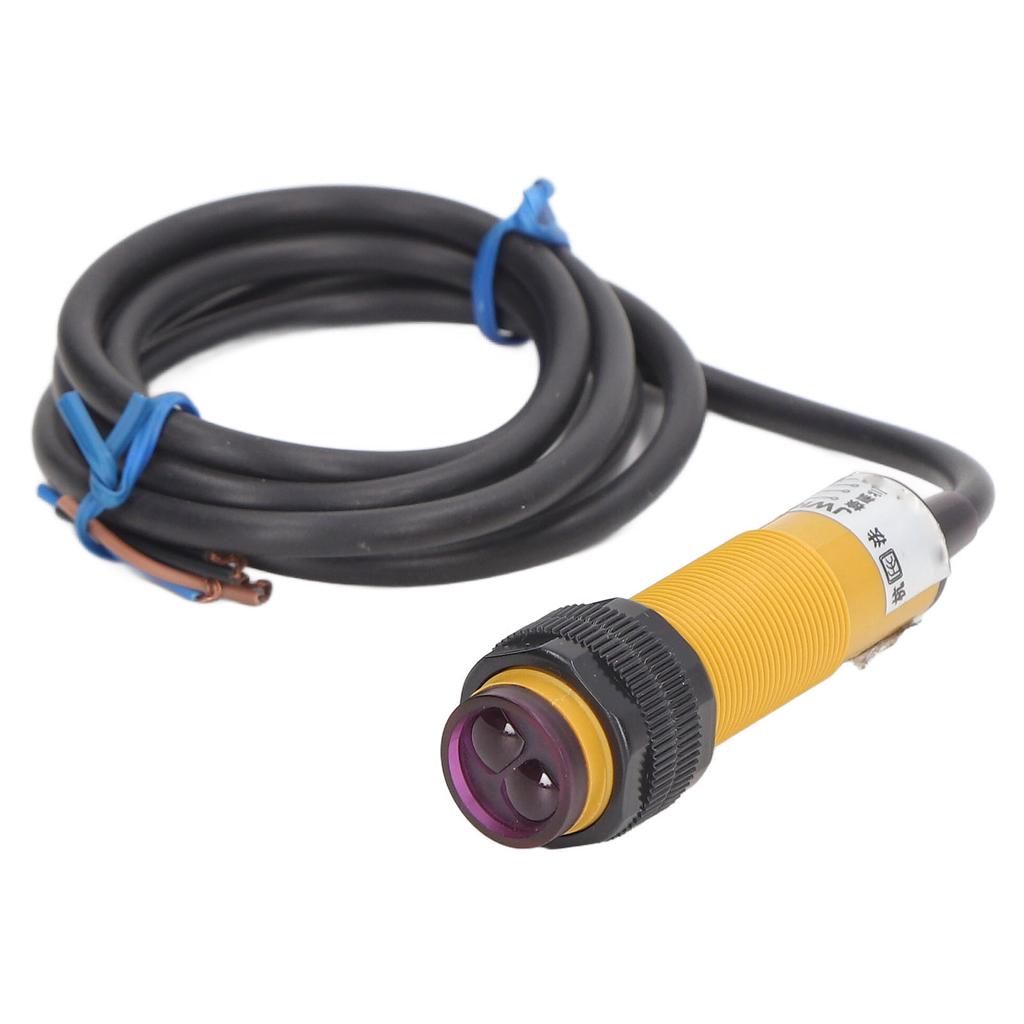

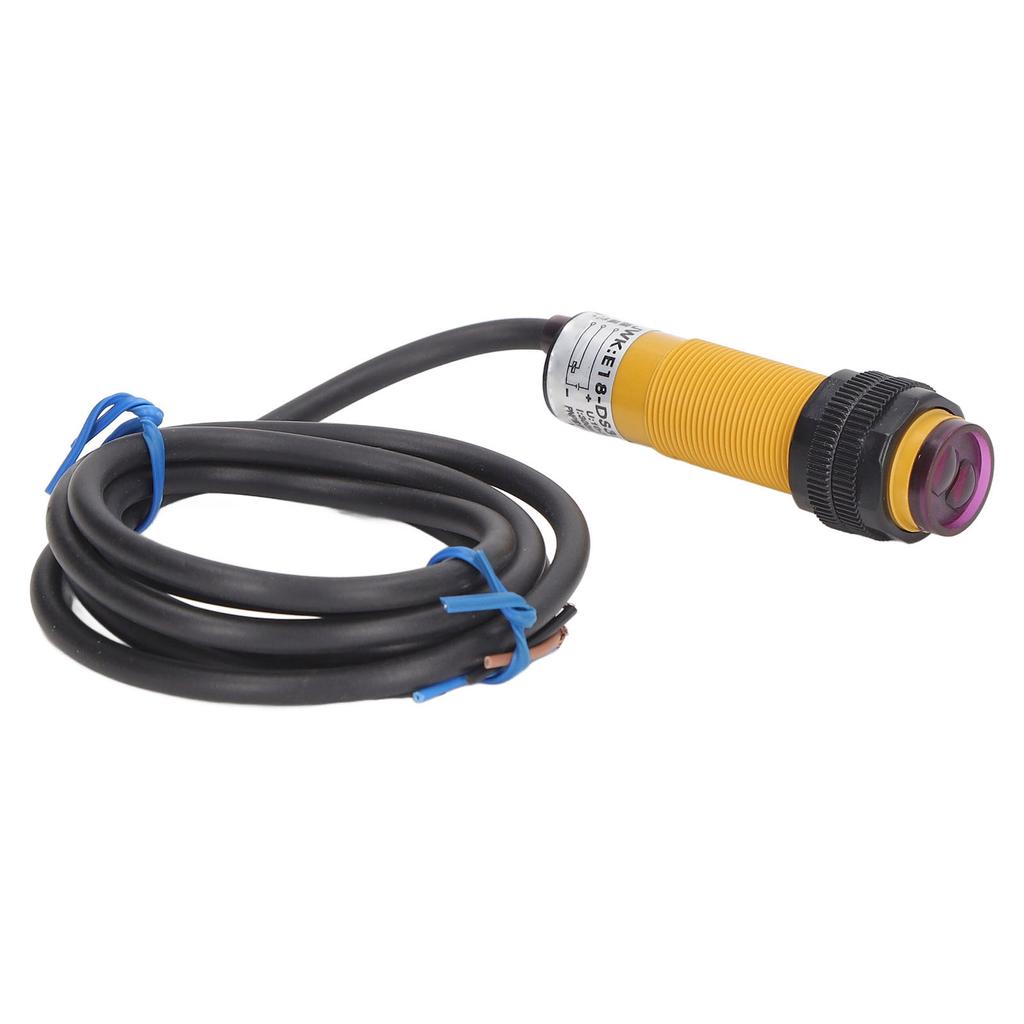

1. Transmitting Receiving Integrated: Our sensor is an infrared photoelectric sensor that combines transmitting and receiving in one, which can be widely used in robot obstacle avoidance, assembly line piece counting and many other automation products.
2. IP54 Protection Grade: The infrared photoelectric sensor's protection grade is IP54, and the standard detection object is below 10000LX for sunlight and below 3000LX for incandescent lamp.
3. Long Detection Distance: The photoelectric obstacle avoidance sensor has a long detection distance, little interference from visible light, and the detection distance can be adjusted according to requirements.
4. Filter Effective Signal: Infrared photoelectric switch transmits to the target uninterrupted emission beam receiver to convert the received light energy into current transmission to the detection line behind, it can filter out the effective signal and apply the signal.
5. ABS Material: The photoelectric obstacle avoidance sensor is made of ABS material, superb craftsmanship, easy to assemble, easy to use, can also be used in the production line goods automatic counting equipment, multi-functional reminder.
Specification:
Item Type: Photoelectric Sensor
Model: E18 DS30PA
Material: ABS
Sensing Range: 5-30cm adjusting, Approx. 5-30cm / 2-12in
Product Voltage: 10-36V DC
Maximum Current: 300mA PNP normally open
Response Time: <2m/20ms
Pointing Angle: 3°, -10°, -20°
Operating Ambient Temperature: -25 - +55℃
Protection Level: IP54
Standard Detection Object: Sunlight 10000LX or less Incandescent lamp 3000LX or less
Photoelectric Switch Working Principle
Photoelectric switch, also known as photoelectric sensor, the sensor is divided into diffuse reflection type, feedback reflection type, opposite type sensor, and PLC programmable controller, microcontroller, non gate circuit electronic counter, solid state relay, small relay and other products supporting the use. The transmitting type is aimed at the target uninterrupted emission of light beam receiver to convert the received light energy into current transmission to the detection line behind, it can filter out the effective signal and apply the signal. Our photoelectric sensor combines transmitting and receiving in one.
Package List:
5 x Infrared Photoelectric Sensor
