Feature:
1. WIDE PURPOSE: This level gauge is an essential accessory for displaying the level and fluid in oil tanks, lubrication devices, cooling boxes, and gear boxes.
2. APPLICABLE MEDIUM: This oil level gauge is applicable to mineral oil and water in oil, water glycol, etc.
3. LEAKAGE PROOF: A self sealing valve is added to this level gauge, when replacing or maintaining, just unscrew the mounting screws, and the self sealing valve will automatically close, cutting off the oil circuit.
4. EXCELLENT PERFORMANCE: The liquid level meter has a reasonable structure, clear display of liquid level and temperature, and excellent assembly performance.
5. RELIABLE MATERIAL: The liquid level gauge is made of premium alloy and glass, which is sturdy, crack proof, and shockproof.
Specification:

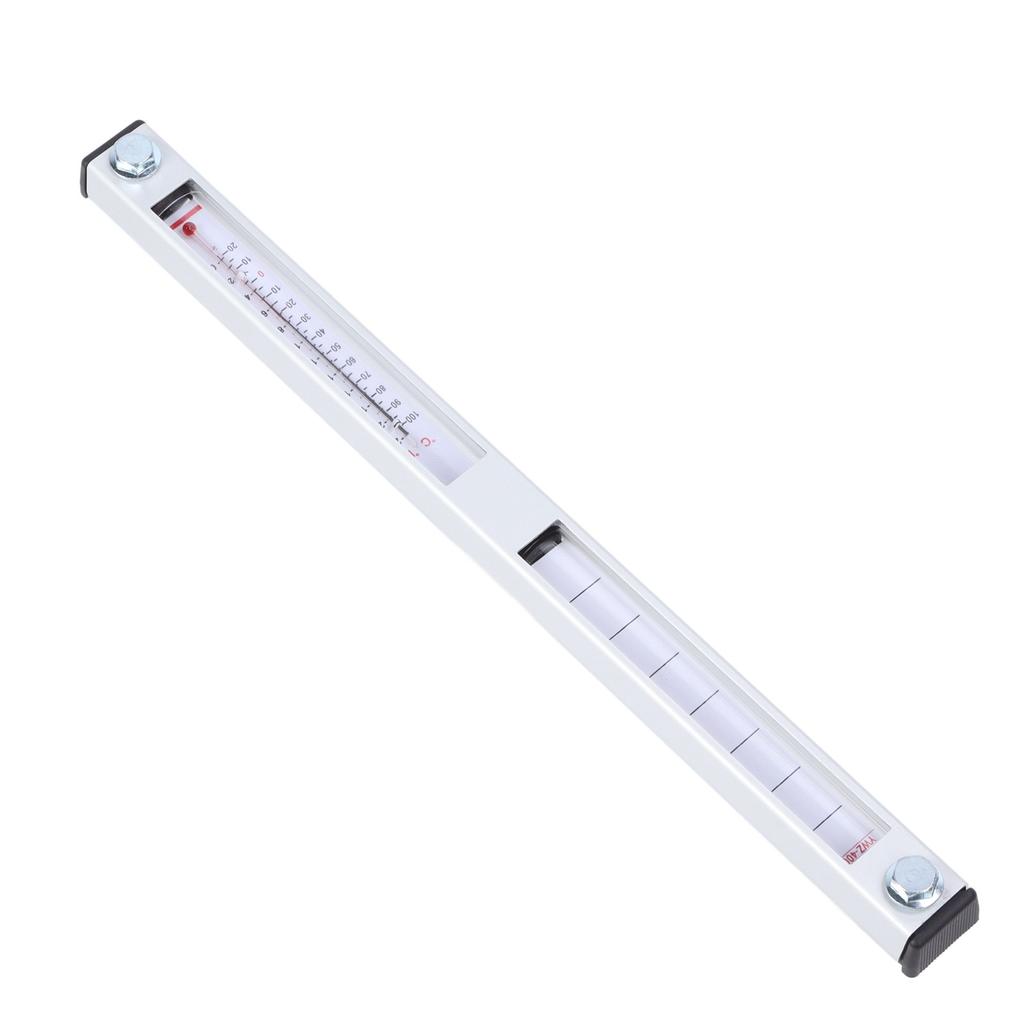

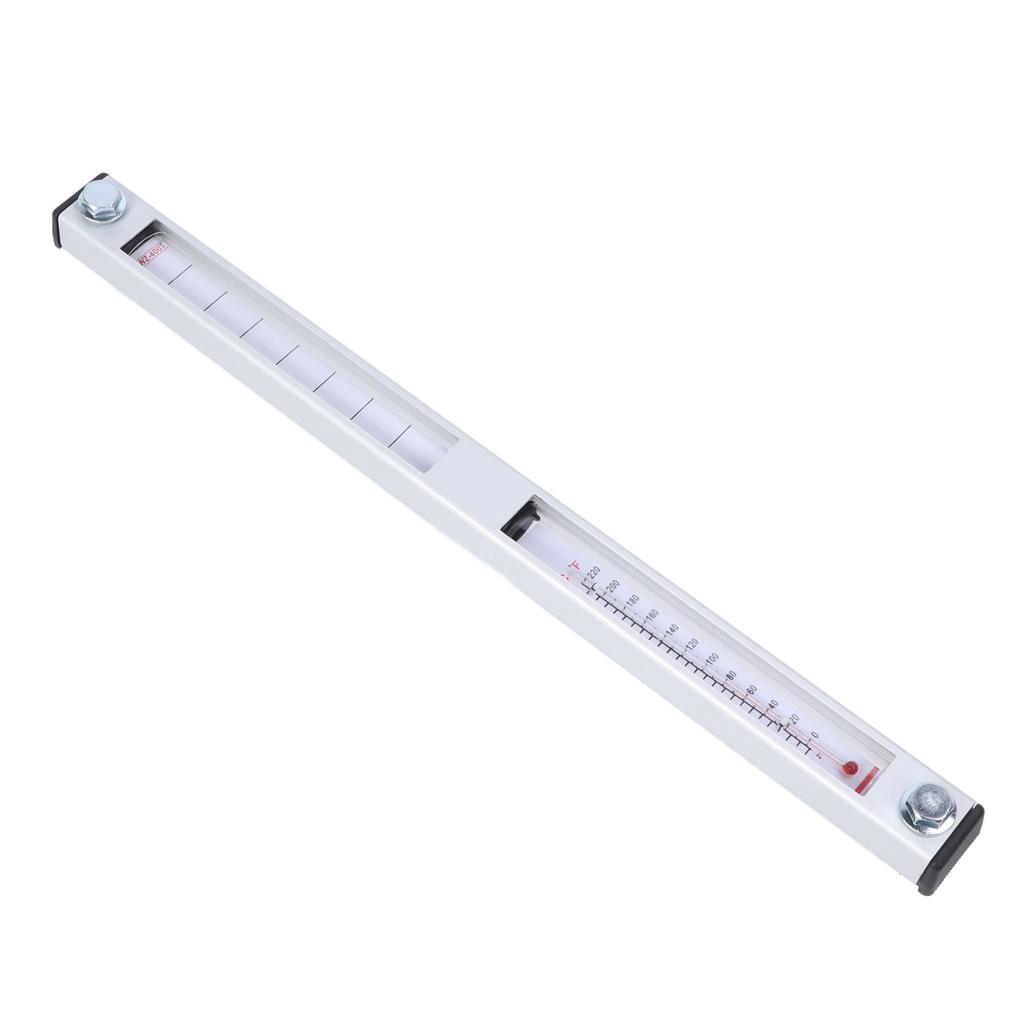

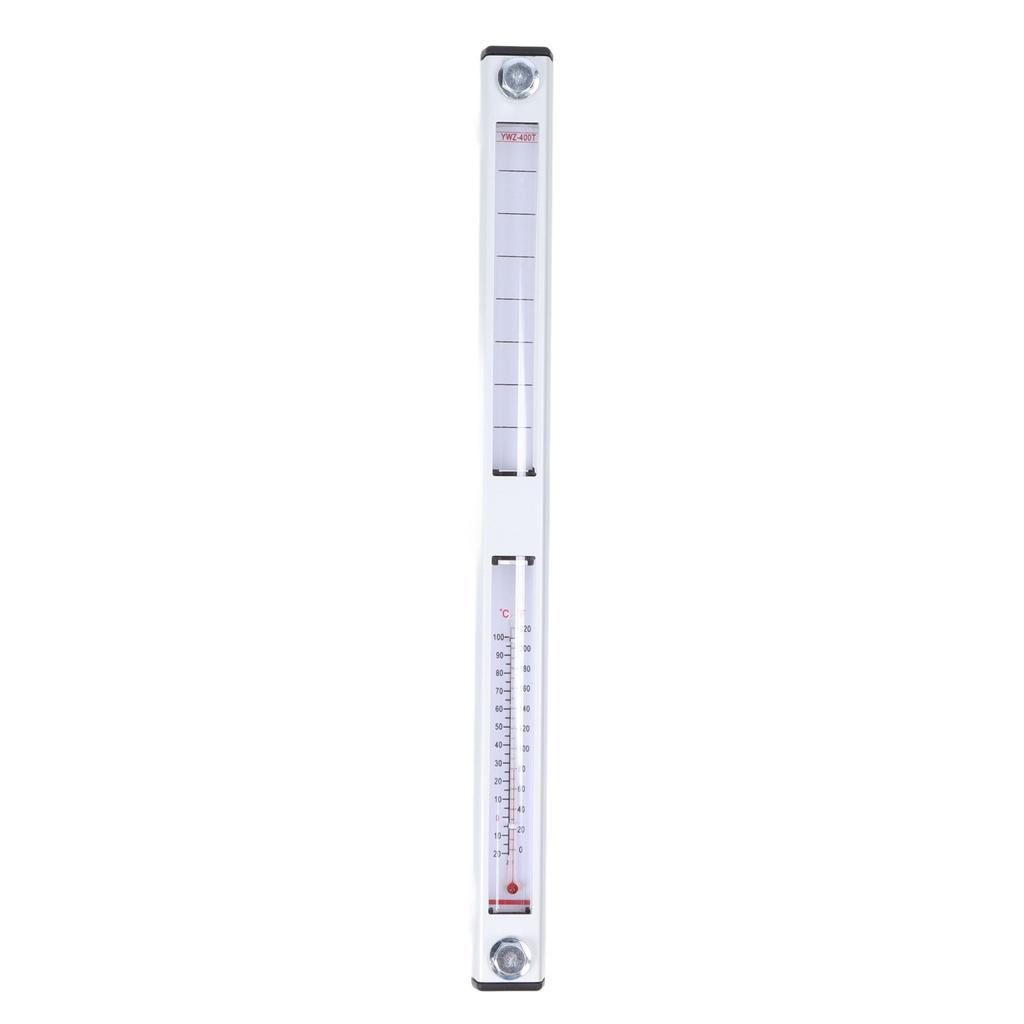

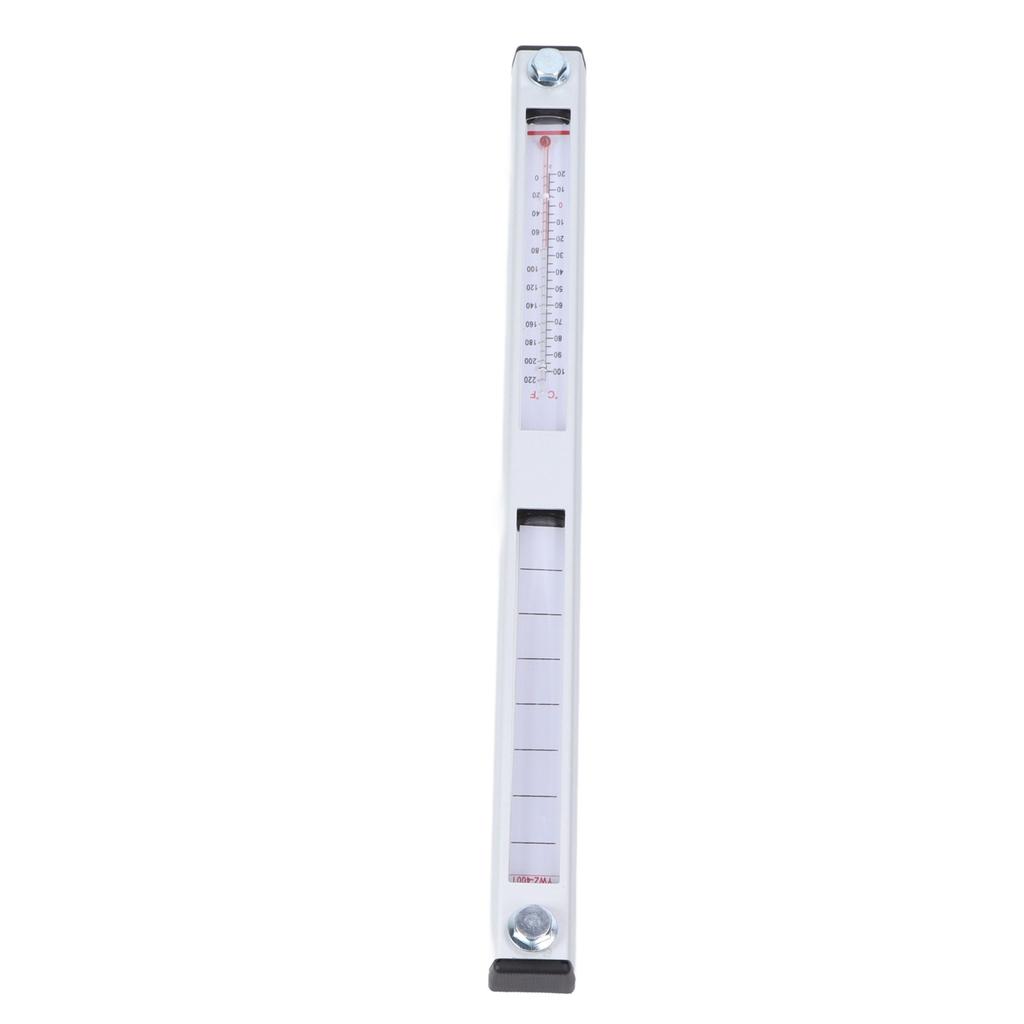

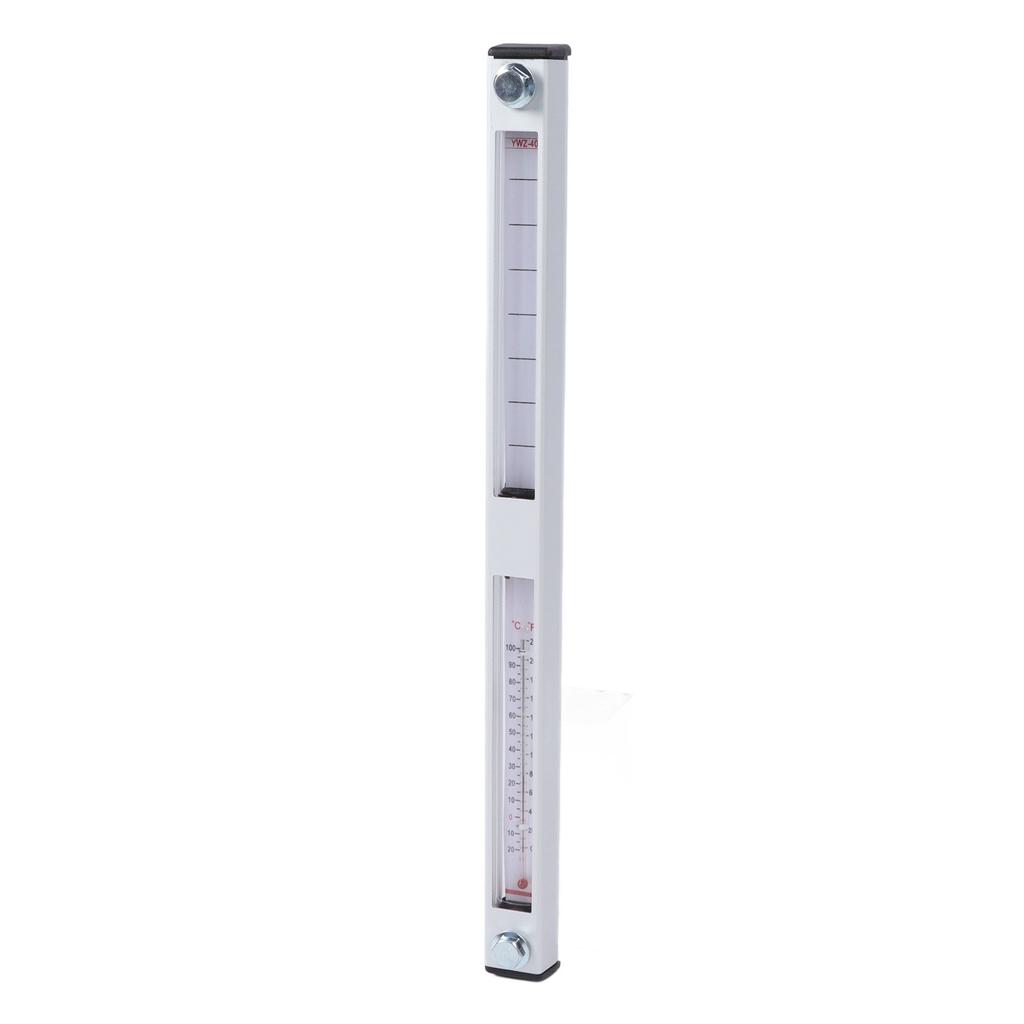

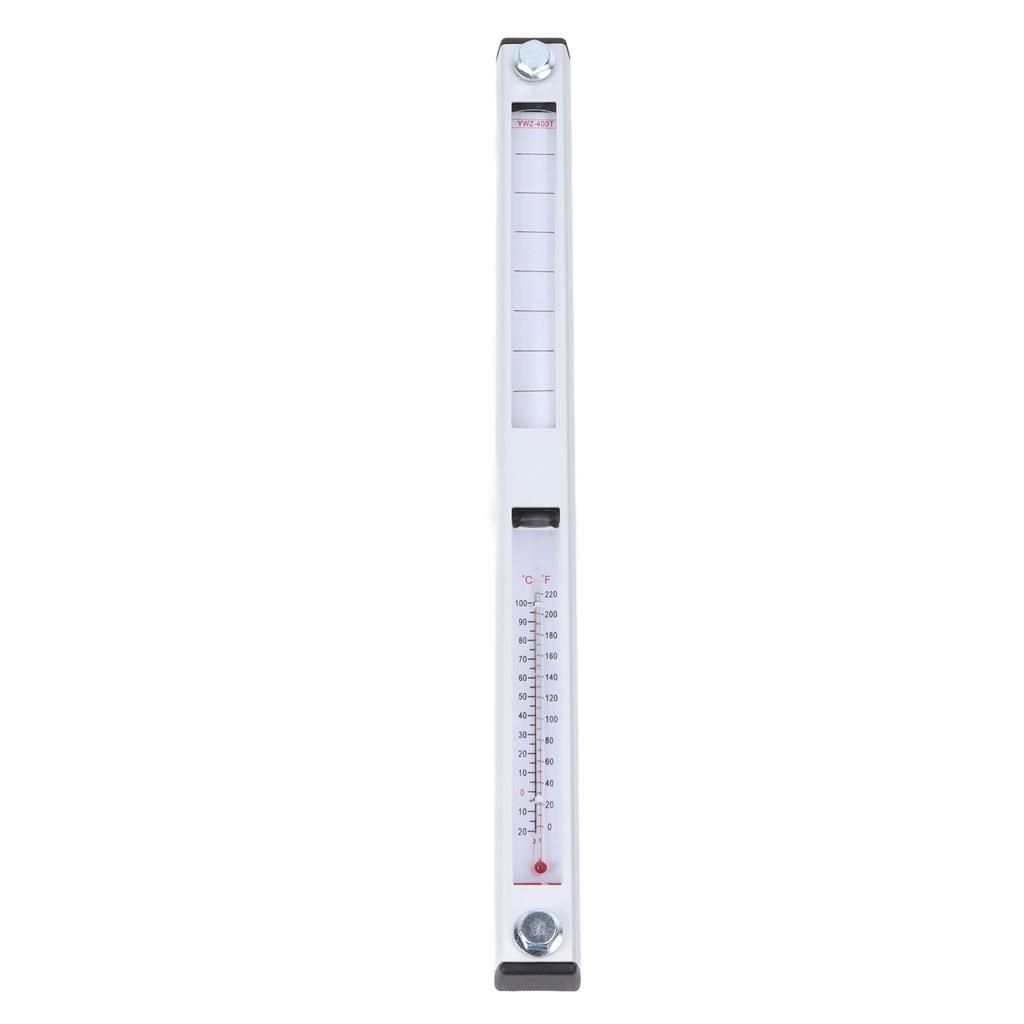

Item Type: Oil Liquid Level Gauge
Material: Alloy, Glass
Model: YWZ 400T
Parameter:
Temperature: -20℃ to 100℃
Pressure: 0.1 to 0.15 MPa
Installation Form: Screw
Applicable Medium: Mineral Oil, Water in Oil, Water Glycol, etc.
Application: Hydraulic System
Package List:
1 x Oil Liquid Level Gauge
Note:
Installation Method:
1. According to the specification and size of the selected level gauge, two mounting holes shall be machined on the side plate of the oil tank as required.
2. For example, when the wall thickness of the oil tank is less than or equal to 10mm, the two installation holes are 11mm.
3. If the wall thickness of the oil tank is greater than 10mm, the two mounting screw holes are M10.
4. If self sealing valve is selected, the two installation holes are D19mm. The machining tolerance of the center distance between the two mounting holes on the oil tank is required to be ±0.2mm.
Note:
1. The plane of the mounting hole should be straight to prevent oil leakage after installation.
2. When installing the level gauge screw, the tightening force should be moderate, sealing properly without oil leakage and avoid damaging the level gauge.
