Technical Datas:

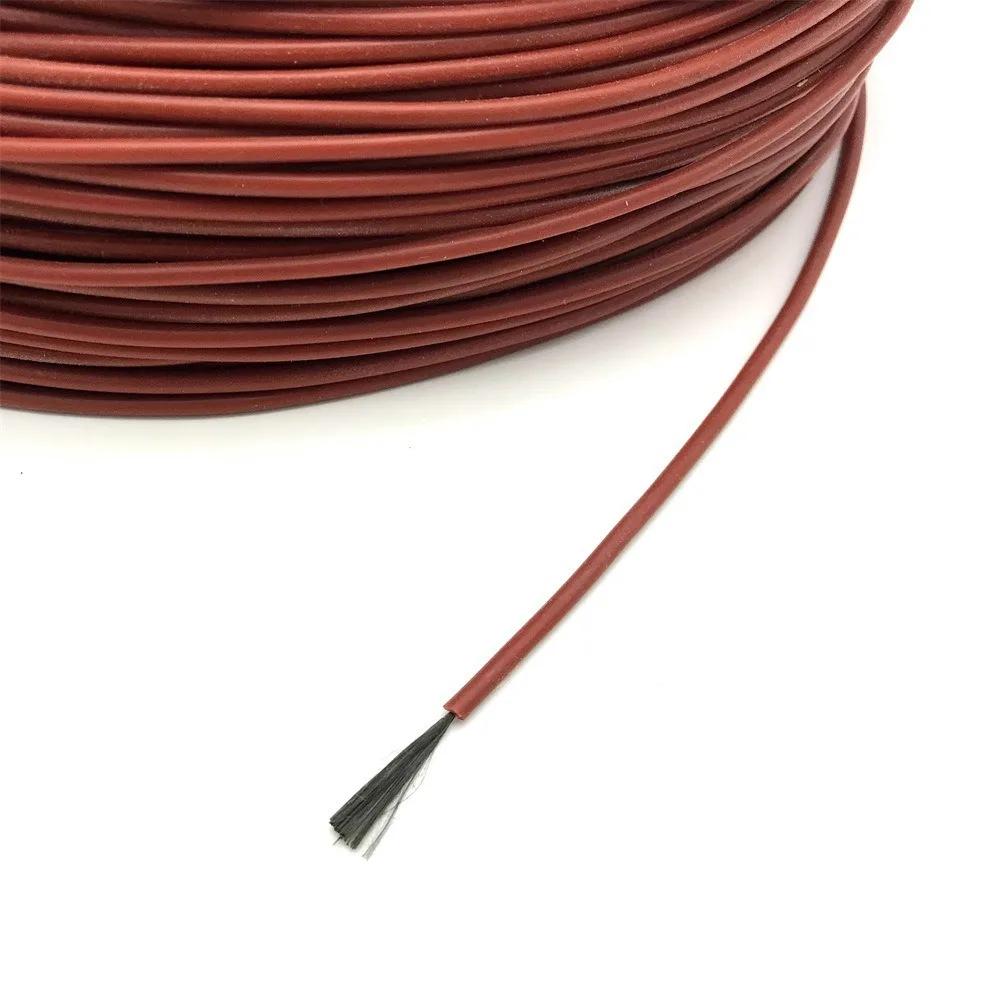

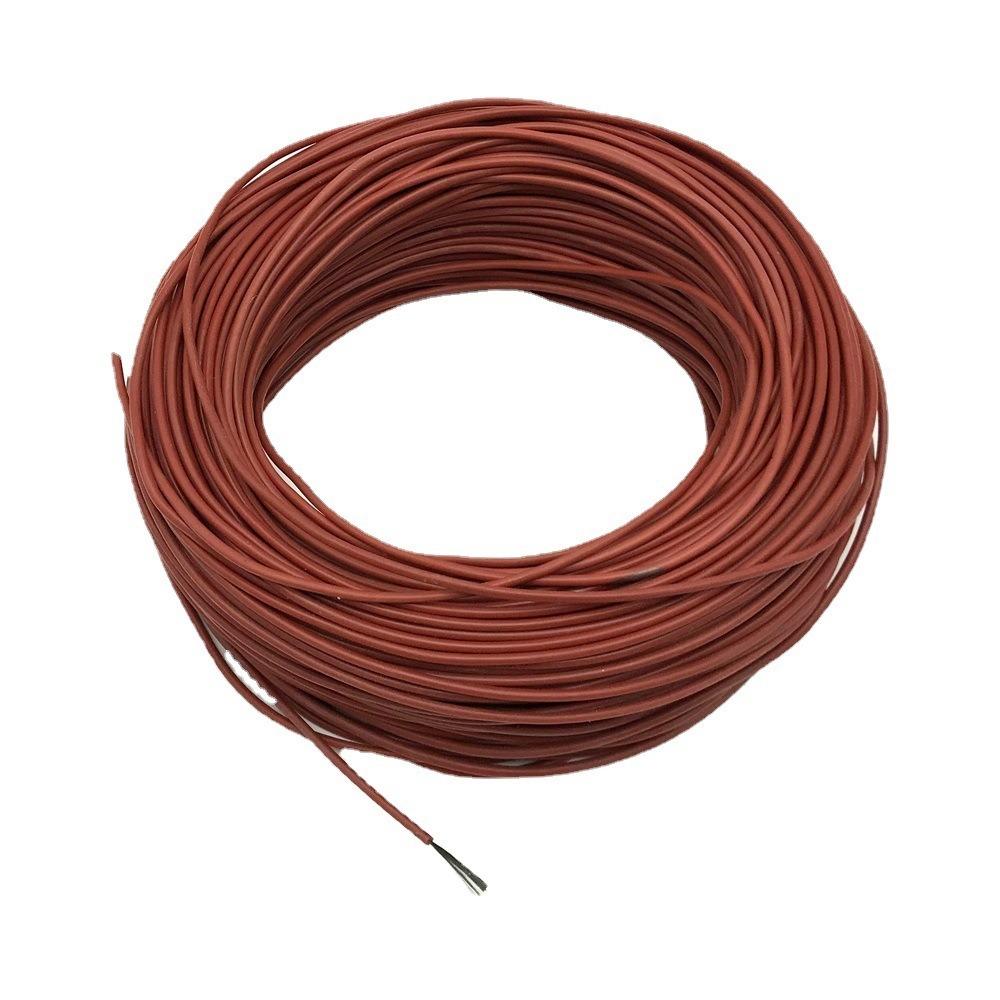

Product Name: Carbon fiber heating wire
Insulating material: Silicone rubber
Max enduring temperature: 200C degrees
Heating temperature: based on the using length
Heating conductor: 12K
Leakage current: 0.05mA/m
The product can withstand max power: 25W/M
Diameter: 3±0.2 mm ( Thicker and Safer; Толще и безопаснее )
Colors: Red
Infrared wavelength: 8UM-18UM
Conductor resistance: 33±10% Ω/m
Package Includes:

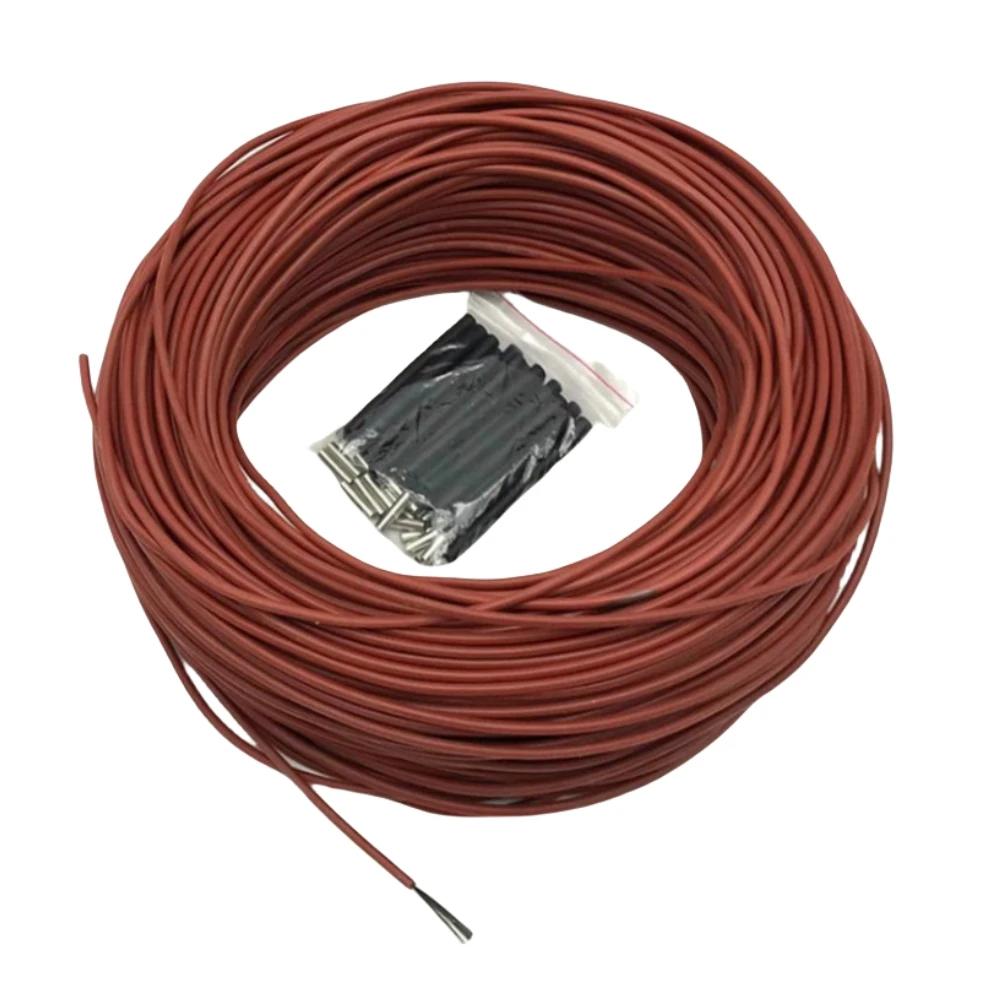

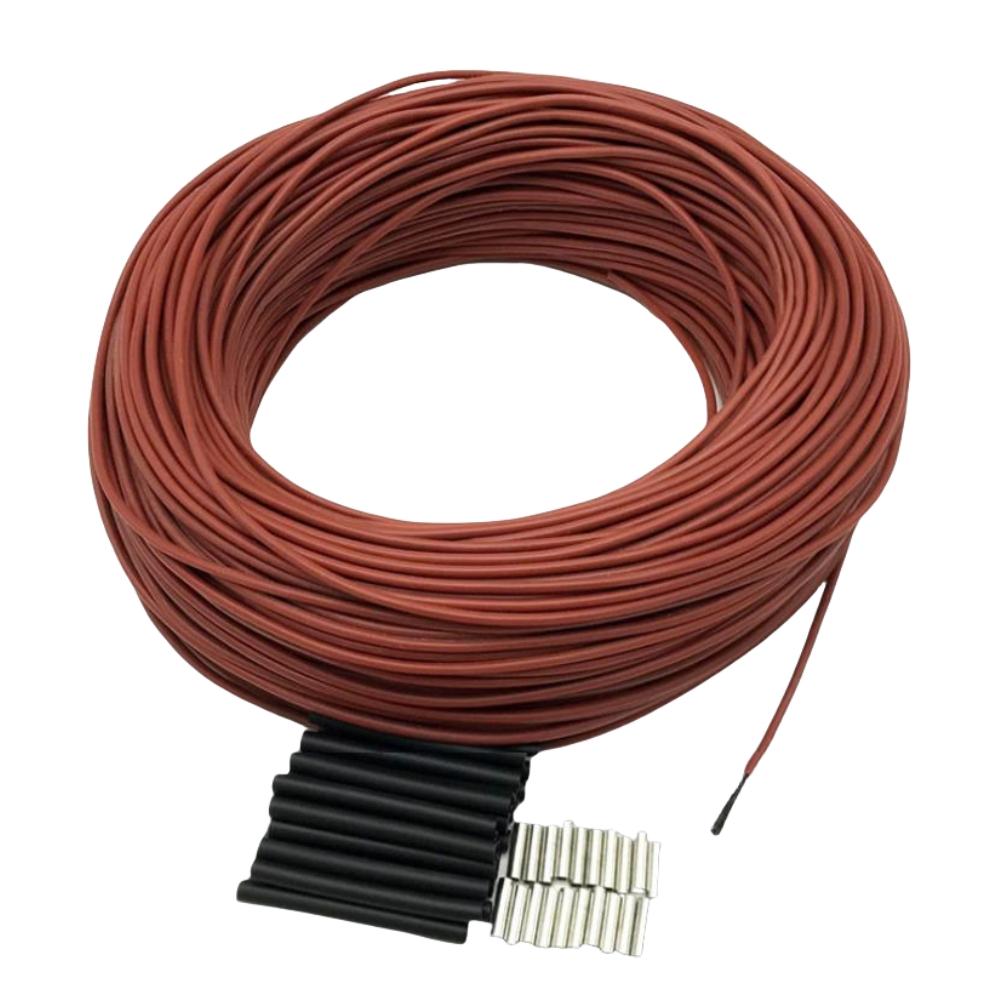

100m cable + 20 pcs copper tube + 20 pcs sleeves
How to calculate power?
Voltage*Voltage÷resistance=electric power
12K=33ohm/meter
For example, using 10m 12K carbon fiber cable on 220V, the power is:
220V*220V÷(10meters*33Ω)=150W
150w/10m=15w/m
For example, using15m 12K carbon fiber cable on 220V, the power is:
220V*220V÷(15meters*33Ω)=100W
100w/15m=6.66w/m
The longer length, the smaller power, and lower heating temperature.
What is the power of the cable? And what is heating temperature of Wire?
1. The power of the cable is based on the length that you use, you can calculate the power according to above examples.
2. Power = 5W/m, the temperature is about 30~40C degrees;
Power = 10W/m, the temperature is about 40~50C degrees;
Power = 15W/m, the temperature is about 50~60C degrees;
Power = 20W/m, the temperature is about 60~70C degrees;
Power = 25W/m, the temperatuee is about 70~90C degrees.
