Used for maintenance and detect of various LCD TV LED backlights, LED light fixtures, LED advertising light boxes, etc.
Features:
One button to turn onoff, simple operation.
BananaJack, not terminal type, with safer and stable probe insertion.

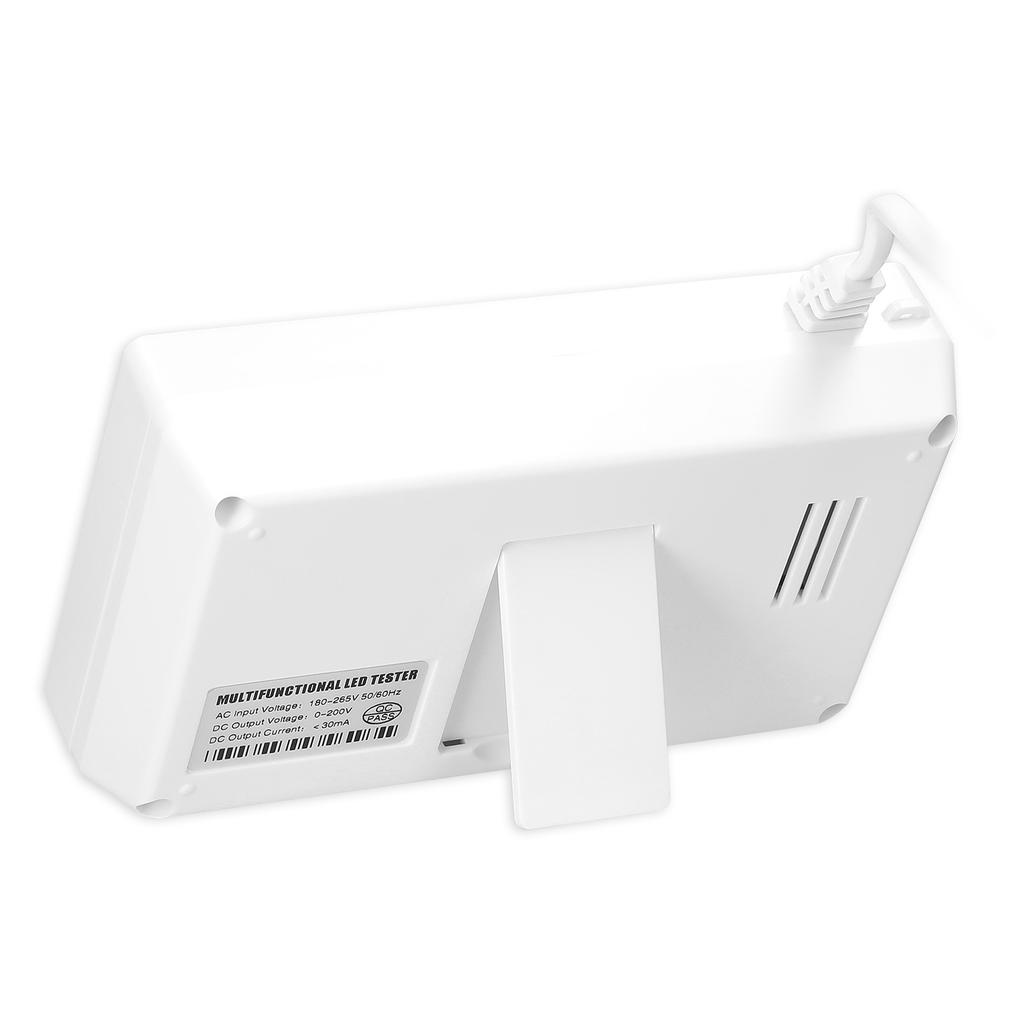

With a foldable bracket, can be placed on desktop.
ConcaveConvex heat dissipation design ensures longer lifespan of electronicComponents inside the machine.
Made of fine quality material, wearresistant for long service time.

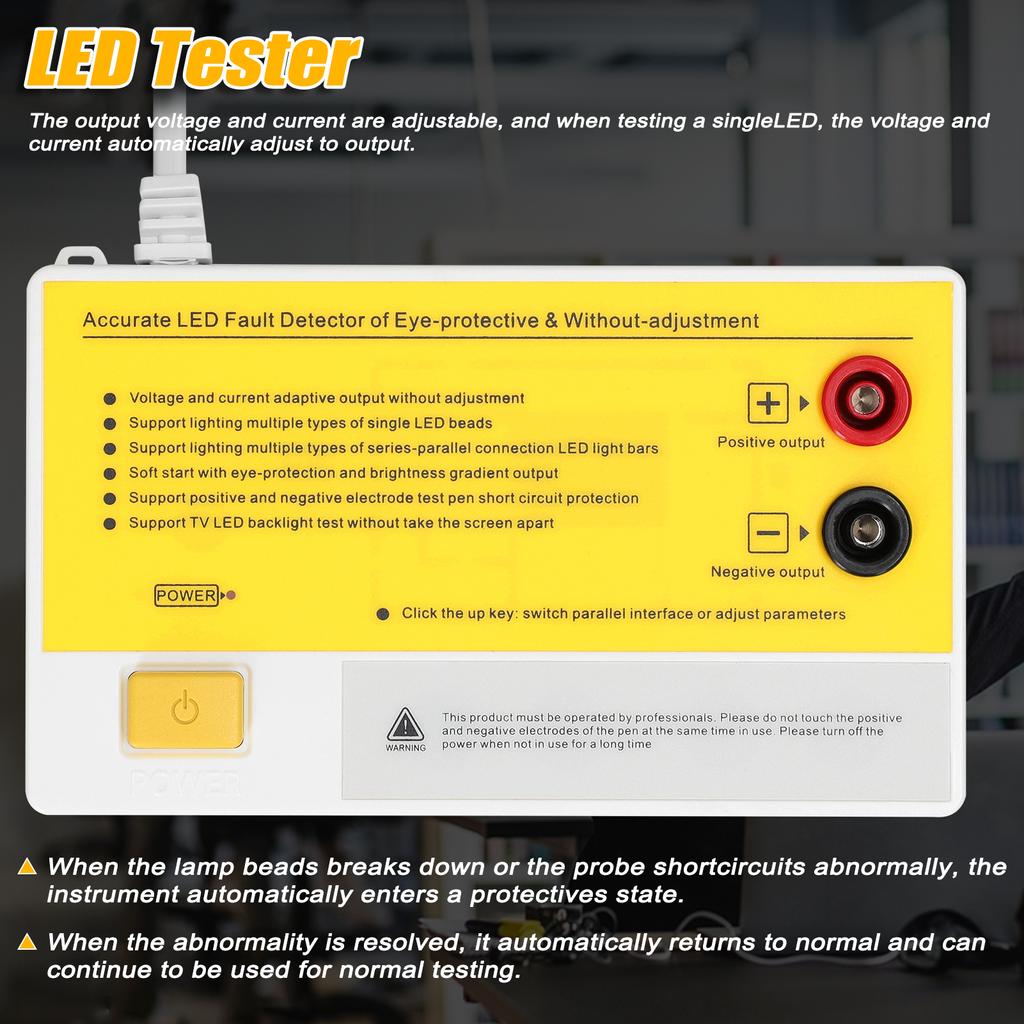

The output voltage and current are adjustable, and when testing a singleLED, the voltage and current automatically adjust to output.
When the lamp beads breaks down or the probe shortcircuits abnormally, the instrument automatically enters a protectives state. When the abnormality is resolved, it automatically returns to normal and can continue to be used for normal testing.
Support TV LED backlight test without take the screen apart.
Specifications:
Material: plastics
Input voltage: AC180265V, 5060Hz
Output voltage: DC0200Volt
Output current: less than 30mA

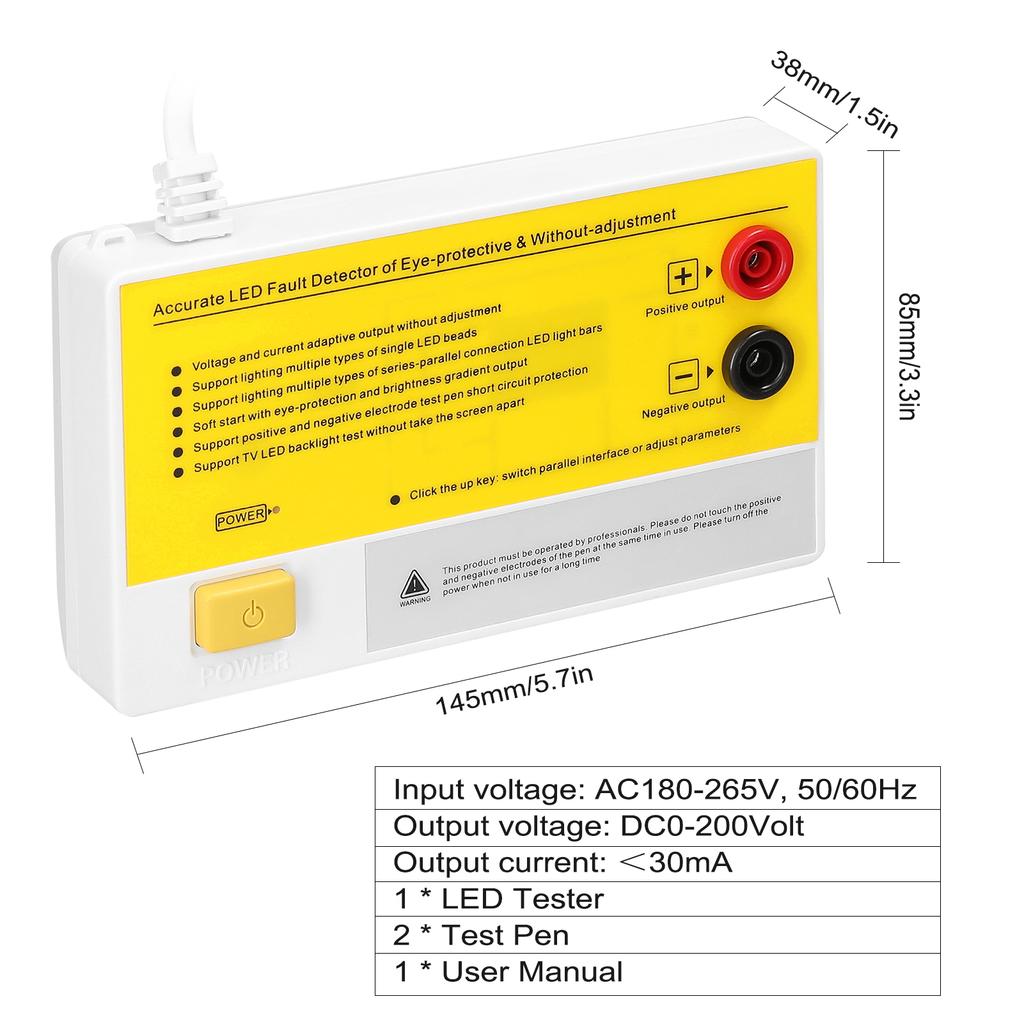

Item size: 145 * 85 * 38mm 5.7 * 3.3 * 1.5in
Item weight: 166g 5.9ounce
Package size: 180 * 115 * 50mm 7.1 * 4.5 * 2.0in
Package weight: 278g 9.8ounce
Package List:
1 * LED Tester
2 * Test Pen
1 * User Manual
