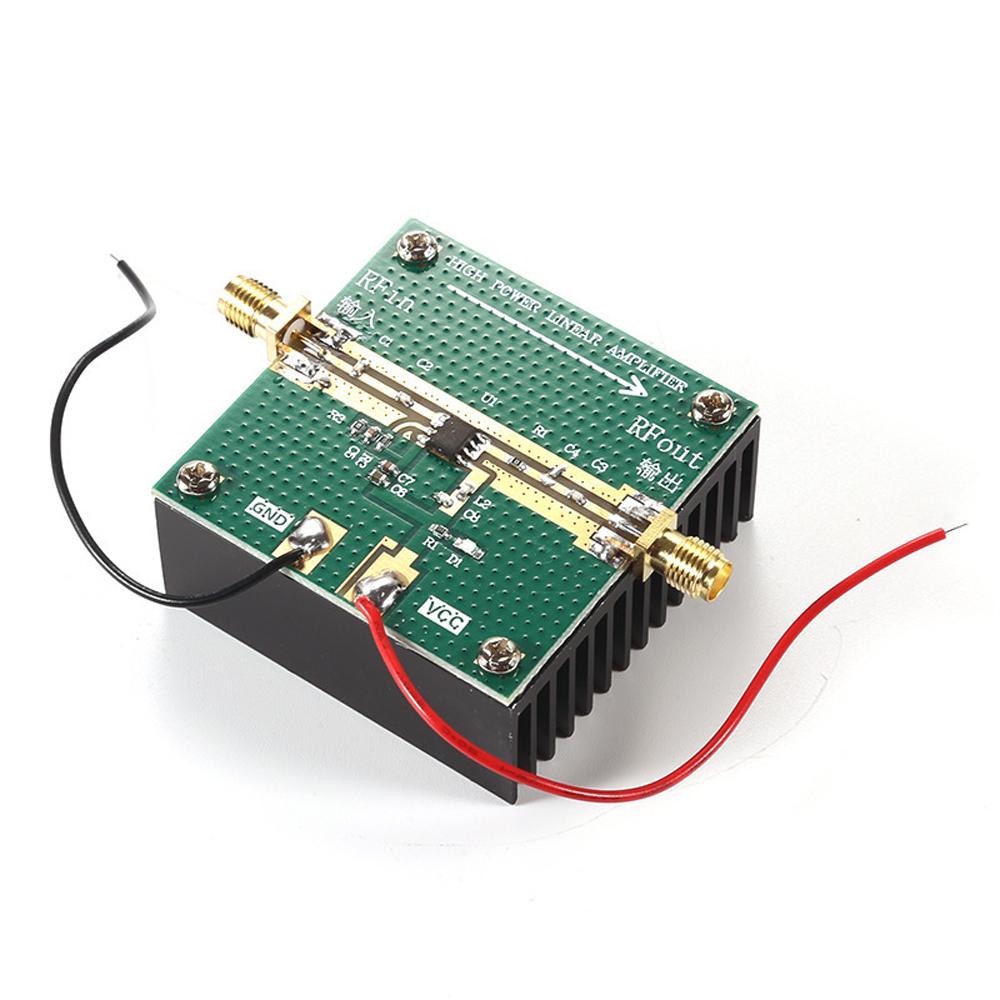

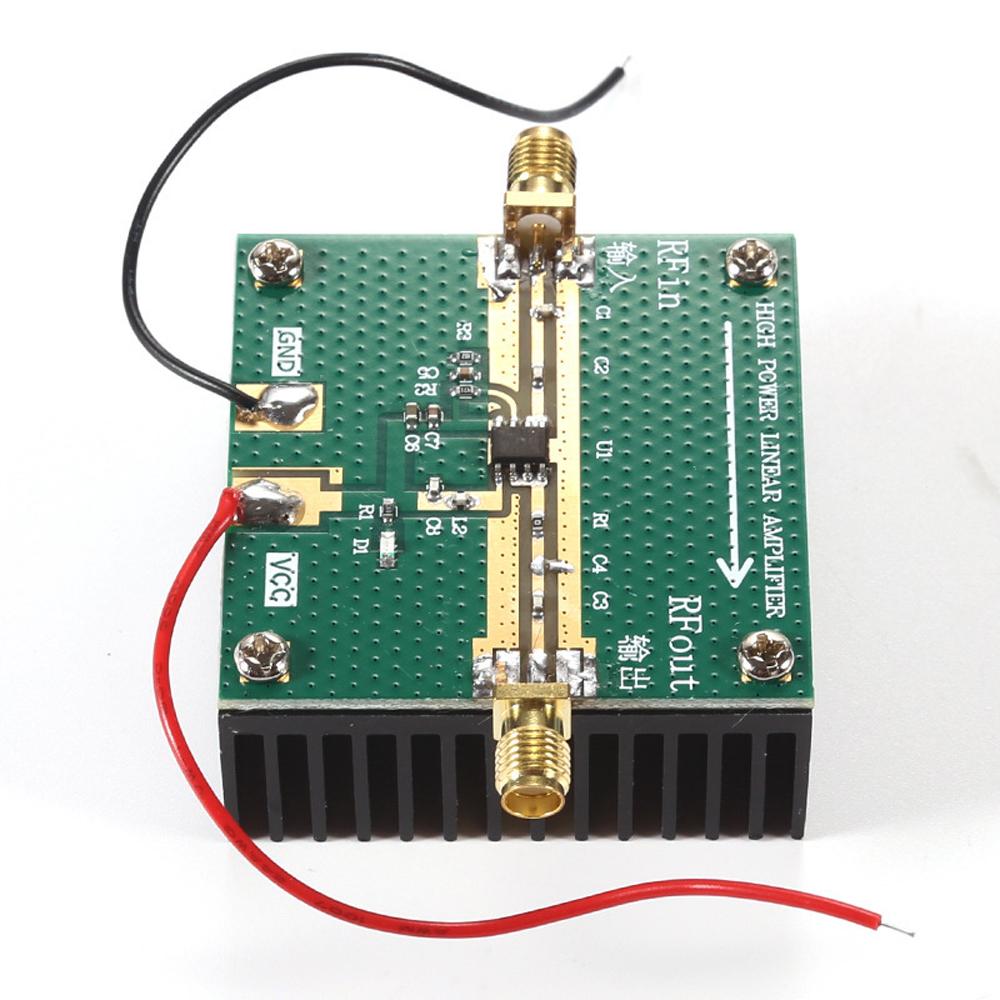

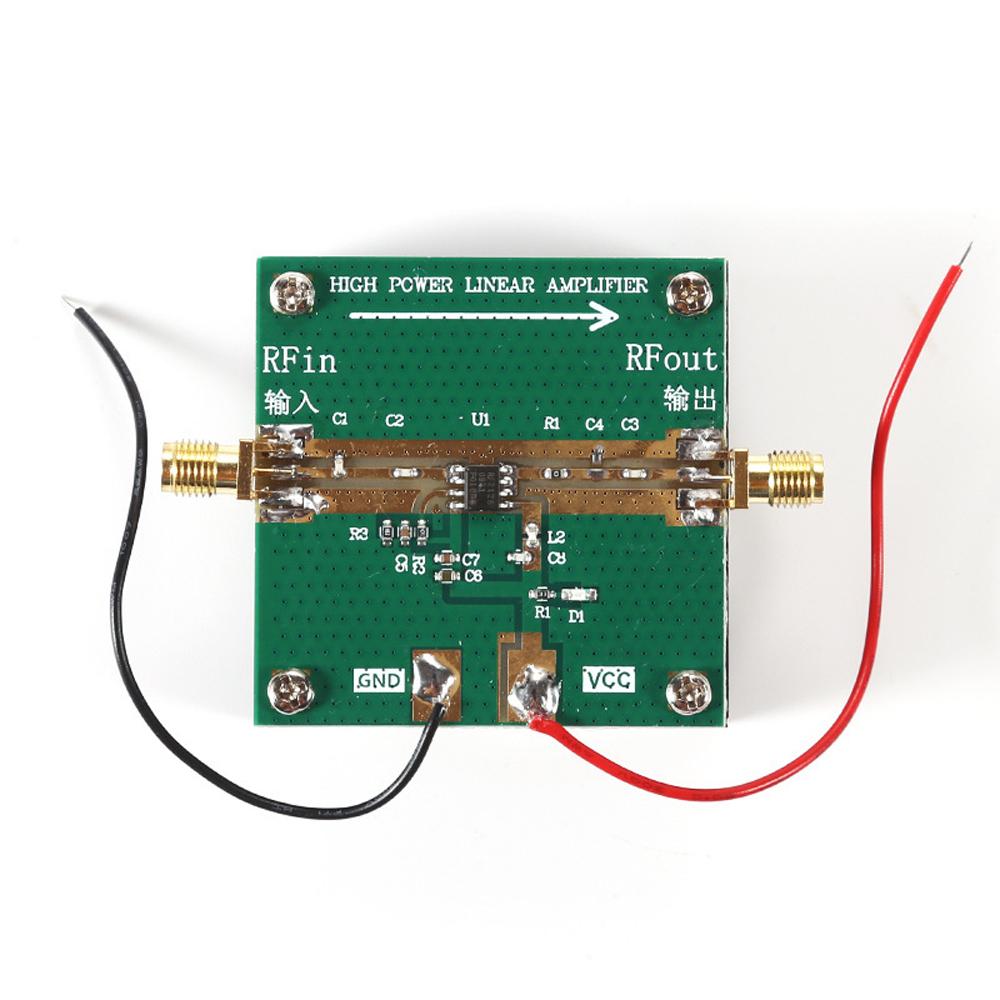

RF2126 400M2700MHz RadioFrequency Power Amplifier Linear Amplifier with HeatSink 2.4GHz 1W

The RF2126 is a highpower, highefficiency, linear amplifier. The deviceis manufactured on anAdvanced Gallium Arsenide Heterojunction BipolarTransistor(HBT) process and has been designed for use as the final RFamplifier in 2.45 GHZ ISM applications such as WLAN and Pos teminals. The part will also function as the final stage in transmitters requiring linear amplification operating between 400MHZ and 2700 MHZ.

Features: 36Volt powerSupply. 1W output power. 12dB gain. 45percent efficiency. Power down mode.

Specifications: PowerSupply: 6Volt (500mA @maximum power output) Gain: 12dB@2450MHz Overall Size: 70 * 50 * 20mm 2.8 * 2.0 * 0.8in(Including the size of SMA connector) Size: 50 * 50 * 20mm 2.0 * 2.0 * 0.8in(Not including the size of SMA connector) P1dB=30dB1W@2450MHz (Default Delivery) Working Frequency: 4002700MHz Input & Output Impedance: 50 Ohm Package Size: 80 * 60 * 30mm 3.1 * 2.4 * 1.2in Package Weight: 75g 2.6ounce

Package List: 1 * Power Amplifier
