Description:

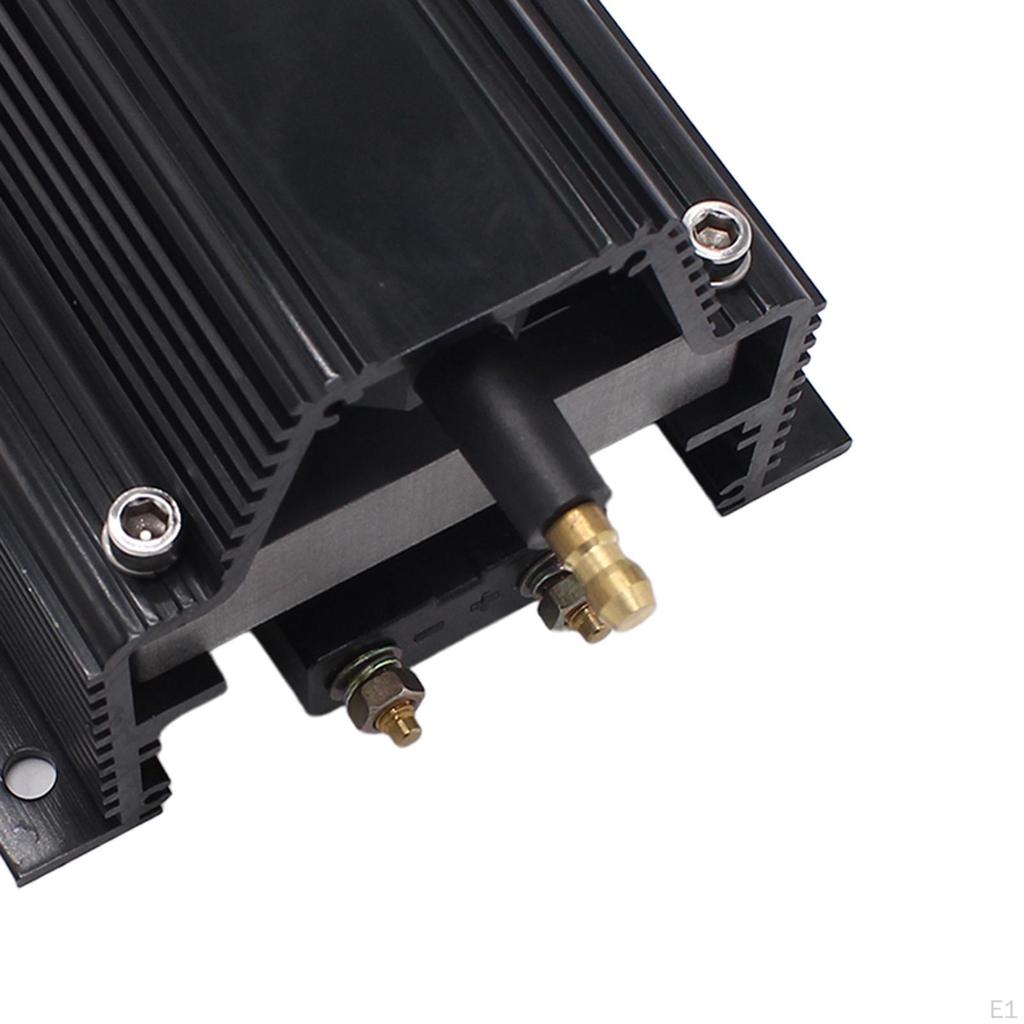

- 【Premium Material】: The High Output Ignition Coil is made from premium metal, ensuring wear resistance, durability, and long term use
- 【E Core Technology】: Creates a hotter more efficient spark for smooth accelerating through the entire RPM band; Large gauge internal wire windings for maximum spark current and voltages
- 【Function】: The extruded aluminum heat shield protects from engine heat and dissipates heat better on high speed; High voltages arcing is minimized through screw on connector and a high tension tower; This unit is ideal for street, strip, circle track, and race applications
- 【Specification】: Suitable for Capacitive Discharge (CD) Ignition Systems and Other Aftermarket High Output Ignition Systems, including Premium Ignition Systems; 12V External Ignition Coil; Male HEI Connector; Voltages: 50,000 Volts Maximum; Turns Ration: 100 to 1; Primary Resistance: 0.400Ohms; Secondary Resistance: 4800Ohms; Spark Duration: 250uS; Peak Current: 260mA; Inductance: 7mH; Aluminum Heat Shield

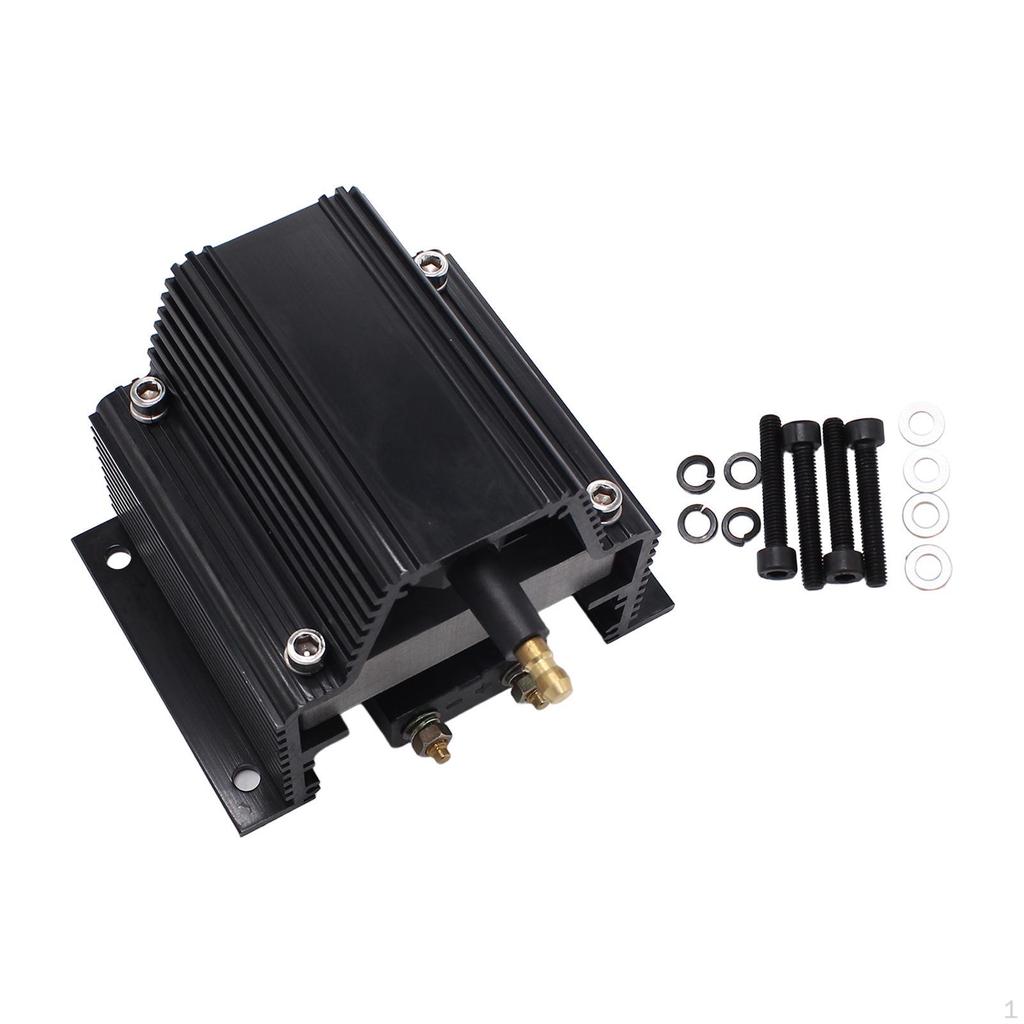

- 【Package Includes】: 1 Set of High Output Ignition Coil
Size Chart:
Package Size: 14cmx14cmx10cm/5.51inchx5.51inchx3.94inch
Package Includes:
1 Set of High Output Ignition Coil
Note:
Please allow slightly errors 1-2cm differences due to manual measurement.
