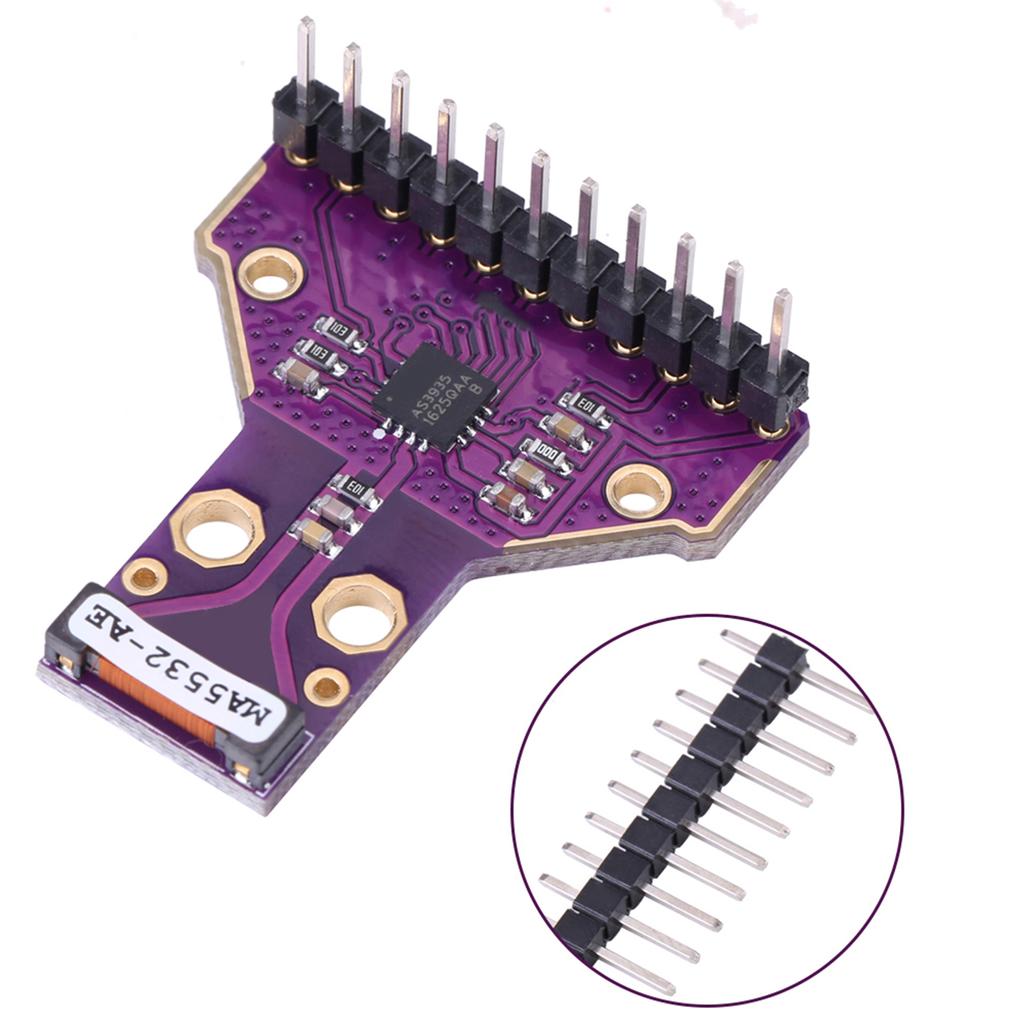

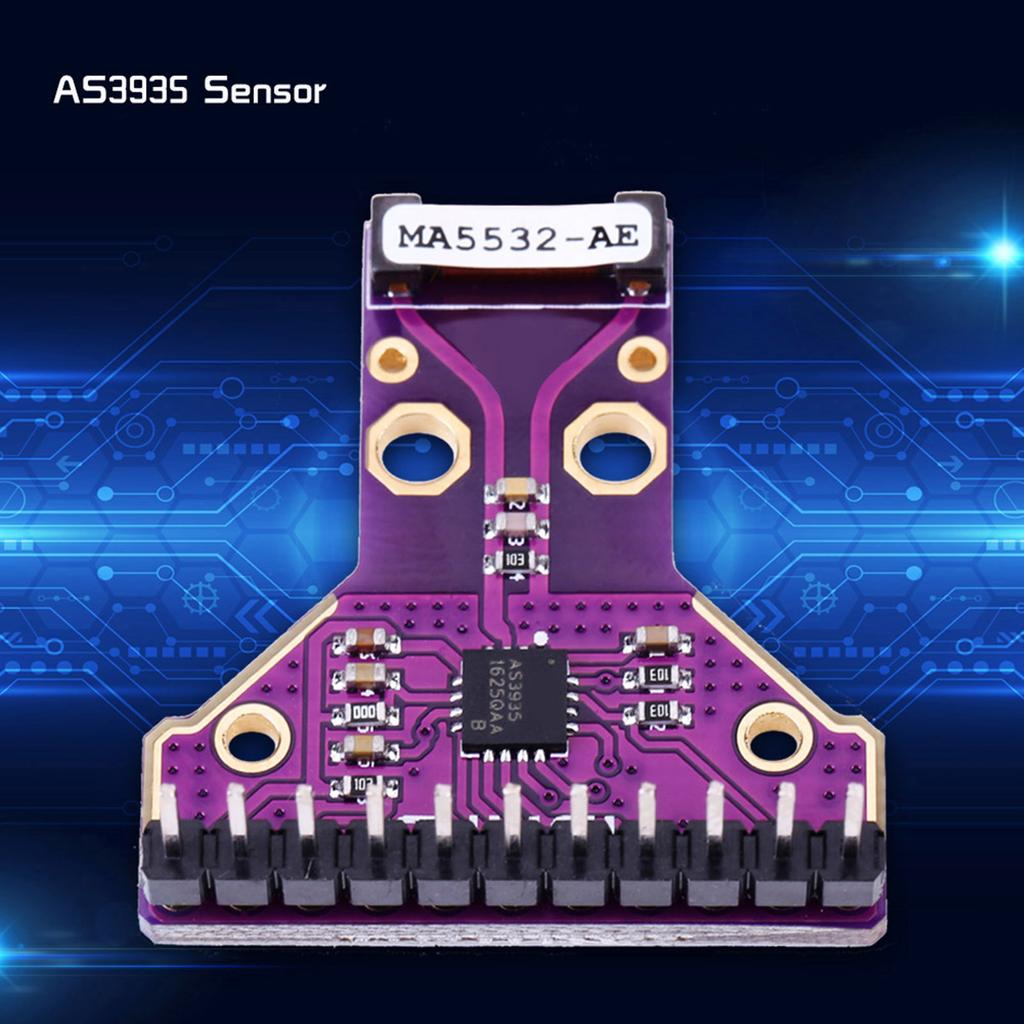

AS3935 I2C SPI Strike Storm Distances Detector Sensor

Description: Based on the AMS reference design, this is a board for the AS3935 digital sensor. With a specially tuned , SPI or I2C interfacing and a wide 2.4V to 5.5V standard operating range, this innovative sensor is designed to interface with most current development systems and boards. The board features an inductor () specially designed for this application, This ensures that you don\'t have to write a massive back-end to support low-level IC calibration. Features: Detects both cloud-to-ground and cloud-to-cloud flashes Estimates distance to strikes between 1km and 40km in 14 steps Embedded \"man made\" disturbance rejection algorithm Detection thresholds are programmable (outdoor vs indoor, for example) Wide supply voltage range: 2.4V -5.5V SPI and I2C supported by default, I2C address 0x03

board ships fully calibrated Applications:Weather stations,Sports electronic equipment,Cell phones,Smart watches, equipment Specifications: Model: AS3935 Voltage : 2.4V -5.5V Size: 3 x 2.5 x 1.2 cm/1.2 x 1.0 x 0.5inch Weight: 4g Package included: 1 x Sensor
