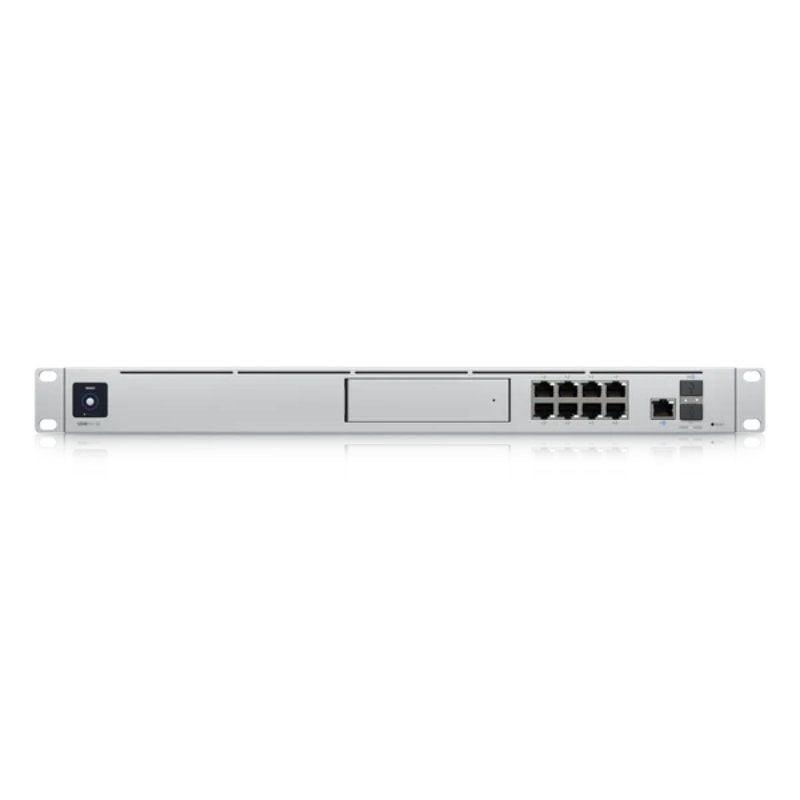

All-in-one router and security gateway with an integrated PoE switch and network video recorder.Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS console capable of helping home and business owners scale and manage their networks seamlessly with high-speed dual WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit switch, PoE and a network video recorder (NVR) with 128 GB of internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, talk phones, and Access readers.. It's also a future-proof console as it will be able to run all upcoming UniFi OS apps.. Designed for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial installation and configuration process, which can be completed in minutes with the UniFI Network app (web or mobile). Mechanical Dimensions 442.4 x 43.7 x 285.6 mm Weight 4.95 kg Product Materials Aluminum CNC, SGCC Steel Mounting Material SGCC Steel Rack Mount Hardware Quad-Core ARM® Cortex® Processor -A57 a 1 .7 GHz 4GB DDR4 System Memory 16GB eMMC Onboard Storage 128GB Integrated SSD IDS/IPS Performance 3.5Gb/s* *Measured with iPerf3 max. energy consumption (excluding PoE output)50W Power Method (1) Universal AC input, 100-240 VAC, 4.4 A max, 50/60 Hz (1) DC input USP-RPS, 52 VDC, 3.94 A AC/DC power supply, internal, 240W Supported voltage range 100 to 240 VAC Management interfaces Ethernet Bluetooth Network interfaces (1) WAN: 2.5GbE RJ45 port (8) LAN: 1GbE RJ45 ports SFP+ interfaces (1) WAN: 10G SFP+ (1) LAN: 10G SFP+ PoE interfaces (2) PoE+ (pair A 1, 2+; 3, 6-) (6) PoE (pair A 1, 2+; 3, 6-) max. PoE Wattage per Port per PSE PoE 15.4W Max. PoE Wattage per Port per PSE PoE+ 30W Voltage Range PoE Mode 44 to 57V Voltage Range PoE+ Mode 50 to 57V ESD/EMP Protection Air: ±15 kV, contact: ±8 kV LCM display (1) 1.3' touch screen Boot animation: boot in progress Firmware update icon: Firmware Update Button Factory Reset Operating Temperature -10 to 40°C (14 to 104°F) Operating humidity 5 - 95% non-condensing Certifications CE, FCC, CI Ethernet LED White: SFP+ link/activity White: white hard drive link/activity: Amber disk activity: RPS Blue disk error: Ready Claims will only be attended to up to 5 days after receiving your order
