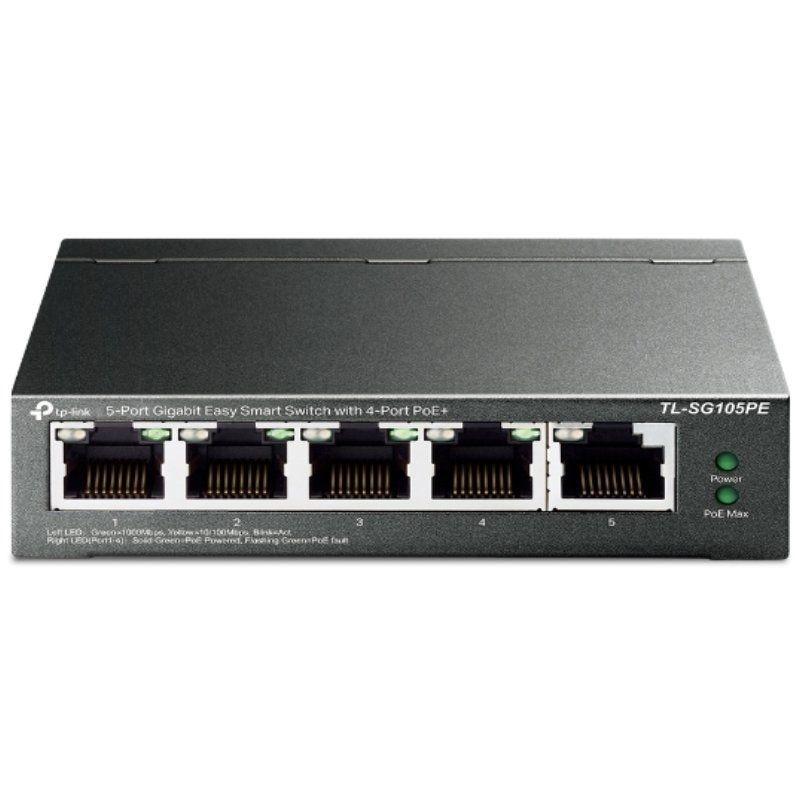

Multiple Application ScenariosThe TL-SG105PE fully supports PoE devices such as IP cameras, access points and IP phones. Also works with non-PoE wired devices such as PCs, printers and IPTV. Five 10/100/1000 Mbps RJ45 ports Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power are supported. can transfer on a single cable Supports up to 65W full PoE power *Provides network monitoring, traffic prioritization, VLAN features, and automatic PoE recovery Simple network setup plus plug-and-play connectivity Web-based user interface and Easy Smart Configuration Utility simplify setup Fanless design reduces power consumption and eliminates operating noise 4 dedicated PoE+ ports (Total PoE 65W) for numerous applicationsCompliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total PoE power output of 65W* for the 4 Gigabit PoE+ ports makes it have a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc. Making management easierTL-SG105PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. Durable metal casing TL-interior components SG105PE are protected by high quality metal casing to ensure long product life. Having passed a series of strict reliability tests, TL-SG105PE offers switching performance you can trust. HARDWARE FEATURES Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1 q, IEEE 802.1p, IEEE 802.3atInterfaceFive 10/100/1000 Mbps RJ45 portsAUTO / AUTO MDI / MDIX negotiationNetwork Media10BASE-T: UTP cable category 3, 4, 5 (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: Category 5, 5e UTP cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP cable category 5, 5e, 6 or higher (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)Number of Fans Fanless Power Supply External Power Adapter (exit: 53.5 V DC / 1.31 A)PoE ports (RJ45)Standard: compatible with 802.3 af/atPoE ports: Port 1- Port 4Total PoE power: 65 WDimensions99.8 × 98 × 25 mm (3.9 × 3.9 × 1 inch )Maximum Power Consumption4.52 W (220 V / 50 Hz without PD connected)75.16W (220 V / 50 Hz with 65 W PD connected)Max Heat Dissipation15.41 BTU/h (no PD connected)256.30 BTU/hr (with 65W PD connected)PERFORMANCESwitching Capacity10 GbpsPacket Forwarding Rate7.44 MppsMAC2 K Address TablePacket Buffer Memory1.5 MbJumbo Frame16 KBSOFTWARE FEATURESQuality of ServiceSupports port-based priority / 802.1p/DSCPSupports 4 priority queuesRate LimitL2 FeaturesIGMP Snooping V1/V 2/V3Aggregation of static linksPort mirroringCable diagnosticsLoop preventionPoE automatic recoveryExtended modeVLANSupports up to 32 VLANs simultaneously (4K VLAN ID)MTU/port/VLAN tagManagementWeb-based GUIEasy smart configuration utilityTransmission MethodStorage and ShippingOTHERCertificationsFCC, CE, RoHSPackage Contents TL-SG105PEPower AdapterInstallation GuideRubber FeetSystem RequirementsMicrosoft® Windows® to run the utilityEnvironmental FactorsOperating Temperature: 0℃~40℃ (32℉~104℉)Storage temperature: -40℃~70℃ (-40℉~158℉)Operating humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 95% RH without condensation Claims will only be attended to up to 5 days after receiving your order
