Description:

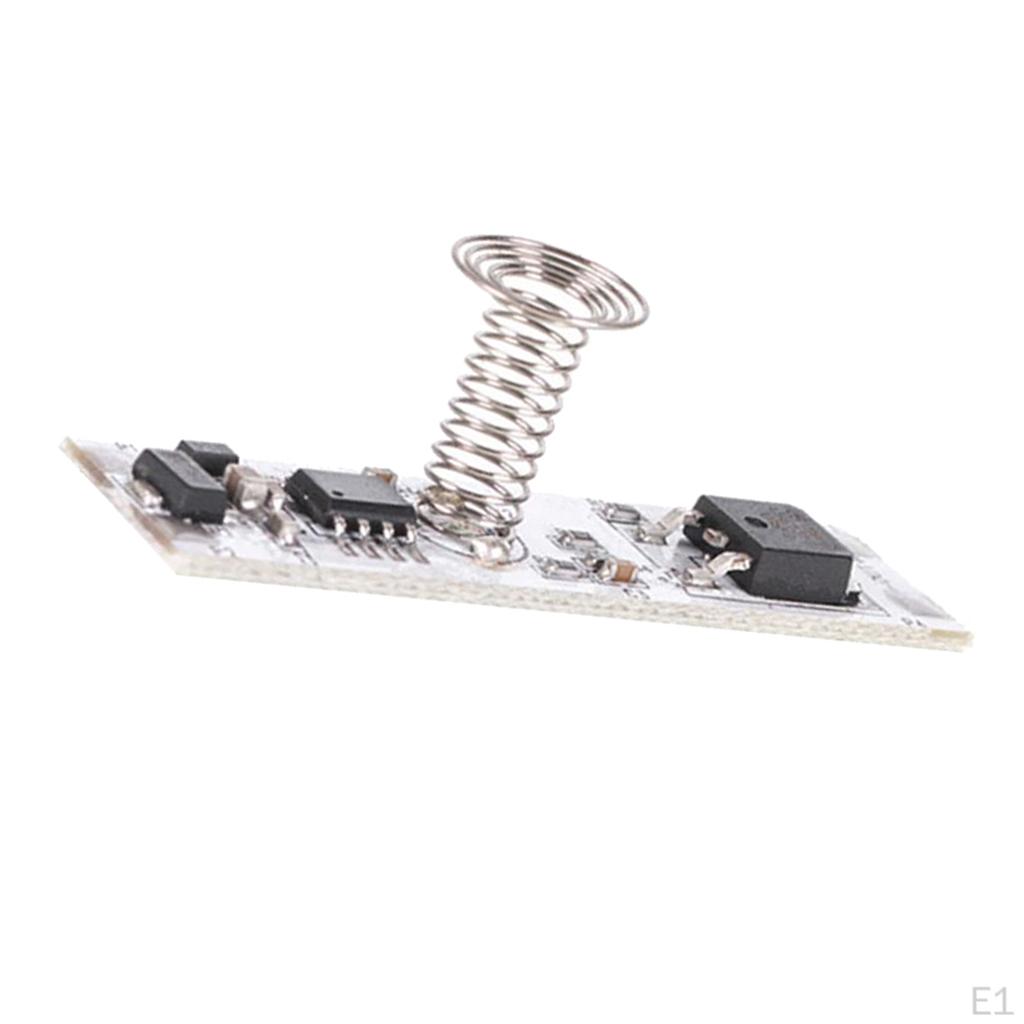

- Module size 40mm x10x1.2 (mm), for width> = 10mm of the hard other lamps;
- Using a wide voltage work program, the input voltage 12V can be,
- Note that the output load voltage is approximately equal to the input voltage;
- Module anti-interference and self-adaptability is better, widely used in civilian type control
- The status of this version LED is always on.
- This series is version of the model,
- The default factory setting is one-way dimming
Specification:
- 1. Input voltage: 9v-24v
- 2. Output voltage: 9v-24v
- 3. Load power: 30W
- 4. Load current: 3A
- 5. Standby current: 10mA
- 6. Standby power consumption: 0.1w
- 7. Operating temperature: -20 ℃~ 65 ℃
- 8. Type: Touch_S (L40W10)
- (Note: test conditions Vin = 12V)
Package Includes:
1 Piece Module
Note:
It is required to install and then power on. If the power supply is installed,
May change the environmental parameters, may affect the sensitivity.
installation, please avoid contact
with the electromagnetic signal changes in the complex contacts,
avoid the use of heavy water for environment,
to prevent possible malfunctions.
Please understand the product operating parameters before use
