For 3D8 DIY 8x8x8 LED 3D Light Electronic Soldering Kit Board

Description:

- DIY 3D8 LED mini Cube 8x8x8 CUBE 8 Kits

- User should weld and install it.requires a certain electronic basis and welding ability.

- CUBE 8 Light Cube has 8 layers. One layer consists of 8*8=64 LEDs, all 512 LEDs. These 512 LEDs need to be built by yourself.

- Our control board is industrial board PCB.

- It Has much effect

Specification:

- Supply voltage: 4.5-5.5V

- PCB board size: 11.1CM*12.7CM

- Kit weight: 240 grams

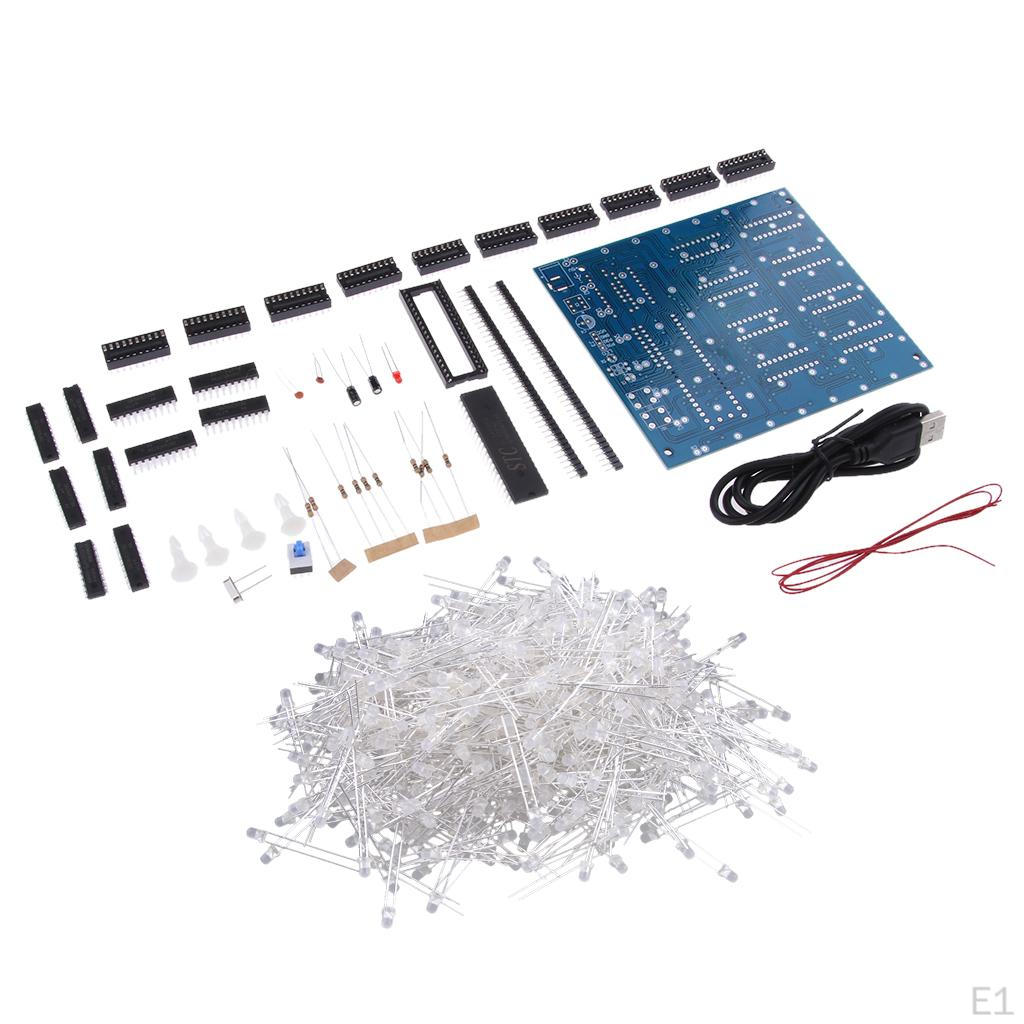

- 3D8 Light Cube shipment list: (parts of electronic components are allocated between 1 and 2).

- PCB board x1

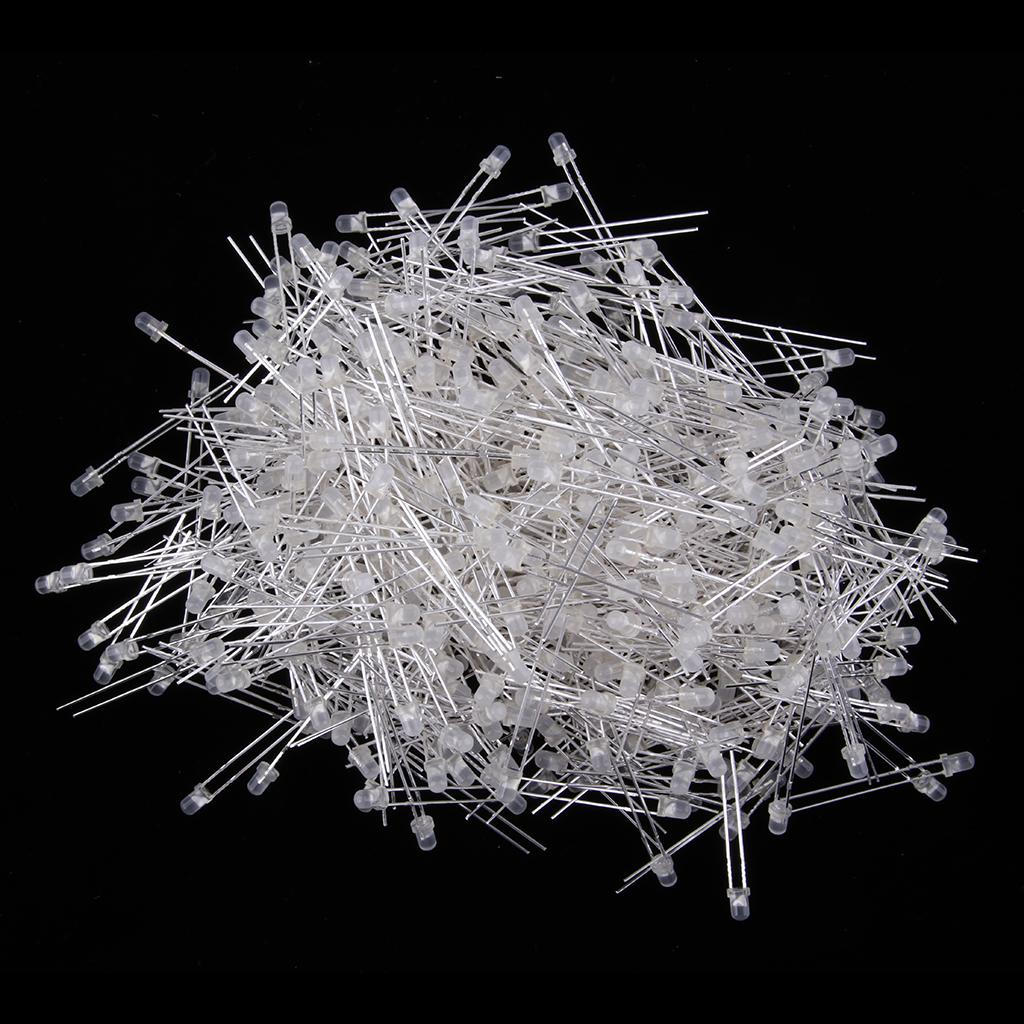

- 3MM white haired blue super bright LED is about 550 (actually needs 512).

- 40P circular row Female x2

- 20P IC Socket x9

- 74HC573 chip directly into Plug x9

- USB to DC005 line x1

- DC005 Socket x1

- 18P IC Socket x1

- ULN2803 chip x1

- 40P IC seat x1

- STC12C5A60S2 (write program) x1

- A09-103 exclusion x1

- 8*8 self lock switch x1

- 10UF/25V electrolytic capacitor x2

- 12M crystal oscillator x1

- 22P porcelain capacitor 2

- 470 European resistor direct insertion x8

- 4.7K resistor direct insertion x2

- LED 3MM x1

- 0.8 single core conductor x1

Package Includes: 1 Piece DIY 3D8 LED mini Cube 8x8x8 CUBE 8 Kits
