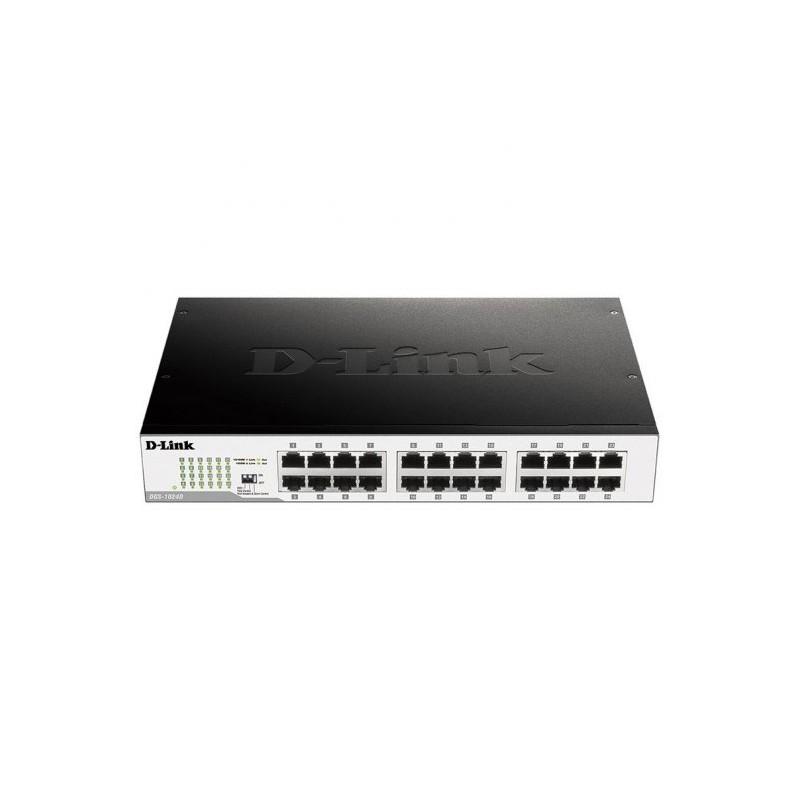

D-Link DGS-1024D switch, a desktop switch with 24 10/100/1000 Mbps ports that offers high performance in a device that allows us to save space and money. Another feature on this switch is that all ports automatically negotiate the MDI/MDIX mode setting. (Up Link), avoiding the need to create crossover pair cables.StandardsThe D-Link DGS-1024D switch supports IEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T and 803.3x flow control. This switch is equipped to auto negotiate speeds at 10 Mbps, 100 Mbps and 1000 Mbps. Flow Control. The DGS-1024D Switch, in Full-Duplex mode, protects users against possible data loss during network transmission. When connected to a LAN card (on a server or PC) that supports flow control, and when the data buffer is about to fill, the switch sends a signal to the PC indicating such a situation. The PC then delays transmission until the buffer has been freed and more information can be sent. D-Link Green energy-saving technologies. Incorporates new energy saving technologies. By detecting whether connected devices are on or off and estimating cable length, the switch is able to adjust its power consumption, resulting in savings of up to 73%.Specifications:Connection:-network standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x-Support 10G: Non-Copper Ethernet Cabling Technology: 10BASE-T,100BASE-T,1000BASE-T-Supported Cable Types: Cat3, Cat4, Cat5, Cat5e-Full Bidirectional (Full duplex): Yes-Support flow control: Yes-Storm Transmission Control: Si-Auto MDI / MDI-X: Yes-Activation Link Detection: Yes-Supports MAC address auto-learning: Yes-Support MAC address auto-aging: YesData transmission:-switching capacity: 48 Gbit/s-Forwarding Rate: 35.71 Mpps-MAC Address Table: 8000 entries-Save and forward: Yes-Number of queues: 8-Jumbo Frames, stand: Yes-Jumbo Frames: 10000-Packet redirection speed (1Gbps): 14880 pps-Packet Redirection Rate (100Mbps): 148800 pps-Packet Redirection Rate (10Mbps): 1488000 pps-Packet Buffer: 0.5 MBDesign:-rackmount: Yes-Stackable: Yes-Form Factor: 1U-Product Color: Black, White - Housing Material: Metal-LED Indicators: Activity, Link, Power, Speed-Electromagnetic Compatibility: ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC-Certification: cUL/UL CE LVD CCC CB BSMIPerformance:-Mean time between failure: 863100 hoursAdministration features:-switch type: Unmanaged-Quality of Service (QoS) support: YesPorts and Interfaces:-Basic RJ-45 Ethernet Switch Port Quantity: 24-Port Basic RJ-45 Ethernet Switching Type: gigabit ethernet (10/100/1000)-Electric connector: Power Connector AC-inPower Control:-power supply included: Yes-AC input voltage: 100 - 240 V-AC input frequency: 50/60 Hz-Input Current: 0.3 A-Power consumption (max): 13.3 W-Power over Ethernet (PoE): NoEnvironmental conditions:-Operating temperature range: 0 - 40 °C-Storage temperature range: -10 - 70 °C-Relative humidity range for operation: 0 - 95%-Relative humidity range during storage: 0 - 95%-Heat dissipation: 45.35 BTU/hWeight and dimensions:-Width: 280mm-Depth: 180mm-Height: 44mm-Weight: 1.3 kg Claims will only be processed up to 5 days after receiving your order
